摘要

本文深入探讨了现代人工智能开发流程中的三大关键工具类别：智能编码工具（以GitHub Copilot为代表）、数据标注工具和模型训练平台。通过详细的代码示例、流程图解、Prompt工程案例和可视化图表，全面分析了各类工具的技术原理、应用场景和最佳实践。文章旨在为开发者、数据科学家和AI从业者提供一份全面的技术参考，帮助其在实际工作中高效利用这些工具，提升AI项目开发效率和质量。

1. 智能编码工具：GitHub Copilot深度解析

1.1 技术原理与架构

GitHub Copilot是基于OpenAI Codex模型的AI编程助手，其核心技术架构基于Transformer架构的大规模预训练模型。Codex是在GPT-3基础上使用大量公开代码数据进行微调得到的专用代码生成模型。

核心工作原理：

1. 代码上下文分析：Copilot分析当前文件的代码、注释和导入的库

2. 模式识别：识别代码中的模式、API使用惯例和编程范式

3. 多语言支持：支持Python、JavaScript、TypeScript、Ruby、Go等数十种编程语言

4. 智能补全：根据上下文提供单行、多行甚至整个函数的代码建议

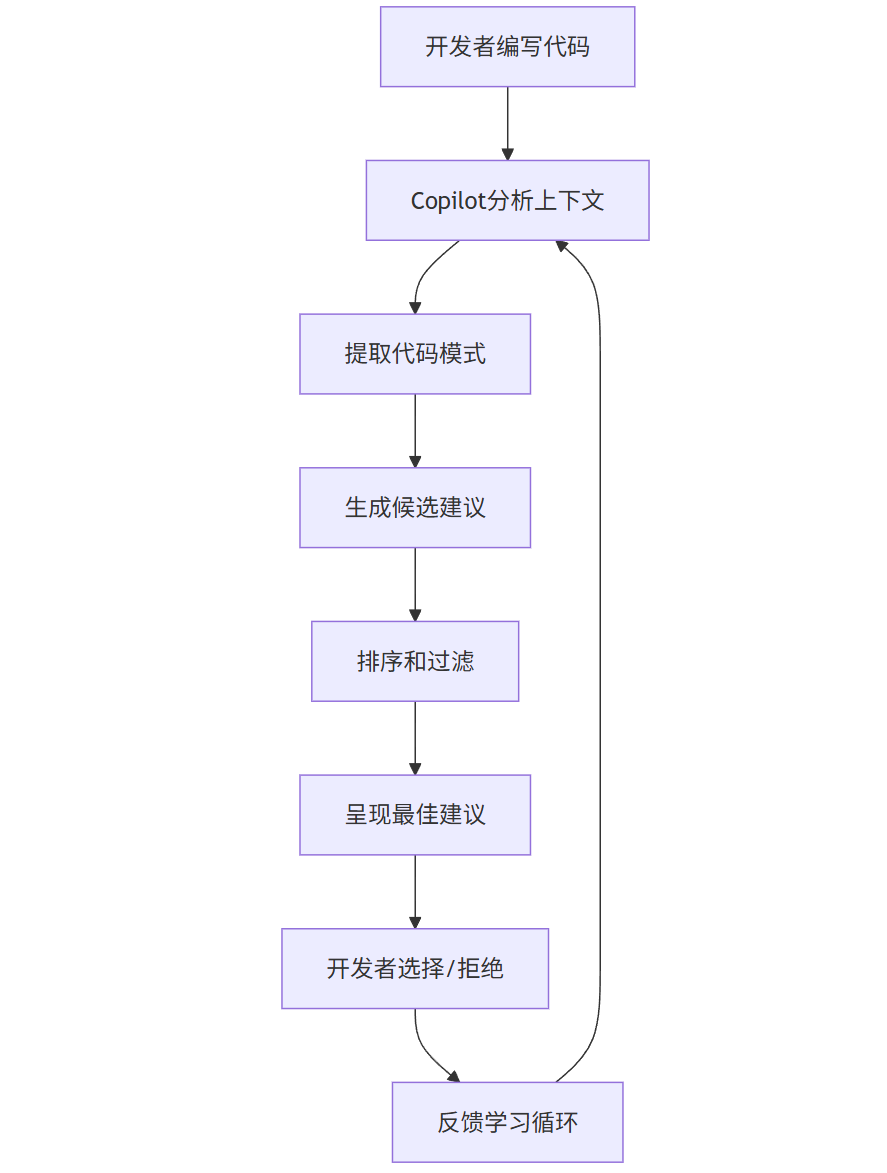

graph TB
    A[开发者编写代码] --> B[Copilot分析上下文]
    B --> C[提取代码模式]
    C --> D[生成候选建议]
    D --> E[排序和过滤]
    E --> F[呈现最佳建议]
    F --> G[开发者选择/拒绝]
    G --> H[反馈学习循环]
    H --> B

1.2 核心功能与代码示例

1.2.1 函数自动补全

Copilot能够根据函数名和注释自动生成完整的函数实现。

python

# 示例1：根据函数签名和注释生成代码
def calculate_circle_area(radius: float) -> float:
    """
    计算圆的面积
    参数:
        radius: 圆的半径
    返回:
        圆的面积
    """
    # Copilot会自动建议以下代码
    return 3.14159 * radius ** 2

# 示例2：数据处理函数
def normalize_data(data: list, min_val: float, max_val: float) -> list:
    """
    将数据标准化到指定范围
    参数:
        data: 原始数据列表
        min_val: 标准化后的最小值
        max_val: 标准化后的最大值
    返回:
        标准化后的数据列表
    """
    # Copilot会自动建议以下代码
    data_min = min(data)
    data_max = max(data)
    normalized = [(x - data_min) / (data_max - data_min) for x in data]
    return [x * (max_val - min_val) + min_val for x in normalized]

1.2.2 测试用例生成

Copilot可以基于现有代码自动生成测试用例。

python

# 原始函数
def fibonacci(n: int) -> int:
    """
    计算斐波那契数列的第n项
    """
    if n <= 1:
        return n
    return fibonacci(n-1) + fibonacci(n-2)

# Copilot生成的测试用例
def test_fibonacci():
    # 测试前几项
    assert fibonacci(0) == 0
    assert fibonacci(1) == 1
    assert fibonacci(2) == 1
    assert fibonacci(3) == 2
    assert fibonacci(4) == 3
    assert fibonacci(5) == 5
    assert fibonacci(6) == 8

    # 测试负数
    try:
        fibonacci(-1)
        assert False, "应该抛出异常"
    except ValueError:
        pass

    # 测试大数性能
    assert fibonacci(10) == 55

    print("所有测试通过!")

test_fibonacci()

1.2.3 算法实现

Copilot能够实现常见的算法和数据结构。

python

# 快速排序算法实现
def quicksort(arr):
    """
    实现快速排序算法
    参数:
        arr: 待排序的列表
    返回:
        排序后的列表
    """
    if len(arr) <= 1:
        return arr
    pivot = arr[len(arr) // 2]
    left = [x for x in arr if x < pivot]
    middle = [x for x in arr if x == pivot]
    right = [x for x in arr if x > pivot]
    return quicksort(left) + middle + quicksort(right)

# 使用示例
unsorted_list = [3, 6, 8, 10, 1, 2, 1]
sorted_list = quicksort(unsorted_list)
print(f"排序前: {unsorted_list}")
print(f"排序后: {sorted_list}")

1.3 Prompt工程最佳实践

1.3.1 有效的注释提示

python

# 不好的提示方式：
# 做一个函数

# 好的提示方式：
def find_common_elements(list1: list, list2: list) -> list:
    """
    找到两个列表中的共同元素，返回去重后的排序列表
    示例:
        find_common_elements([1, 2, 3], [2, 3, 4]) -> [2, 3]
    参数:
        list1: 第一个列表
        list2: 第二个列表
    返回:
        共同元素的排序列表
    """
    # Copilot会自动生成高效的实现
    return sorted(set(list1) & set(list2))

1.3.2 上下文丰富的提示

python

# 导入必要的库
import pandas as pd
import numpy as np
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split

# 定义数据加载函数
def load_and_preprocess_data(file_path: str) -> tuple:
    """
    加载CSV数据并进行预处理:
    1. 处理缺失值
    2. 标准化数值特征
    3. 分割训练测试集
    参数:
        file_path: CSV文件路径
    返回:
        (X_train, X_test, y_train, y_test)
    """
    # Copilot会根据导入的库和详细的注释生成完整的数据处理流程
    df = pd.read_csv(file_path)

    # 处理缺失值：数值列用均值填充，分类列用众数填充
    for column in df.columns:
        if df[column].dtype in ['int64', 'float64']:
            df[column].fillna(df[column].mean(), inplace=True)
        else:
            df[column].fillna(df[column].mode()[0], inplace=True)

    # 分离特征和目标
    X = df.drop('target', axis=1)
    y = df['target']

    # 标准化数值特征
    numeric_features = X.select_dtypes(include=['int64', 'float64']).columns
    scaler = StandardScaler()
    X[numeric_features] = scaler.fit_transform(X[numeric_features])

    # 分割数据集
    X_train, X_test, y_train, y_test = train_test_split(
        X, y, test_size=0.2, random_state=42, stratify=y
    )

    return X_train, X_test, y_train, y_test

1.4 高级应用场景

1.4.1 数据库操作自动化

python

import sqlite3
from contextlib import contextmanager

@contextmanager
def database_connection(db_path: str):
    """
    创建数据库连接上下文管理器
    参数:
        db_path: 数据库文件路径
    返回:
        数据库连接对象
    """
    conn = sqlite3.connect(db_path)
    try:
        yield conn
    finally:
        conn.close()

def create_user_table(conn: sqlite3.Connection):
    """
    创建用户表，包含id、用户名、邮箱和创建时间字段
    参数:
        conn: 数据库连接对象
    """
    # Copilot会生成完整的SQL语句
    cursor = conn.cursor()
    cursor.execute('''
        CREATE TABLE IF NOT EXISTS users (
            id INTEGER PRIMARY KEY AUTOINCREMENT,
            username TEXT UNIQUE NOT NULL,
            email TEXT UNIQUE NOT NULL,
            created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
        )
    ''')
    conn.commit()

def add_user(conn: sqlite3.Connection, username: str, email: str) -> int:
    """
    添加新用户到数据库
    参数:
        conn: 数据库连接对象
        username: 用户名
        email: 邮箱地址
    返回:
        新用户的ID
    """
    # Copilot会生成参数化查询，防止SQL注入
    cursor = conn.cursor()
    cursor.execute(
        'INSERT INTO users (username, email) VALUES (?, ?)',
        (username, email)
    )
    conn.commit()
    return cursor.lastrowid

1.4.2 API开发辅助

python

from fastapi import FastAPI, HTTPException
from pydantic import BaseModel
from typing import List

app = FastAPI()

class Item(BaseModel):
    name: str
    description: str = None
    price: float
    tax: float = None

class ItemResponse(BaseModel):
    id: int
    name: str
    price: float
    final_price: float

# 内存中的临时存储
items_db = []
current_id = 0

@app.post("/items/", response_model=ItemResponse)
async def create_item(item: Item):
    """
    创建新商品
    参数:
        item: 商品信息
    返回:
        创建的商品信息，包含计算后的最终价格
    """
    # Copilot会根据FastAPI的约定生成完整的路由处理函数
    global current_id
    current_id += 1

    # 计算最终价格（含税）
    tax_rate = item.tax if item.tax is not None else 0.1
    final_price = item.price * (1 + tax_rate)

    # 创建响应对象
    response_item = {
        "id": current_id,
        "name": item.name,
        "price": item.price,
        "final_price": round(final_price, 2)
    }

    # 保存到数据库（这里用内存列表模拟）
    items_db.append(response_item.copy())
    response_item["id"] = current_id

    return response_item

@app.get("/items/", response_model=List[ItemResponse])
async def read_items(skip: int = 0, limit: int = 10):
    """
    获取商品列表，支持分页
    参数:
        skip: 跳过的记录数
        limit: 返回的最大记录数
    返回:
        商品列表
    """
    return items_db[skip:skip + limit]

2. 数据标注工具：智能化数据准备

2.1 数据标注工具生态系统

现代数据标注工具已经发展成为集自动化标注、质量控制和团队协作为一体的综合平台。以下是主流数据标注工具的功能对比：

工具名称	自动化能力	协作功能	支持数据类型	集成能力
LabelStudio	中等	强大	图像、文本、音频、视频	丰富的API
CVAT	高	中等	图像、视频	有限的API
Prodigy	非常高	基础	文本、图像	强大的API
Scale AI	极高	强大	多模态	企业级集成

2.2 自动化标注技术

2.2.1 基于预训练模型的自动标注

python

import cv2
import numpy as np
from transformers import DetrImageProcessor, DetrForObjectDetection
from PIL import Image
import torch

class AutoImageAnnotator:
    def __init__(self):
        self.processor = DetrImageProcessor.from_pretrained("facebook/detr-resnet-50")
        self.model = DetrForObjectDetection.from_pretrained("facebook/detr-resnet-50")

    def detect_objects(self, image_path: str, confidence_threshold: float = 0.7):
        """
        使用DETR模型自动检测图像中的物体
        参数:
            image_path: 图像文件路径
            confidence_threshold: 置信度阈值
        返回:
            标注信息列表
        """
        # 加载和预处理图像
        image = Image.open(image_path)
        inputs = self.processor(images=image, return_tensors="pt")

        # 推理
        with torch.no_grad():
            outputs = self.model(**inputs)

        # 后处理
        target_sizes = torch.tensor([image.size[::-1]])
        results = self.processor.post_process_object_detection(
            outputs, target_sizes=target_sizes, threshold=confidence_threshold
        )[0]

        # 提取标注信息
        annotations = []
        for score, label, box in zip(
            results["scores"], results["labels"], results["boxes"]
        ):
            box = [round(i, 2) for i in box.tolist()]
            annotation = {
                "label": self.model.config.id2label[label.item()],
                "score": round(score.item(), 3),
                "bbox": box,
                "center_x": round((box[0] + box[2]) / 2, 2),
                "center_y": round((box[1] + box[3]) / 2, 2),
                "width": round(box[2] - box[0], 2),
                "height": round(box[3] - box[1], 2)
            }
            annotations.append(annotation)

        return annotations

# 使用示例
annotator = AutoImageAnnotator()
annotations = annotator.detect_objects("example.jpg")
print(f"检测到 {len(annotations)} 个物体")
for ann in annotations:
    print(f"{ann['label']}: 置信度 {ann['score']}, 位置 {ann['bbox']}")

2.2.2 主动学习与智能标注

python

from sklearn.ensemble import RandomForestClassifier
from sklearn.metrics import uncertainty_sampling
import numpy as np

class ActiveLearningAnnotator:
    def __init__(self, base_model=None):
        self.model = base_model or RandomForestClassifier(n_estimators=100)
        self.labeled_data = []
        self.labels = []
        self.unlabeled_data = []

    def add_labeled_data(self, features, label):
        """添加已标注数据"""
        self.labeled_data.append(features)
        self.labels.append(label)

    def add_unlabeled_data(self, features):
        """添加未标注数据"""
        self.unlabeled_data.append(features)

    def train(self):
        """训练模型"""
        if len(self.labeled_data) == 0:
            return

        X = np.array(self.labeled_data)
        y = np.array(self.labels)
        self.model.fit(X, y)

    def get_most_uncertain_samples(self, n_samples=5):
        """
        获取最不确定的样本，用于优先标注
        参数:
            n_samples: 需要获取的样本数量
        返回:
            最不确定的样本索引
        """
        if len(self.unlabeled_data) == 0:
            return []

        X_unlabeled = np.array(self.unlabeled_data)
        if len(self.labeled_data) > 0:
            self.train()
            probabilities = self.model.predict_proba(X_unlabeled)
            uncertainty_scores = uncertainty_sampling(probabilities)
            most_uncertain_indices = np.argsort(uncertainty_scores)[-n_samples:]
        else:
            # 如果没有已标注数据，随机选择
            most_uncertain_indices = np.random.choice(
                len(self.unlabeled_data),
                size=min(n_samples, len(self.unlabeled_data)),
                replace=False
            )

        return most_uncertain_indices.tolist()

# 使用示例
annotator = ActiveLearningAnnotator()

# 模拟添加一些未标注数据
for _ in range(100):
    features = np.random.randn(10)  # 10维特征
    annotator.add_unlabeled_data(features)

# 获取最需要标注的样本
uncertain_indices = annotator.get_most_uncertain_samples(5)
print(f"建议优先标注以下样本: {uncertain_indices}")

# 模拟人工标注过程
for idx in uncertain_indices:
    # 这里应该是人工标注界面
    features = annotator.unlabeled_data[idx]
    # 假设人工标注为类别1
    annotator.add_labeled_data(features, 1)
    print(f"已标注样本 {idx}")

# 重新训练模型
annotator.train()

2.3 数据标注质量控制

2.3.1 标注一致性检查

python

from collections import defaultdict
import numpy as np

class AnnotationQualityChecker:
    def __init__(self):
        self.annotations = defaultdict(list)
        self.annotators = set()

    def add_annotation(self, annotator_id, item_id, annotation):
        """添加标注记录"""
        self.annotations[item_id].append({
            'annotator': annotator_id,
            'annotation': annotation
        })
        self.annotators.add(annotator_id)

    def calculate_iou(self, box1, box2):
        """计算两个边界框的交并比"""
        x1 = max(box1[0], box2[0])
        y1 = max(box1[1], box2[1])
        x2 = min(box1[2], box2[2])
        y2 = min(box1[3], box2[3])

        intersection = max(0, x2 - x1) * max(0, y2 - y1)
        area1 = (box1[2] - box1[0]) * (box1[3] - box1[1])
        area2 = (box2[2] - box2[0]) * (box2[3] - box2[1])
        union = area1 + area2 - intersection

        return intersection / union if union > 0 else 0

    def check_consistency(self, iou_threshold=0.5):
        """
        检查标注一致性
        参数:
            iou_threshold: IoU阈值
        返回:
            一致性报告
        """
        report = {
            'item_consistency': {},
            'annotator_agreement': {annotator: [] for annotator in self.annotators},
            'overall_consistency': 0
        }

        total_agreement = 0
        total_comparisons = 0

        for item_id, annotations in self.annotations.items():
            if len(annotations) < 2:
                continue

            item_agreement = 0
            item_comparisons = 0

            # 比较所有标注者对同一项目的标注
            for i in range(len(annotations)):
                for j in range(i + 1, len(annotations)):
                    ann1 = annotations[i]['annotation']
                    ann2 = annotations[j]['annotation']

                    if isinstance(ann1, list) and isinstance(ann2, list):
                        # 对于目标检测任务，比较边界框
                        max_iou = 0
                        for box1 in ann1:
                            for box2 in ann2:
                                iou = self.calculate_iou(box1, box2)
                                max_iou = max(max_iou, iou)

                        agreement = 1 if max_iou >= iou_threshold else 0
                        item_agreement += agreement
                        item_comparisons += 1

                        # 记录标注者一致性
                        report['annotator_agreement'][annotations[i]['annotator']].append(agreement)
                        report['annotator_agreement'][annotations[j]['annotator']].append(agreement)

            if item_comparisons > 0:
                item_consistency = item_agreement / item_comparisons
                report['item_consistency'][item_id] = item_consistency
                total_agreement += item_agreement
                total_comparisons += item_comparisons

        if total_comparisons > 0:
            report['overall_consistency'] = total_agreement / total_comparisons

        return report

# 使用示例
quality_checker = AnnotationQualityChecker()

# 模拟添加标注数据
quality_checker.add_annotation('annotator1', 'image1', [[10, 10, 50, 50]])  # x1, y1, x2, y2
quality_checker.add_annotation('annotator2', 'image1', [[12, 12, 48, 48]])
quality_checker.add_annotation('annotator3', 'image1', [[15, 15, 45, 45]])

quality_checker.add_annotation('annotator1', 'image2', [[100, 100, 150, 150]])
quality_checker.add_annotation('annotator2', 'image2', [[50, 50, 100, 100]])  # 不一致的标注

# 检查一致性
report = quality_checker.check_consistency()
print(f"整体一致性: {report['overall_consistency']:.2f}")
print("标注者一致性:")
for annotator, agreements in report['annotator_agreement'].items():
    if agreements:
        avg_agreement = np.mean(agreements)
        print(f"  {annotator}: {avg_agreement:.2f}")

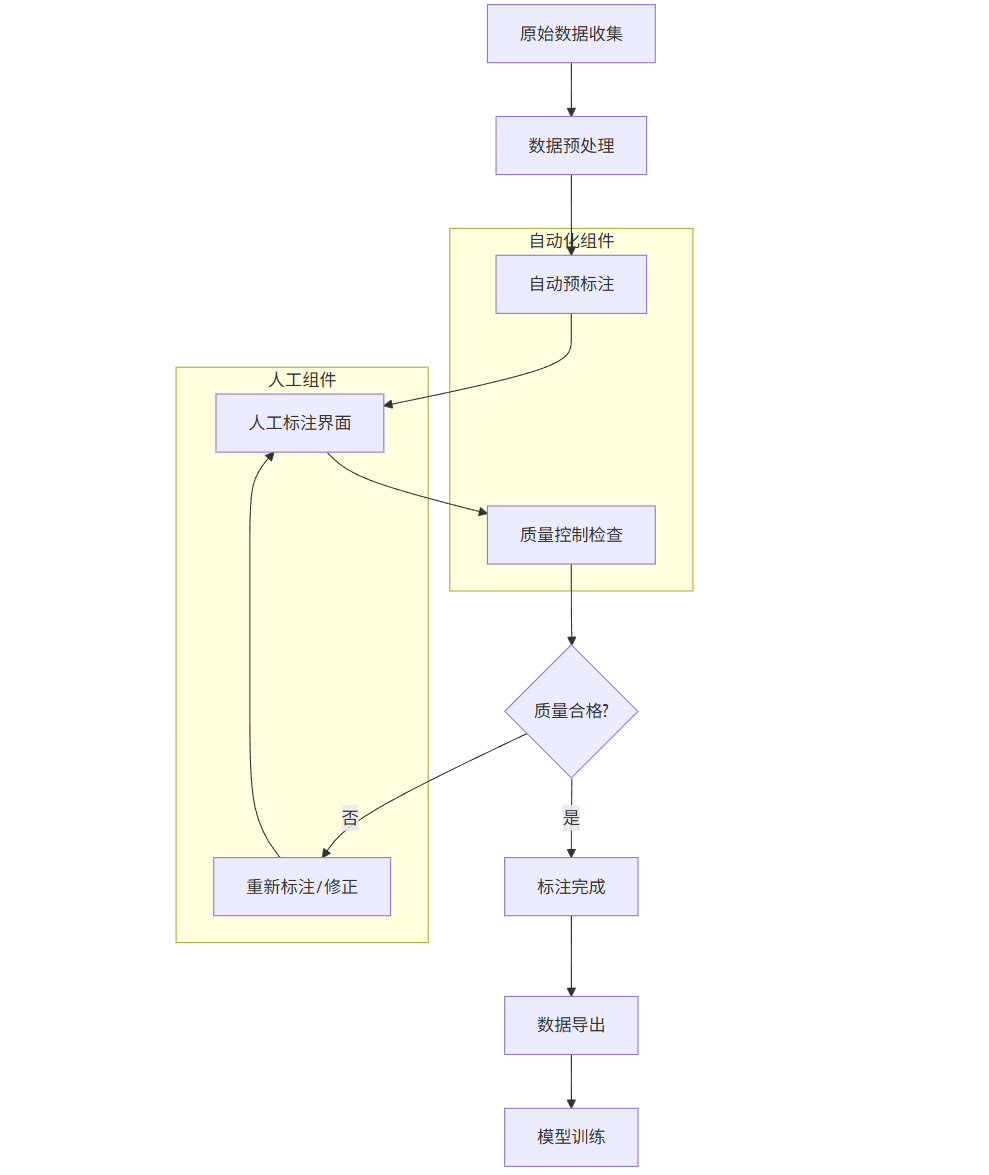

2.4 数据标注流程管理

graph TB
    A[原始数据收集] --> B[数据预处理]
    B --> C[自动预标注]
    C --> D[人工标注界面]
    D --> E[质量控制检查]
    E --> F{质量合格?}
    F -->|是| G[标注完成]
    F -->|否| H[重新标注/修正]
    H --> D
    G --> I[数据导出]
    I --> J[模型训练]

    subgraph "自动化组件"
        C
        E
    end

    subgraph "人工组件"
        D
        H
    end

3. 模型训练平台：端到端的机器学习工作流

3.1 现代模型训练平台架构

现代模型训练平台通常采用微服务架构，包含以下核心组件：

1. 数据管理服务：负责数据的版本控制、预处理和特征存储

2. 实验跟踪服务：记录训练过程中的超参数、指标和模型版本

3. 资源调度服务：管理计算资源的分配和调度

4. 模型部署服务：将训练好的模型部署到生产环境

5. 监控服务：监控模型性能和系统健康状态

3.2 自动化机器学习（AutoML）实现

3.2.1 超参数优化框架

python

import optuna
from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import cross_val_score
from sklearn.datasets import load_iris
import numpy as np

class AutomatedModelTrainer:
    def __init__(self, X, y, n_trials=100):
        self.X = X
        self.y = y
        self.n_trials = n_trials
        self.study = None
        self.best_params = None
        self.best_score = -np.inf

    def objective(self, trial):
        """定义超参数优化目标函数"""
        params = {
            'n_estimators': trial.suggest_int('n_estimators', 10, 200),
            'max_depth': trial.suggest_int('max_depth', 2, 32),
            'min_samples_split': trial.suggest_int('min_samples_split', 2, 20),
            'min_samples_leaf': trial.suggest_int('min_samples_leaf', 1, 10),
            'max_features': trial.suggest_categorical('max_features', ['auto', 'sqrt', 'log2']),
            'bootstrap': trial.suggest_categorical('bootstrap', [True, False])
        }

        model = RandomForestClassifier(**params, random_state=42)
        score = cross_val_score(model, self.X, self.y, cv=5, scoring='accuracy').mean()

        return score

    def optimize(self):
        """执行超参数优化"""
        self.study = optuna.create_study(direction='maximize')
        self.study.optimize(self.objective, n_trials=self.n_trials)

        self.best_params = self.study.best_params
        self.best_score = self.study.best_value

        return self.best_params, self.best_score

    def train_best_model(self):
        """使用最佳参数训练最终模型"""
        if self.best_params is None:
            self.optimize()

        best_model = RandomForestClassifier(**self.best_params, random_state=42)
        best_model.fit(self.X, self.y)

        return best_model

# 使用示例
# 加载数据
iris = load_iris()
X, y = iris.data, iris.target

# 创建训练器
trainer = AutomatedModelTrainer(X, y, n_trials=50)
best_params, best_score = trainer.optimize()

print(f"最佳参数: {best_params}")
print(f"最佳交叉验证分数: {best_score:.4f}")

# 训练最终模型
final_model = trainer.train_best_model()
print(f"最终模型训练完成，特征重要性: {final_model.feature_importances_}")

3.2.2 分布式训练框架

python

import torch
import torch.distributed as dist
import torch.multiprocessing as mp
import torch.nn as nn
import torch.optim as optim
from torch.nn.parallel import DistributedDataParallel as DDP
from torch.utils.data import DataLoader, DistributedSampler
from torchvision import datasets, transforms

def setup(rank, world_size):
    """设置分布式环境"""
    dist.init_process_group(
        backend='nccl' if torch.cuda.is_available() else 'gloo',
        init_method='tcp://localhost:12355',
        rank=rank,
        world_size=world_size
    )

def cleanup():
    """清理分布式环境"""
    dist.destroy_process_group()

class SimpleCNN(nn.Module):
    """简单的CNN模型"""
    def __init__(self):
        super(SimpleCNN, self).__init__()
        self.conv1 = nn.Conv2d(1, 32, 3, 1)
        self.conv2 = nn.Conv2d(32, 64, 3, 1)
        self.dropout1 = nn.Dropout2d(0.25)
        self.dropout2 = nn.Dropout2d(0.5)
        self.fc1 = nn.Linear(9216, 128)
        self.fc2 = nn.Linear(128, 10)

    def forward(self, x):
        x = self.conv1(x)
        x = nn.functional.relu(x)
        x = self.conv2(x)
        x = nn.functional.relu(x)
        x = nn.functional.max_pool2d(x, 2)
        x = self.dropout1(x)
        x = torch.flatten(x, 1)
        x = self.fc1(x)
        x = nn.functional.relu(x)
        x = self.dropout2(x)
        x = self.fc2(x)
        return nn.functional.log_softmax(x, dim=1)

def train(rank, world_size):
    """分布式训练函数"""
    setup(rank, world_size)

    # 设置设备
    device = torch.device(f"cuda:{rank}" if torch.cuda.is_available() else "cpu")

    # 准备数据
    transform = transforms.Compose([
        transforms.ToTensor(),
        transforms.Normalize((0.1307,), (0.3081,))
    ])

    dataset = datasets.MNIST('../data', train=True, download=True, transform=transform)
    sampler = DistributedSampler(dataset, num_replicas=world_size, rank=rank)
    dataloader = DataLoader(dataset, batch_size=64, sampler=sampler)

    # 创建模型
    model = SimpleCNN().to(device)
    ddp_model = DDP(model, device_ids=[rank] if torch.cuda.is_available() else None)

    # 定义优化器和损失函数
    optimizer = optim.Adam(ddp_model.parameters(), lr=0.001)
    criterion = nn.NLLLoss()

    # 训练循环
    ddp_model.train()
    for epoch in range(5):
        sampler.set_epoch(epoch)
        total_loss = 0
        for batch_idx, (data, target) in enumerate(dataloader):
            data, target = data.to(device), target.to(device)

            optimizer.zero_grad()
            output = ddp_model(data)
            loss = criterion(output, target)
            loss.backward()
            optimizer.step()

            total_loss += loss.item()

            if batch_idx % 100 == 0 and rank == 0:
                print(f"Rank {rank}, Epoch {epoch}, Batch {batch_idx}, Loss: {loss.item():.4f}")

        if rank == 0:
            print(f"Epoch {epoch} Average Loss: {total_loss / len(dataloader):.4f}")

    cleanup()

def run_distributed_training():
    """启动分布式训练"""
    world_size = torch.cuda.device_count() if torch.cuda.is_available() else 2
    mp.spawn(train, args=(world_size,), nprocs=world_size, join=True)

# 使用示例
if __name__ == "__main__":
    run_distributed_training()

3.3 模型版本管理与实验跟踪

3.3.1 完整的实验跟踪系统

python

import mlflow
import mlflow.sklearn
from datetime import datetime
import json
import pandas as pd
from sklearn.metrics import accuracy_score, precision_score, recall_score, f1_score

class ExperimentTracker:
    def __init__(self, experiment_name=None):
        self.experiment_name = experiment_name or f"experiment_{datetime.now().strftime('%Y%m%d_%H%M%S')}"
        mlflow.set_experiment(self.experiment_name)

    def start_run(self, run_name=None):
        """开始新的实验运行"""
        run_name = run_name or f"run_{datetime.now().strftime('%H%M%S')}"
        self.active_run = mlflow.start_run(run_name=run_name)
        return self.active_run

    def log_params(self, params):
        """记录参数"""
        mlflow.log_params(params)

    def log_metrics(self, metrics):
        """记录指标"""
        mlflow.log_metrics(metrics)

    def log_model(self, model, model_name):
        """记录模型"""
        mlflow.sklearn.log_model(model, model_name)

    def log_artifact(self, file_path):
        """记录文件"""
        mlflow.log_artifact(file_path)

    def end_run(self):
        """结束当前运行"""
        mlflow.end_run()

    def evaluate_model(self, model, X_test, y_test):
        """评估模型并记录指标"""
        y_pred = model.predict(X_test)

        metrics = {
            'accuracy': accuracy_score(y_test, y_pred),
            'precision': precision_score(y_test, y_pred, average='weighted'),
            'recall': recall_score(y_test, y_pred, average='weighted'),
            'f1_score': f1_score(y_test, y_pred, average='weighted')
        }

        self.log_metrics(metrics)
        return metrics

# 使用示例
from sklearn.datasets import load_iris
from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import train_test_split

# 准备数据
iris = load_iris()
X, y = iris.data, iris.target
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

# 初始化实验跟踪器
tracker = ExperimentTracker("Iris_Classification_Experiment")

# 定义要测试的超参数组合
param_combinations = [
    {'n_estimators': 50, 'max_depth': 5},
    {'n_estimators': 100, 'max_depth': 10},
    {'n_estimators': 150, 'max_depth': 15},
    {'n_estimators': 200, 'max_depth': 20}
]

for i, params in enumerate(param_combinations):
    with tracker.start_run(f"rf_{i+1}") as run:
        # 记录参数
        tracker.log_params(params)

        # 训练模型
        model = RandomForestClassifier(**params, random_state=42)
        model.fit(X_train, y_train)

        # 评估模型
        metrics = tracker.evaluate_model(model, X_test, y_test)

        # 记录模型
        tracker.log_model(model, "random_forest_model")

        print(f"Run {i+1}: Params {params}, Accuracy: {metrics['accuracy']:.4f}")

# 结束所有运行
tracker.end_run()

3.4 模型部署与监控

3.4.1 模型服务化部署

python

from flask import Flask, request, jsonify
import pickle
import numpy as np
import pandas as pd
from prometheus_client import Counter, Histogram, generate_latest, REGISTRY
import time

app = Flask(__name__)

# 监控指标
REQUEST_COUNT = Counter('request_count', 'API请求计数', ['method', 'endpoint', 'http_status'])
REQUEST_LATENCY = Histogram('request_latency_seconds', 'API请求延迟', ['endpoint'])

class ModelServer:
    def __init__(self, model_path):
        self.model = self.load_model(model_path)
        self.request_count = 0

    def load_model(self, model_path):
        """加载模型"""
        with open(model_path, 'rb') as f:
            return pickle.load(f)

    def predict(self, data):
        """执行预测"""
        # 转换输入数据
        if isinstance(data, dict):
            df = pd.DataFrame([data])
        elif isinstance(data, list):
            df = pd.DataFrame(data)
        else:
            raise ValueError("不支持的输入格式")

        # 执行预测
        prediction = self.model.predict(df)
        probabilities = self.model.predict_proba(df)

        return {
            'prediction': prediction.tolist(),
            'probabilities': probabilities.tolist(),
            'request_id': self.request_count
        }

# 初始化模型服务器
model_server = ModelServer('best_model.pkl')

@app.before_request
def before_request():
    """请求前钩子"""
    request.start_time = time.time()

@app.after_request
def after_request(response):
    """请求后钩子"""
    # 计算请求延迟
    latency = time.time() - request.start_time
    REQUEST_LATENCY.labels(request.path).observe(latency)

    # 记录请求计数
    REQUEST_COUNT.labels(
        request.method,
        request.path,
        response.status_code
    ).inc()

    return response

@app.route('/predict', methods=['POST'])
def predict():
    """预测端点"""
    try:
        data = request.get_json()

        # 输入验证
        if not data:
            return jsonify({'error': '无输入数据'}), 400

        # 执行预测
        result = model_server.predict(data)
        model_server.request_count += 1

        return jsonify(result)

    except Exception as e:
        return jsonify({'error': str(e)}), 500

@app.route('/metrics')
def metrics():
    """Prometheus指标端点"""
    return generate_latest(REGISTRY)

@app.route('/health')
def health():
    """健康检查端点"""
    return jsonify({'status': 'healthy', 'model_loaded': model_server.model is not None})

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000, debug=True)

3.4.2 模型性能监控

python

import numpy as np
from datetime import datetime, timedelta
import pandas as pd
from scipy import stats

class ModelPerformanceMonitor:
    def __init__(self, window_size=1000):
        self.predictions = []
        self.actuals = []
        self.timestamps = []
        self.window_size = window_size
        self.performance_metrics = {
            'accuracy': [],
            'precision': [],
            'recall': [],
            'f1_score': []
        }

    def add_prediction(self, prediction, actual, timestamp=None):
        """添加预测结果"""
        timestamp = timestamp or datetime.now()

        self.predictions.append(prediction)
        self.actuals.append(actual)
        self.timestamps.append(timestamp)

        # 保持窗口大小
        if len(self.predictions) > self.window_size:
            self.predictions.pop(0)
            self.actuals.pop(0)
            self.timestamps.pop(0)

    def calculate_metrics(self):
        """计算性能指标"""
        if len(self.predictions) == 0:
            return None

        # 转换为numpy数组
        preds = np.array(self.predictions)
        actuals = np.array(self.actuals)

        # 计算各项指标
        accuracy = np.mean(preds == actuals)

        # 仅在有正样本时计算precision/recall
        if np.any(actuals == 1):
            precision = np.sum((preds == 1) & (actuals == 1)) / np.sum(preds == 1)
            recall = np.sum((preds == 1) & (actuals == 1)) / np.sum(actuals == 1)
            f1 = 2 * precision * recall / (precision + recall) if (precision + recall) > 0 else 0
        else:
            precision = recall = f1 = 0

        metrics = {
            'accuracy': accuracy,
            'precision': precision,
            'recall': recall,
            'f1_score': f1,
            'sample_size': len(self.predictions)
        }

        # 保存指标历史
        for key in self.performance_metrics:
            self.performance_metrics[key].append(metrics[key])

        return metrics

    def detect_drift(self, window=100, threshold=0.05):
        """
        检测模型性能漂移
        参数:
            window: 检测窗口大小
            threshold: 显著性阈值
        返回:
            漂移检测结果
        """
        if len(self.performance_metrics['accuracy']) < window * 2:
            return {'drift_detected': False, 'message': '数据不足'}

        # 获取最近两个窗口的数据
        recent_window = self.performance_metrics['accuracy'][-window:]
        previous_window = self.performance_metrics['accuracy'][-2*window:-window]

        # 使用T检验检测显著性差异
        t_stat, p_value = stats.ttest_ind(previous_window, recent_window)

        drift_detected = p_value < threshold
        result = {
            'drift_detected': drift_detected,
            'p_value': p_value,
            'threshold': threshold,
            'recent_mean': np.mean(recent_window),
            'previous_mean': np.mean(previous_window),
            'change_percentage': (np.mean(recent_window) - np.mean(previous_window)) / np.mean(previous_window) * 100
        }

        return result

    def generate_report(self):
        """生成性能报告"""
        current_metrics = self.calculate_metrics() or {}
        drift_result = self.detect_drift()

        report = {
            'timestamp': datetime.now(),
            'current_performance': current_metrics,
            'drift_analysis': drift_result,
            'summary': '模型性能正常'
        }

        if drift_result['drift_detected']:
            report['summary'] = f"警告: 检测到性能漂移 (p={drift_result['p_value']:.4f})"

        return report

# 使用示例
monitor = ModelPerformanceMonitor()

# 模拟添加一些预测结果
for i in range(200):
    # 模拟真实情况：前100次准确率高，后100次准确率下降（模拟概念漂移）
    if i < 100:
        accuracy = 0.9 + np.random.normal(0, 0.05)
    else:
        accuracy = 0.7 + np.random.normal(0, 0.05)

    # 生成模拟数据
    actual = np.random.choice([0, 1])
    prediction = 1 if np.random.random() < accuracy else 0

    monitor.add_prediction(prediction, actual)

# 计算指标和检测漂移
report = monitor.generate_report()
print("模型性能报告:")
print(f"当前准确率: {report['current_performance']['accuracy']:.4f}")
print(f"漂移检测: {report['drift_analysis']['drift_detected']}")
print(f"摘要: {report['summary']}")

4. 综合应用案例：端到端的AI项目开发

4.1 项目概述：智能图像分类系统

我们将构建一个完整的智能图像分类系统，涵盖数据标注、模型训练和部署的全流程。这个案例将展示如何将前面介绍的各种工具整合到一个实际项目中。

4.2 数据准备与标注流程

python

import os
import json
from PIL import Image
import numpy as np
from sklearn.model_selection import train_test_split

class ImageClassificationDataset:
    def __init__(self, data_dir, annotation_file=None):
        self.data_dir = data_dir
        self.annotation_file = annotation_file
        self.images = []
        self.labels = []
        self.classes = []
        self.label_to_idx = {}

        if annotation_file and os.path.exists(annotation_file):
            self.load_annotations()
        else:
            self.scan_data_dir()

    def scan_data_dir(self):
        """扫描数据目录结构"""
        # 假设目录结构: data_dir/class_name/*.jpg
        self.classes = [d for d in os.listdir(self.data_dir)
                       if os.path.isdir(os.path.join(self.data_dir, d))]
        self.classes.sort()
        self.label_to_idx = {cls: idx for idx, cls in enumerate(self.classes)}

        for class_name in self.classes:
            class_dir = os.path.join(self.data_dir, class_name)
            for img_file in os.listdir(class_dir):
                if img_file.lower().endswith(('.png', '.jpg', '.jpeg')):
                    self.images.append(os.path.join(class_name, img_file))
                    self.labels.append(self.label_to_idx[class_name])

    def load_annotations(self):
        """从标注文件加载数据"""
        with open(self.annotation_file, 'r') as f:
            annotations = json.load(f)

        self.classes = annotations['classes']
        self.label_to_idx = {cls: idx for idx, cls in enumerate(self.classes)}
        self.images = [img['file_name'] for img in annotations['images']]
        self.labels = [img['label'] for img in annotations['images']]

    def save_annotations(self, output_file):
        """保存标注文件"""
        annotations = {
            'classes': self.classes,
            'images': [
                {'file_name': img, 'label': label}
                for img, label in zip(self.images, self.labels)
            ]
        }

        with open(output_file, 'w') as f:
            json.dump(annotations, f, indent=2)

    def split_dataset(self, test_size=0.2, val_size=0.1, random_state=42):
        """分割数据集"""
        # 首先分割训练+验证和测试集
        X_temp, X_test, y_temp, y_test = train_test_split(
            self.images, self.labels,
            test_size=test_size,
            random_state=random_state,
            stratify=self.labels
        )

        # 然后从训练+验证集中分割出验证集
        val_relative_size = val_size / (1 - test_size)
        X_train, X_val, y_train, y_val = train_test_split(
            X_temp, y_temp,
            test_size=val_relative_size,
            random_state=random_state,
            stratify=y_temp
        )

        return {
            'train': (X_train, y_train),
            'val': (X_val, y_val),
            'test': (X_test, y_test)
        }

    def get_class_distribution(self):
        """获取类别分布"""
        unique, counts = np.unique(self.labels, return_counts=True)
        return {self.classes[cls]: count for cls, count in zip(unique, counts)}

# 使用示例
dataset = ImageClassificationDataset('data/images')
print(f"数据集包含 {len(dataset.images)} 张图像")
print(f"类别: {dataset.classes}")
print(f"类别分布: {dataset.get_class_distribution()}")

# 分割数据集
splits = dataset.split_dataset()
print(f"训练集: {len(splits['train'][0])} 张图像")
print(f"验证集: {len(splits['val'][0])} 张图像")
print(f"测试集: {len(splits['test'][0])} 张图像")

# 保存标注文件
dataset.save_annotations('data/annotations.json')

4.3 模型训练与优化流程

python

import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader
from torchvision import transforms, models
from tqdm import tqdm
import mlflow

class ImageClassifierTrainer:
    def __init__(self, num_classes, device='cuda' if torch.cuda.is_available() else 'cpu'):
        self.device = device
        self.num_classes = num_classes
        self.model = self._create_model()
        self.criterion = nn.CrossEntropyLoss()
        self.optimizer = optim.Adam(self.model.parameters(), lr=0.001)
        self.scheduler = optim.lr_scheduler.ReduceLROnPlateau(self.optimizer, patience=5)

        # 数据增强和预处理
        self.train_transform = transforms.Compose([
            transforms.RandomResizedCrop(224),
            transforms.RandomHorizontalFlip(),
            transforms.ColorJitter(brightness=0.2, contrast=0.2, saturation=0.2),
            transforms.ToTensor(),
            transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
        ])

        self.val_transform = transforms.Compose([
            transforms.Resize(256),
            transforms.CenterCrop(224),
            transforms.ToTensor(),
            transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
        ])

    def _create_model(self):
        """创建预训练模型"""
        model = models.resnet50(pretrained=True)
        num_features = model.fc.in_features
        model.fc = nn.Linear(num_features, self.num_classes)
        return model.to(self.device)

    def train_epoch(self, dataloader):
        """训练一个epoch"""
        self.model.train()
        running_loss = 0.0
        correct = 0
        total = 0

        pbar = tqdm(dataloader, desc='训练')
        for inputs, labels in pbar:
            inputs, labels = inputs.to(self.device), labels.to(self.device)

            self.optimizer.zero_grad()
            outputs = self.model(inputs)
            loss = self.criterion(outputs, labels)
            loss.backward()
            self.optimizer.step()

            running_loss += loss.item()
            _, predicted = outputs.max(1)
            total += labels.size(0)
            correct += predicted.eq(labels).sum().item()

            pbar.set_postfix({
                'loss': running_loss / (pbar.n + 1),
                'acc': 100. * correct / total
            })

        epoch_loss = running_loss / len(dataloader)
        epoch_acc = 100. * correct / total

        return epoch_loss, epoch_acc

    def validate(self, dataloader):
        """验证模型"""
        self.model.eval()
        running_loss = 0.0
        correct = 0
        total = 0

        with torch.no_grad():
            pbar = tqdm(dataloader, desc='验证')
            for inputs, labels in pbar:
                inputs, labels = inputs.to(self.device), labels.to(self.device)

                outputs = self.model(inputs)
                loss = self.criterion(outputs, labels)

                running_loss += loss.item()
                _, predicted = outputs.max(1)
                total += labels.size(0)
                correct += predicted.eq(labels).sum().item()

                pbar.set_postfix({
                    'loss': running_loss / (pbar.n + 1),
                    'acc': 100. * correct / total
                })

        epoch_loss = running_loss / len(dataloader)
        epoch_acc = 100. * correct / total

        return epoch_loss, epoch_acc

    def train(self, train_loader, val_loader, num_epochs=25):
        """完整的训练流程"""
        best_acc = 0.0

        # MLflow实验跟踪
        with mlflow.start_run():
            mlflow.log_param('num_epochs', num_epochs)
            mlflow.log_param('model', 'resnet50')
            mlflow.log_param('optimizer', 'Adam')

            for epoch in range(num_epochs):
                print(f'Epoch {epoch+1}/{num_epochs}')

                # 训练和验证
                train_loss, train_acc = self.train_epoch(train_loader)
                val_loss, val_acc = self.validate(val_loader)

                # 学习率调度
                self.scheduler.step(val_loss)

                # 记录指标
                mlflow.log_metric('train_loss', train_loss, step=epoch)
                mlflow.log_metric('train_acc', train_acc, step=epoch)
                mlflow.log_metric('val_loss', val_loss, step=epoch)
                mlflow.log_metric('val_acc', val_acc, step=epoch)

                # 保存最佳模型
                if val_acc > best_acc:
                    best_acc = val_acc
                    torch.save(self.model.state_dict(), 'best_model.pth')
                    mlflow.log_artifact('best_model.pth')
                    print(f'新的最佳模型保存，验证准确率: {val_acc:.2f}%')

                print(f'训练损失: {train_loss:.4f}, 训练准确率: {train_acc:.2f}%')
                print(f'验证损失: {val_loss:.4f}, 验证准确率: {val_acc:.2f}%')
                print('-' * 50)

            print(f'训练完成，最佳验证准确率: {best_acc:.2f}%')
            mlflow.log_metric('best_val_acc', best_acc)

# 使用示例
from torchvision.datasets import ImageFolder
from torch.utils.data import DataLoader

# 准备数据加载器
train_dataset = ImageFolder('data/train', transform=trainer.train_transform)
val_dataset = ImageFolder('data/val', transform=trainer.val_transform)

train_loader = DataLoader(train_dataset, batch_size=32, shuffle=True, num_workers=4)
val_loader = DataLoader(val_dataset, batch_size=32, shuffle=False, num_workers=4)

# 初始化训练器
trainer = ImageClassifierTrainer(num_classes=len(train_dataset.classes))

# 开始训练
trainer.train(train_loader, val_loader, num_epochs=25)

4.4 系统部署与监控

python

from flask import Flask, request, jsonify
from PIL import Image
import io
import torch
from torchvision import transforms
from prometheus_client import Counter, Histogram, generate_latest
import time

app = Flask(__name__)

# 监控指标
PREDICTION_COUNT = Counter('prediction_count', '预测请求计数', ['model', 'status'])
PREDICTION_LATENCY = Histogram('prediction_latency_seconds', '预测延迟')

class ImageClassificationService:
    def __init__(self, model_path, class_names):
        self.device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
        self.model = self.load_model(model_path)
        self.class_names = class_names
        self.transform = transforms.Compose([
            transforms.Resize(256),
            transforms.CenterCrop(224),
            transforms.ToTensor(),
            transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
        ])

    def load_model(self, model_path):
        """加载训练好的模型"""
        model = models.resnet50(pretrained=False)
        num_features = model.fc.in_features
        model.fc = nn.Linear(num_features, len(self.class_names))
        model.load_state_dict(torch.load(model_path, map_location=self.device))
        model.eval()
        return model.to(self.device)

    def predict(self, image):
        """执行预测"""
        image_tensor = self.transform(image).unsqueeze(0).to(self.device)

        with torch.no_grad():
            outputs = self.model(image_tensor)
            probabilities = torch.nn.functional.softmax(outputs, dim=1)
            confidence, predicted = torch.max(probabilities, 1)

        return {
            'class': self.class_names[predicted.item()],
            'confidence': confidence.item(),
            'all_probabilities': probabilities.cpu().numpy()[0].tolist()
        }

# 初始化服务
class_names = ['cat', 'dog', 'bird']  # 根据实际类别修改
service = ImageClassificationService('best_model.pth', class_names)

@app.before_request
def before_request():
    request.start_time = time.time()

@app.after_request
def after_request(response):
    latency = time.time() - request.start_time
    PREDICTION_LATENCY.observe(latency)
    return response

@app.route('/predict', methods=['POST'])
def predict():
    """预测端点"""
    start_time = time.time()

    try:
        if 'image' not in request.files:
            PREDICTION_COUNT.labels(model='resnet50', status='error').inc()
            return jsonify({'error': '没有提供图像文件'}), 400

        image_file = request.files['image']
        image = Image.open(io.BytesIO(image_file.read()))

        if image.mode != 'RGB':
            image = image.convert('RGB')

        # 执行预测
        result = service.predict(image)
        latency = time.time() - start_time

        PREDICTION_COUNT.labels(model='resnet50', status='success').inc()

        return jsonify({
            'prediction': result,
            'processing_time': f'{latency:.3f}秒'
        })

    except Exception as e:
        PREDICTION_COUNT.labels(model='resnet50', status='error').inc()
        return jsonify({'error': str(e)}), 500

@app.route('/metrics')
def metrics():
    """Prometheus指标端点"""
    return generate_latest()

@app.route('/health')
def health():
    """健康检查端点"""
    return jsonify({
        'status': 'healthy',
        'model_loaded': service.model is not None,
        'device': str(service.device)
    })

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000, debug=True)

5. 总结与展望

5.1 当前技术总结

通过本文的详细探讨，我们可以看到现代AI工具生态系统已经发展得相当成熟：

1. 智能编码工具如GitHub Copilot极大地提高了开发效率，通过代码自动补全、测试生成和文档编写等功能，减少了重复性工作。

2. 数据标注工具通过自动化预标注、主动学习和质量控制机制，大幅降低了数据准备的成本和时间。

3. 模型训练平台提供了从实验跟踪、超参数优化到分布式训练的完整解决方案，使机器学习工作流程更加标准化和可重现。

5.2 未来发展趋势

1. 更强大的代码生成能力：未来的智能编码工具将能够理解更复杂的业务逻辑，生成更高质量的代码，甚至参与系统设计和架构决策。

2. 多模态数据标注：随着多模态AI模型的发展，数据标注工具需要支持图像、文本、音频、视频等多种数据类型的联合标注。

3. 自动化机器学习：AutoML技术将进一步发展，使模型选择、特征工程和超参数优化更加自动化，降低机器学习的技术门槛。

4. 边缘计算集成：模型训练和部署将更好地支持边缘计算场景，满足实时性和隐私保护的需求。

5. ** Responsible AI集成**：AI工具将内置更多关于模型可解释性、公平性和伦理考虑的功能，帮助开发者构建更负责任的AI系统。

5.3 实践建议

对于希望在这些领域深入发展的从业者，我们建议：

1. 掌握Prompt工程技巧：熟练运用智能编码工具需要良好的Prompt编写能力，这将成为程序员的重要技能。

2. 理解数据流水线：数据是AI的基础，深入理解数据标注、清洗和增强的整个流程至关重要。

3. 熟悉MLOps实践：模型训练和部署的自动化、监控和维护是生产级AI系统的关键。

4. 保持学习心态：AI工具和技术发展迅速，需要持续学习新的工具和方法。

5. 注重实践项目：通过实际项目来整合和应用各种工具，是掌握这些技术的最佳方式。

通过合理利用这些先进的AI工具，开发者和组织可以显著提高AI项目的开发效率和质量，从而在竞争激烈的技术环境中保持优势。
