#include "stm32f10x.h"
#include "delay.h"
#include "usart.h"
#include "USART2/usart2.h"
#include "DS18B20/ds18b20.h"
#include "timer.h"
#include "adc.h"
#include "menu.h"
#include "key.h"
#include "modules.h"
#include "HCSR/hcsr.h"
#include "beep.h"
#include "tds.h"
#include "relay.h"
#include "led.h"
#include "oled.h"
#include "fan.h"
#include "light.h"
#include "hot.h"


/****************破晓电子工作室*******************

***          破晓单片机

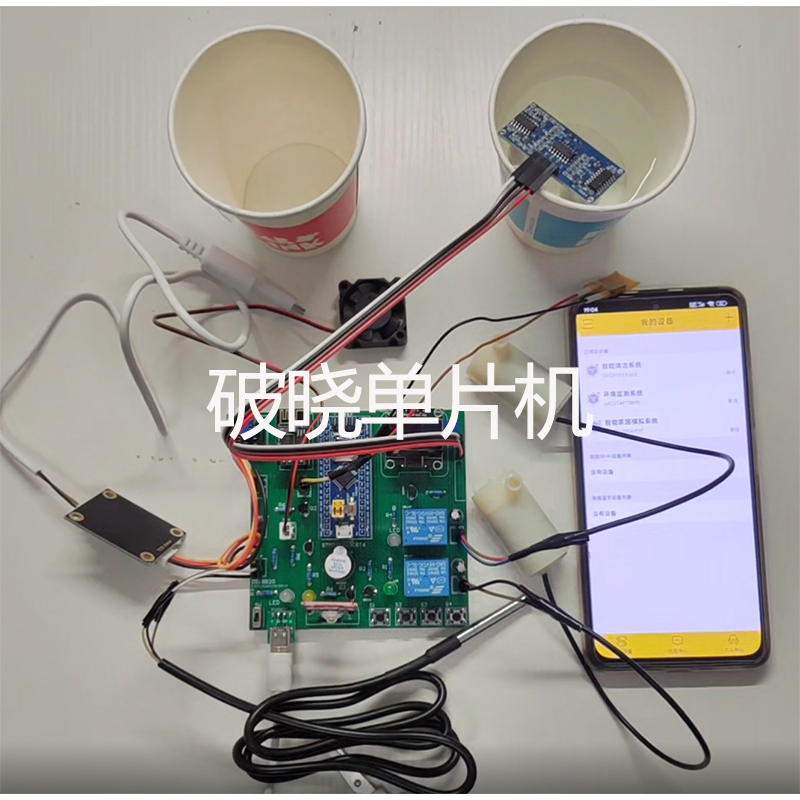

***          项目:STM32智能家庭鱼缸系统
***          BILIBILI:破晓单片机
***          小红书:破晓单片机
***          授权IP:破晓单片机
***          淘宝:破晓单片机
***          淘宝:破晓电子
***          版本:V01.01
***          MCU:STM32F103C8T6

******************破晓单片机***********************/

//显示界面
CaiDanJieGouTi  KeyTab[SIZE_CAIDAN]=
{
    {0 ,0 ,0 ,0 ,0 ,Main_Menu0},
	{1 ,1 ,1 ,1 ,1 ,Main_Menu1},
	{2 ,2 ,2 ,2 ,2 ,Main_Menu2},
	{3 ,3 ,3 ,3 ,3 ,Main_Menu3},
	{4 ,4 ,4 ,4 ,4 ,Main_Menu4},
	{5 ,5 ,5 ,5 ,5 ,Main_Menu5},
	{6 ,6 ,6 ,6 ,6 ,Main_Menu6},
    {7 ,7 ,7 ,7 ,7 ,Main_Menu7},
	{8 ,8 ,8 ,8 ,8 ,Main_Menu8},

} ;

//传感器变量声明
typedef struct
{
	uint16_t tempds;//
	uint16_t water;//
	uint16_t tds;//
	uint16_t light;//
	uint16_t juli;//
	uint8_t turbidity;//
	float ph;//ph
}SensorModulesValue;

typedef struct
{
	uint16_t tempmin;
	uint16_t tempmax;

	uint16_t watermin;
	uint16_t watermax;

	uint16_t tdsmin;
	uint16_t tdsmax;

	uint16_t lightmin;
	uint16_t lightmax;
}SensorThresholdValue;

typedef struct
{
	uint8_t HOTFlag;
	uint8_t FANFlag;
	uint8_t LEDFlag;
	uint8_t PSFlag;
	uint8_t CSFlag;
	uint8_t BEEPFlag;
	uint8_t MODEFlag;
}DriveFlag;

int main(void)
 {
			delay_init();
			TIM3_Int_Init(9,7199);//定时器初始化
			OLEDGUI_Config(); 				//OLED
			OLEDGUI_DispString(30,16,"Init...",16,1);
	 		key_Init();//按键初始化
	 		Adc_Init();//Adc初始化
			beep_Init();//beep初始化
			DS18B20_Init();//DS18B20初始化
			hcsr_Init();//hcsr初始化
			led_Init();//led初始化
			hot_Init();//hot初始化
			relay_Init();//relay初始化
			FAN_Init();//FAN初始化
            light_Init();//light初始化
			SensorThresholdSet();//阈值初始化
			uart1_init(9600);
			delay_ms(100);
			uart2_init(9600);
			delay_ms(100);
			memset((uint8_t *)&currentDataPoint, 0, sizeof(dataPoint_t));
			gizwitsInit();
			OLEDGUI_Clear();				//OLED清屏
	while(1)
	{
            //获取按键值
			key_scan();
            //进入菜单界面显示处理数据
			GetKeylnput(&Keystatus);
            //获取传感器数据
			SensorDataGet();

            //数据上传
			currentDataPoint.valuetempds=SensorData.tempds;
			currentDataPoint.valuelight=SensorData.light;
			currentDataPoint.valuewater=SensorData.water;
			currentDataPoint.valuetds=SensorData.tds;

			currentDataPoint.valueMODE=DriveFlagData.MODEFlag;
			currentDataPoint.valueFAN=DriveFlagData.FANFlag;
			currentDataPoint.valueHOT=DriveFlagData.HOTFlag;
			currentDataPoint.valuePS=DriveFlagData.PSFlag;
			currentDataPoint.valueCS=DriveFlagData.CSFlag;
			currentDataPoint.valueLED=DriveFlagData.LEDFlag;
			currentDataPoint.valuetdsFlag=DriveFlagData.tdsFlag;

			gizwitsHandle((dataPoint_t *)&currentDataPoint);

			delay_ms(100);

	}
 }
