1、项目介绍

技术栈：Python语言、Flask框架、MySQL数据库、requests爬虫、前程无忧全国招聘信息爬虫

研究背景：
线上招聘已成主流，但岗位信息分散、更新频繁，求职者难以及时掌握行业薪资与技能需求变化，亟需一套自动化采集并即时可视化分析的工具。

研究意义：
本系统以Flask为后端，requests爬取前程无忧全国数据，通过MySQL持久化并借助Echarts多维可视化，可为高校毕业生、HR及培训机构提供实时就业行情，降低求职与招聘的盲目性，也可直接作为毕业设计展示Python全栈能力。

2、项目界面

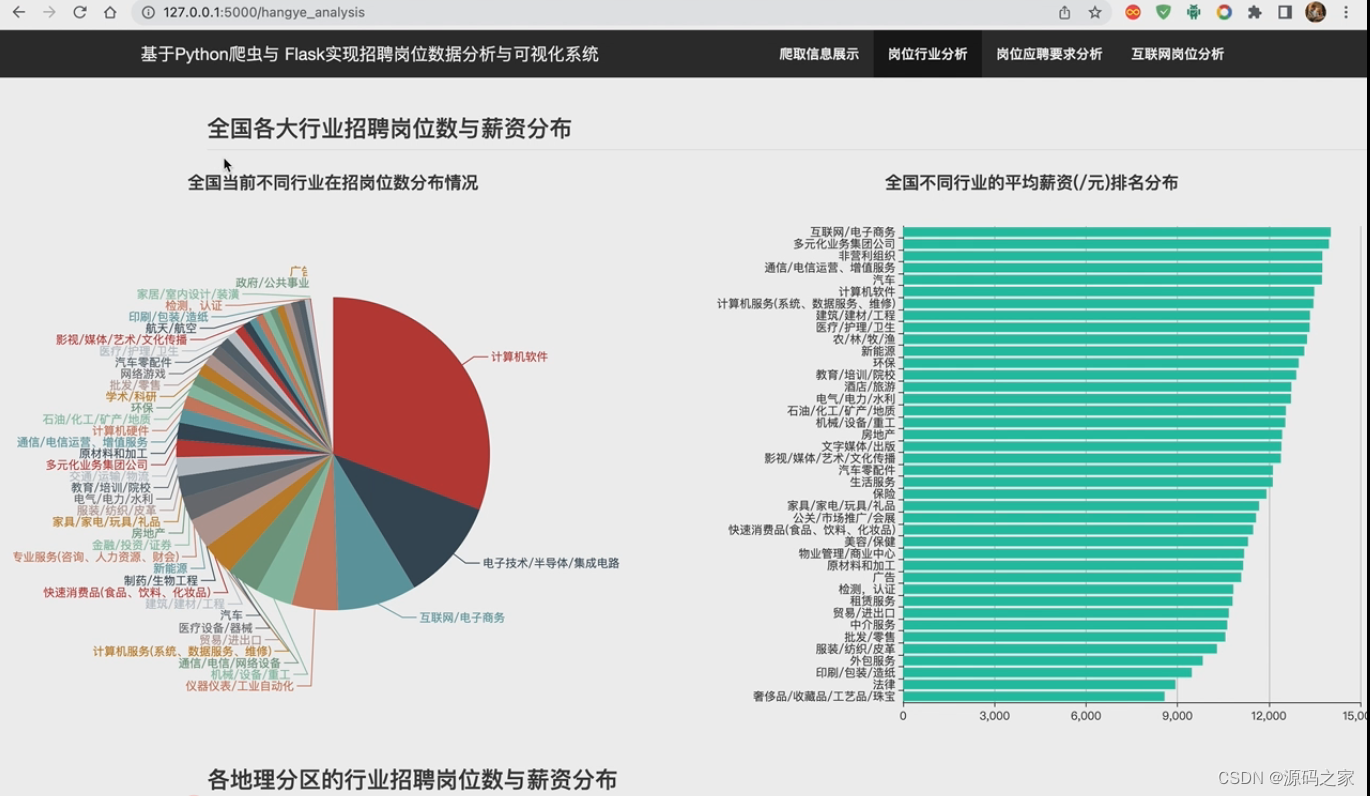

（1）岗位行业分析

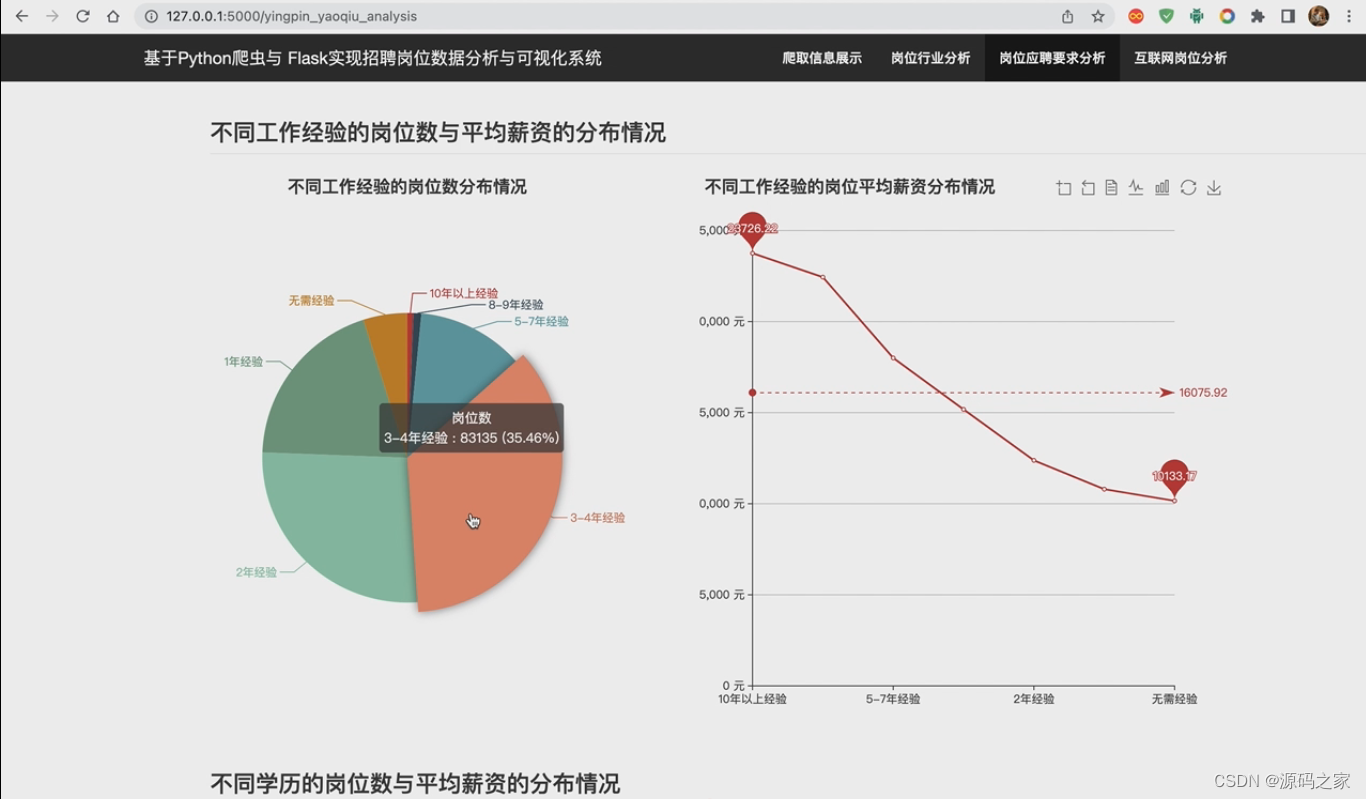

（2）岗位应聘要求分析

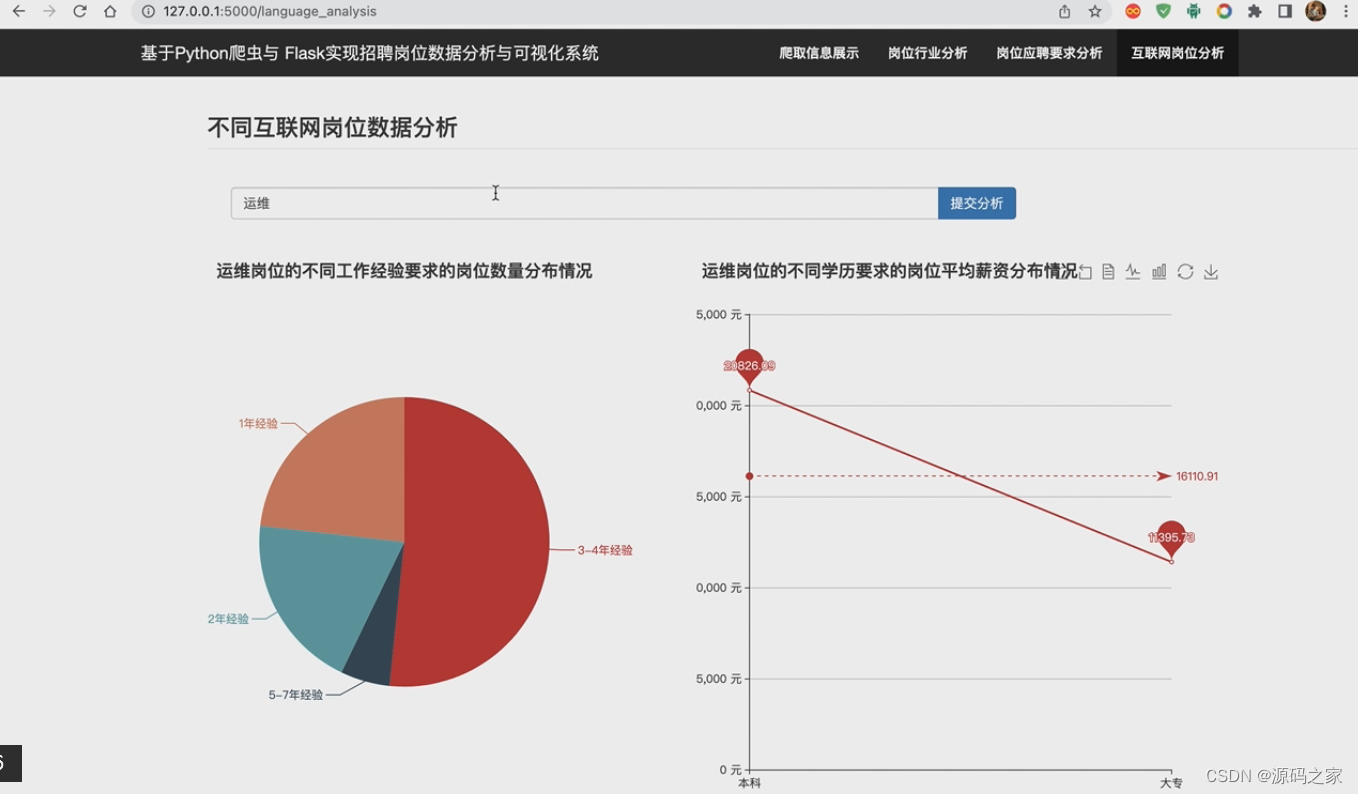

（3）互联网岗位分析

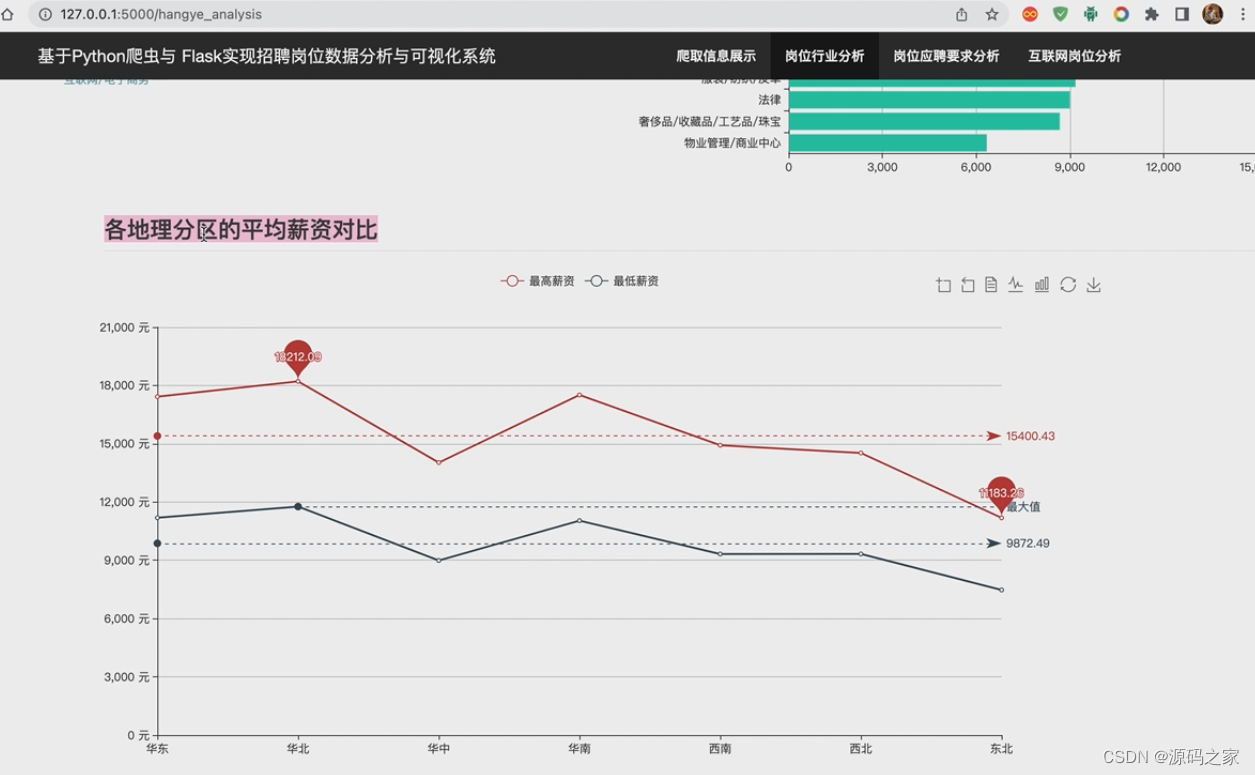

（4）各地区平均薪资分析

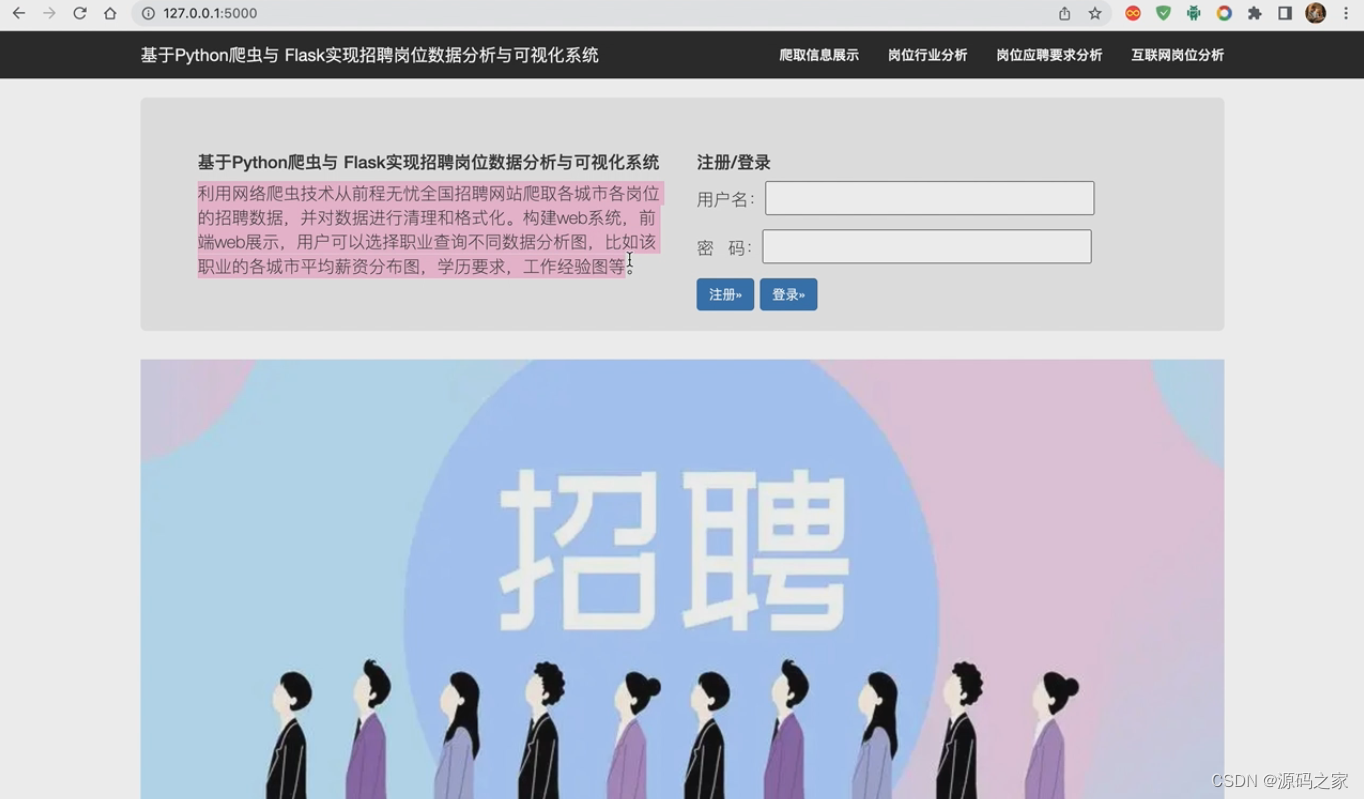

（5）首页注册登录界面

（6）招聘数据展示

3、项目说明

摘要
系统基于轻量级Flask框架，通过requests定时爬取前程无忧全国岗位数据，经去重、清洗后存入MySQL，再利用Echarts生成行业分布、薪资热力图及技能词云等多维可视化，帮助求职者快速锁定高薪行业、辅助HR动态调整招聘策略。前端采用Bootstrap响应式布局，支持按地区、行业、职位三维筛选，一键导出分析报告；后台管理模块可对爬虫任务、用户权限及数据质量进行实时监控，实现采集-分析-展示全流程闭环。

关键词：Flask；requests爬虫；前程无忧；就业数据；Echarts可视化

4、核心代码

#!/usr/bin/python
# coding=utf-8

import sqlite3
import pandas as pd
from flask import Flask, render_template, jsonify, request
import numpy as np
import json
import jieba

app = Flask(__name__)
app.config.from_object('config')

DATABASE = 'job_info.db'

# --------------------- html render ---------------------
login_name = None


@app.route('/')
def index():
    return render_template('index.html')


@app.route('/show_data')
def show_data():
    return render_template('show_data.html')


@app.route('/links')
def links():
    return render_template('links.html')


@app.route('/hangye_analysis')
def hangye_analysis():
    return render_template('hangye_analysis.html')


@app.route('/language_analysis')
def language_analysis():
    return render_template('language_analysis.html')


@app.route('/yingpin_yaoqiu_analysis')
def yingpin_yaoqiu_analysis():
    return render_template('yingpin_yaoqiu_analysis.html')


@app.route('/job_wordcloud')
def job_wordcloud():
    return render_template('job_wordcloud.html')


# ------------------ ajax restful api -------------------
@app.route('/check_login')
def check_login():
    """判断用户是否登录"""
    return jsonify({'username': login_name, 'login': login_name is not None})


@app.route('/register/<name>/<password>')
def register(name, password):
    conn = sqlite3.connect('user_info.db')
    cursor = conn.cursor()

    check_sql = "SELECT * FROM sqlite_master where type='table' and name='user'"
    cursor.execute(check_sql)
    results = cursor.fetchall()
    # 数据库表不存在
    if len(results) == 0:
        # 创建数据库表
        sql = """
                CREATE TABLE user(
                    name CHAR(256),
                    password CHAR(256)
                );
                """
        cursor.execute(sql)
        conn.commit()
        print('创建数据库表成功！')

    sql = "INSERT INTO user (name, password) VALUES (?,?);"
    cursor.executemany(sql, [(name, password)])
    conn.commit()
    return jsonify({'info': '用户注册成功！', 'status': 'ok'})


@app.route('/login/<name>/<password>')
def login(name, password):
    global login_name
    conn = sqlite3.connect('user_info.db')
    cursor = conn.cursor()

    check_sql = "SELECT * FROM sqlite_master where type='table' and name='user'"
    cursor.execute(check_sql)
    results = cursor.fetchall()
    # 数据库表不存在
    if len(results) == 0:
        # 创建数据库表
        sql = """
                CREATE TABLE user(
                    name CHAR(256),
                    password CHAR(256)
                );
                """
        cursor.execute(sql)
        conn.commit()
        print('创建数据库表成功！')

    sql = "select * from user where name='{}' and password='{}'".format(name, password)
    cursor.execute(sql)
    results = cursor.fetchall()

    login_name = name
    if len(results) > 0:
        print(results)
        return jsonify({'info': name + '用户登录成功！', 'status': 'ok'})
    else:
        return jsonify({'info': '当前用户不存在！', 'status': 'error'})


# 地理分区 与 省份的映射
dili_fengqu_shengfen_maps = {
    '华东': ['上海市', '江苏省', '浙江省', '安徽省', '江西省', '山东省', '福建省', '台湾省'],
    '华北': ['北京市', '天津市', '山西省', '河北省', '内蒙古自治区'],
    '华中': ['河南省', '湖北省', '湖南省'],
    '华南': ['广东省', '广西壮族自治区', '海南省', '香港特别行政区', '澳门特别行政区'],
    '西南': ['重庆市', '四川省', '贵州省', '云南省', '西藏自治区'],
    '西北': ['陕西省', '甘肃省', '青海省', '宁夏回族自治区', '新疆维吾尔自治区'],
    '东北': ['黑龙江省', '吉林省', '辽宁省']
}

# 省份与城市的映射
shengfen_city_dict = json.load(open('dili_fengqu.json', 'r', encoding='utf8'))
# 分区与城市的映射
dili_fengqu_cities_maps = {}

for fengqu in dili_fengqu_shengfen_maps:
    cities = []
    for shengfen in dili_fengqu_shengfen_maps[fengqu]:
        # 省份下的所有城市
        if shengfen in shengfen_city_dict:
            cities.extend(shengfen_city_dict[shengfen])

    dili_fengqu_cities_maps[fengqu] = set(cities)

# 城市 与 分区的映射
city_fenqu_maps = {}
for fengqu in dili_fengqu_shengfen_maps:
    for shengfen in dili_fengqu_shengfen_maps[fengqu]:
        if shengfen in shengfen_city_dict:
            # 省份下的所有城市
            for city in shengfen_city_dict[shengfen]:
                city_fenqu_maps[city] = fengqu

# 加载经纬度数据
districts = json.load(open('china_region.json', 'r', encoding='utf8'))['districts']

city_region_dict = {}
for province in districts:
    cities = province['districts']
    for city in cities:
        city_region_dict[city['name']] = {'longitude': city['center']['longitude'],
                                          'latitude': city['center']['latitude']}


# ------------------ ajax restful api -------------------
@app.route('/query_spidered_data')
def query_spidered_data():
    conn = sqlite3.connect(DATABASE)
    cursor = conn.cursor()

    check_sql = "SELECT * FROM job"
    cursor.execute(check_sql)
    jobs = cursor.fetchall()

    hotjobs = []
    for job in jobs:
        job_name, hangye, company, location, salary, jingyan, xueli, zhaopin_counts, pub_time = job

        try:
            tmp = float(jingyan)
            jingyan = '{}年工作经验'.format(jingyan)
        except:
            pass

        hotjobs.append((job_name, hangye, company, location, salary, jingyan, xueli, zhaopin_counts, pub_time))

    return jsonify(hotjobs[:40])


@app.route('/job_hangye_analysis')
def job_hangye_analysis():
    """行业分析"""
    conn = sqlite3.connect(DATABASE)
    cursor = conn.cursor()

    check_sql = "SELECT hangye, salary FROM job"
    cursor.execute(check_sql)
    jobs = cursor.fetchall()

    # 行业的个数
    hangye_counts = {}
    hangye_salary = {}
    for job in jobs:
        hangye, salary = job
        if hangye not in hangye_counts:
            hangye_counts[hangye] = 0
        hangye_counts[hangye] += 1

        if not salary.endswith('/月'):
            continue

        if salary.endswith('千/月'):
            scale = 1000
        elif salary.endswith('万/月'):
            scale = 10000
        else:
            continue

        salary = salary[:-3]
        # 计算平均薪资
        salary = sum(map(float, salary.split('-'))) / 2 * scale

        if hangye not in hangye_salary:
            hangye_salary[hangye] = []
        hangye_salary[hangye].append(salary)

    hangye_counts = list(zip(list(hangye_counts.keys()), list(hangye_counts.values())))
    hangye_counts = sorted(hangye_counts, key=lambda k: k[1], reverse=True)

    # 过滤掉一些在招岗位很少的行业
    hangye_counts = [v for v in hangye_counts if v[1] > 10]
    hangye1 = [v[0] for v in hangye_counts][:40]
    counts = [v[1] for v in hangye_counts][:40]

    # 计算行业的平均薪资
    for hangye in hangye_salary:
        hangye_salary[hangye] = np.mean(hangye_salary[hangye])

    hangye_salary = list(zip(list(hangye_salary.keys()), list(hangye_salary.values())))
    hangye_salary = sorted(hangye_salary, key=lambda k: k[1], reverse=False)
    hangye2 = [v[0] for v in hangye_salary][:40]
    salary = [v[1] for v in hangye_salary][:40]
    return jsonify({'行业': hangye1, '岗位数': counts, '行业2': hangye2, '平均薪资': salary})


@app.route('/dili_fengqu_analysis/<fengqu>')
def dili_fengqu_analysis(fengqu):
    conn = sqlite3.connect(DATABASE)
    cursor = conn.cursor()

    check_sql = "SELECT hangye, location, salary FROM job"
    cursor.execute(check_sql)
    jobs = cursor.fetchall()

    # 行业的个数
    hangye_counts = {}
    hangye_salary = {}
    for job in jobs:
        hangye, location, salary = job
        if location + '市' not in city_fenqu_maps:
            continue
        if city_fenqu_maps[location + '市'] != fengqu:
            continue

        if hangye not in hangye_counts:
            hangye_counts[hangye] = 0
        hangye_counts[hangye] += 1

        if not salary.endswith('/月'):
            continue

        if salary.endswith('千/月'):
            scale = 1000
        elif salary.endswith('万/月'):
            scale = 10000
        else:
            continue

        salary = salary[:-3]
        # 计算平均薪资
        salary = sum(map(float, salary.split('-'))) / 2 * scale

        if hangye not in hangye_salary:
            hangye_salary[hangye] = []
        hangye_salary[hangye].append(salary)

    hangye_counts = list(zip(list(hangye_counts.keys()), list(hangye_counts.values())))
    hangye_counts = sorted(hangye_counts, key=lambda k: k[1], reverse=True)

    # 过滤掉一些在招岗位很少的行业
    hangye1 = [v[0] for v in hangye_counts][:20]
    counts = [v[1] for v in hangye_counts][:20]

    # 计算行业的平均薪资
    for hangye in hangye_salary:
        hangye_salary[hangye] = np.mean(hangye_salary[hangye])

    hangye_salary = list(zip(list(hangye_salary.keys()), list(hangye_salary.values())))
    hangye_salary = sorted(hangye_salary, key=lambda k: k[1], reverse=False)
    hangye2 = [v[0] for v in hangye_salary][:20]
    salary = [v[1] for v in hangye_salary][:20]

    high_salary_hangyes = ' > '.join(hangye2[::-1][:3])
    return jsonify({'行业': hangye1, '岗位数': counts, '行业2': hangye2, '平均薪资': salary,
                    '高薪行业推荐': high_salary_hangyes})

@app.route('/get_all_hangye')
def get_all_hangye():
    """获取所有行业"""
    conn = sqlite3.connect(DATABASE)
    cursor = conn.cursor()

    sql = 'select distinct hangye from job'
    cursor.execute(sql)
    hangyes = cursor.fetchall()
    hangyes = [h[0] for h in hangyes]
    print(hangyes)

    return jsonify(hangyes)


@app.route('/hangye_fengqu_salary')
def hangye_fengqu_salary():
    conn = sqlite3.connect(DATABASE)
    cursor = conn.cursor()

    hangye = request.args.get('hangye')
    print(hangye)
    check_sql = "SELECT hangye, location, salary FROM job where hangye=='{}'".format(hangye)
    cursor.execute(check_sql)
    jobs = cursor.fetchall()

    fengqu_salary = {}
    for job in jobs:
        hangye, location, salary = job
        if location + '市' not in city_fenqu_maps:
            continue

        fengqu = city_fenqu_maps[location + '市']

        if not salary.endswith('/月'):
            continue

        if salary.endswith('千/月'):
            scale = 1000
        elif salary.endswith('万/月'):
            scale = 10000
        else:
            continue

        salary = salary[:-3]
        # 计算平均薪资
        salary = sum(map(float, salary.split('-'))) / 2 * scale

        if fengqu not in fengqu_salary:
            fengqu_salary[fengqu] = []
        fengqu_salary[fengqu].append(salary)

    # 计算平均薪资
    for fengqu in fengqu_salary:
        fengqu_salary[fengqu] = np.mean(fengqu_salary[fengqu])

    fengqu_salary = list(zip(list(fengqu_salary.keys()), list(fengqu_salary.values())))
    fengqu_salary = sorted(fengqu_salary, key=lambda k: k[1], reverse=False)
    fengqu = [v[0] for v in fengqu_salary]
    salary = [v[1] for v in fengqu_salary]
    max_salary = max(salary)
    return jsonify({'分区': fengqu, '平均薪资': salary, '最高薪资': max_salary})


if __name__ == "__main__":
    app.run(host='127.0.0.1')
