SpringBoot中实现Redis Stream队列

m0_53265725

148人浏览 · 2026-07-01 16:29:19

m0_53265725 · 2026-07-01 16:29:19 发布

jdk：1.8
springboot-version：2.6.3
redis：5.0.1（5版本以上才有Stream队列）

准备工作

1、pom

redis 依赖包（version 2.6.3）

<dependency>

<groupId>org.projectlombok</groupId>

<artifactId>lombok</artifactId>

</dependency>

<dependency>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-data-redis</artifactId>

</dependency>

2、 yml

spring:

redis:

database: 0

host: 127.0.0.1

3、 RedisStreamUtil工具类

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.data.redis.connection.stream.MapRecord;

import org.springframework.data.redis.connection.stream.StreamInfo;

import org.springframework.data.redis.connection.stream.StreamOffset;

import org.springframework.data.redis.core.RedisTemplate;

import org.springframework.stereotype.Component;

import java.util.List;

import java.util.Map;

@Component

public class RedisStreamUtil {

@Autowired

private RedisTemplate<String, Object> redisTemplate;

/**

* 创建消费组

*

* @param key 键名称

* @param group 组名称

* @return {@link String}

*/

public String oup(String key, String group) {

return redisTemplate.opsForStream().createGroup(key, group);

}

/**

* 获取消费者信息

*

* @param key 键名称

* @param group 组名称

* @return {@link StreamInfo.XInfoConsumers}

*/

public StreamInfo.XInfoConsumers queryConsumers(String key, String group) {

return redisTemplate.opsForStream().consumers(key, group);

}

/**

* 查询组信息

*

* @param key 键名称

* @return

*/

public StreamInfo.XInfoGroups queryGroups(String key) {

return redisTemplate.opsForStream().groups(key);

}

// 添加Map消息

public String addMap(String key, Map<String, Object> value) {

return redisTemplate.opsForStream().add(key, value).getValue();

}

// 读取消息

public List<MapRecord<String, Object, Object>> read(String key) {

return redisTemplate.opsForStream().read(StreamOffset.fromStart(key));

}

// 确认消费

public Long ack(String key, String group, String... recordIds) {

return redisTemplate.opsForStream().acknowledge(key, group, recordIds);

}

// 删除消息。当一个节点的所有消息都被删除，那么该节点会自动销毁

public Long del(String key, String... recordIds) {

return redisTemplate.opsForStream().delete(key, recordIds);

}

// 判断是否存在key

public boolean hasKey(String key) {

Boolean aBoolean = redisTemplate.hasKey(key);

return aBoolean != null && aBoolean;

}

代码实现

生产者发送消息

生产者发送消息，在Service层创建addMessage方法，往队列中发送消息。

代码中addMap()方法第一个参数为key，第二个参数为value，该key要和后续配置的保持一致，暂时先记住这个key。

@Service

@Slf4j

@RequiredArgsConstructor

public class RedisStreamMqServiceImpl implements RedisStreamMqService {

private final RedisStreamUtil redisStreamUtil;

/**

* 发送一个消息

*

* @return {@code Object}

*/

@Override

public Object addMessage() {

RedisUser redisUser = new RedisUser();

redisUser.setAge(18);

redisUser.setName("hcr");

redisUser.setEmail("156ef561@gmail.com");

Map<String, Object> message = new HashMap<>();

message.put("user", redisUser);

String recordId = redisStreamUtil.addMap("mystream", message);

return recordId;

}

controller接口方法

@RestController

@RequestMapping("/redis")

@Slf4j

@RequiredArgsConstructor

public class RedisController {

private final RedisStreamMqService redisStreamMqService;

@GetMapping("/addMessage")

public Object addMessage() {

return redisStreamMqService.addMessage();

}

调用测试，查看redis中是否正常添加数据。

接口返回数据

1702622585248-0

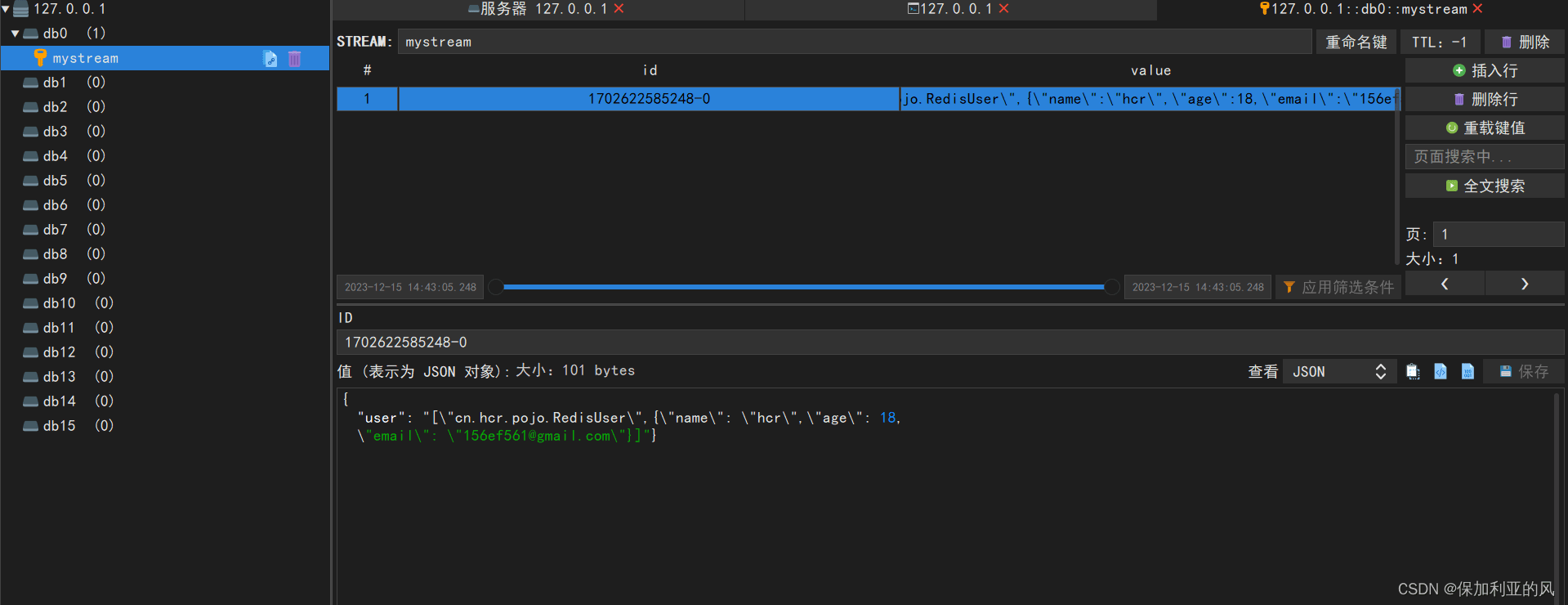

查看redis中的数据

消费者监听消息进行消费

创建RedisConsumersListener监听器

import cn.hcr.utils.RedisStreamUtil;

import lombok.RequiredArgsConstructor;

import lombok.extern.slf4j.Slf4j;

import org.springframework.data.redis.connection.stream.MapRecord;

import org.springframework.data.redis.connection.stream.RecordId;

import org.springframework.data.redis.stream.StreamListener;

import org.springframework.stereotype.Component;

import java.util.Map;

@Component

@Slf4j

@RequiredArgsConstructor

public class RedisConsumersListener implements StreamListener<String, MapRecord<String, String, String>> {

public final RedisStreamUtil redisStreamUtil;

/**

* 监听器

*

* @param message

*/

@Override

public void onMessage(MapRecord<String, String, String> message) {

// stream的key值

String streamKey = message.getStream();

//消息ID

RecordId recordId = message.getId();

//消息内容

Map<String, String> msg = message.getValue();

log.info("【streamKey】= " + streamKey + ",【recordId】= " + recordId + ",【msg】=" + msg);

//处理逻辑

//逻辑处理完成后，ack消息，删除消息，group为消费组名称

StreamInfo.XInfoGroups xInfoGroups = redisStreamUtil.queryGroups(streamKey);

xInfoGroups.forEach(xInfoGroup -> redisStreamUtil.ack(streamKey, xInfoGroup.groupName(), recordId.getValue()));

redisStreamUtil.del(streamKey, recordId.getValue());

}

创建RedisConfig配置类，配置监听

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

package cn.hcr.config;

import cn.hcr.listener.RedisConsumersListener;

import cn.hcr.utils.RedisStreamUtil;

import com.fasterxml.jackson.annotation.JsonAutoDetect;

import com.fasterxml.jackson.annotation.PropertyAccessor;

import com.fasterxml.jackson.databind.ObjectMapper;

import lombok.extern.slf4j.Slf4j;

import lombok.var;

import org.springframework.context.annotation.Bean;

import org.springframework.context.annotation.Configuration;

import org.springframework.data.redis.connection.RedisConnectionFactory;

import org.springframework.data.redis.connection.stream.Consumer;

import org.springframework.data.redis.connection.stream.MapRecord;

import org.springframework.data.redis.connection.stream.ReadOffset;

import org.springframework.data.redis.connection.stream.StreamOffset;

import org.springframework.data.redis.core.RedisTemplate;

import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;

import org.springframework.data.redis.serializer.StringRedisSerializer;

import org.springframework.data.redis.stream.StreamMessageListenerContainer;

import org.springframework.data.redis.stream.Subscription;

import javax.annotation.Resource;

import java.time.Duration;

import java.util.HashMap;

import java.util.Map;

import java.util.concurrent.LinkedBlockingDeque;

import java.util.concurrent.ThreadPoolExecutor;

import java.util.concurrent.TimeUnit;

import java.util.concurrent.atomic.AtomicInteger;

@Configuration

@Slf4j

public class RedisConfig {

@Resource

private RedisStreamUtil redisStreamUtil;

/**

* redis序列化

*

* @param redisConnectionFactory

* @return {@code RedisTemplate<String, Object>}

*/

@Bean

public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) {

RedisTemplate<String, Object> template = new RedisTemplate<>();

template.setConnectionFactory(redisConnectionFactory);

Jackson2JsonRedisSerializer jackson2JsonRedisSerializer = new Jackson2JsonRedisSerializer(Object.class);

ObjectMapper om = new ObjectMapper();

om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);

om.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);

jackson2JsonRedisSerializer.setObjectMapper(om);

StringRedisSerializer stringRedisSerializer = new StringRedisSerializer();

template.setKeySerializer(stringRedisSerializer);

template.setHashKeySerializer(stringRedisSerializer);

template.setValueSerializer(jackson2JsonRedisSerializer);

template.setHashValueSerializer(jackson2JsonRedisSerializer);

template.afterPropertiesSet();

return template;

}

@Bean

public Subscription subscription(RedisConnectionFactory factory) {

AtomicInteger index = new AtomicInteger(1);

int processors = Runtime.getRuntime().availableProcessors();

ThreadPoolExecutor executor = new ThreadPoolExecutor(processors, processors, 0, TimeUnit.SECONDS,

new LinkedBlockingDeque<>(), r -> {

Thread thread = new Thread(r);

thread.setName("async-stream-consumer-" + index.getAndIncrement());

thread.setDaemon(true);

return thread;

});

StreamMessageListenerContainer.StreamMessageListenerContainerOptions<String, MapRecord<String, String, String>> options =

StreamMessageListenerContainer

.StreamMessageListenerContainerOptions

.builder()

// 一次最多获取多少条消息

.batchSize(5)

.executor(executor)

.pollTimeout(Duration.ofSeconds(1))

.errorHandler(throwable -> {

log.error("[MQ handler exception]", throwable);

throwable.printStackTrace();

})

.build();

//该key和group可根据需求自定义配置

String streamName = "mystream";

String groupname = "mygroup";

initStream(streamName, groupname);

var listenerContainer = StreamMessageListenerContainer.create(factory, options);

// 手动ask消息

Subscription subscription = listenerContainer.receive(Consumer.from(groupname, "zhuyazhou"),

StreamOffset.create(streamName, ReadOffset.lastConsumed()), new RedisConsumersListener(redisStreamUtil));

// 自动ask消息

/* Subscription subscription = listenerContainer.receiveAutoAck(Consumer.from(redisMqGroup.getName(), redisMqGroup.getConsumers()[0]),

StreamOffset.create(streamName, ReadOffset.lastConsumed()), new ReportReadMqListener());*/

listenerContainer.start();

return subscription;

}

private void initStream(String key, String group) {

boolean hasKey = redisStreamUtil.hasKey(key);

if (!hasKey) {

Map<String, Object> map = new HashMap<>(1);

map.put("field", "value");

//创建主题

String result = redisStreamUtil.addMap(key, map);

//创建消费组

redisStreamUtil.oup(key, group);

//将初始化的值删除掉

redisStreamUtil.del(key, result);

log.info("stream:{}-group:{} initialize success", key, group);

}

redisTemplate：该bean用于配置redis序列化

subscription：配置监听

initStream：初始化消费组

监听测试

使用addMessage()方法投送一条消息后，查看控制台输出信息。

【streamKey】= mystream,

【recordId】= 1702623008044-0,

【msg】=

{user=[

"cn.hcr.pojo.RedisUser",

{"name":"hcr","age":18,"email":"156ef561@gmail.com"}

]

}
