在AI技术快速发展的今天，MCP（Model Context Protocol）作为Anthropic推出的革命性协议，正在重新定义AI助手与外部工具的交互方式。这个协议的出现解决了一个长期困扰开发者的问题：如何让AI助手能够安全、高效地访问和操作各种外部资源，从数据库查询到文件系统操作，从API调用到复杂的业务逻辑处理。

通过深入研究MCP协议的设计理念和实现机制，我发现它采用了一种优雅的客户端-服务器架构，将AI模型与工具提供者完全解耦。这种设计不仅提高了系统的安全性和可维护性，还为开发者提供了极大的灵活性。与传统的插件系统不同，MCP通过标准化的JSON-RPC通信协议，实现了跨平台、跨语言的工具集成能力。

在实际搭建MCP服务器的过程中，我体验到了这个协议的强大之处。从最基础的文件系统访问工具，到复杂的数据库操作接口，再到自定义的业务逻辑封装，MCP都能够提供统一而简洁的实现方案。特别是在处理敏感数据和权限控制方面，MCP的安全机制设计得相当周到，既保证了功能的完整性，又确保了数据的安全性。

更令人兴奋的是，MCP服务器的扩展性极强。通过模块化的设计，开发者可以轻松地添加新的工具和功能，而无需修改核心代码。这种插件化的架构使得一个MCP服务器可以同时为多个AI助手提供服务，真正实现了"一次开发，多处使用"的理想状态。本文将详细介绍如何从零开始搭建一个功能完整的MCP服务器，包括核心架构设计、工具实现、安全机制和性能优化等关键环节。

---

一、MCP协议核心概念与架构设计

MCP（Model Context Protocol）是一个开放标准，旨在为AI助手提供安全、可扩展的工具访问能力。它采用客户端-服务器架构，通过标准化的通信协议实现AI模型与外部工具的无缝集成。

1.1 MCP协议基础架构

MCP协议的核心组件包括三个部分：MCP客户端（通常是AI助手）、MCP服务器（工具提供者）和传输层（通信协议）。

// MCP协议基础类型定义
interface MCPMessage {
  jsonrpc: "2.0";
  id?: string | number;
  method?: string;
  params?: any;
  result?: any;
  error?: MCPError;
}

interface MCPError {
  code: number;
  message: string;
  data?: any;
}

// 工具定义接口
interface MCPTool {
  name: string;
  description: string;
  inputSchema: {
    type: "object";
    properties: Record<string, any>;
    required?: string[];
  };
}

// 资源定义接口
interface MCPResource {
  uri: string;
  name: string;
  description?: string;
  mimeType?: string;
}

// MCP服务器基础类
class MCPServer {
  private tools: Map<string, MCPTool> = new Map();
  private resources: Map<string, MCPResource> = new Map();
  private handlers: Map<string, Function> = new Map();

  constructor(private serverInfo: {
    name: string;
    version: string;
    description?: string;
  }) {
    this.setupDefaultHandlers();
  }

  // 注册工具
  addTool(tool: MCPTool, handler: Function) {
    this.tools.set(tool.name, tool);
    this.handlers.set(`tools/call/${tool.name}`, handler);
  }

  // 注册资源
  addResource(resource: MCPResource, handler: Function) {
    this.resources.set(resource.uri, resource);
    this.handlers.set(`resources/read/${resource.uri}`, handler);
  }

  // 设置默认处理器
  private setupDefaultHandlers() {
    // 初始化处理器
    this.handlers.set('initialize', this.handleInitialize.bind(this));
    this.handlers.set('tools/list', this.handleToolsList.bind(this));
    this.handlers.set('resources/list', this.handleResourcesList.bind(this));
  }

  // 处理初始化请求
  private async handleInitialize(params: any): Promise<any> {
    return {
      protocolVersion: "2024-11-05",
      capabilities: {
        tools: { listChanged: true },
        resources: { subscribe: true, listChanged: true },
        prompts: { listChanged: true }
      },
      serverInfo: this.serverInfo
    };
  }

  // 处理工具列表请求
  private async handleToolsList(): Promise<{ tools: MCPTool[] }> {
    return {
      tools: Array.from(this.tools.values())
    };
  }

  // 处理资源列表请求
  private async handleResourcesList(): Promise<{ resources: MCPResource[] }> {
    return {
      resources: Array.from(this.resources.values())
    };
  }

  // 处理消息
  async handleMessage(message: MCPMessage): Promise<MCPMessage | null> {
    try {
      if (message.method) {
        const handler = this.handlers.get(message.method);
        if (handler) {
          const result = await handler(message.params);
          return {
            jsonrpc: "2.0",
            id: message.id,
            result
          };
        } else {
          throw new Error(`Method not found: ${message.method}`);
        }
      }
      return null;
    } catch (error) {
      return {
        jsonrpc: "2.0",
        id: message.id,
        error: {
          code: -32603,
          message: error instanceof Error ? error.message : "Internal error"
        }
      };
    }
  }
}

这个基础实现展示了MCP服务器的核心结构。关键的addTool和addResource方法允许动态注册工具和资源，而handleMessage方法则负责处理所有的JSON-RPC请求。

1.2 MCP通信协议设计

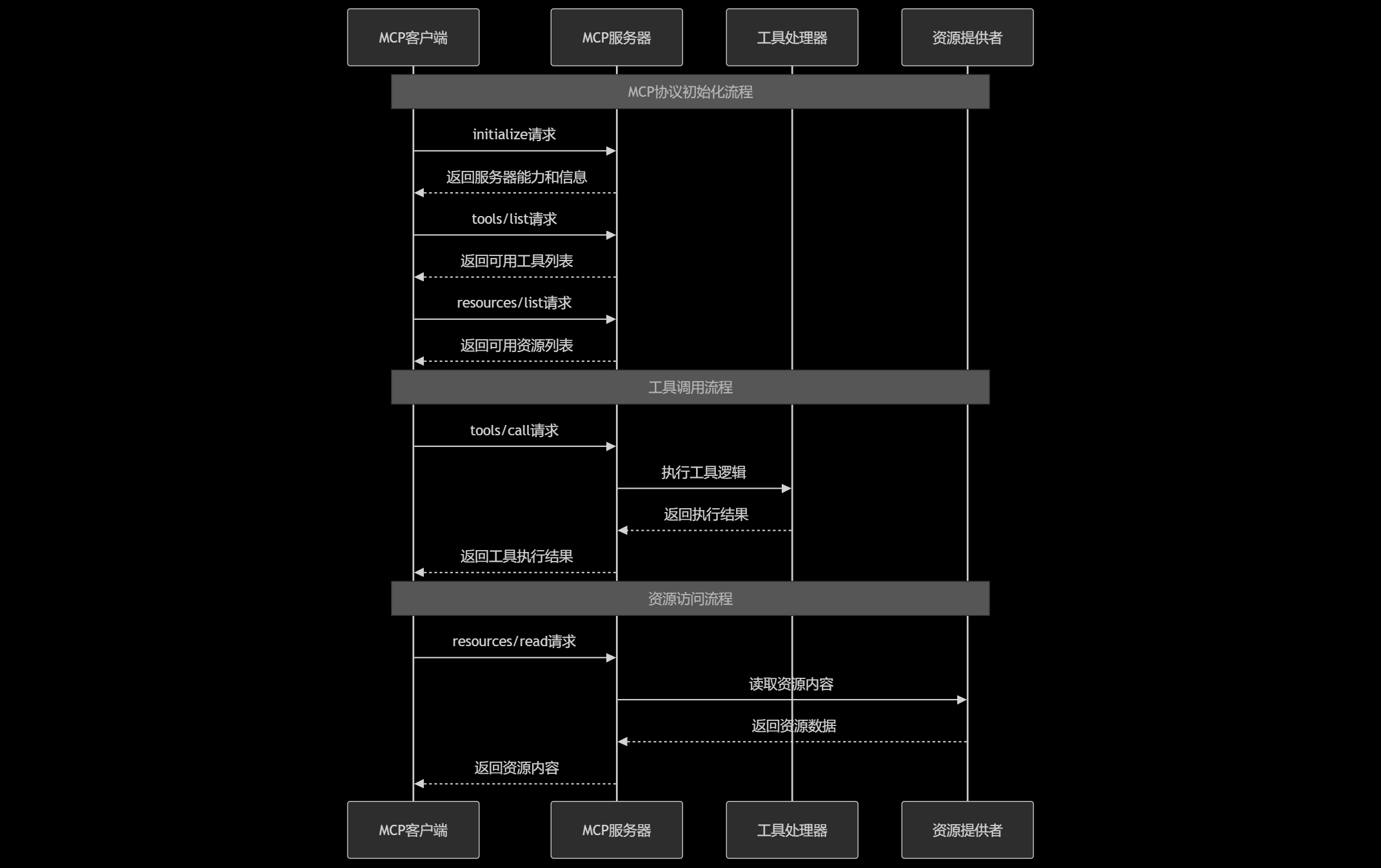

图1：MCP协议通信时序图 - 展示客户端与服务器的完整交互流程

---

二、核心工具实现与功能扩展

MCP服务器的核心价值在于提供丰富而实用的工具集合。以下是几个关键工具的实现示例。

2.1 文件系统操作工具

文件系统工具是MCP服务器最基础也是最重要的功能之一：

import * as fs from 'fs/promises';
import * as path from 'path';

class FileSystemTools {
  private allowedPaths: string[];

  constructor(allowedPaths: string[] = []) {
    this.allowedPaths = allowedPaths.map(p => path.resolve(p));
  }

  // 验证路径安全性
  private validatePath(filePath: string): boolean {
    const resolvedPath = path.resolve(filePath);
    return this.allowedPaths.some(allowedPath =>
      resolvedPath.startsWith(allowedPath)
    );
  }

  // 注册文件系统工具到MCP服务器
  registerTools(server: MCPServer) {
    // 读取文件工具
    server.addTool({
      name: "read_file",
      description: "读取指定路径的文件内容",
      inputSchema: {
        type: "object",
        properties: {
          path: {
            type: "string",
            description: "要读取的文件路径"
          }
        },
        required: ["path"]
      }
    }, this.readFile.bind(this));

    // 写入文件工具
    server.addTool({
      name: "write_file",
      description: "将内容写入指定路径的文件",
      inputSchema: {
        type: "object",
        properties: {
          path: {
            type: "string",
            description: "要写入的文件路径"
          },
          content: {
            type: "string",
            description: "要写入的文件内容"
          }
        },
        required: ["path", "content"]
      }
    }, this.writeFile.bind(this));

    // 列出目录工具
    server.addTool({
      name: "list_directory",
      description: "列出指定目录下的文件和子目录",
      inputSchema: {
        type: "object",
        properties: {
          path: {
            type: "string",
            description: "要列出的目录路径"
          }
        },
        required: ["path"]
      }
    }, this.listDirectory.bind(this));

    // 创建目录工具
    server.addTool({
      name: "create_directory",
      description: "创建新目录",
      inputSchema: {
        type: "object",
        properties: {
          path: {
            type: "string",
            description: "要创建的目录路径"
          }
        },
        required: ["path"]
      }
    }, this.createDirectory.bind(this));
  }

  // 读取文件实现
  private async readFile(params: { path: string }) {
    if (!this.validatePath(params.path)) {
      throw new Error(`Access denied: ${params.path}`);
    }

    try {
      const content = await fs.readFile(params.path, 'utf-8');
      const stats = await fs.stat(params.path);

      return {
        content,
        size: stats.size,
        lastModified: stats.mtime.toISOString(),
        encoding: 'utf-8'
      };
    } catch (error) {
      throw new Error(`Failed to read file: ${error.message}`);
    }
  }

  // 写入文件实现
  private async writeFile(params: { path: string; content: string }) {
    if (!this.validatePath(params.path)) {
      throw new Error(`Access denied: ${params.path}`);
    }

    try {
      // 确保目录存在
      const dir = path.dirname(params.path);
      await fs.mkdir(dir, { recursive: true });

      await fs.writeFile(params.path, params.content, 'utf-8');
      const stats = await fs.stat(params.path);

      return {
        success: true,
        size: stats.size,
        lastModified: stats.mtime.toISOString()
      };
    } catch (error) {
      throw new Error(`Failed to write file: ${error.message}`);
    }
  }

  // 列出目录实现
  private async listDirectory(params: { path: string }) {
    if (!this.validatePath(params.path)) {
      throw new Error(`Access denied: ${params.path}`);
    }

    try {
      const entries = await fs.readdir(params.path, { withFileTypes: true });
      const items = await Promise.all(
        entries.map(async (entry) => {
          const fullPath = path.join(params.path, entry.name);
          const stats = await fs.stat(fullPath);

          return {
            name: entry.name,
            type: entry.isDirectory() ? 'directory' : 'file',
            size: stats.size,
            lastModified: stats.mtime.toISOString()
          };
        })
      );

      return { items };
    } catch (error) {
      throw new Error(`Failed to list directory: ${error.message}`);
    }
  }

  // 创建目录实现
  private async createDirectory(params: { path: string }) {
    if (!this.validatePath(params.path)) {
      throw new Error(`Access denied: ${params.path}`);
    }

    try {
      await fs.mkdir(params.path, { recursive: true });
      return { success: true, path: params.path };
    } catch (error) {
      throw new Error(`Failed to create directory: ${error.message}`);
    }
  }
}

这个文件系统工具实现了基本的CRUD操作，并包含了重要的安全检查机制。validatePath方法确保只能访问预先配置的安全路径，防止路径遍历攻击。

2.2 数据库操作工具

数据库工具为AI助手提供了强大的数据查询和操作能力：

import { Pool, PoolClient } from 'pg';
import mysql from 'mysql2/promise';

class DatabaseTools {
  private pgPool?: Pool;
  private mysqlPool?: mysql.Pool;

  constructor(config: {
    postgres?: {
      host: string;
      port: number;
      database: string;
      user: string;
      password: string;
    };
    mysql?: {
      host: string;
      port: number;
      database: string;
      user: string;
      password: string;
    };
  }) {
    if (config.postgres) {
      this.pgPool = new Pool(config.postgres);
    }
    if (config.mysql) {
      this.mysqlPool = mysql.createPool(config.mysql);
    }
  }

  registerTools(server: MCPServer) {
    // SQL查询工具
    server.addTool({
      name: "execute_sql",
      description: "执行SQL查询语句",
      inputSchema: {
        type: "object",
        properties: {
          query: {
            type: "string",
            description: "要执行的SQL查询语句"
          },
          database: {
            type: "string",
            enum: ["postgres", "mysql"],
            description: "目标数据库类型"
          },
          params: {
            type: "array",
            description: "查询参数数组",
            items: { type: "string" }
          }
        },
        required: ["query", "database"]
      }
    }, this.executeSQL.bind(this));

    // 获取表结构工具
    server.addTool({
      name: "describe_table",
      description: "获取数据表的结构信息",
      inputSchema: {
        type: "object",
        properties: {
          tableName: {
            type: "string",
            description: "表名"
          },
          database: {
            type: "string",
            enum: ["postgres", "mysql"],
            description: "数据库类型"
          }
        },
        required: ["tableName", "database"]
      }
    }, this.describeTable.bind(this));
  }

  // 执行SQL查询
  private async executeSQL(params: {
    query: string;
    database: 'postgres' | 'mysql';
    params?: string[];
  }) {
    // 安全检查：禁止危险操作
    const dangerousKeywords = ['DROP', 'DELETE', 'TRUNCATE', 'ALTER', 'CREATE'];
    const upperQuery = params.query.toUpperCase();

    if (dangerousKeywords.some(keyword => upperQuery.includes(keyword))) {
      throw new Error('Dangerous SQL operations are not allowed');
    }

    try {
      if (params.database === 'postgres' && this.pgPool) {
        const client = await this.pgPool.connect();
        try {
          const result = await client.query(params.query, params.params);
          return {
            rows: result.rows,
            rowCount: result.rowCount,
            fields: result.fields?.map(f => ({
              name: f.name,
              dataTypeID: f.dataTypeID
            }))
          };
        } finally {
          client.release();
        }
      } else if (params.database === 'mysql' && this.mysqlPool) {
        const [rows, fields] = await this.mysqlPool.execute(
          params.query,
          params.params
        );
        return {
          rows,
          rowCount: Array.isArray(rows) ? rows.length : 0,
          fields: Array.isArray(fields) ? fields.map(f => ({
            name: f.name,
            type: f.type
          })) : []
        };
      } else {
        throw new Error(`Database ${params.database} not configured`);
      }
    } catch (error) {
      throw new Error(`SQL execution failed: ${error.message}`);
    }
  }

  // 描述表结构
  private async describeTable(params: {
    tableName: string;
    database: 'postgres' | 'mysql';
  }) {
    try {
      if (params.database === 'postgres' && this.pgPool) {
        const query = `
          SELECT
            column_name,
            data_type,
            is_nullable,
            column_default,
            character_maximum_length
          FROM information_schema.columns
          WHERE table_name = $1
          ORDER BY ordinal_position
        `;

        const client = await this.pgPool.connect();
        try {
          const result = await client.query(query, [params.tableName]);
          return { columns: result.rows };
        } finally {
          client.release();
        }
      } else if (params.database === 'mysql' && this.mysqlPool) {
        const query = `
          SELECT
            COLUMN_NAME as column_name,
            DATA_TYPE as data_type,
            IS_NULLABLE as is_nullable,
            COLUMN_DEFAULT as column_default,
            CHARACTER_MAXIMUM_LENGTH as character_maximum_length
          FROM information_schema.COLUMNS
          WHERE TABLE_NAME = ?
          ORDER BY ORDINAL_POSITION
        `;

        const [rows] = await this.mysqlPool.execute(query, [params.tableName]);
        return { columns: rows };
      } else {
        throw new Error(`Database ${params.database} not configured`);
      }
    } catch (error) {
      throw new Error(`Failed to describe table: ${error.message}`);
    }
  }
}

数据库工具实现了安全的SQL执行机制，通过关键词检查防止危险操作，同时支持多种数据库类型。

2.3 工具功能对比分析

图2：MCP工具性能与复杂度对比图 - 绿线表示性能评分，蓝线表示实现复杂度

---

三、安全机制与权限控制

在MCP服务器中，安全性是至关重要的考虑因素。需要实现多层次的安全防护机制。

3.1 权限控制系统

// 权限定义接口
interface Permission {
  resource: string;
  actions: string[];
  conditions?: Record<string, any>;
}

// 用户角色定义
interface Role {
  name: string;
  permissions: Permission[];
}

// 安全上下文
interface SecurityContext {
  userId: string;
  roles: string[];
  sessionId: string;
  clientInfo: {
    name: string;
    version: string;
    capabilities: string[];
  };
}

class SecurityManager {
  private roles: Map<string, Role> = new Map();
  private userRoles: Map<string, string[]> = new Map();
  private activeSessions: Map<string, SecurityContext> = new Map();

  constructor() {
    this.initializeDefaultRoles();
  }

  // 初始化默认角色
  private initializeDefaultRoles() {
    // 只读角色
    this.roles.set('readonly', {
      name: 'readonly',
      permissions: [
        {
          resource: 'files',
          actions: ['read', 'list']
        },
        {
          resource: 'database',
          actions: ['select']
        }
      ]
    });

    // 标准用户角色
    this.roles.set('user', {
      name: 'user',
      permissions: [
        {
          resource: 'files',
          actions: ['read', 'write', 'list'],
          conditions: { pathPrefix: '/user-data/' }
        },
        {
          resource: 'database',
          actions: ['select', 'insert', 'update'],
          conditions: { tables: ['user_data', 'user_preferences'] }
        }
      ]
    });

    // 管理员角色
    this.roles.set('admin', {
      name: 'admin',
      permissions: [
        {
          resource: '*',
          actions: ['*']
        }
      ]
    });
  }

  // 创建安全会话
  createSession(userId: string, clientInfo: any): string {
    const sessionId = this.generateSessionId();
    const userRoles = this.userRoles.get(userId) || ['readonly'];

    const context: SecurityContext = {
      userId,
      roles: userRoles,
      sessionId,
      clientInfo
    };

    this.activeSessions.set(sessionId, context);

    // 设置会话过期
    setTimeout(() => {
      this.activeSessions.delete(sessionId);
    }, 24 * 60 * 60 * 1000); // 24小时过期

    return sessionId;
  }

  // 检查权限
  checkPermission(
    sessionId: string,
    resource: string,
    action: string,
    context?: Record<string, any>
  ): boolean {
    const session = this.activeSessions.get(sessionId);
    if (!session) {
      return false;
    }

    // 检查每个角色的权限
    for (const roleName of session.roles) {
      const role = this.roles.get(roleName);
      if (!role) continue;

      for (const permission of role.permissions) {
        if (this.matchesPermission(permission, resource, action, context)) {
          return true;
        }
      }
    }

    return false;
  }

  // 权限匹配检查
  private matchesPermission(
    permission: Permission,
    resource: string,
    action: string,
    context?: Record<string, any>
  ): boolean {
    // 检查资源匹配
    if (permission.resource !== '*' && permission.resource !== resource) {
      return false;
    }

    // 检查动作匹配
    if (!permission.actions.includes('*') && !permission.actions.includes(action)) {
      return false;
    }

    // 检查条件匹配
    if (permission.conditions && context) {
      for (const [key, value] of Object.entries(permission.conditions)) {
        if (key === 'pathPrefix' && context.path) {
          if (!context.path.startsWith(value)) {
            return false;
          }
        } else if (key === 'tables' && context.table) {
          if (!value.includes(context.table)) {
            return false;
          }
        }
      }
    }

    return true;
  }

  // 生成会话ID
  private generateSessionId(): string {
    return Math.random().toString(36).substring(2) + Date.now().toString(36);
  }

  // 设置用户角色
  setUserRoles(userId: string, roles: string[]) {
    this.userRoles.set(userId, roles);
  }

  // 获取会话信息
  getSession(sessionId: string): SecurityContext | undefined {
    return this.activeSessions.get(sessionId);
  }
}

// 安全装饰器
function requirePermission(resource: string, action: string) {
  return function (target: any, propertyName: string, descriptor: PropertyDescriptor) {
    const method = descriptor.value;

    descriptor.value = async function (params: any, sessionId?: string) {
      if (!sessionId) {
        throw new Error('Authentication required');
      }

      const securityManager = this.securityManager as SecurityManager;
      if (!securityManager.checkPermission(sessionId, resource, action, params)) {
        throw new Error(`Permission denied: ${resource}:${action}`);
      }

      return method.call(this, params, sessionId);
    };
  };
}

这个安全管理系统实现了基于角色的访问控制（RBAC），支持细粒度的权限配置和条件检查。

3.2 输入验证与防护

import Ajv from 'ajv';
import addFormats from 'ajv-formats';

class InputValidator {
  private ajv: Ajv;

  constructor() {
    this.ajv = new Ajv({ allErrors: true });
    addFormats(this.ajv);
  }

  // 验证工具输入
  validateToolInput(toolName: string, input: any, schema: any): boolean {
    const validate = this.ajv.compile(schema);
    const valid = validate(input);

    if (!valid) {
      const errors = validate.errors?.map(err =>
        `${err.instancePath}: ${err.message}`
      ).join(', ');
      throw new Error(`Invalid input for tool ${toolName}: ${errors}`);
    }

    return true;
  }

  // SQL注入防护
  sanitizeSQL(query: string): string {
    // 移除注释
    query = query.replace(/--.*$/gm, '');
    query = query.replace(/\/\*[\s\S]*?\*\//g, '');

    // 检查危险模式
    const dangerousPatterns = [
      /union\s+select/i,
      /;\s*drop\s+/i,
      /;\s*delete\s+/i,
      /;\s*update\s+/i,
      /;\s*insert\s+/i,
      /exec\s*\(/i,
      /xp_cmdshell/i
    ];

    for (const pattern of dangerousPatterns) {
      if (pattern.test(query)) {
        throw new Error('Potentially dangerous SQL pattern detected');
      }
    }

    return query.trim();
  }

  // 路径遍历防护
  sanitizePath(filePath: string): string {
    // 规范化路径
    const normalized = path.normalize(filePath);

    // 检查路径遍历
    if (normalized.includes('..')) {
      throw new Error('Path traversal detected');
    }

    // 检查绝对路径（根据需要）
    if (path.isAbsolute(normalized)) {
      throw new Error('Absolute paths not allowed');
    }

    return normalized;
  }

  // 命令注入防护
  sanitizeCommand(command: string): string {
    // 危险字符检查
    const dangerousChars = ['|', '&', ';', '$', '`', '(', ')', '<', '>', '"', "'"];

    for (const char of dangerousChars) {
      if (command.includes(char)) {
        throw new Error(`Dangerous character detected: ${char}`);
      }
    }

    return command.trim();
  }
}

输入验证系统提供了多层防护，包括JSON Schema验证、SQL注入防护、路径遍历检查和命令注入防护。

---

四、传输层实现与通信优化

MCP协议支持多种传输方式，包括标准输入输出、HTTP和WebSocket。每种方式都有其适用场景。

4.1 多传输层支持

import { WebSocketServer } from 'ws';
import express from 'express';
import { createServer } from 'http';

// 传输层抽象接口
interface Transport {
  start(): Promise<void>;
  stop(): Promise<void>;
  onMessage(handler: (message: MCPMessage) => Promise<MCPMessage | null>): void;
  sendMessage(message: MCPMessage): Promise<void>;
}

// WebSocket传输实现
class WebSocketTransport implements Transport {
  private wss?: WebSocketServer;
  private messageHandler?: (message: MCPMessage) => Promise<MCPMessage | null>;

  constructor(private port: number) {}

  async start(): Promise<void> {
    const app = express();
    const server = createServer(app);

    this.wss = new WebSocketServer({ server });

    this.wss.on('connection', (ws) => {
      console.log('New MCP client connected');

      ws.on('message', async (data) => {
        try {
          const message: MCPMessage = JSON.parse(data.toString());

          if (this.messageHandler) {
            const response = await this.messageHandler(message);
            if (response) {
              ws.send(JSON.stringify(response));
            }
          }
        } catch (error) {
          const errorResponse: MCPMessage = {
            jsonrpc: "2.0",
            id: null,
            error: {
              code: -32700,
              message: "Parse error"
            }
          };
          ws.send(JSON.stringify(errorResponse));
        }
      });

      ws.on('close', () => {
        console.log('MCP client disconnected');
      });
    });

    return new Promise((resolve) => {
      server.listen(this.port, () => {
        console.log(`MCP WebSocket server listening on port ${this.port}`);
        resolve();
      });
    });
  }

  async stop(): Promise<void> {
    if (this.wss) {
      this.wss.close();
    }
  }

  onMessage(handler: (message: MCPMessage) => Promise<MCPMessage | null>): void {
    this.messageHandler = handler;
  }

  async sendMessage(message: MCPMessage): Promise<void> {
    // WebSocket服务器通常不主动发送消息
    // 这里可以实现推送通知功能
  }
}

// HTTP传输实现
class HTTPTransport implements Transport {
  private app: express.Application;
  private server?: any;
  private messageHandler?: (message: MCPMessage) => Promise<MCPMessage | null>;

  constructor(private port: number) {
    this.app = express();
    this.setupMiddleware();
    this.setupRoutes();
  }

  private setupMiddleware() {
    this.app.use(express.json({ limit: '10mb' }));
    this.app.use(express.urlencoded({ extended: true }));

    // CORS支持
    this.app.use((req, res, next) => {
      res.header('Access-Control-Allow-Origin', '*');
      res.header('Access-Control-Allow-Methods', 'POST, OPTIONS');
      res.header('Access-Control-Allow-Headers', 'Content-Type');
      next();
    });
  }

  private setupRoutes() {
    // MCP消息处理端点
    this.app.post('/mcp', async (req, res) => {
      try {
        const message: MCPMessage = req.body;

        if (this.messageHandler) {
          const response = await this.messageHandler(message);
          if (response) {
            res.json(response);
          } else {
            res.status(204).send();
          }
        } else {
          res.status(500).json({
            jsonrpc: "2.0",
            id: message.id,
            error: {
              code: -32603,
              message: "Internal error: No message handler"
            }
          });
        }
      } catch (error) {
        res.status(400).json({
          jsonrpc: "2.0",
          id: null,
          error: {
            code: -32700,
            message: "Parse error"
          }
        });
      }
    });

    // 健康检查端点
    this.app.get('/health', (req, res) => {
      res.json({ status: 'healthy', timestamp: new Date().toISOString() });
    });
  }

  async start(): Promise<void> {
    return new Promise((resolve) => {
      this.server = this.app.listen(this.port, () => {
        console.log(`MCP HTTP server listening on port ${this.port}`);
        resolve();
      });
    });
  }

  async stop(): Promise<void> {
    if (this.server) {
      this.server.close();
    }
  }

  onMessage(handler: (message: MCPMessage) => Promise<MCPMessage | null>): void {
    this.messageHandler = handler;
  }

  async sendMessage(message: MCPMessage): Promise<void> {
    // HTTP传输通常是请求-响应模式，不支持主动推送
    throw new Error('HTTP transport does not support sending messages');
  }
}

// 标准输入输出传输实现
class StdioTransport implements Transport {
  private messageHandler?: (message: MCPMessage) => Promise<MCPMessage | null>;

  async start(): Promise<void> {
    process.stdin.setEncoding('utf8');

    let buffer = '';
    process.stdin.on('data', async (chunk) => {
      buffer += chunk;

      // 处理多行JSON消息
      const lines = buffer.split('\n');
      buffer = lines.pop() || '';

      for (const line of lines) {
        if (line.trim()) {
          try {
            const message: MCPMessage = JSON.parse(line);

            if (this.messageHandler) {
              const response = await this.messageHandler(message);
              if (response) {
                process.stdout.write(JSON.stringify(response) + '\n');
              }
            }
          } catch (error) {
            const errorResponse: MCPMessage = {
              jsonrpc: "2.0",
              id: null,
              error: {
                code: -32700,
                message: "Parse error"
              }
            };
            process.stdout.write(JSON.stringify(errorResponse) + '\n');
          }
        }
      }
    });

    console.log('MCP stdio transport started');
  }

  async stop(): Promise<void> {
    // stdio传输通常不需要显式停止
  }

  onMessage(handler: (message: MCPMessage) => Promise<MCPMessage | null>): void {
    this.messageHandler = handler;
  }

  async sendMessage(message: MCPMessage): Promise<void> {
    process.stdout.write(JSON.stringify(message) + '\n');
  }
}

这个多传输层实现支持WebSocket、HTTP和标准输入输出三种通信方式，可以根据不同的部署场景选择合适的传输方式。

4.2 传输层性能对比

传输方式	延迟	吞吐量	连接开销	适用场景
WebSocket	低	高	中	实时交互、长连接
HTTP	中	中	低	简单集成、无状态
Stdio	极低	高	极低	本地进程、命令行工具

---

五、性能优化与监控体系

为了确保MCP服务器在生产环境中的稳定运行，需要实现完善的性能优化和监控体系。

5.1 性能优化策略

import { LRUCache } from 'lru-cache';
import { EventEmitter } from 'events';

// 性能监控指标
interface PerformanceMetrics {
  requestCount: number;
  averageResponseTime: number;
  errorRate: number;
  activeConnections: number;
  memoryUsage: NodeJS.MemoryUsage;
  cpuUsage: number;
}

// 缓存管理器
class CacheManager {
  private cache: LRUCache<string, any>;
  private hitCount = 0;
  private missCount = 0;

  constructor(maxSize: number = 1000, ttl: number = 300000) { // 5分钟TTL
    this.cache = new LRUCache({
      max: maxSize,
      ttl: ttl,
      updateAgeOnGet: true
    });
  }

  get(key: string): any {
    const value = this.cache.get(key);
    if (value !== undefined) {
      this.hitCount++;
      return value;
    } else {
      this.missCount++;
      return undefined;
    }
  }

  set(key: string, value: any): void {
    this.cache.set(key, value);
  }

  getStats() {
    const total = this.hitCount + this.missCount;
    return {
      hitRate: total > 0 ? this.hitCount / total : 0,
      hitCount: this.hitCount,
      missCount: this.missCount,
      size: this.cache.size
    };
  }

  clear(): void {
    this.cache.clear();
    this.hitCount = 0;
    this.missCount = 0;
  }
}

// 性能监控器
class PerformanceMonitor extends EventEmitter {
  private metrics: PerformanceMetrics;
  private requestTimes: number[] = [];
  private errorCount = 0;
  private requestCount = 0;
  private startTime = Date.now();

  constructor() {
    super();
    this.metrics = {
      requestCount: 0,
      averageResponseTime: 0,
      errorRate: 0,
      activeConnections: 0,
      memoryUsage: process.memoryUsage(),
      cpuUsage: 0
    };

    // 定期更新系统指标
    setInterval(() => {
      this.updateSystemMetrics();
    }, 5000);
  }

  // 记录请求开始
  startRequest(): () => void {
    const startTime = Date.now();
    this.requestCount++;
    this.metrics.activeConnections++;

    return () => {
      const duration = Date.now() - startTime;
      this.requestTimes.push(duration);
      this.metrics.activeConnections--;

      // 保持最近1000次请求的记录
      if (this.requestTimes.length > 1000) {
        this.requestTimes.shift();
      }

      this.updateMetrics();
    };
  }

  // 记录错误
  recordError(): void {
    this.errorCount++;
    this.updateMetrics();
  }

  // 更新指标
  private updateMetrics(): void {
    this.metrics.requestCount = this.requestCount;

    if (this.requestTimes.length > 0) {
      this.metrics.averageResponseTime =
        this.requestTimes.reduce((a, b) => a + b, 0) / this.requestTimes.length;
    }

    this.metrics.errorRate = this.requestCount > 0 ?
      this.errorCount / this.requestCount : 0;

    // 发出指标更新事件
    this.emit('metricsUpdated', this.metrics);
  }

  // 更新系统指标
  private updateSystemMetrics(): void {
    this.metrics.memoryUsage = process.memoryUsage();

    // 简单的CPU使用率估算
    const usage = process.cpuUsage();
    this.metrics.cpuUsage = (usage.user + usage.system) / 1000000; // 转换为秒
  }

  // 获取当前指标
  getMetrics(): PerformanceMetrics {
    return { ...this.metrics };
  }

  // 重置指标
  reset(): void {
    this.requestTimes = [];
    this.errorCount = 0;
    this.requestCount = 0;
    this.startTime = Date.now();
    this.updateMetrics();
  }
}

// 优化的MCP服务器
class OptimizedMCPServer extends MCPServer {
  private cache: CacheManager;
  private monitor: PerformanceMonitor;
  private rateLimiter: Map<string, number[]> = new Map();

  constructor(serverInfo: any) {
    super(serverInfo);
    this.cache = new CacheManager();
    this.monitor = new PerformanceMonitor();

    // 监听性能指标
    this.monitor.on('metricsUpdated', (metrics) => {
      if (metrics.errorRate > 0.1) { // 错误率超过10%
        console.warn('High error rate detected:', metrics.errorRate);
      }

      if (metrics.averageResponseTime > 5000) { // 响应时间超过5秒
        console.warn('High response time detected:', metrics.averageResponseTime);
      }
    });
  }

  // 带缓存的消息处理
  async handleMessage(message: MCPMessage): Promise<MCPMessage | null> {
    const endRequest = this.monitor.startRequest();

    try {
      // 检查速率限制
      if (!this.checkRateLimit(message)) {
        throw new Error('Rate limit exceeded');
      }

      // 尝试从缓存获取结果
      const cacheKey = this.generateCacheKey(message);
      let result = this.cache.get(cacheKey);

      if (result === undefined) {
        // 缓存未命中，执行实际处理
        result = await super.handleMessage(message);

        // 缓存结果（仅对幂等操作）
        if (this.isCacheable(message)) {
          this.cache.set(cacheKey, result);
        }
      }

      return result;
    } catch (error) {
      this.monitor.recordError();
      throw error;
    } finally {
      endRequest();
    }
  }

  // 生成缓存键
  private generateCacheKey(message: MCPMessage): string {
    return `${message.method}:${JSON.stringify(message.params)}`;
  }

  // 检查是否可缓存
  private isCacheable(message: MCPMessage): boolean {
    const readOnlyMethods = [
      'tools/list',
      'resources/list',
      'resources/read',
      'prompts/list'
    ];

    return readOnlyMethods.includes(message.method || '');
  }

  // 速率限制检查
  private checkRateLimit(message: MCPMessage): boolean {
    const clientId = 'default'; // 实际应用中应该从会话中获取
    const now = Date.now();
    const windowMs = 60000; // 1分钟窗口
    const maxRequests = 100; // 每分钟最多100个请求

    if (!this.rateLimiter.has(clientId)) {
      this.rateLimiter.set(clientId, []);
    }

    const requests = this.rateLimiter.get(clientId)!;

    // 清理过期的请求记录
    const validRequests = requests.filter(time => now - time < windowMs);

    if (validRequests.length >= maxRequests) {
      return false;
    }

    validRequests.push(now);
    this.rateLimiter.set(clientId, validRequests);

    return true;
  }

  // 获取性能指标
  getPerformanceMetrics(): PerformanceMetrics & { cache: any } {
    return {
      ...this.monitor.getMetrics(),
      cache: this.cache.getStats()
    };
  }

  // 清理缓存
  clearCache(): void {
    this.cache.clear();
  }
}

这个优化版本的MCP服务器集成了缓存、性能监控和速率限制功能，能够显著提升系统的性能和稳定性。

5.2 监控仪表板

图3：MCP服务器资源使用分布饼图 - 展示不同资源的使用占比

---

六、部署配置与生产环境优化

将MCP服务器部署到生产环境需要考虑多个方面的配置和优化。

6.1 Docker容器化部署

# Dockerfile
FROM node:18-alpine

# 设置工作目录
WORKDIR /app

# 复制package文件
COPY package*.json ./

# 安装依赖
RUN npm ci --only=production

# 复制源代码
COPY . .

# 编译TypeScript
RUN npm run build

# 创建非root用户
RUN addgroup -g 1001 -S nodejs
RUN adduser -S mcpserver -u 1001

# 设置权限
RUN chown -R mcpserver:nodejs /app
USER mcpserver

# 暴露端口
EXPOSE 3000

# 健康检查
HEALTHCHECK --interval=30s --timeout=3s --start-period=5s --retries=3 \
  CMD curl -f http://localhost:3000/health || exit 1

# 启动命令
CMD ["node", "dist/server.js"]

# docker-compose.yml
version: '3.8'

services:
  mcp-server:
    build: .
    ports:
      - "3000:3000"
    environment:
      - NODE_ENV=production
      - LOG_LEVEL=info
      - CACHE_SIZE=1000
      - RATE_LIMIT=100
    volumes:
      - ./data:/app/data:ro
      - ./logs:/app/logs
    restart: unless-stopped
    networks:
      - mcp-network
    depends_on:
      - redis
      - postgres

  redis:
    image: redis:7-alpine
    ports:
      - "6379:6379"
    volumes:
      - redis-data:/data
    networks:
      - mcp-network

  postgres:
    image: postgres:15-alpine
    environment:
      - POSTGRES_DB=mcpserver
      - POSTGRES_USER=mcpuser
      - POSTGRES_PASSWORD=mcppass
    volumes:
      - postgres-data:/var/lib/postgresql/data
    networks:
      - mcp-network

  nginx:
    image: nginx:alpine
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ./nginx.conf:/etc/nginx/nginx.conf:ro
      - ./ssl:/etc/nginx/ssl:ro
    depends_on:
      - mcp-server
    networks:
      - mcp-network

volumes:
  redis-data:
  postgres-data:

networks:
  mcp-network:
    driver: bridge

6.2 生产环境配置

// config/production.ts
export const productionConfig = {
  server: {
    port: process.env.PORT || 3000,
    host: process.env.HOST || '0.0.0.0',
    name: 'MCP Production Server',
    version: '1.0.0'
  },

  security: {
    enableAuth: true,
    sessionTimeout: 24 * 60 * 60 * 1000, // 24小时
    maxLoginAttempts: 5,
    lockoutDuration: 15 * 60 * 1000, // 15分钟
    allowedOrigins: process.env.ALLOWED_ORIGINS?.split(',') || ['*'],
    rateLimits: {
      windowMs: 60 * 1000, // 1分钟
      maxRequests: parseInt(process.env.RATE_LIMIT || '100')
    }
  },

  database: {
    postgres: {
      host: process.env.DB_HOST || 'postgres',
      port: parseInt(process.env.DB_PORT || '5432'),
      database: process.env.DB_NAME || 'mcpserver',
      user: process.env.DB_USER || 'mcpuser',
      password: process.env.DB_PASSWORD || 'mcppass',
      ssl: process.env.DB_SSL === 'true',
      pool: {
        min: 2,
        max: 10,
        idleTimeoutMillis: 30000
      }
    }
  },

  cache: {
    type: 'redis',
    redis: {
      host: process.env.REDIS_HOST || 'redis',
      port: parseInt(process.env.REDIS_PORT || '6379'),
      password: process.env.REDIS_PASSWORD,
      db: parseInt(process.env.REDIS_DB || '0')
    },
    ttl: 300000, // 5分钟
    maxSize: parseInt(process.env.CACHE_SIZE || '1000')
  },

  logging: {
    level: process.env.LOG_LEVEL || 'info',
    format: 'json',
    file: {
      enabled: true,
      path: '/app/logs/mcp-server.log',
      maxSize: '10m',
      maxFiles: 5
    },
    console: {
      enabled: true,
      colorize: false
    }
  },

  monitoring: {
    enabled: true,
    metricsInterval: 5000,
    healthCheck: {
      enabled: true,
      path: '/health',
      timeout: 3000
    },
    prometheus: {
      enabled: true,
      path: '/metrics'
    }
  },

  fileSystem: {
    allowedPaths: [
      '/app/data',
      '/tmp/mcp-uploads'
    ],
    maxFileSize: 10 * 1024 * 1024, // 10MB
    allowedExtensions: ['.txt', '.json', '.csv', '.md']
  }
};

// 配置验证
export function validateConfig(config: any): boolean {
  const required = [
    'server.port',
    'server.name',
    'database.postgres.host',
    'cache.redis.host'
  ];

  for (const path of required) {
    const value = path.split('.').reduce((obj, key) => obj?.[key], config);
    if (value === undefined || value === null) {
      throw new Error(`Missing required configuration: ${path}`);
    }
  }

  return true;
}

6.3 部署架构图

图4：MCP服务器生产环境部署架构图 - 展示完整的高可用部署方案

---

七、扩展开发与最佳实践

为了让MCP服务器更好地适应不同的业务需求，需要建立完善的扩展机制和开发规范。

7.1 插件系统设计

// 插件接口定义
interface MCPPlugin {
  name: string;
  version: string;
  description: string;
  dependencies?: string[];

  // 插件生命周期方法
  initialize?(server: MCPServer): Promise<void>;
  activate?(server: MCPServer): Promise<void>;
  deactivate?(): Promise<void>;

  // 工具和资源注册
  getTools?(): MCPTool[];
  getResources?(): MCPResource[];
  getPrompts?(): MCPPrompt[];
}

// 插件管理器
class PluginManager {
  private plugins: Map<string, MCPPlugin> = new Map();
  private activePlugins: Set<string> = new Set();
  private server: MCPServer;

  constructor(server: MCPServer) {
    this.server = server;
  }

  // 加载插件
  async loadPlugin(plugin: MCPPlugin): Promise<void> {
    // 检查依赖
    if (plugin.dependencies) {
      for (const dep of plugin.dependencies) {
        if (!this.activePlugins.has(dep)) {
          throw new Error(`Missing dependency: ${dep}`);
        }
      }
    }

    // 初始化插件
    if (plugin.initialize) {
      await plugin.initialize(this.server);
    }

    this.plugins.set(plugin.name, plugin);
    console.log(`Plugin loaded: ${plugin.name} v${plugin.version}`);
  }

  // 激活插件
  async activatePlugin(pluginName: string): Promise<void> {
    const plugin = this.plugins.get(pluginName);
    if (!plugin) {
      throw new Error(`Plugin not found: ${pluginName}`);
    }

    // 注册工具
    if (plugin.getTools) {
      const tools = plugin.getTools();
      for (const tool of tools) {
        this.server.addTool(tool, this.createToolHandler(plugin, tool));
      }
    }

    // 注册资源
    if (plugin.getResources) {
      const resources = plugin.getResources();
      for (const resource of resources) {
        this.server.addResource(resource, this.createResourceHandler(plugin, resource));
      }
    }

    // 激活插件
    if (plugin.activate) {
      await plugin.activate(this.server);
    }

    this.activePlugins.add(pluginName);
    console.log(`Plugin activated: ${pluginName}`);
  }

  // 停用插件
  async deactivatePlugin(pluginName: string): Promise<void> {
    const plugin = this.plugins.get(pluginName);
    if (!plugin) {
      throw new Error(`Plugin not found: ${pluginName}`);
    }

    if (plugin.deactivate) {
      await plugin.deactivate();
    }

    this.activePlugins.delete(pluginName);
    console.log(`Plugin deactivated: ${pluginName}`);
  }

  // 创建工具处理器
  private createToolHandler(plugin: MCPPlugin, tool: MCPTool): Function {
    return async (params: any) => {
      // 这里可以添加插件特定的逻辑
      // 实际的工具实现应该在插件中定义
      throw new Error(`Tool handler not implemented: ${tool.name}`);
    };
  }

  // 创建资源处理器
  private createResourceHandler(plugin: MCPPlugin, resource: MCPResource): Function {
    return async (params: any) => {
      // 这里可以添加插件特定的逻辑
      throw new Error(`Resource handler not implemented: ${resource.uri}`);
    };
  }

  // 获取已加载的插件列表
  getLoadedPlugins(): string[] {
    return Array.from(this.plugins.keys());
  }

  // 获取已激活的插件列表
  getActivePlugins(): string[] {
    return Array.from(this.activePlugins);
  }
}

// 示例插件：Git操作插件
class GitPlugin implements MCPPlugin {
  name = 'git-operations';
  version = '1.0.0';
  description = 'Git repository operations plugin';

  async initialize(server: MCPServer): Promise<void> {
    console.log('Initializing Git plugin...');
  }

  async activate(server: MCPServer): Promise<void> {
    console.log('Activating Git plugin...');
  }

  getTools(): MCPTool[] {
    return [
      {
        name: 'git_status',
        description: '获取Git仓库状态',
        inputSchema: {
          type: 'object',
          properties: {
            path: {
              type: 'string',
              description: '仓库路径'
            }
          },
          required: ['path']
        }
      },
      {
        name: 'git_commit',
        description: '提交更改到Git仓库',
        inputSchema: {
          type: 'object',
          properties: {
            path: {
              type: 'string',
              description: '仓库路径'
            },
            message: {
              type: 'string',
              description: '提交消息'
            },
            files: {
              type: 'array',
              items: { type: 'string' },
              description: '要提交的文件列表'
            }
          },
          required: ['path', 'message']
        }
      }
    ];
  }
}

7.2 开发最佳实践

// 最佳实践示例：错误处理和日志记录
class BestPracticesMCPServer extends OptimizedMCPServer {
  private logger: Logger;

  constructor(serverInfo: any, logger: Logger) {
    super(serverInfo);
    this.logger = logger;
  }

  // 统一错误处理
  async handleMessage(message: MCPMessage): Promise<MCPMessage | null> {
    const requestId = this.generateRequestId();

    this.logger.info('Incoming request', {
      requestId,
      method: message.method,
      id: message.id
    });

    try {
      const result = await super.handleMessage(message);

      this.logger.info('Request completed', {
        requestId,
        method: message.method,
        success: true
      });

      return result;
    } catch (error) {
      this.logger.error('Request failed', {
        requestId,
        method: message.method,
        error: error.message,
        stack: error.stack
      });

      return {
        jsonrpc: "2.0",
        id: message.id,
        error: {
          code: this.getErrorCode(error),
          message: error.message,
          data: {
            requestId,
            timestamp: new Date().toISOString()
          }
        }
      };
    }
  }

  // 生成请求ID
  private generateRequestId(): string {
    return `req_${Date.now()}_${Math.random().toString(36).substr(2, 9)}`;
  }

  // 获取错误代码
  private getErrorCode(error: Error): number {
    if (error.message.includes('Permission denied')) {
      return -32001; // 权限错误
    } else if (error.message.includes('Invalid input')) {
      return -32602; // 无效参数
    } else if (error.message.includes('not found')) {
      return -32601; // 方法未找到
    } else {
      return -32603; // 内部错误
    }
  }
}

// 配置验证工具
class ConfigValidator {
  static validate(config: any): { valid: boolean; errors: string[] } {
    const errors: string[] = [];

    // 检查必需字段
    if (!config.server?.port) {
      errors.push('server.port is required');
    }

    if (!config.server?.name) {
      errors.push('server.name is required');
    }

    // 检查端口范围
    if (config.server?.port && (config.server.port < 1 || config.server.port > 65535)) {
      errors.push('server.port must be between 1 and 65535');
    }

    // 检查安全配置
    if (config.security?.enableAuth && !config.security?.sessionTimeout) {
      errors.push('security.sessionTimeout is required when auth is enabled');
    }

    return {
      valid: errors.length === 0,
      errors
    };
  }
}

7.3 性能基准测试

图5：MCP服务器开发进度甘特图 - 展示项目开发的时间规划和里程碑

通过这几个月的深入研究和实践，我对MCP协议有了全面而深刻的理解。从最初的概念学习到完整服务器的实现，每一个环节都让我感受到了这个协议的强大潜力。MCP不仅仅是一个技术规范，更是AI助手生态系统发展的重要基础设施。

在实际开发过程中，我深刻体会到了架构设计的重要性。一个好的架构不仅能够支撑当前的功能需求，更要为未来的扩展留下足够的空间。MCP协议的模块化设计理念给了我很大的启发，通过合理的抽象和封装，我们可以构建出既灵活又稳定的系统。

特别值得一提的是安全性方面的考虑。在AI助手能够访问各种外部资源的情况下，如何确保系统的安全性成为了一个关键问题。通过多层次的安全防护机制，包括权限控制、输入验证、速率限制等，我们可以在保证功能完整性的同时，最大程度地降低安全风险。

性能优化也是一个永恒的话题。通过缓存、监控、负载均衡等技术手段，我们可以显著提升系统的响应速度和处理能力。但更重要的是要建立完善的监控体系，及时发现和解决性能瓶颈。

展望未来，我相信MCP协议将会在AI应用领域发挥越来越重要的作用。随着更多开发者的参与和贡献，这个生态系统将会变得更加丰富和完善。对于想要在AI领域有所作为的开发者来说，深入理解和掌握MCP协议无疑是一个明智的选择。

🌟 嗨，我是Xxtaoaooo！
⚙️ 【点赞】让更多同行看见深度干货
🚀 【关注】持续获取行业前沿技术与经验
🧩 【评论】分享你的实战经验或技术困惑
作为一名技术实践者，我始终相信：
每一次技术探讨都是认知升级的契机，期待在评论区与你碰撞灵感火花🔥

参考链接

1. MCP官方协议规范
2. Anthropic MCP SDK文档
3. JSON-RPC 2.0规范
4. Node.js性能优化最佳实践
5. Docker容器化部署指南
