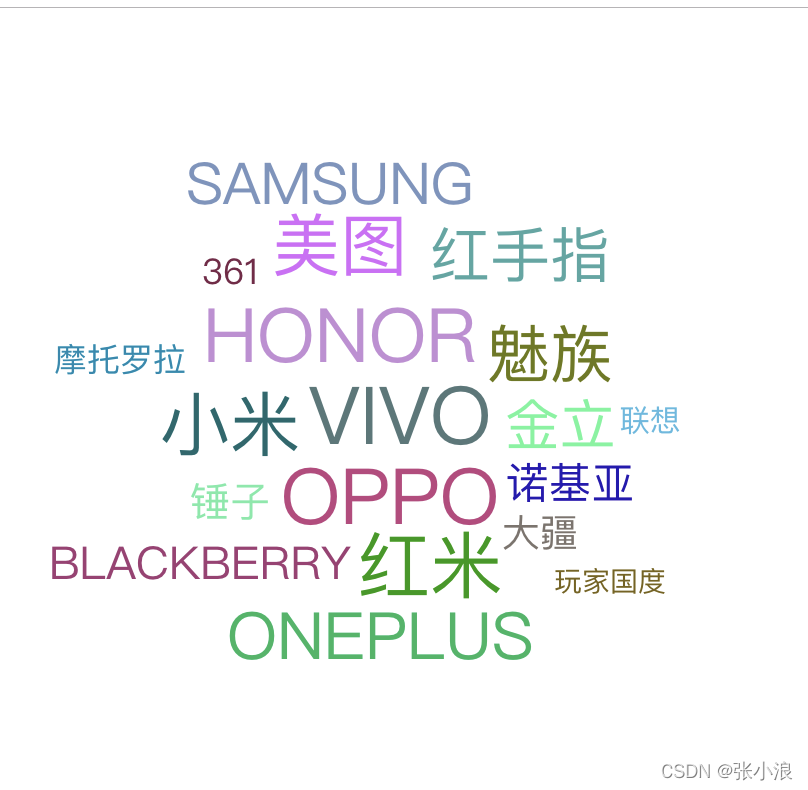

效果图





一、使用Echarts 和echarts-wordcloud 插件

这里是我使用插件的版本

"echarts": "^5.2.2",
"echarts-wordcloud": "^2.0.0",
"vue": "^3.2.26",

二、附上 .vue文件内容

这里我使用的是vue3.0版本,但是写法还是用的vue2的写法(因为我们的java后台熟悉这种写法),如果各位需要请自行修改吧!

<!--  -->
<template>
	<div>
		<div id="wordCloud" style="height: 400px; width: 400px;"></div>
	</div>
</template>

<script>
import * as echarts from 'echarts/core';
import 'echarts-wordcloud';
export default {
	data() {
		return {
			echartsData: [
				{ value: '30', name: 'VIVO' },
				{ value: '29', name: 'OPPO' },
				{ value: '28', name: 'HONOR' },
				{ value: '27', name: '红米' },
				{ value: '26', name: '小米' },
				{ value: '25', name: '美图' },
				{ value: '24', name: 'ONEPLUS' },
				{ value: '23', name: '魅族' },
				{ value: '22', name: '红手指' },
				{ value: '21', name: 'SAMSUNG' },
				{ value: '20', name: '金立' },
				{ value: '16', name: 'BLACKBERRY' },
				{ value: '15', name: '诺基亚' },
				{ value: '14', name: '锤子' },
				{ value: '13', name: '大疆' },
				{ value: '12', name: '361' },
				{ value: '11', name: '摩托罗拉' },
				{ value: '10', name: '联想' },
				{ value: '9', name: '玩家国度' },
			]
		};
	},
	mounted: function () {
		this.initChart();
	},
	methods: {
		initChart() {
			var myChart = echarts.init(document.getElementById('wordCloud'));
			const option = {
				title: {
					text: '',
					x: "center"
				},
				backgroundColor: "#fff",
				// tooltip: {
				//   pointFormat: "{series.name}: <b>{point.percentage:.1f}%</b>"
				// },
				series: [
					{
						type: "wordCloud",
						//用来调整词之间的距离
						gridSize: 10,
						//用来调整字的大小范围
						// Text size range which the value in data will be mapped to.
						// Default to have minimum 12px and maximum 60px size.
						sizeRange: [14, 40],
						// Text rotation range and step in degree. Text will be rotated randomly in range [-90,                                                                             90] by rotationStep 45
						//用来调整词的旋转方向,,[0,0]--代表着没有角度,也就是词为水平方向,需要设置角度参考注释内容
						// rotationRange: [-45, 0, 45, 90],
						// rotationRange: [ 0,90],
						rotationRange: [0, 0],
						//随机生成字体颜色
						// maskImage: maskImage,
						textStyle: {
							color: function () {
								return (
									"rgb(" +
									Math.round(Math.random() * 255) +
									", " +
									Math.round(Math.random() * 255) +
									", " +
									Math.round(Math.random() * 255) +
									")"
								);
							}
						},
						//位置相关设置
						// Folllowing left/top/width/height/right/bottom are used for positioning the word cloud
						// Default to be put in the center and has 75% x 80% size.
						left: "center",
						top: "center",
						right: null,
						bottom: null,
						width: "100%",
						height: "100%",
						//数据
						data: this.echartsData
					}
				]
			};
			myChart.setOption(option);
			// 点击某个字
			myChart.on('click', function (params) {
				console.log('myChart----click---:', params, '------', params.data)
			});
		}

	}

}

</script>
<style lang='less' scoped>
</style>
