学习笔记之MPI通信
包括mpi的简述、常用语句、通信的小例子、一些Bug
一、MPI简述
MPI是一个跨语言的通讯协议,用于编写并行计算机。支持点对点和广播。MPI是一个信息传递应用程序接口,包括协议和和语义说明,他们指明其如何在各种实现中发挥其特性。
阻塞通信,
二、常用语句
1、初始化程序
这两个参数目前并没有什么用
MPI_Init(int* argc,char*** argv);
一般情况下这样使用
MPI_Init(NULL, NULL);
2、定点发送和接收
发送定义和函数:
MPI_Send(
void* data, // 数据头部地址
int count, // 数据个数(注意不是bit数)
MPI_Datatype datatype, // 数据类型
int destination, // 目的线程号rank
int tag, // 标签,此send的标示,只有recv的tag一致才能收到
MPI_Comm communicator) //通信域
接收定义和函数:
MPI_Recv(
void* data, // 数据头部地址
int count, // 要传输的数据个数
MPI_Datatype datatype, // 数据类型
int source, // 从哪个进程接收的进程号
int tag, // 数据标示,和send的tag要一致,才能接收
MPI_Comm communicator, //通信域
MPI_Status* status) // 数据状态
一些预先定义的MPI数据类型
MPI数据类型 | C语言数据类型 |
---|---|
MPI_CHAR | signed char |
MPI_INT | signed int |
MPI_SHORT | short int |
MPI_LONG | long int |
MPI_LONG_LONG | long long int |
MPI_UNSIGNED_CHAR | unsigned char |
MPI_UNSIGNED_SHORT | unsigned short int |
MPI_UNSIGNED | unsigned int |
MPI_UNSIGNED_LONG | unsigned long int |
MPI_UNSIGNED_LONG_LONG | unsigned long long int |
MPI_FLOAT | float |
MPI_DOUBLE | double |
MPI_LONG_DOUBLE | long double |
3、把数据发出去要收回来,聚合数据函数:
MPI_Gather(
void* send_data, // 节点聚合数据的首地址
int send_count, // 每个节点向根节点发送数据个数
MPI_Datatype send_datatype, // 子节点发送数据类型
void* recv_data, // 根节点接受数据数组首地址
int recv_count, // 根节点从其他节点收到的数据个数(注意不是总个数)
MPI_Datatype recv_datatype, // 根节点接受数据类型
int root, // 根节点rank值
MPI_Comm communicator)
4、广播函数
在集体通信中我们经常用到同步点,也就是需要所有的节点都运行到同一个位置然后再继续运行,当然我们可以通过Recv方法来实现这一点,但是更便捷并且更高效的方式是调用下面的函数:
MPI_Bcast(
void* data, // 要广播的数据起始地址
int count, // 要广播的数据个数
MPI_Datatype datatype, // 要广播的数据类型
int root, // 广播发起者
MPI_Comm communicator)
三、实例
1、C++环境下编译执行的命令
编译:mpic++ -o csdn csdn_test.cpp
csdn指编译产生的可执行文件,csdn_test.cpp指要编译的cpp
运行:mpirun -n 3 ./csdn
2、一个简单的数据发送接收小例子
#include <stdio.h>
#include <string.h>
#include "mpi.h"
int main()
{
int numprocs, myid, source;
MPI_Status status;
char message[100];
MPI_Init(NULL, NULL);//初始化
MPI_Comm_rank(MPI_COMM_WORLD, &myid);//进程号
MPI_Comm_size(MPI_COMM_WORLD, &numprocs);//总进程数
if (myid != 0) { //非0号进程发送消息
strcpy(message, "Hello World!");
MPI_Send(message, strlen(message) + 1, MPI_CHAR, 0, 99,
MPI_COMM_WORLD);
}
else { // myid == 0,即0号进程接收消息
for (source = 1; source < numprocs; source++) {//从1号进程开始接收数据
MPI_Recv(message, 100, MPI_CHAR, source, 99,
MPI_COMM_WORLD, &status);
printf("接收到第%d号进程发送的消息:%s\n", source, message);
}
}
MPI_Finalize();
return 0;
}
运行结果:
接收到第1号进程发送的消息:Hello World!
接收到第2号进程发送的消息:Hello World!
2、mpi传输的只能是整型或者是字符型
如果要传输vector,就需要先转成字符串,再进行发送,接收后再解码
下面通过Json来进行字符串的转换
例子如下:
#include <iostream>
#include <string>
#include <cmath>
#include <vector>
#include <stdio.h>
#include <string.h>
#include "mpi.h"
#include "xxxxxx/json.hpp"//这里是json头文件
using namespace std;
int sum(int a)//一个简单函数,
{
return a + 2;
}
vector<int> array_m(int n, int sum)//对所有要计算的数,进行排列组合,然后给每个进程分发该进程要计算的数
{
vector<int> res(n, sum / n);
for (int i = 0; i < sum % n; i++)
{
res[i]++;
}
return res;
}
int main()
{
int numprocs, myid, source;
MPI_Status status;
MPI_Init(NULL, NULL);
MPI_Comm_size(MPI_COMM_WORLD, &numprocs);
MPI_Comm_rank(MPI_COMM_WORLD, &myid);
MPI_Barrier(MPI_COMM_WORLD);
vector<int> test1 = {1, 2, 3};
vector<int> test2 = {4, 5, 6};
vector<int> test3 = {7, 8, 9};
vector<vector<int>> test;
test.push_back(test1);
test.push_back(test2);
test.push_back(test3);
vector<int> cur = test1;
nlohmann::json json{{"zzyzzy", cur}};
string max_str = json.dump();
char max_buf [max_str.size()];
int max_length = max_str.size();
vector<vector<int>> ans;
int flag = 0;
map<int, int> maptest;
// maptest[1] = 11;
// maptest[2] = 22;
// maptest[3] = 33;
while (flag < 3)
{
if (myid == 0)
{
vector<vector<int>> dispart;
if (test[flag].size() < numprocs)
{
for (int i = 0; i < test[flag].size(); i++)
{
vector<int> temp;
temp.push_back(test[flag][i]);
dispart.push_back(temp);
}
}
else
{
vector<int> arr = array_m(numprocs, test[flag].size());
int idx = 0;
for (int i = 0; i < arr.size(); i++)
{
vector<int> temp;
for (int j = 0; j < arr[i]; j++)
{
temp.push_back(test[flag][idx]);
idx++;
}
dispart.push_back(temp);
}
}
if (test[flag].size() >= numprocs)
{
vector<int> temp2;
for (auto j : dispart[dispart.size() - 1])
{
temp2.push_back(sum(j));
}
ans.push_back(temp2);
}
for (int i = 0; i < numprocs - 1; i++) //??????
{
nlohmann::json json{{"zzy", dispart[i]}};
string str = json.dump();
char max_buffer[str.size()];
strcpy(max_buffer, str.c_str());
MPI_Send(max_buffer, strlen(max_buffer) + 1, MPI_CHAR, i + 1, 90, MPI_COMM_WORLD);
}
for (int source = 1; source < numprocs; source++)
{
// cout << "zzyrecv2" << endl;
int len2 = 0;
MPI_Recv(&len2, 1, MPI_INT, source, 95, MPI_COMM_WORLD, &status);
char buf2[len2];
MPI_Recv(buf2, len2, MPI_CHAR, source, 99, MPI_COMM_WORLD, &status); //nums就是所有频率的长度的数组,freq_list就是所有频率的字符串的长度
// cout << "zzyrecv2fini" << endl;
nlohmann::json new_json = (nlohmann::json::parse(buf2));
vector<int> new_str = new_json["zzy"];
ans.push_back(new_str);
}
maptest[flag] = flag * 10;
// tmp[0] = 'a' + flag;
// MPI_Send(tmp, 20, MPI_CHAR, 1, 0, MPI_COMM_WORLD);
}
else
{
nlohmann::json json{{"zzyzzy", cur}};
string max_str = json.dump();
char max_buf[max_str.size()];
int max_length = max_str.size();
// cout << "zzy0_recive" << endl;
MPI_Recv(max_buf, max_length, MPI_CHAR, 0, 90, MPI_COMM_WORLD, &status);
nlohmann::json new_json = (nlohmann::json::parse(max_buf));
vector<int> new_str = new_json["zzy"];
vector<int> temp;
for (auto j : new_str)
{
temp.push_back(sum(j));
}
nlohmann::json json1{{"zzy", temp}};
string str1 = json1.dump();
int len1 = str1.size() + 1;
char buf1[len1];
strcpy(buf1, str1.c_str());
MPI_Send(&len1, 1, MPI_INT, 0, 95, MPI_COMM_WORLD);
MPI_Send(buf1, len1, MPI_CHAR, 0, 99, MPI_COMM_WORLD);
// MPI_Recv(tmp, 20, MPI_CHAR, 0, 0, MPI_COMM_WORLD, &status);
// printf("I received: %s\n", tmp);
}
flag++;
}
//
/*if (myid == 0)
{
for (int i = 1; i < numprocs; i++) //??????
{
nlohmann::json json_ans{{"zzy", ans}};
string str_ans = json_ans.dump();
char max_buffer_ans[str_ans.size()];
int len = str_ans.size() + 1;
strcpy(max_buffer_ans, str_ans.c_str());
MPI_Send(&len, 1, MPI_INT, i, 50, MPI_COMM_WORLD);
MPI_Send(max_buffer_ans, len, MPI_CHAR, i, 51, MPI_COMM_WORLD);
}
}
else
{
// for (int source = 1; source < numprocs; source++)
// {
int len2 = 0;
cout << "zzy" << endl;
MPI_Recv(&len2, 1, MPI_INT, 0, 50, MPI_COMM_WORLD, &status);
cout << "zzyrecv2fini" << endl;
char buf2[len2];
MPI_Recv(buf2, len2, MPI_CHAR, 0, 51, MPI_COMM_WORLD, &status);
nlohmann::json new_json = (nlohmann::json::parse(buf2));
vector<vector<int>> new_str = new_json["zzy"];
cout << new_str.size() << endl;
ans = new_str;
// }
}*/
if (myid == 1)
{
for (auto i : ans)
{
for (auto j : i)
{
cout << j << " ";
}
cout << endl;
}
}
return 0;
}
3、循环发送接收
上面程序是一个3层循环的收发例子;
3进程运行上面程序后,没有输出结果;
原因是:结果只存储在0号进程,但是1号和2号进程没有存储结果,只是计算的作用;
4、怎么解决这个问题
①可以利用广播函数,把0号进程中的结果发送到其他进程当中
②如上面注释掉的内容,通过发送接收把0号进程的结果发送到其他进程
5、自我理解
mpi并行,就是几个进程同时工作;比如开4个进程
这四个进程同时工作,内存不共享,即互不影响,
一般情况下会把0号进程作为主进程来控制其他进程;

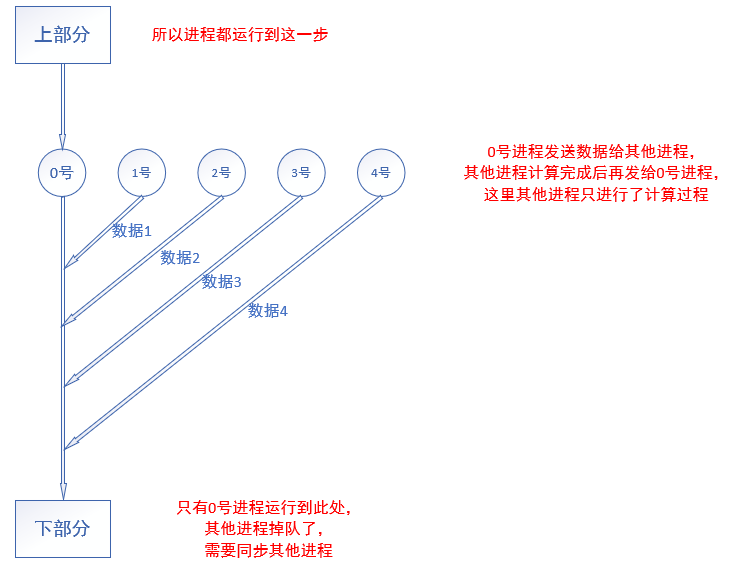

**工作模式一、**mpi分布在整个流程的中间
上部分→mpi→下部分
注意:此时只有0号进程有数据,其他进程都没有数据,需要同步(上面例子注释部分)

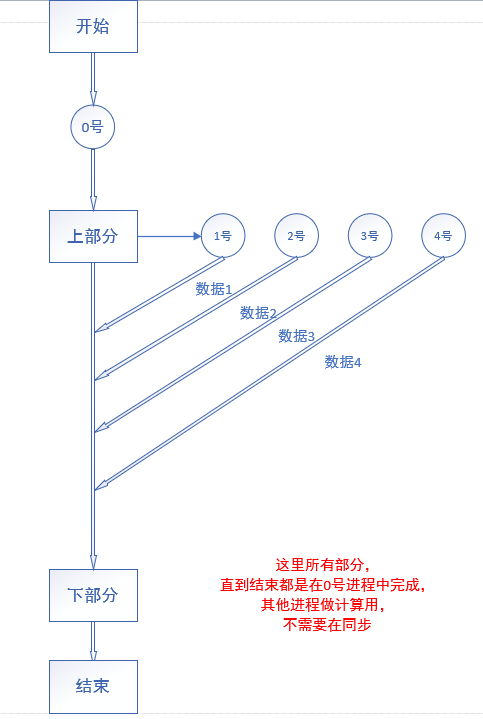

**工作模式二、**mpi包括整个流程
mpi→上下部分
