To create a COCO dataset of annotated images, you need to convert binary masks into either polygons or uncompressed run length encoding representations depending on the type of object.

The pycocotools library has functions to encode and decode into and from compressed RLE, but nothing for polygons and uncompressed RLE.

I can use skimage's measure library to generate polygons of masks, but I'm not sure how to create uncompressed RLEs.

I can use this RLE encoder to create a representation of RLE from an image, but I'm not sure what format COCO expects. COCO just mentions that they use a "custom Run Length Encoding (RLE) scheme"

for example,

ground_truth_binary_mask = np.array([[  0,   0,   0,   0,   0,   0,   0,   0,   0,   0],
                                     [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0],
                                     [  0,   0,   0,   0,   0,   1,   1,   1,   0,   0],
                                     [  0,   0,   0,   0,   0,   1,   1,   1,   0,   0],
                                     [  0,   0,   0,   0,   0,   1,   1,   1,   0,   0],
                                     [  0,   0,   0,   0,   0,   1,   1,   1,   0,   0],
                                     [  1,   0,   0,   0,   0,   0,   0,   0,   0,   0],
                                     [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0],
                                     [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0]], dtype=np.uint8)

fortran_ground_truth_binary_mask = np.asfortranarray(ground_truth_binary_mask)
rle(fortran_ground_truth_binary_mask)

outputs:

(array([26, 36, 46, 56, 61]), array([3, 3, 3, 3, 1]))

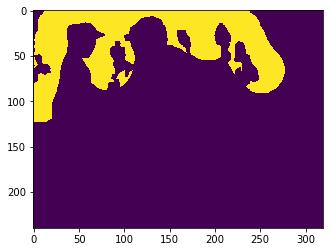

this is what a coco RLE looks like:

{
    "segmentation": {
        "counts": [
            272,
            2,
            4,
            4,
            4,
            4,
            2,
            9,
            1,
            2,
            16,
            43,
            143,
            24,
            5,
            8,
            16,
            44,
            141,
            25,
            8,
            5,
            17,
            44,
            140,
            26,
            10,
            2,
            17,
            45,
            129,
            4,
            5,
            27,
            24,
            5,
            1,
            45,
            127,
            38,
            23,
            52,
            125,
            40,
            22,
            53,
            123,
            43,
            20,
            54,
            122,
            46,
            18,
            54,
            121,
            54,
            12,
            53,
            119,
            57,
            11,
            53,
            117,
            59,
            13,
            51,
            117,
            59,
            13,
            51,
            117,
            60,
            11,
            52,
            117,
            60,
            10,
            52,
            118,
            60,
            9,
            53,
            118,
            61,
            8,
            52,
            119,
            62,
            7,
            52,
            119,
            64,
            1,
            2,
            2,
            51,
            120,
            120,
            120,
            101,
            139,
            98,
            142,
            96,
            144,
            93,
            147,
            90,
            150,
            87,
            153,
            85,
            155,
            82,
            158,
            76,
            164,
            66,
            174,
            61,
            179,
            57,
            183,
            54,
            186,
            52,
            188,
            49,
            191,
            47,
            193,
            21,
            8,
            16,
            195,
            20,
            13,
            8,
            199,
            18,
            222,
            17,
            223,
            16,
            224,
            16,
            224,
            15,
            225,
            15,
            225,
            15,
            225,
            15,
            225,
            15,
            225,
            15,
            225,
            15,
            225,
            15,
            225,
            15,
            225,
            14,
            226,
            14,
            226,
            14,
            39,
            1,
            186,
            14,
            39,
            3,
            184,
            14,
            39,
            4,
            183,
            13,
            40,
            6,
            181,
            14,
            39,
            7,
            180,
            14,
            39,
            9,
            178,
            14,
            39,
            10,
            177,
            14,
            39,
            11,
            176,
            14,
            38,
            14,
            174,
            14,
            36,
            19,
            171,
            15,
            33,
            32,
            160,
            16,
            30,
            35,
            159,
            18,
            26,
            38,
            158,
            19,
            23,
            41,
            157,
            20,
            19,
            45,
            156,
            21,
            15,
            48,
            156,
            22,
            10,
            53,
            155,
            23,
            9,
            54,
            154,
            23,
            8,
            55,
            154,
            24,
            7,
            56,
            153,
            24,
            6,
            57,
            153,
            25,
            5,
            57,
            153,
            25,
            5,
            58,
            152,
            25,
            4,
            59,
            152,
            26,
            3,
            59,
            152,
            26,
            3,
            59,
            152,
            27,
            1,
            60,
            152,
            27,
            1,
            60,
            152,
            86,
            154,
            80,
            160,
            79,
            161,
            42,
            8,
            29,
            161,
            41,
            11,
            22,
            2,
            3,
            161,
            40,
            13,
            18,
            5,
            3,
            161,
            40,
            15,
            2,
            5,
            8,
            7,
            2,
            161,
            40,
            24,
            6,
            170,
            35,
            30,
            4,
            171,
            34,
            206,
            34,
            41,
            1,
            164,
            34,
            39,
            3,
            164,
            34,
            37,
            5,
            164,
            34,
            35,
            10,
            161,
            36,
            1,
            3,
            28,
            17,
            155,
            41,
            27,
            16,
            156,
            41,
            26,
            17,
            156,
            41,
            26,
            16,
            157,
            27,
            4,
            10,
            25,
            16,
            158,
            27,
            6,
            8,
            11,
            2,
            12,
            6,
            2,
            7,
            159,
            27,
            7,
            14,
            3,
            4,
            19,
            6,
            160,
            26,
            8,
            22,
            18,
            5,
            161,
            26,
            8,
            22,
            18,
            4,
            162,
            26,
            8,
            23,
            15,
            4,
            164,
            23,
            11,
            23,
            11,
            7,
            165,
            19,
            17,
            22,
            9,
            6,
            167,
            19,
            22,
            18,
            8,
            3,
            170,
            18,
            25,
            16,
            7,
            1,
            173,
            17,
            28,
            15,
            180,
            17,
            30,
            12,
            181,
            16,
            34,
            6,
            184,
            15,
            225,
            14,
            226,
            13,
            227,
            12,
            228,
            11,
            229,
            10,
            230,
            9,
            231,
            9,
            231,
            9,
            231,
            9,
            231,
            8,
            232,
            8,
            232,
            8,
            232,
            8,
            232,
            8,
            232,
            8,
            232,
            7,
            233,
            7,
            233,
            7,
            233,
            7,
            233,
            8,
            232,
            8,
            232,
            8,
            232,
            9,
            231,
            9,
            231,
            9,
            231,
            10,
            230,
            10,
            230,
            11,
            229,
            13,
            227,
            14,
            226,
            16,
            224,
            17,
            223,
            19,
            221,
            23,
            217,
            31,
            3,
            5,
            201,
            39,
            201,
            39,
            201,
            39,
            201,
            39,
            201,
            39,
            201,
            40,
            200,
            40,
            200,
            41,
            199,
            41,
            199,
            41,
            199,
            22,
            8,
            12,
            198,
            22,
            12,
            8,
            198,
            22,
            14,
            6,
            198,
            22,
            15,
            6,
            197,
            22,
            16,
            5,
            197,
            22,
            17,
            5,
            196,
            22,
            18,
            4,
            196,
            22,
            19,
            4,
            195,
            22,
            19,
            5,
            194,
            22,
            20,
            4,
            194,
            25,
            21,
            1,
            193,
            27,
            213,
            29,
            211,
            30,
            210,
            35,
            6,
            6,
            193,
            49,
            191,
            50,
            190,
            50,
            190,
            51,
            189,
            51,
            189,
            52,
            188,
            53,
            187,
            53,
            187,
            54,
            186,
            54,
            186,
            54,
            186,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            55,
            185,
            28,
            1,
            26,
            185,
            23,
            11,
            21,
            185,
            20,
            17,
            17,
            186,
            18,
            21,
            15,
            186,
            16,
            23,
            14,
            187,
            14,
            25,
            14,
            187,
            14,
            26,
            12,
            188,
            14,
            28,
            10,
            188,
            14,
            226,
            14,
            226,
            16,
            224,
            17,
            223,
            19,
            221,
            20,
            220,
            22,
            218,
            24,
            18,
            3,
            12,
            3,
            180,
            25,
            10,
            1,
            4,
            6,
            10,
            6,
            178,
            28,
            7,
            12,
            8,
            8,
            177,
            49,
            3,
            12,
            176,
            65,
            175,
            67,
            173,
            69,
            171,
            53,
            3,
            14,
            170,
            37,
            20,
            9,
            4,
            1,
            169,
            36,
            21,
            8,
            175,
            35,
            22,
            7,
            176,
            34,
            23,
            7,
            176,
            34,
            23,
            6,
            177,
            35,
            22,
            6,
            177,
            35,
            22,
            8,
            175,
            35,
            23,
            9,
            173,
            35,
            205,
            36,
            204,
            39,
            201,
            43,
            197,
            48,
            36,
            1,
            155,
            48,
            35,
            3,
            154,
            49,
            33,
            5,
            154,
            48,
            32,
            6,
            155,
            49,
            27,
            10,
            155,
            51,
            24,
            11,
            154,
            54,
            21,
            11,
            155,
            56,
            19,
            11,
            155,
            56,
            18,
            11,
            156,
            56,
            17,
            11,
            157,
            56,
            16,
            12,
            157,
            56,
            14,
            13,
            159,
            56,
            12,
            13,
            160,
            61,
            5,
            14,
            162,
            78,
            165,
            75,
            167,
            73,
            168,
            72,
            170,
            70,
            171,
            69,
            173,
            67,
            176,
            64,
            179,
            61,
            182,
            58,
            183,
            57,
            185,
            54,
            187,
            53,
            188,
            51,
            191,
            49,
            192,
            47,
            195,
            45,
            196,
            43,
            198,
            42,
            199,
            40,
            201,
            38,
            203,
            36,
            205,
            34,
            207,
            32,
            210,
            28,
            213,
            26,
            216,
            22,
            221,
            16,
            228,
            8,
            10250
        ],
        "size": [
            240,
            320
        ]
    }
}

Information on the format is available here: https://github.com/cocodataset/cocoapi/blob/master/PythonAPI/pycocotools/mask.py

RLE is a simple yet efficient format for storing binary masks. RLE first divides a vector (or vectorized image) into a series of piecewise constant regions and then for each piece simply stores the length of that piece. For example, given M=[0 0 1 1 1 0 1] the RLE counts would be [2 3 1 1], or for M=[1 1 1 1 1 1 0] the counts would be [0 6 1] (note that the odd counts are always the numbers of zeros).

import numpy as np
from itertools import groupby

def binary_mask_to_rle(binary_mask):
    rle = {'counts': [], 'size': list(binary_mask.shape)}
    counts = rle.get('counts')
    for i, (value, elements) in enumerate(groupby(binary_mask.ravel(order='F'))):
        if i == 0 and value == 1:
            counts.append(0)
        counts.append(len(list(elements)))
    return rle

test_list_1 = np.array([0, 0, 1, 1, 1, 0, 1])
test_list_2 = np.array([1, 1, 1, 1, 1, 1, 0])

print(binary_mask_to_rle(test_list_1))
print(binary_mask_to_rle(test_list_2))

output:

{'counts': [2, 3, 1, 1], 'size': [7]}
{'counts': [0, 6, 1], 'size': [7]}

You can use mask.frPyObjects(rle, size_x, size_y) to encode the RLE, and then do all the usual mask operations.

import json
import numpy as np
from pycocotools import mask
from skimage import measure

ground_truth_binary_mask = np.array([[  0,   0,   0,   0,   0,   0,   0,   0,   0,   0],
                                     [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0],
                                     [  0,   0,   0,   0,   0,   1,   1,   1,   0,   0],
                                     [  0,   0,   0,   0,   0,   1,   1,   1,   0,   0],
                                     [  0,   0,   0,   0,   0,   1,   1,   1,   0,   0],
                                     [  0,   0,   0,   0,   0,   1,   1,   1,   0,   0],
                                     [  1,   0,   0,   0,   0,   0,   0,   0,   0,   0],
                                     [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0],
                                     [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0]], dtype=np.uint8)

fortran_ground_truth_binary_mask = np.asfortranarray(ground_truth_binary_mask)

encode the mask to RLE:

rle = binary_mask_to_rle(fortran_ground_truth_binary_mask)
print(rle)

output:

{'counts': [6, 1, 40, 4, 5, 4, 5, 4, 21], 'size': [9, 10]}

compress the RLE, and then decode:

compressed_rle = mask.frPyObjects(rle, rle.get('size')[0], rle.get('size')[1])
mask.decode(compressed_rle)

output:

array([[0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 1, 1, 1, 0, 0],
       [0, 0, 0, 0, 0, 1, 1, 1, 0, 0],
       [0, 0, 0, 0, 0, 1, 1, 1, 0, 0],
       [0, 0, 0, 0, 0, 1, 1, 1, 0, 0],
       [1, 0, 0, 0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]], dtype=uint8)
