I am trying to plot an image (using matplotlib.imshow) and a scatter plot within the same figure. When trying this, the image appears smaller than the scatter plot. Small example code is shown below:

import matplotlib.pyplot as plt
import numpy as np

image = np.random.randint(100,200,(200,200))
x = np.arange(0,10,0.1)
y = np.sin(x)

fig, (ax1, ax2) = plt.subplots(1,2)
ax1.imshow(image)
ax2.scatter(x,y)

plt.show()

Which gives the following figure:

How can I get the two sublpots to have the same height? (and width I suppose)

I have tried using gridspec as shown in this answer:

fig=plt.figure()
gs=GridSpec(1,2)

ax1=fig.add_subplot(gs[0,0])
ax2=fig.add_subplot(gs[0,1])
ax1.imshow(image)
ax2.scatter(x,y)

But this gives the same result. I have also tried to adjust the subplot sizes manually by using:

fig = plt.figure()
ax1 = plt.axes([0.05,0.05,0.45,0.9])
ax2 = plt.axes([0.55,0.19,0.45,0.62])

ax1.imshow(image)
ax2.scatter(x,y)

By trial and error I can get the two subplots to the correct size, though any change in the overall figure size will mean that the subplots will no longer be the same size.

Is there a way to make imshow and a scatter plot appear the same size in a figure without manually changing the axes sizes?

I am using Python 2.7 and matplotlib 2.0.0

It's not perfectly clear what your desired outcome is.

1. You may use automatic aspect on the image

   ax.imshow(z, aspect="auto")




2. Or you may set the aspect of the line plot depending on its axis limits such that it gets the same size as the image (in case the image has equal x and y sizes)

   asp = np.diff(ax2.get_xlim())[0] / np.diff(ax2.get_ylim())[0]
   ax2.set_aspect(asp)

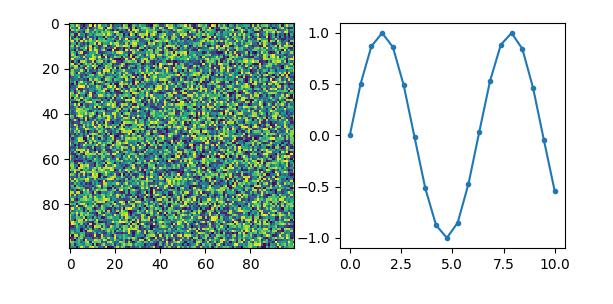

   Complete code:

   import numpy as np
   import matplotlib.pyplot as plt

   x = np.linspace(0,10,20)
   y = np.sin(x)
   z = np.random.rand(100,100)

   fig, (ax, ax2) = plt.subplots(ncols=2)

   ax.imshow(z)
   ax2.plot(x,y, marker=".")

   asp = np.diff(ax2.get_xlim())[0] / np.diff(ax2.get_ylim())[0]
   ax2.set_aspect(asp)

   plt.show()


   If the image does not have equal limits (is not square), one still needs to divide by the aspect of the image:

   asp = np.diff(ax2.get_xlim())[0] / np.diff(ax2.get_ylim())[0]
   asp /= np.abs(np.diff(ax1.get_xlim())[0] / np.diff(ax1.get_ylim())[0])
   ax2.set_aspect(asp)


3. More sophisticated solutions:

   • This answer for using the subplot parameters to achieve a certain aspect.

   • If you want to use mpl_toolkits and make your hands dirty, this answer would be a good read.
