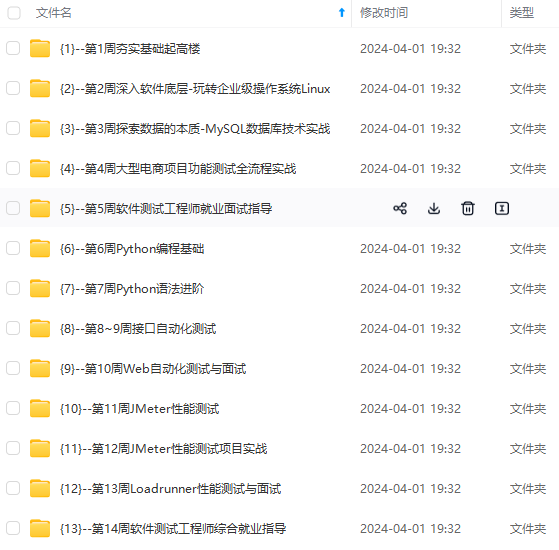

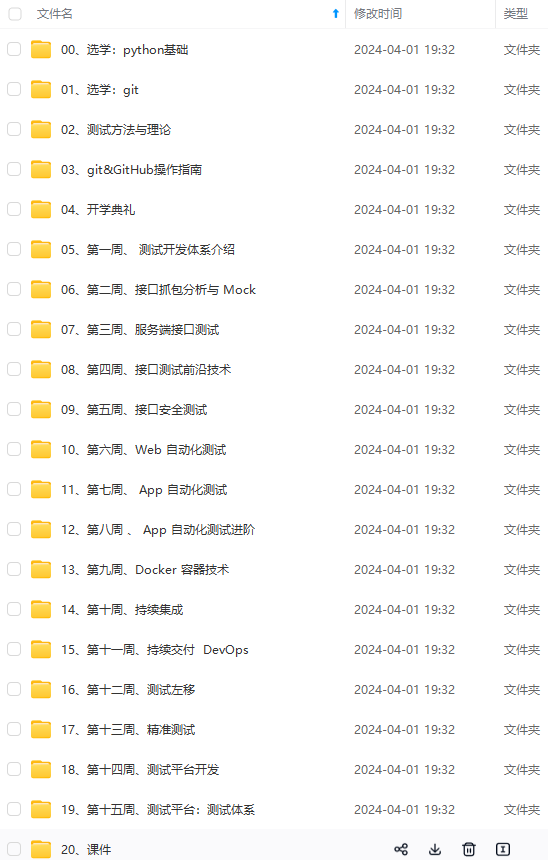

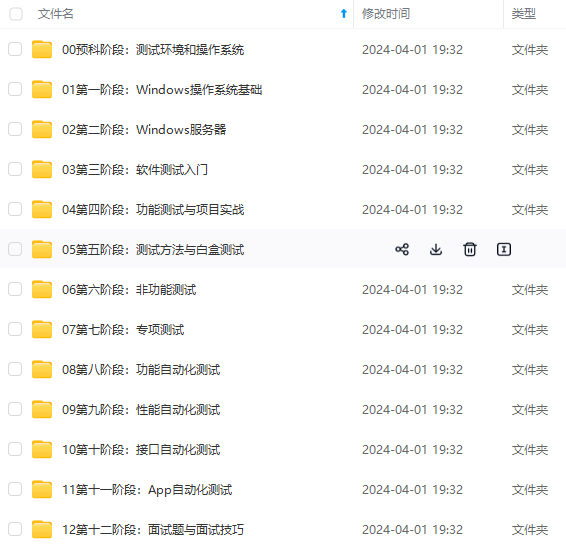

由于文件比较多，这里只是将部分目录截图出来，全套包含大厂面经、学习笔记、源码讲义、实战项目、大纲路线、讲解视频，并且后续会持续更新

如果你需要这些资料，可以添加V获取：vip1024b （备注软件测试）

正文

但可以通过命令行启动 API Server

/usr/bin/kube-apiserver --logtostderr=true --v=0 --etcd-servers=http://k8s-master:2379 --address=0.0.0.0 --port=8080 --kubelet-port=10250 --allow-privileged=true --service-cluster-ip-range=10.254.0.0/16 --admission-control=ServiceAccount --insecure-bind-address=0.0.0.0 --client-ca-file=/root/keys/ca.crt --tls-cert-file=/root/keys/server.crt --tls-private-key-file=/root/keys/server.key --basic-auth-file=/root/keys/basic_auth.csv --secure-port=443 &>> /var/log/kubernetes/kube-apiserver.log &

命令行启动 Controller-manager

/usr/bin/kube-controller-manager --logtostderr=true --v=0 --master=http://k8s-master:8080 --root-ca-file=/root/keys/ca.crt --service-account-private-key-file=/root/keys/server.key & >>/var/log/kubernetes/kube-controller-manage.log

ETCD 启动不起来-问题<1>

etcd是kubernetes 集群的zookeeper进程，几乎所有的service都依赖于etcd的启动，比如flanneld,apiserver,docker…在启动etcd是报错日志如下：

May 24 13:39:09 k8s-master systemd: Stopped Flanneld overlay address etcd agent.
May 24 13:39:28 k8s-master systemd: Starting Etcd Server…
May 24 13:39:28 k8s-master etcd: recognized and used environment variable ETCD_ADVERTISE_CLIENT_URLS=http://etcd:2379,http://etcd:4001
May 24 13:39:28 k8s-master etcd: recognized environment variable ETCD_NAME, but unused: shadowed by corresponding flag
May 24 13:39:28 k8s-master etcd: recognized environment variable ETCD_DATA_DIR, but unused: shadowed by corresponding flag
May 24 13:39:28 k8s-master etcd: recognized environment variable ETCD_LISTEN_CLIENT_URLS, but unused: shadowed by corresponding flag
May 24 13:39:28 k8s-master etcd: etcd Version: 3.1.3
May 24 13:39:28 k8s-master etcd: Git SHA: 21fdcc6
May 24 13:39:28 k8s-master etcd: Go Version: go1.7.4
May 24 13:39:28 k8s-master etcd: Go OS/Arch: linux/amd64
May 24 13:39:28 k8s-master etcd: setting maximum number of CPUs to 1, total number of available CPUs is 1
May 24 13:39:28 k8s-master etcd: the server is already initialized as member before, starting as etcd member…
May 24 13:39:28 k8s-master etcd: listening for peers on http://localhost:2380
May 24 13:39:28 k8s-master etcd: listening for client requests on 0.0.0.0:2379
May 24 13:39:28 k8s-master etcd: listening for client requests on 0.0.0.0:4001
May 24 13:39:28 k8s-master etcd: recovered store from snapshot at index 140014
May 24 13:39:28 k8s-master etcd: name = master
May 24 13:39:28 k8s-master etcd: data dir = /var/lib/etcd/default.etcd
May 24 13:39:28 k8s-master etcd: member dir = /var/lib/etcd/default.etcd/member
May 24 13:39:28 k8s-master etcd: heartbeat = 100ms
May 24 13:39:28 k8s-master etcd: election = 1000ms
May 24 13:39:28 k8s-master etcd: snapshot count = 10000
May 24 13:39:28 k8s-master etcd: advertise client URLs = http://etcd:2379,http://etcd:4001
May 24 13:39:28 k8s-master etcd: ignored file 0000000000000001-0000000000012700.wal.broken in wal
May 24 13:39:29 k8s-master etcd: restarting member 8e9e05c52164694d in cluster cdf818194e3a8c32 at commit index 148905
May 24 13:39:29 k8s-master etcd: 8e9e05c52164694d became follower at term 12
May 24 13:39:29 k8s-master etcd: newRaft 8e9e05c52164694d [peers: [8e9e05c52164694d], term: 12, commit: 148905, applied: 140014, lastindex: 148905, lastterm: 12]
May 24 13:39:29 k8s-master etcd: enabled capabilities for version 3.1
May 24 13:39:29 k8s-master etcd: added member 8e9e05c52164694d [http://localhost:2380] to cluster cdf818194e3a8c32 from store
May 24 13:39:29 k8s-master etcd: set the cluster version to 3.1 from store
May 24 13:39:29 k8s-master etcd: starting server… [version: 3.1.3, cluster version: 3.1]
May 24 13:39:29 k8s-master etcd: raft save state and entries error: open /var/lib/etcd/default.etcd/member/wal/0.tmp: is a directory
May 24 13:39:29 k8s-master systemd: etcd.service: main process exited, code=exited, status=1/FAILURE
May 24 13:39:29 k8s-master systemd: Failed to start Etcd Server.
May 24 13:39:29 k8s-master systemd: Unit etcd.service entered failed state.
May 24 13:39:29 k8s-master systemd: etcd.service failed.
May 24 13:39:29 k8s-master systemd: etcd.service holdoff time over, scheduling restart.

核心语句：

raft save state and entries error: open /var/lib/etcd/default.etcd/member/wal/0.tmp: is a directory

进入相关目录，删除 0.tmp,然后就可以启动啦!

ETCD启动不起来-超时问题<2>

问题背景：当前部署了 3 个 etcd 节点，突然有一天 3 台集群全部停电宕机了。重新启动之后发现 K8S 集群是可以正常使用的，但是检查了一遍组件之后，发现有一个节点的 etcd 启动不了。

经过一遍探查，发现时间不准确，通过以下命令 ntpdate ntp.aliyun.com 重新将时间调整正确，重新启动 etcd，发现还是起不来，报错如下：

Mar 05 14:27:15 k8s-node2 etcd[3248]: etcd Version: 3.3.13
Mar 05 14:27:15 k8s-node2 etcd[3248]: Git SHA: 98d3084
Mar 05 14:27:15 k8s-node2 etcd[3248]: Go Version: go1.10.8
Mar 05 14:27:15 k8s-node2 etcd[3248]: Go OS/Arch: linux/amd64
Mar 05 14:27:15 k8s-node2 etcd[3248]: setting maximum number of CPUs to 4, total number of available CPUs is 4
Mar 05 14:27:15 k8s-node2 etcd[3248]: the server is already initialized as member before, starting as etcd member
…
Mar 05 14:27:15 k8s-node2 etcd[3248]: peerTLS: cert = /opt/etcd/ssl/server.pem, key = /opt/etcd/ssl/server-key.pe
m, ca = , trusted-ca = /opt/etcd/ssl/ca.pem, client-cert-auth = false, crl-file =
Mar 05 14:27:15 k8s-node2 etcd[3248]: listening for peers on https://192.168.25.226:2380
Mar 05 14:27:15 k8s-node2 etcd[3248]: The scheme of client url http://127.0.0.1:2379 is HTTP while peer key/cert
files are presented. Ignored key/cert files.
Mar 05 14:27:15 k8s-node2 etcd[3248]: listening for client requests on 127.0.0.1:2379
Mar 05 14:27:15 k8s-node2 etcd[3248]: listening for client requests on 192.168.25.226:2379
Mar 05 14:27:15 k8s-node2 etcd[3248]: member 9c166b8b7cb6ecb8 has already been bootstrapped
Mar 05 14:27:15 k8s-node2 systemd[1]: etcd.service: main process exited, code=exited, status=1/FAILURE
Mar 05 14:27:15 k8s-node2 systemd[1]: Failed to start Etcd Server.
Mar 05 14:27:15 k8s-node2 systemd[1]: Unit etcd.service entered failed state.
Mar 05 14:27:15 k8s-node2 systemd[1]: etcd.service failed.
Mar 05 14:27:15 k8s-node2 systemd[1]: etcd.service failed.
Mar 05 14:27:15 k8s-node2 systemd[1]: etcd.service holdoff time over, scheduling restart.
Mar 05 14:27:15 k8s-node2 systemd[1]: Starting Etcd Server…
Mar 05 14:27:15 k8s-node2 etcd[3258]: recognized environment variable ETCD_NAME, but unused: shadowed by correspo
nding flag
Mar 05 14:27:15 k8s-node2 etcd[3258]: recognized environment variable ETCD_DATA_DIR, but unused: shadowed by corr
esponding flag
Mar 05 14:27:15 k8s-node2 etcd[3258]: recognized environment variable ETCD_LISTEN_PEER_URLS, but unused: shadowed
by corresponding flag
Mar 05 14:27:15 k8s-node2 etcd[3258]: recognized environment variable ETCD_LISTEN_CLIENT_URLS, but unused: shadow
ed by corresponding flag
Mar 05 14:27:15 k8s-node2 etcd[3258]: recognized environment variable ETCD_INITIAL_ADVERTISE_PEER_URLS, but unuse
d: shadowed by corresponding flag
Mar 05 14:27:15 k8s-node2 etcd[3258]: recognized environment variable ETCD_ADVERTISE_CLIENT_URLS, but unused: sha
dowed by corresponding flag
Mar 05 14:27:15 k8s-node2 etcd[3258]: recognized environment variable ETCD_INITIAL_CLUSTER, but unused: shadowed
by corresponding flag
Mar 05 14:27:15 k8s-node2 etcd[3258]: recognized environment variable ETCD_INITIAL_CLUSTER_TOKEN, but unused: sha
dowed by corresponding flag
Mar 05 14:27:15 k8s-node2 etcd[3258]: recognized environment variable ETCD_INITIAL_CLUSTER_STATE, but unused: sha
dowed by corresponding flag

解决方法：

检查日志发现并没有特别明显的错误，根据经验来讲，etcd 节点坏掉一个其实对集群没有大的影响，这时集群已经可以正常使用了，但是这个坏掉的 etcd 节点并没有启动，解决方法如下：

进入 etcd 的数据存储目录进行备份备份原有数据：

cd /var/lib/etcd/default.etcd/member/
cp * /data/bak/

删除这个目录下的所有数据文件

rm -rf /var/lib/etcd/default.etcd/member/*

停止另外两台 etcd 节点，因为 etcd 节点启动时需要所有节点一起启动，启动成功后即可使用。

#master 节点
systemctl stop etcd
systemctl restart etcd

#node1 节点
systemctl stop etcd
systemctl restart etcd

#node2 节点
systemctl stop etcd
systemctl restart etcd

CentOS下配置主机互信

在每台服务器需要建立主机互信的用户名执行以下命令生成公钥/密钥，默认回车即可

ssh-keygen -t rsa

可以看到生成个公钥的文件。

互传公钥，第一次需要输入密码，之后就OK了。

ssh-copy-id -i /root/.ssh/id_rsa.pub root@192.168.199.132 (-p 2222)

-p 端口默认端口不加-p，如果更改过端口，就得加上-p. 可以看到是在.ssh/下生成了个 authorized_keys的文件，记录了能登陆这台服务器的其他服务器的公钥。

测试看是否能登陆：

ssh 192.168.199.132 (-p 2222)

CentOS 主机名的修改

hostnamectl set-hostname k8s-master1

Virtualbox 实现 CentOS 复制和粘贴功能

如果不安装或者不输出，可以将 update 修改成 install 再运行。

yum install update
yum update kernel
yum update kernel-devel
yum install kernel-headers
yum install gcc
yum install gcc make

运行完后

sh VBoxLinuxAdditions.run

删除Pod一直处于Terminating状态

可以通过下面命令强制删除

kubectl delete pod NAME --grace-period=0 --force

删除namespace一直处于Terminating状态

可以通过以下脚本强制删除

[root@k8s-master1 k8s]# cat delete-ns.sh
#!/bin/bash
set -e

useage(){
echo “useage:”
echo " delns.sh NAMESPACE"
}

if [ $# -lt 1 ];then
useage
exit
fi

NAMESPACE= $1 J SONF I L E =$ {NAMESPACE}.json
kubectl get ns “ ${NAMESPACE}" -o json > "$ {JSONFILE}”
vi “ ${JSONFILE}" curl -k -H "Content-Type: application/json" -X PUT --data-binary @"$ {JSONFLE}”
http://127.0.0.1:8001/api/v1/namespaces/“${NAMESPACE}”/finalize

容器包含有效的 CPU/内存 requests 且没有指定 limits 可能会出现什么问题？

下面我们创建一个对应的容器，该容器只有 requests 设定，但是没有 limits 设定，

name: busybox-cnt02
image: busybox
command: [“/bin/sh”]
args: [“-c”, “while true; do echo hello from cnt02; sleep 10;done”]
resources:
requests:
memory: “100Mi”
cpu: “100m”

这个容器创建出来会有什么问题呢？

其实对于正常的环境来说没有什么问题，但是对于资源型 pod 来说，如果有的容器没有设定 limit 限制，资源会被其他的 pod 抢占走，可能会造成容器应用失败的情况。可以通过 limitrange 策略来去匹配，让 pod 自动设定，前提是要提前配置好limitrange 规则。
