数据库应用课程设计-线上美食订购数据库系统

一、项目简介

商家可以由食材供货源提供相应的食材，其中食材供货源有联系电话、负责人姓名、地址、供应商名称和供应商编号属性五个属性，其中供应商编号是唯一标识码，不同的食材供货源可以为不同的商家提供食材，并产生了提供量属性，商家有好评度、姓名、收入、账号和评价等级五个属性，其中账号是商家的唯一标识码。商家开设了线下餐厅和雇佣了外卖员，线下餐厅有餐厅号、餐厅好评度、外卖员编号和就餐人数四个属性，其中餐厅号是唯一标识码，外卖员编号是外键。外卖员有外卖员编号、联系方式、性别、外卖员好评度、外卖员编号和外卖员姓名，其中外卖员编号是唯一标识码。多个外卖员又隶属一个线下餐厅。
一个线下餐厅包括多个美食实体，美食有美食编号、价格、美食名称、销售量、餐厅号和美食好评度六个属性，其中美食编号是唯一标识码，餐厅号是外键。同一种美食通过销售可以产生多个销售额，销售额有销售编号、收入金额和美食编号三个属性，其中销售编号是唯一标识码，美食编号是外键。
不同的用户可以就餐多种不同的美食，产生了就餐时间属性，用户有用户账号、用户等级、姓名、地址和联系信息五个属性。一个用户包括一个钱包，钱包有用户账号、银行卡号、余额、优惠券和信任积分五个属性，其中用户账号是唯一标识码。多个不同的用户通过订外卖产生了多个不同的订单实体，并有订餐时间的属性，订单有订单号、用户地址、美食编号、数量、餐厅号、外卖员编号和总价七个属性，其中订单号是唯一标识码，用户账号、外卖员编号是外键。一个用户可以评论产生多个评论区实体，评论区有评论编号、订单号、美食编号、用户账号、餐厅好评度、餐厅号、评价等级、美食好评度和外卖员编号九个属性，其中订单号是唯一标识码，用户账号是外键。
多个不同的外卖员通过送外卖产生多个不同的订单实体，并产生了订单时间属性。

二、数据库概念设计

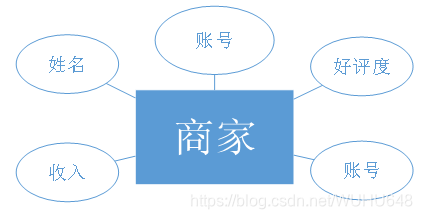

（1）商家实体具体属性如下图：

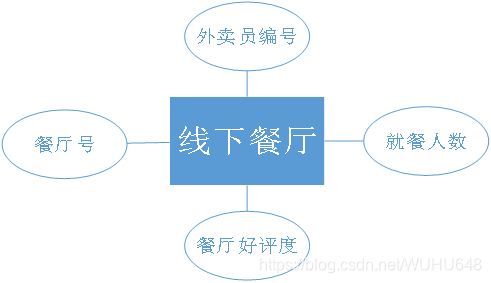

（2）线下餐厅实体具体属性如下图：

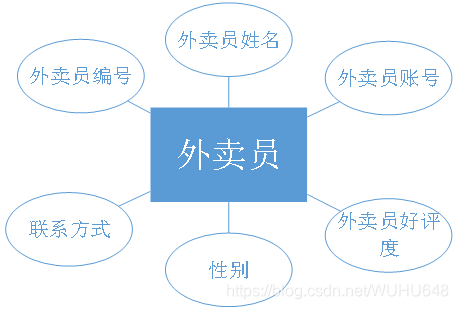

（3）外卖员实体具体属性如下图：

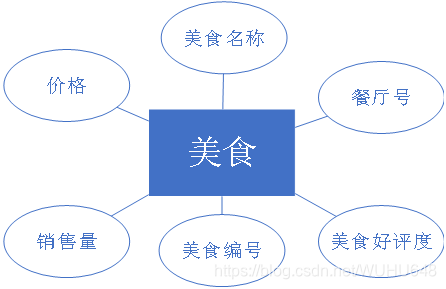

（4）美食实体具体属性如下图：

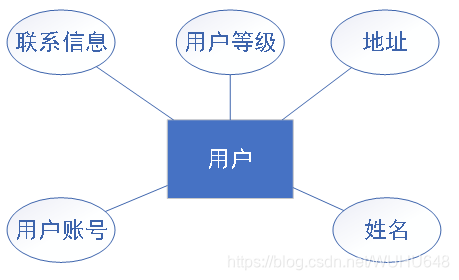

（5）用户实体具体属性如下图：

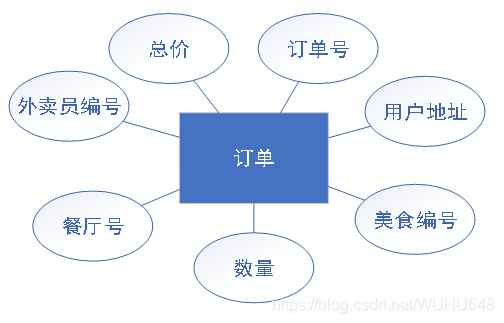

（6）订单实体具体属性如下图：

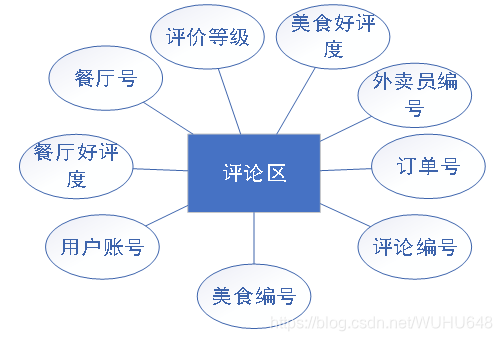

（7）评论区实体具体属性如下图：

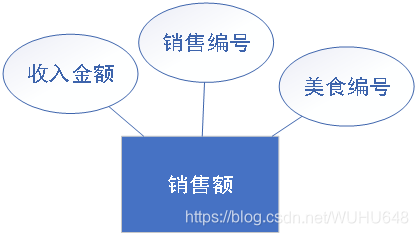

（8）销售额实体的具体属性如下图：

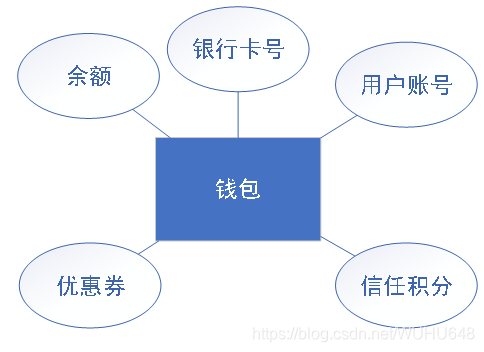

（9）钱包实体的具体属性如下图：

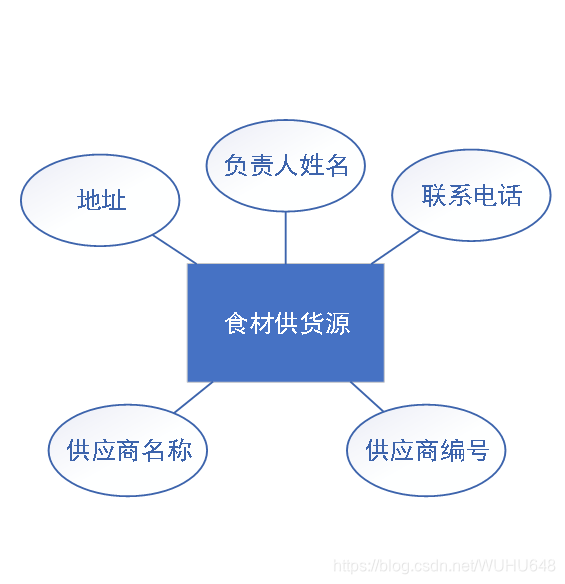

（10）食材供货源的具体属性如下图：

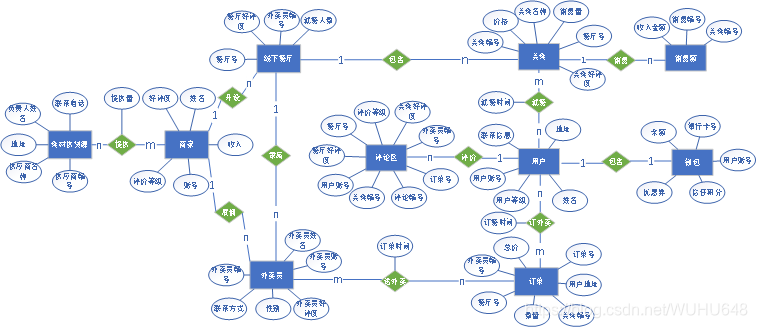

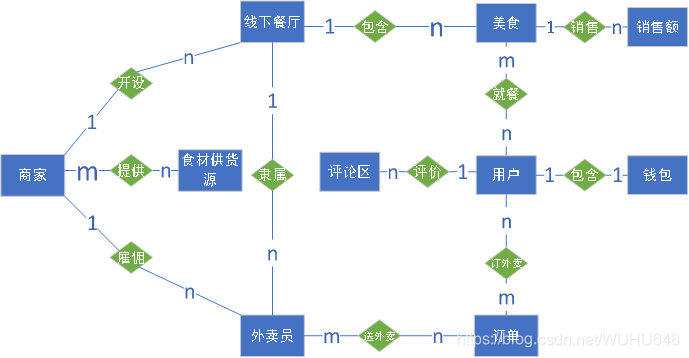

系统基本功能的E-R图如下：

三、MySQL代码（更加详细解释的见我资源分享）

-- MySQL dump 10.13  Distrib 8.0.23, for Win64 (x86_64)
--
-- Host: 127.0.0.1    Database: jingmaowaimai
-- ------------------------------------------------------
-- Server version	8.0.23

/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!50503 SET NAMES utf8 */;
/*!40103 SET @OLD_TIME_ZONE=@@TIME_ZONE */;
/*!40103 SET TIME_ZONE='+00:00' */;
/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;

--
-- Table structure for table `business`
--

DROP TABLE IF EXISTS `business`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `business` (
  `ID` int NOT NULL COMMENT '编号',
  `good` int DEFAULT NULL COMMENT '好评度',
  `grade` int DEFAULT NULL COMMENT '评价等级',
  `money` varchar(12) DEFAULT NULL COMMENT '收入',
  `business_name` varchar(12) DEFAULT NULL COMMENT '姓名',
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='商家';
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `business`
--

LOCK TABLES `business` WRITE;
/*!40000 ALTER TABLE `business` DISABLE KEYS */;
INSERT INTO `business` VALUES (1,8,3,'56768','山东煎饼'),(2,9,4,'45220','张姐烤肉拌饭'),(3,6,2,'1230','兰州拉面'),(4,8,5,'4500','火锅鸡');
/*!40000 ALTER TABLE `business` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Temporary view structure for view `caidan`
--

DROP TABLE IF EXISTS `caidan`;
/*!50001 DROP VIEW IF EXISTS `caidan`*/;
SET @saved_cs_client     = @@character_set_client;
/*!50503 SET character_set_client = utf8mb4 */;
/*!50001 CREATE VIEW `caidan` AS SELECT
 1 AS `user_name`,
 1 AS `address`,
 1 AS `food_name`,
 1 AS `dine_time`*/;
SET character_set_client = @saved_cs_client;

--
-- Table structure for table `comment_area`
--

DROP TABLE IF EXISTS `comment_area`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `comment_area` (
  `comment_ID` varchar(8) NOT NULL COMMENT '评论编号',
  `restaurant_ID` varchar(8) NOT NULL COMMENT '餐厅号',
  `order_ID` varchar(8) NOT NULL COMMENT '订单号',
  `food_ID` varchar(8) NOT NULL COMMENT '美食编号',
  `deliveryman_ID` varchar(8) NOT NULL COMMENT '外卖员编号',
  `food_good` int DEFAULT NULL COMMENT '美食好评度',
  `comment_grade` varchar(8) DEFAULT NULL COMMENT '评价等级',
  `restaurant_good` int DEFAULT NULL COMMENT '餐厅好评度',
  `user_ID` varchar(8) NOT NULL COMMENT '用户账号',
  PRIMARY KEY (`comment_ID`),
  KEY `food_ID_idx` (`food_ID`),
  KEY `restaurant_ID_idx` (`restaurant_ID`),
  KEY `order_ID_idx` (`order_ID`),
  KEY `deliveryman_ID _idx` (`deliveryman_ID`),
  KEY `fk_comment_area_user1_idx` (`user_ID`),
  CONSTRAINT `fk_comment_area_user1` FOREIGN KEY (`user_ID`) REFERENCES `user` (`user_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='评论区';
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `comment_area`
--

LOCK TABLES `comment_area` WRITE;
/*!40000 ALTER TABLE `comment_area` DISABLE KEYS */;
INSERT INTO `comment_area` VALUES ('1','2','2','001','001',7,'7',7,'002'),('2','3','3','002','002',8,'9',8,'001');
/*!40000 ALTER TABLE `comment_area` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `deliver`
--

DROP TABLE IF EXISTS `deliver`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `deliver` (
  `deliveryman_ID` varchar(8) NOT NULL COMMENT '外卖员编号',
  `order_ID` int NOT NULL COMMENT '订单编号',
  `time` varchar(45) NOT NULL COMMENT '订单时间',
  PRIMARY KEY (`deliveryman_ID`,`order_ID`,`time`),
  KEY `fk_deliveryman_has_order_order1_idx` (`order_ID`),
  KEY `fk_deliveryman_has_order_deliveryman1_idx` (`deliveryman_ID`),
  CONSTRAINT `fk_deliveryman_has_order_deliveryman1` FOREIGN KEY (`deliveryman_ID`) REFERENCES `deliveryman` (`deliveryman_ID`),
  CONSTRAINT `fk_deliveryman_has_order_order1` FOREIGN KEY (`order_ID`) REFERENCES `order` (`order_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `deliver`
--

LOCK TABLES `deliver` WRITE;
/*!40000 ALTER TABLE `deliver` DISABLE KEYS */;
INSERT INTO `deliver` VALUES ('001',2,'12:10'),('002',3,'13:40');
/*!40000 ALTER TABLE `deliver` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `deliveryman`
--

DROP TABLE IF EXISTS `deliveryman`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `deliveryman` (
  `deliveryman_ID` varchar(8) NOT NULL COMMENT '外卖员编号',
  `deliveryman_name` varchar(12) DEFAULT NULL COMMENT '外卖员姓名',
  `deliveryman_good` int DEFAULT NULL COMMENT '外卖员好评度',
  `deliveryman_sex` varchar(2) DEFAULT NULL COMMENT '性别',
  `deliveryman_num` varchar(12) DEFAULT NULL COMMENT '联系方式',
  `jingmaowaimai_ID` int NOT NULL,
  PRIMARY KEY (`deliveryman_ID`),
  KEY `fk_deliveryman_jingmaowaimai1_idx` (`jingmaowaimai_ID`),
  CONSTRAINT `fk_deliveryman_jingmaowaimai1` FOREIGN KEY (`jingmaowaimai_ID`) REFERENCES `business` (`ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='外卖员';
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `deliveryman`
--

LOCK TABLES `deliveryman` WRITE;
/*!40000 ALTER TABLE `deliveryman` DISABLE KEYS */;
INSERT INTO `deliveryman` VALUES ('001','小王',9,'男','123456',1),('002','小刘',8,'女','324156',2),('003','小张',8,'男','123432',3);
/*!40000 ALTER TABLE `deliveryman` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `dine`
--

DROP TABLE IF EXISTS `dine`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `dine` (
  `food_ID` varchar(45) NOT NULL COMMENT '美食编号',
  `user_ID` varchar(8) NOT NULL COMMENT '用户账号',
  `dine_time` varchar(45) NOT NULL COMMENT '就餐时间',
  PRIMARY KEY (`food_ID`,`user_ID`,`dine_time`),
  KEY `fk_food_has_user_user1_idx` (`user_ID`),
  KEY `fk_food_has_user_food1_idx` (`food_ID`),
  CONSTRAINT `fk_food_has_user_food1` FOREIGN KEY (`food_ID`) REFERENCES `food` (`food_ID`),
  CONSTRAINT `fk_food_has_user_user1` FOREIGN KEY (`user_ID`) REFERENCES `user` (`user_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `dine`
--

LOCK TABLES `dine` WRITE;
/*!40000 ALTER TABLE `dine` DISABLE KEYS */;
INSERT INTO `dine` VALUES ('005','001','16:00'),('006','001','12:30'),('002','002','12:00'),('004','002','17:00'),('006','002','14:00'),('001','003','18:00'),('003','003','19:00');
/*!40000 ALTER TABLE `dine` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `food`
--

DROP TABLE IF EXISTS `food`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `food` (
  `food_ID` varchar(45) NOT NULL COMMENT '美食编号',
  `food_name` varchar(12) NOT NULL COMMENT '美食名称',
  `food_sale` varchar(12) DEFAULT NULL COMMENT '美食销售量',
  `food_price` int NOT NULL COMMENT '价格',
  `food_good` int DEFAULT NULL COMMENT '好评度',
  `restaurant_ID` varchar(8) NOT NULL COMMENT '餐厅号',
  PRIMARY KEY (`food_ID`),
  KEY `fk_food_restaurant1_idx` (`restaurant_ID`),
  CONSTRAINT `fk_food_restaurant1` FOREIGN KEY (`restaurant_ID`) REFERENCES `restaurant` (`restaurant_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='美食';
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `food`
--

LOCK TABLES `food` WRITE;
/*!40000 ALTER TABLE `food` DISABLE KEYS */;
INSERT INTO `food` VALUES ('001','煎饼','55000',5,9,'1'),('002','包子','4500',3,6,'3'),('003','汉堡','234',5,6,'3'),('004','蒸饺','4500',6,6,'2'),('005','火锅鸡','8900',50,8,'3'),('006','麻辣香锅','79800',40,7,'1');
/*!40000 ALTER TABLE `food` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Temporary view structure for view `jinhuo`
--

DROP TABLE IF EXISTS `jinhuo`;
/*!50001 DROP VIEW IF EXISTS `jinhuo`*/;
SET @saved_cs_client     = @@character_set_client;
/*!50503 SET character_set_client = utf8mb4 */;
/*!50001 CREATE VIEW `jinhuo` AS SELECT
 1 AS `supplier_name`,
 1 AS `address`,
 1 AS `people_name`,
 1 AS `business_name`,
 1 AS `sum`*/;
SET character_set_client = @saved_cs_client;

--
-- Table structure for table `order`
--

DROP TABLE IF EXISTS `order`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `order` (
  `order_ID` int NOT NULL COMMENT '订单号',
  `food_ID` varchar(8) NOT NULL COMMENT '美食编号',
  `num` varchar(8) DEFAULT NULL COMMENT '数量',
  `restaurant_ID` varchar(8) NOT NULL COMMENT '餐厅号',
  `price` int DEFAULT NULL COMMENT '总价',
  `user_adress` varchar(45) NOT NULL COMMENT '用户地址',
  `deliveryman_ID` varchar(45) NOT NULL COMMENT '外卖员编号',
  PRIMARY KEY (`order_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='订单';
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `order`
--

LOCK TABLES `order` WRITE;
/*!40000 ALTER TABLE `order` DISABLE KEYS */;
INSERT INTO `order` VALUES (2,'001','2','2',34,'河北经贸大学17号楼','001'),(3,'002','1','1',32,'河北经贸大学1号楼','002');
/*!40000 ALTER TABLE `order` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `order_has_user`
--

DROP TABLE IF EXISTS `order_has_user`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `order_has_user` (
  `order_order_ID` int NOT NULL,
  `user_user_ID` varchar(8) NOT NULL,
  PRIMARY KEY (`order_order_ID`,`user_user_ID`),
  KEY `fk_order_has_user_user1_idx` (`user_user_ID`),
  KEY `fk_order_has_user_order1_idx` (`order_order_ID`),
  CONSTRAINT `fk_order_has_user_order1` FOREIGN KEY (`order_order_ID`) REFERENCES `order` (`order_ID`),
  CONSTRAINT `fk_order_has_user_user1` FOREIGN KEY (`user_user_ID`) REFERENCES `user` (`user_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `order_has_user`
--

LOCK TABLES `order_has_user` WRITE;
/*!40000 ALTER TABLE `order_has_user` DISABLE KEYS */;
INSERT INTO `order_has_user` VALUES (2,'002'),(3,'001');
/*!40000 ALTER TABLE `order_has_user` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `restaurant`
--

DROP TABLE IF EXISTS `restaurant`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `restaurant` (
  `restaurant_ID` varchar(8) NOT NULL COMMENT '餐厅号',
  `restaurant_good` int DEFAULT NULL COMMENT '好评度',
  `peoplenum` varchar(12) DEFAULT NULL COMMENT '就餐人数',
  `deliveryman_ID` varchar(8) NOT NULL COMMENT '外卖员编号',
  PRIMARY KEY (`restaurant_ID`),
  KEY `fk_restaurant_deliveryman1_idx` (`deliveryman_ID`),
  CONSTRAINT `fk_restaurant_deliveryman1` FOREIGN KEY (`deliveryman_ID`) REFERENCES `deliveryman` (`deliveryman_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='线下餐厅';
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `restaurant`
--

LOCK TABLES `restaurant` WRITE;
/*!40000 ALTER TABLE `restaurant` DISABLE KEYS */;
INSERT INTO `restaurant` VALUES ('1',7,'12','001'),('2',8,'34','001'),('3',9,'14','002');
/*!40000 ALTER TABLE `restaurant` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `saleroom`
--

DROP TABLE IF EXISTS `saleroom`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `saleroom` (
  `saleroom_ID` varchar(8) NOT NULL COMMENT '销售编号',
  `saleroom_money` int DEFAULT NULL COMMENT '收入金额',
  `food_food_ID` varchar(45) NOT NULL,
  PRIMARY KEY (`saleroom_ID`),
  KEY `fk_saleroom_food1_idx` (`food_food_ID`),
  CONSTRAINT `fk_saleroom_food1` FOREIGN KEY (`food_food_ID`) REFERENCES `food` (`food_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `saleroom`
--

LOCK TABLES `saleroom` WRITE;
/*!40000 ALTER TABLE `saleroom` DISABLE KEYS */;
INSERT INTO `saleroom` VALUES ('1',34,'001'),('2',56,'002');
/*!40000 ALTER TABLE `saleroom` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `supplier`
--

DROP TABLE IF EXISTS `supplier`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `supplier` (
  `supplier_ID` varchar(8) NOT NULL COMMENT '供应商编号',
  `people_name` varchar(8) DEFAULT NULL COMMENT '负责人姓名',
  `address` varchar(8) DEFAULT NULL COMMENT '地址',
  `supplier_name` varchar(20) DEFAULT NULL COMMENT '供应商名称',
  `num` varchar(12) DEFAULT NULL COMMENT '联系电话',
  PRIMARY KEY (`supplier_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='食材供货源';
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `supplier`
--

LOCK TABLES `supplier` WRITE;
/*!40000 ALTER TABLE `supplier` DISABLE KEYS */;
INSERT INTO `supplier` VALUES ('1','刘先生','石家庄','菜市场','67000'),('2','王先生','保定','蔬菜店','57000'),('3','张先生','沧州','水果店','34000');
/*!40000 ALTER TABLE `supplier` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `suppliered`
--

DROP TABLE IF EXISTS `suppliered`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `suppliered` (
  `supplier_ID` varchar(8) NOT NULL,
  `ID` int NOT NULL,
  `sum` varchar(8) DEFAULT NULL COMMENT '提供量',
  PRIMARY KEY (`supplier_ID`,`ID`),
  KEY `fk_supplier_has_jingmaowaimai_jingmaowaimai1_idx` (`ID`),
  KEY `fk_supplier_has_jingmaowaimai_supplier1_idx` (`supplier_ID`),
  CONSTRAINT `fk_supplier_has_jingmaowaimai_jingmaowaimai1` FOREIGN KEY (`ID`) REFERENCES `business` (`ID`),
  CONSTRAINT `fk_supplier_has_jingmaowaimai_supplier1` FOREIGN KEY (`supplier_ID`) REFERENCES `supplier` (`supplier_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `suppliered`
--

LOCK TABLES `suppliered` WRITE;
/*!40000 ALTER TABLE `suppliered` DISABLE KEYS */;
INSERT INTO `suppliered` VALUES ('1',1,'1233'),('1',2,'8900'),('2',1,'3400'),('2',2,'5677'),('3',3,'4000'),('3',4,'8900');
/*!40000 ALTER TABLE `suppliered` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `user`
--

DROP TABLE IF EXISTS `user`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `user` (
  `user_ID` varchar(8) NOT NULL COMMENT '用户账号',
  `address` varchar(45) NOT NULL COMMENT '地址',
  `user_num` varchar(12) NOT NULL COMMENT '联系方式',
  `user_grade` varchar(8) DEFAULT NULL COMMENT '用户等级',
  `user_name` varchar(8) DEFAULT NULL COMMENT '姓名',
  PRIMARY KEY (`user_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='用户';
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `user`
--

LOCK TABLES `user` WRITE;
/*!40000 ALTER TABLE `user` DISABLE KEYS */;
INSERT INTO `user` VALUES ('001','河北经贸大学','7800','9','刘世鹏'),('002','河北科技大学','8000','7','刘一鸣'),('003','石家庄铁道大学','4560','7','刘洋');
/*!40000 ALTER TABLE `user` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `wallet`
--

DROP TABLE IF EXISTS `wallet`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `wallet` (
  `user_ID` varchar(8) NOT NULL COMMENT '用户账号',
  `balance` varchar(8) DEFAULT NULL COMMENT '余额',
  `concessionary` varchar(8) DEFAULT NULL COMMENT '优惠卷',
  `trust` varchar(8) DEFAULT NULL COMMENT '信任积分',
  `card` varchar(8) DEFAULT NULL COMMENT '卡号',
  `user_user_ID` varchar(8) NOT NULL,
  PRIMARY KEY (`user_ID`,`user_user_ID`),
  KEY `fk_wallet_user1_idx` (`user_user_ID`),
  CONSTRAINT `fk_wallet_user1` FOREIGN KEY (`user_user_ID`) REFERENCES `user` (`user_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `wallet`
--

LOCK TABLES `wallet` WRITE;
/*!40000 ALTER TABLE `wallet` DISABLE KEYS */;
INSERT INTO `wallet` VALUES ('001','500','4','55','1234','001'),('002','200','5','44','5678','002');
/*!40000 ALTER TABLE `wallet` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Final view structure for view `caidan`
--

/*!50001 DROP VIEW IF EXISTS `caidan`*/;
/*!50001 SET @saved_cs_client          = @@character_set_client */;
/*!50001 SET @saved_cs_results         = @@character_set_results */;
/*!50001 SET @saved_col_connection     = @@collation_connection */;
/*!50001 SET character_set_client      = utf8mb4 */;
/*!50001 SET character_set_results     = utf8mb4 */;
/*!50001 SET collation_connection      = utf8mb4_0900_ai_ci */;
/*!50001 CREATE ALGORITHM=UNDEFINED */
/*!50013 DEFINER=`root`@`localhost` SQL SECURITY DEFINER */
/*!50001 VIEW `caidan` (`user_name`,`address`,`food_name`,`dine_time`) AS select `user`.`user_name` AS `user_name`,`user`.`address` AS `address`,`food`.`food_name` AS `food_name`,`dine`.`dine_time` AS `dine_time` from ((`user` join `dine`) join `food`) where ((`user`.`user_ID` = `dine`.`user_ID`) and (`food`.`food_ID` = `dine`.`food_ID`)) */;
/*!50001 SET character_set_client      = @saved_cs_client */;
/*!50001 SET character_set_results     = @saved_cs_results */;
/*!50001 SET collation_connection      = @saved_col_connection */;

--
-- Final view structure for view `jinhuo`
--

/*!50001 DROP VIEW IF EXISTS `jinhuo`*/;
/*!50001 SET @saved_cs_client          = @@character_set_client */;
/*!50001 SET @saved_cs_results         = @@character_set_results */;
/*!50001 SET @saved_col_connection     = @@collation_connection */;
/*!50001 SET character_set_client      = utf8mb4 */;
/*!50001 SET character_set_results     = utf8mb4 */;
/*!50001 SET collation_connection      = utf8mb4_0900_ai_ci */;
/*!50001 CREATE ALGORITHM=UNDEFINED */
/*!50013 DEFINER=`root`@`localhost` SQL SECURITY DEFINER */
/*!50001 VIEW `jinhuo` (`supplier_name`,`address`,`people_name`,`business_name`,`sum`) AS select `supplier`.`supplier_name` AS `supplier_name`,`supplier`.`address` AS `address`,`supplier`.`people_name` AS `people_name`,`business`.`business_name` AS `business_name`,`suppliered`.`sum` AS `sum` from ((`supplier` join `suppliered`) join `business`) where ((`supplier`.`supplier_ID` = `suppliered`.`supplier_ID`) and (`business`.`ID` = `suppliered`.`ID`)) */;
/*!50001 SET character_set_client      = @saved_cs_client */;
/*!50001 SET character_set_results     = @saved_cs_results */;
/*!50001 SET collation_connection      = @saved_col_connection */;
/*!40103 SET TIME_ZONE=@OLD_TIME_ZONE */;

/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;

-- Dump completed on 2021-06-18 17:23:37
