以下是openclaw对自己工作流程和一些细节的解读，博主作为虾佬的interface做了一些简要记录和可视化修饰。

知识来源

据虾佬自己透露，它画的跟自身相关的所有图的依据都在源码的 /docs 目录下，不过里面的文档是相对结构化的，虾佬自己整合了一下画了图给我，所以知识来源应该说是比较可靠的。

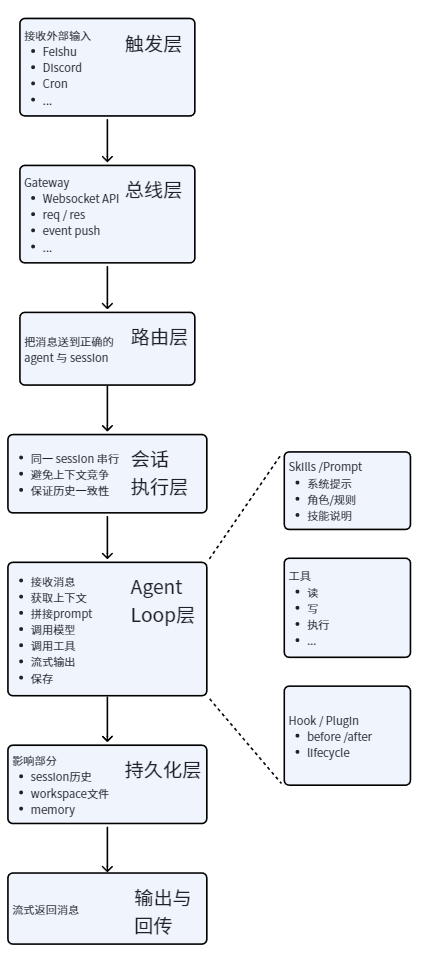

主干路径

看到网上有很多文章讲解消息机制和gateway的实现，我们主要专注于Agent部分

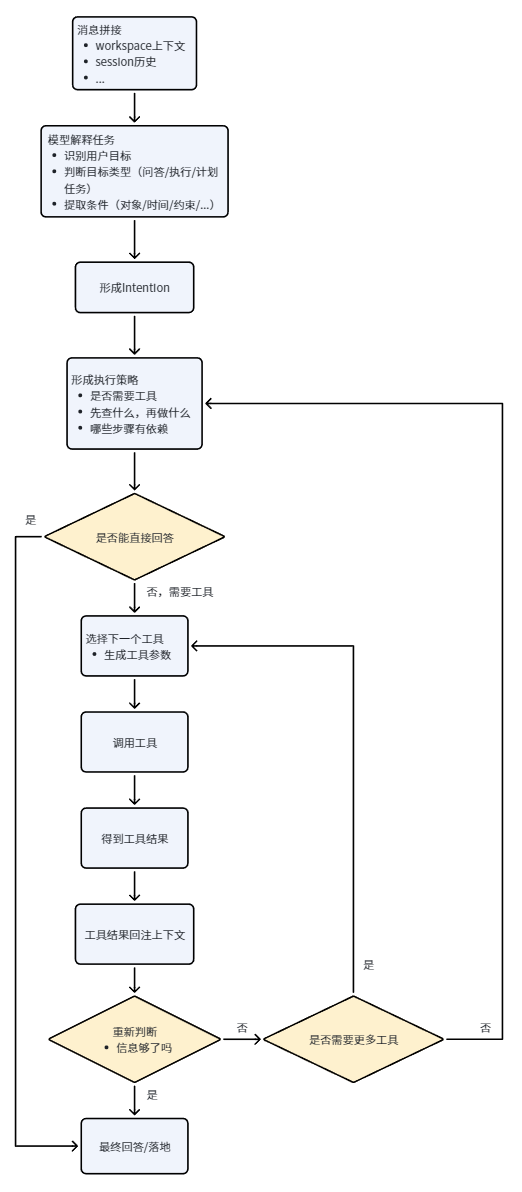

Agent Loop

处理一条用户消息的核心逻辑：

Intention样式

单一意图举例 - “帮我看看user.md里写了啥”（虾佬给我举的例子）

{
  "intent_packet": {
    "version": "1.0",
    "intent_id": "intent_read_and_summarize_file",
    "intent_type": "single",
    "primary_intent": "read_and_summarize_file",
    "goal": "读取指定文件并向用户总结内容",
    "source_message": "帮我看看 USER.md 里写了啥",
    "confidence": 0.98,
    "planner_mode": "direct_execution",
    "requires_tools": true,
    "requires_clarification": false,
    "context_dependencies": {
      "workspace_required": true,
      "session_history_required": false,
      "memory_required": false
    },
    "entities": {
      "target_path": "USER.md",
      "path_resolution": "workspace_relative",
      "output_format": "summary"
    },
    "constraints": {
      "read_only": true,
      "no_external_side_effects": true
    },
    "success_criteria": [
      "定位到 USER.md",
      "成功读取内容",
      "向用户返回可理解的摘要"
    ],
    "planner_hints": {
      "likely_tools": [
        "read"
      ],
      "expected_step_count": 1,
      "fallback_if_missing": "report_file_not_found"
    }
  }
}

复合意图举例 - “写一个检查磁盘占用的脚本，并且每天早上9点执行，异常时通知我”

{
  "intent_packet": {
    "version": "1.0",
    "intent_id": "intent_create_disk_monitor_workflow",
    "intent_type": "compound",
    "primary_intent": "create_automation_workflow",
    "goal": "创建一个可定时运行并带异常通知的磁盘监控自动化",
    "source_message": "写一个检查磁盘占用的脚本，并且每天早上9点执行，异常时通知我",
    "confidence": 0.94,
    "planner_mode": "multi_step_workflow",
    "requires_tools": true,
    "requires_clarification": "possible",
    "context_dependencies": {
      "workspace_required": true,
      "session_history_required": true,
      "memory_required": false
    },
    "entities": {
      "script_purpose": "检查磁盘占用",
      "schedule_raw": "每天早上9点",
      "timezone": "Asia/Hong_Kong",
      "notification_target": "current_session",
      "runtime": "unspecified",
      "alert_condition": "异常时"
    },
    "constraints": {
      "must_create_new_artifact": true,
      "must_bind_schedule_to_created_artifact": true,
      "must_support_notification_on_error_or_threshold_breach": true,
      "must_ask_if_critical_requirements_are_missing": true
    },
    "open_questions": [
      "脚本语言未指定",
      "异常的定义可能需要阈值说明",
      "通知内容格式未指定"
    ],
    "sub_intents": [
      {
        "id": "subintent_create_script",
        "intent": "create_script",
        "goal": "生成一个用于检查磁盘占用的可执行脚本",
        "depends_on": [],
        "entities": {
          "script_purpose": "检查磁盘占用",
          "runtime": "unspecified"
        },
        "success_criteria": [
          "脚本文件被创建",
          "脚本能够执行",
          "脚本能返回磁盘占用状态"
        ]
      },
      {
        "id": "subintent_schedule_script",
        "intent": "create_scheduled_execution",
        "goal": "每天09:00自动运行生成的脚本",
        "depends_on": [
          "subintent_create_script"
        ],
        "entities": {
          "schedule_raw": "每天早上9点",
          "timezone": "Asia/Hong_Kong",
          "target_ref": "subintent_create_script.output.script_path"
        },
        "success_criteria": [
          "解析出标准调度规则",
          "调度目标绑定到新脚本",
          "定时任务成功注册"
        ]
      },
      {
        "id": "subintent_configure_notification",
        "intent": "configure_notification",
        "goal": "在异常时通知当前用户",
        "depends_on": [
          "subintent_create_script",
          "subintent_schedule_script"
        ],
        "entities": {
          "trigger_condition": "异常时",
          "delivery_target": "current_session"
        },
        "success_criteria": [
          "异常条件被定义或合理默认",
          "通知链路已明确",
          "异常发生时能向当前用户发消息"
        ]
      }
    ],
    "success_criteria": [
      "生成监控脚本",
      "创建每天09:00的定时执行",
      "建立异常通知机制"
    ],
    "planner_hints": {
      "workflow_shape": "dependency_chain",
      "expected_substep_count": 5,
      "likely_substeps": [
        "resolve_missing_requirements",
        "create_script_file",
        "derive_execution_command",
        "resolve_schedule",
        "register_job_and_notification"
      ],
      "likely_tools": [
        "write",
        "read",
        "exec"
      ],
      "parallelizable_sections": [
        "schedule_parsing",
        "notification_target_resolution"
      ],
      "non_parallelizable_sections": [
        "schedule registration depends on script creation"
      ],
      "failure_modes": [
        "insufficient_requirements",
        "script_creation_failed",
        "schedule_registration_failed",
        "notification_binding_failed"
      ]
    }
  }
}

plan样式

{
  "plan_id": "plan_read_user_md_001",
  "source_intent_id": "intent_read_and_summarize_file",
  "plan_type": "direct_execution",
  "goal": "读取 workspace 中的 USER.md 并向用户总结其主要内容",
  "status": "ready",
  "requires_clarification": false,
  "assumptions": [
    "USER.md 指的是 workspace 根目录下的 USER.md",
    "用户想要摘要而不是逐字全文转发",
    "当前环境允许读取该文件"
  ],
  "success_criteria": [
    "成功定位 USER.md",
    "成功读取文件内容",
    "向用户输出简洁可理解的总结"
  ],
  "failure_conditions": [
    "文件不存在",
    "文件无法读取",
    "文件内容为空且无法形成有效总结"
  ],
  "steps": [
    {
      "step_id": "step_1_read_file",
      "title": "读取 USER.md",
      "kind": "tool_call",
      "description": "从 workspace 根目录读取 USER.md 的内容",
      "depends_on": [],
      "input": {
        "target_path": "USER.md",
        "path_resolution": "workspace_relative"
      },
      "tool": {
        "name": "read",
        "args": {
          "file_path": "C:\\.openclaw\\workspace\\USER.md"
        }
      },
      "expected_output": {
        "type": "file_content",
        "fields": [
          "content"
        ]
      },
      "on_success": "step_2_summarize",
      "on_failure": "fail",
      "notes": [
        "如果文件不存在，应返回 file_not_found 错误",
        "如果文件较长，可只总结关键字段"
      ]
    },
    {
      "step_id": "step_2_summarize",
      "title": "总结 USER.md 内容",
      "kind": "summarize",
      "description": "提取 USER.md 的关键信息并生成用户可读摘要",
      "depends_on": [
        "step_1_read_file"
      ],
      "input": {
        "source_ref": "step_1_read_file.output.content",
        "summary_style": "concise",
        "focus": [
          "用户姓名",
          "称呼偏好",
          "时区",
          "重要备注",
          "工作/权限相关信息"
        ]
      },
      "expected_output": {
        "type": "summary_text",
        "fields": [
          "summary"
        ]
      },
      "on_success": "complete",
      "on_failure": "fail",
      "notes": [
        "优先提取结构化字段",
        "保留对用户最有帮助的信息",
        "避免无意义逐行复述"
      ]
    }
  ],
  "final_output": {
    "mode": "summary",
    "audience": "user",
    "format_notes": [
      "用自然语言输出",
      "先给总结，再补关键点",
      "不需要暴露内部 step_id"
    ]
  }
}

对不同模型的统一输出约束

TBC

memory机制

TBC
