android 自定义阴影ShadowContainer
效果ShadowContainer 介绍:Android 自定义Shadow 样式和sizeShadowContainer属性介绍阴影的颜色:containerShadowColor阴影的圆角半径,和View的background圆角保持一致即可:containerCornerRadius阴影的模糊半径,值越大阴影越大:containerShadowRadius阴影展示的区域位置:containe
·

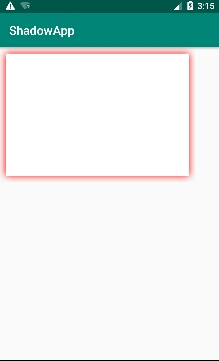

效果
ShadowContainer 介绍:
Android 自定义Shadow 样式和size
ShadowContainer属性介绍
阴影的颜色:containerShadowColor
阴影的圆角半径,和View的background圆角保持一致即可:containerCornerRadius
阴影的模糊半径,值越大阴影越大:containerShadowRadius
阴影展示的区域位置:containerDeltaLength
是否展示阴影,通过修改enable可以实现阴影的显示与隐藏,达到类似于选择器的效果:enable
x方向的偏移量:deltaX
y方向的偏移量:deltaY
attrs.xml文件
<?xml version="1.0" encoding="utf-8"?>
<resources>
<declare-styleable name="ShadowContainer">
<attr name="containerShadowColor" format="color"/>
<attr name="containerShadowRadius" format="dimension"/>
<attr name="containerDeltaLength" format="dimension"/>
<attr name="containerCornerRadius" format="dimension"/>
<attr name="deltaX" format="dimension"/>
<attr name="deltaY" format="dimension"/>
<attr name="enable" format="boolean"/>
</declare-styleable>
</resources>
自定义view
public class ShadowContainer extends ViewGroup {
private final float deltaLength;
private final float cornerRadius;
private final Paint mShadowPaint;
private boolean drawShadow;
public ShadowContainer(Context context) {
this(context, null);
}
public ShadowContainer(Context context, AttributeSet attrs) {
this(context, attrs, 0);
}
public ShadowContainer(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.ShadowContainer);
int shadowColor = a.getColor(R.styleable.ShadowContainer_containerShadowColor, Color.RED);
// int shadowColor = Color.RED;
float shadowRadius = a.getDimension(R.styleable.ShadowContainer_containerShadowRadius, 0);
deltaLength = a.getDimension(R.styleable.ShadowContainer_containerDeltaLength, 0);
cornerRadius = a.getDimension(R.styleable.ShadowContainer_containerCornerRadius, 0);
float dx = a.getDimension(R.styleable.ShadowContainer_deltaX, 0);
float dy = a.getDimension(R.styleable.ShadowContainer_deltaY, 0);
drawShadow = a.getBoolean(R.styleable.ShadowContainer_enable, true);
a.recycle();
mShadowPaint = new Paint();
mShadowPaint.setStyle(Paint.Style.FILL);
mShadowPaint.setAntiAlias(true);
mShadowPaint.setColor(shadowColor);
mShadowPaint.setShadowLayer(shadowRadius, dx, dy, shadowColor);
}
@Override
protected void onFinishInflate() {
super.onFinishInflate();
}
@Override
protected void dispatchDraw(Canvas canvas) {
if (drawShadow) {
if (getLayerType() != LAYER_TYPE_SOFTWARE) {
setLayerType(LAYER_TYPE_SOFTWARE, null);
}
View child = getChildAt(0);
int left = child.getLeft();
int top = child.getTop();
int right = child.getRight();
int bottom = child.getBottom();
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
canvas.drawRoundRect(left, top, right, bottom, cornerRadius, cornerRadius, mShadowPaint);
} else {
Path drawablePath = new Path();
drawablePath.moveTo(left + cornerRadius, top);
drawablePath.arcTo(new RectF(left, top, left + 2 * cornerRadius, top + 2 * cornerRadius), -90, -90, false);
drawablePath.lineTo(left, bottom - cornerRadius);
drawablePath.arcTo(new RectF(left, bottom - 2 * cornerRadius, left + 2 * cornerRadius, bottom), 180, -90, false);
drawablePath.lineTo(right - cornerRadius, bottom);
drawablePath.arcTo(new RectF(right - 2 * cornerRadius, bottom - 2 * cornerRadius, right, bottom), 90, -90, false);
drawablePath.lineTo(right, top + cornerRadius);
drawablePath.arcTo(new RectF(right - 2 * cornerRadius, top, right, top + 2 * cornerRadius), 0, -90, false);
drawablePath.close();
canvas.drawPath(drawablePath, mShadowPaint);
}
}
super.dispatchDraw(canvas);
}
public void setDrawShadow(boolean drawShadow){
if (this.drawShadow == drawShadow){
return;
}
this.drawShadow = drawShadow;
postInvalidate();
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
if (getChildCount() != 1) {
throw new IllegalStateException("子View只能有一个");
}
int measuredWidth = getMeasuredWidth();
int measuredHeight = getMeasuredHeight();
int widthMode = MeasureSpec.getMode(widthMeasureSpec);
int heightMode = MeasureSpec.getMode(heightMeasureSpec);
View child = getChildAt(0);
LayoutParams layoutParams = (LayoutParams) child.getLayoutParams();
int childBottomMargin = (int) (Math.max(deltaLength, layoutParams.bottomMargin) + 1);
int childLeftMargin = (int) (Math.max(deltaLength, layoutParams.leftMargin) + 1);
int childRightMargin = (int) (Math.max(deltaLength, layoutParams.rightMargin) + 1);
int childTopMargin = (int) (Math.max(deltaLength, layoutParams.topMargin) + 1);
int widthMeasureSpecMode;
int widthMeasureSpecSize;
int heightMeasureSpecMode;
int heightMeasureSpecSize;
if (widthMode == MeasureSpec.UNSPECIFIED){
widthMeasureSpecMode = MeasureSpec.UNSPECIFIED;
widthMeasureSpecSize = MeasureSpec.getSize(widthMeasureSpec);
}else {
if (layoutParams.width == LayoutParams.MATCH_PARENT) {
widthMeasureSpecMode = MeasureSpec.EXACTLY;
widthMeasureSpecSize = measuredWidth - childLeftMargin - childRightMargin;
} else if (LayoutParams.WRAP_CONTENT == layoutParams.width) {
widthMeasureSpecMode = MeasureSpec.AT_MOST;
widthMeasureSpecSize = measuredWidth - childLeftMargin - childRightMargin;
} else {
widthMeasureSpecMode = MeasureSpec.EXACTLY;
widthMeasureSpecSize = layoutParams.width;
}
}
if (heightMode == MeasureSpec.UNSPECIFIED){
heightMeasureSpecMode = MeasureSpec.UNSPECIFIED;
heightMeasureSpecSize = MeasureSpec.getSize(heightMeasureSpec);
}else {
if (layoutParams.height == LayoutParams.MATCH_PARENT) {
heightMeasureSpecMode = MeasureSpec.EXACTLY;
heightMeasureSpecSize = measuredHeight - childBottomMargin - childTopMargin;
} else if (LayoutParams.WRAP_CONTENT == layoutParams.height) {
heightMeasureSpecMode = MeasureSpec.AT_MOST;
heightMeasureSpecSize = measuredHeight - childBottomMargin - childTopMargin;
} else {
heightMeasureSpecMode = MeasureSpec.EXACTLY;
heightMeasureSpecSize = layoutParams.height;
}
}
measureChild(child, MeasureSpec.makeMeasureSpec(widthMeasureSpecSize, widthMeasureSpecMode), MeasureSpec.makeMeasureSpec(heightMeasureSpecSize, heightMeasureSpecMode));
int parentWidthMeasureSpec = MeasureSpec.getMode(widthMeasureSpec);
int parentHeightMeasureSpec = MeasureSpec.getMode(heightMeasureSpec);
int height = measuredHeight;
int width = measuredWidth;
int childHeight = child.getMeasuredHeight();
int childWidth = child.getMeasuredWidth();
if (parentHeightMeasureSpec == MeasureSpec.AT_MOST){
height = childHeight + childTopMargin + childBottomMargin;
}
if (parentWidthMeasureSpec == MeasureSpec.AT_MOST){
width = childWidth + childRightMargin + childLeftMargin;
}
if (width < childWidth + 2 * deltaLength){
width = (int) (childWidth + 2 * deltaLength);
}
if (height < childHeight + 2 * deltaLength){
height = (int) (childHeight + 2 * deltaLength);
}
if (height != measuredHeight || width != measuredWidth){
setMeasuredDimension(width, height);
}
}
static class LayoutParams extends MarginLayoutParams{
public LayoutParams(Context c, AttributeSet attrs) {
super(c, attrs);
}
public LayoutParams(int width, int height) {
super(width, height);
}
public LayoutParams(MarginLayoutParams source) {
super(source);
}
public LayoutParams(ViewGroup.LayoutParams source) {
super(source);
}
}
@Override
protected ViewGroup.LayoutParams generateDefaultLayoutParams() {
return new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);
}
@Override
protected ViewGroup.LayoutParams generateLayoutParams(ViewGroup.LayoutParams p) {
return new LayoutParams(p);
}
@Override
public ViewGroup.LayoutParams generateLayoutParams(AttributeSet attrs) {
return new LayoutParams(getContext(), attrs);
}
@Override
protected void onLayout(boolean changed, int l, int t, int r, int b) {
View child = getChildAt(0);
int measuredWidth = getMeasuredWidth();
int measuredHeight = getMeasuredHeight();
int childMeasureWidth = child.getMeasuredWidth();
int childMeasureHeight = child.getMeasuredHeight();
child.layout((measuredWidth - childMeasureWidth) / 2, (measuredHeight - childMeasureHeight) / 2, (measuredWidth + childMeasureWidth) / 2, (measuredHeight + childMeasureHeight) / 2);
}
}
用法
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">
<example.chenj.com.shadow.ShadowContainer
android:layout_width="wrap_content"
android:layout_height="wrap_content"
app:containerDeltaLength="10dp"
app:containerShadowRadius="10dp"
app:containerShadowColor="#f00"
app:enable="true"
>
<TextView
android:layout_width="300dp"
android:layout_height="200dp"
android:background="#fff"
/>
</example.chenj.com.shadow.ShadowContainer>
</LinearLayout>
