全网最全，趟坑记录！

参考的官方wiki：

Building U-boot and Linux for H5/H3/H2+/zh

主线Linux

 Mainline即主线的意思，Linux内核的开发分为Linus维护的主线、其他开发分支以及各种稳定版本。开发分支最终都会统一提交到Linus维护的主线中。 最新版本的U-boot和主线Linux内核已经支持了全志的H3/H5 CPU，我们在最新版本的的U-boot和主线Linux内核的基础上进行了定制开发，使其能支持上NanoPi H5/H3/H2+系列的开发板。本内容仅适用于基于Linux-4.14内核的系统固件。

零、组件来源

百度网盘地址：https://pan.baidu.com/share/init?surl=1dqMYCXeKBcGDA9HmqT5Kw 提取码：u2a4

一、搭建编译环境

网盘目录：H3/NanoPi-M1-Plus/toolchain
编译工具：arm-cortexa9-linux-gnueabihf-4.9.3-20160512.tar.xz

解压：arm-cortexa9-linux-gnueabihf-4.9.3-20160512.tar.xz，tar -xvf xxxxx.tar.xz得到 4.9.3 目录，与其他平台搭建交叉编译环境方法一样，将该目录复制到 /usr/local/arm/ 目录下
设置环境变量：

方式一：在 ~/.bashrc 最后添加：

# vim ~/.bashrc
PATH=$PATH:/usr/local/arm/4.9.3/bin/
export PATH

方式二：或者通过设置/etc/profile文件，在文件最后添加：

# sudo vim /etc/profile
export PATH=$PATH:/usr/local/arm/4.9.3/bin

重启或者注销用户再登录即可使用该交叉编译工具。

验证安装是否成功
验证交叉编译工具是否安装成功，可以使用两种方式：

• arm-cortexa9-linux-gnueabihf-gcc -v
• arm-linux-gcc -v

使用：arm-cortexa9-linux-gnueabihf-gcc -v

liefyuan@ubuntu:$ arm-cortexa9-linux-gnueabihf-gcc -v
Using built-in specs.
COLLECT_GCC=arm-cortexa9-linux-gnueabihf-gcc
COLLECT_LTO_WRAPPER=/usr/local/arm/4.9.3/bin/../libexec/gcc/arm-cortexa9-linux-gnueabihf/4.9.3/lto-wrapper
Target: arm-cortexa9-linux-gnueabihf
Configured with: /work/toolchain/build/src/gcc-4.9.3/configure --build=x86_64-build_pc-linux-gnu --host=x86_64-build_pc-linux-gnu --target=arm-cortexa9-linux-gnueabihf --prefix=/opt/FriendlyARM/toolchain/4.9.3 --with-sysroot=/opt/FriendlyARM/toolchain/4.9.3/arm-cortexa9-linux-gnueabihf/sys-root --enable-languages=c,c++ --with-arch=armv7-a --with-tune=cortex-a9 --with-fpu=vfpv3 --with-float=hard --with-pkgversion=ctng-1.21.0-229g-FA --with-bugurl=http://www.friendlyarm.com/ --enable-__cxa_atexit --disable-libmudflap --disable-libgomp --disable-libssp --disable-libquadmath --disable-libquadmath-support --disable-libsanitizer --with-gmp=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --with-mpfr=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --with-mpc=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --with-isl=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --with-cloog=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --with-libelf=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --enable-lto --with-host-libstdcxx='-static-libgcc -Wl,-Bstatic,-lstdc++,-Bdynamic -lm' --enable-threads=posix --enable-linker-build-id --with-linker-hash-style=gnu --enable-plugin --enable-gold --disable-multilib --with-local-prefix=/opt/FriendlyARM/toolchain/4.9.3/arm-cortexa9-linux-gnueabihf/sys-root --enable-long-long
Thread model: posix
gcc version 4.9.3 (ctng-1.21.0-229g-FA)

使用：arm-linux-gcc -v

liefyuan@ubuntu:$ arm-linux-gcc -v
Using built-in specs.
COLLECT_GCC=arm-linux-gcc
COLLECT_LTO_WRAPPER=/usr/local/arm/4.9.3/bin/../libexec/gcc/arm-cortexa9-linux-gnueabihf/4.9.3/lto-wrapper
Target: arm-cortexa9-linux-gnueabihf
Configured with: /work/toolchain/build/src/gcc-4.9.3/configure --build=x86_64-build_pc-linux-gnu --host=x86_64-build_pc-linux-gnu --target=arm-cortexa9-linux-gnueabihf --prefix=/opt/FriendlyARM/toolchain/4.9.3 --with-sysroot=/opt/FriendlyARM/toolchain/4.9.3/arm-cortexa9-linux-gnueabihf/sys-root --enable-languages=c,c++ --with-arch=armv7-a --with-tune=cortex-a9 --with-fpu=vfpv3 --with-float=hard --with-pkgversion=ctng-1.21.0-229g-FA --with-bugurl=http://www.friendlyarm.com/ --enable-__cxa_atexit --disable-libmudflap --disable-libgomp --disable-libssp --disable-libquadmath --disable-libquadmath-support --disable-libsanitizer --with-gmp=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --with-mpfr=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --with-mpc=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --with-isl=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --with-cloog=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --with-libelf=/work/toolchain/build/arm-cortexa9-linux-gnueabihf/buildtools --enable-lto --with-host-libstdcxx='-static-libgcc -Wl,-Bstatic,-lstdc++,-Bdynamic -lm' --enable-threads=posix --enable-linker-build-id --with-linker-hash-style=gnu --enable-plugin --enable-gold --disable-multilib --with-local-prefix=/opt/FriendlyARM/toolchain/4.9.3/arm-cortexa9-linux-gnueabihf/sys-root --enable-long-long
Thread model: posix
gcc version 4.9.3 (ctng-1.21.0-229g-FA)

二、SD卡分区信息

分区	分区一	分区二	分区三
格式	RAW（不存在文件系统格式）	FAT16	EXT4
用途	U-boot文件	Kernel、设备树文件	根文件系统
大小	3MiB	32MiB	余下所有的

三、使用编译环境编译uboot

下载Uboot

git clone https://github.com/friendlyarm/u-boot.git -b sunxi-v2017.x --depth 1

文件名：u-boot-sunxi-v2017.x.zip
解压文件：unzip u-boot-sunxi-v2017.x.zip

使用：arm-linux- 编译

sudo apt-get install swig python-dev python3-dev
make nanopi_h3_defconfig ARCH=arm CROSS_COMPILE=arm-linux-
make ARCH=arm CROSS_COMPILE=arm-linux- -j16

使用：arm-linux-gnueabihf- 编译

sudo apt-get install swig python-dev python3-dev
make clean
make nanopi_m1_plus_defconfig ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf-
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- -j16

经过测试，使用这两个编译器都可以编译出的U-Boot都可以正常运行。

烧录文件到SD卡

dd if=u-boot-sunxi-with-spl.bin of=/dev/sdX bs=1024 seek=8
sync && eject /dev/sdX

• /dev/sdx请替换为实际的TF卡设备文件名。
• sync命令可以确保数据成功写到TF卡中，eject命令用于弹出TF卡。
• 注意：因为这个u-boot-sunxi-with-spl.bin文件比较大，所以在设置SD文件分区时需要在boot分区前预留至少3MiB的空间用来存放U-Boot文件。

四、使用编译环境编译Linux Kernel

下载Linux内核源码，并切换分支:

$ git clone https://github.com/friendlyarm/linux.git -b sunxi-4.14.y --depth 1

文件名：linux-sunxi-4.14.y.zip

使用：arm-linux- 编译

sudo apt-get install u-boot-tools
make clean
touch .scmversion
make sunxi_defconfig ARCH=arm CROSS_COMPILE=arm-linux-
make zImage dtbs ARCH=arm CROSS_COMPILE=arm-linux- -j16

使用：arm-linux-gnueabihf- 编译

sudo apt-get install u-boot-tools
make clean
touch .scmversion
make sunxi_defconfig ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf-
make zImage dtbs ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- -j16

拷贝Kernel和设备树文件到SD卡的Boot分区

sudo cp arch/arm/boot/zImage /media/liefyuan/BOOT/
sudo cp arch/arm/boot/dts/sun8i-h3-nanopi-m1-plus.dtb /media/liefyuan/BOOT/

问题

使用这两个编译器编译出来的Kernel文件都无法启动。

五、U-Boot上电成功，Kernel启动失败

U-Boot的bootcmd参数不正常

U-Boot SPL 2017.11 (Oct 02 2021 - 02:01:52)
DRAM: 1024 MiB(408MHz)
CPU Freq: 408MHz
memory test: 1
Pattern 55aa  Writing...Reading...OK
Trying to boot from MMC1
Boot device: sd


U-Boot 2017.11 (Oct 02 2021 - 02:01:52 +0800) Allwinner Technology

CPU:   Allwinner H3 (SUN8I 1680)
Model: FriendlyElec NanoPi H3
DRAM:  1 GiB
CPU Freq: 1008MHz
MMC:   SUNXI SD/MMC: 0, SUNXI SD/MMC: 1
In:    serial
Out:   serial
Err:   serial
Net:   No ethernet found.
BOARD: nanopi-m1-plus
starting USB...
No controllers found
Hit any key to stop autoboot:  0
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
reading /sun8i-h3-nanopi-m1-plus.dtb
37691 bytes read in 26 ms (1.4 MiB/s)
starting USB...
No controllers found
USB is stopped. Please issue 'usb start' first.
starting USB...
No controllers found
No ethernet found.
missing environment variable: pxeuuid
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/00000000
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/0000000
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/000000
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/00000
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/0000
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/000
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/00
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/0
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/default-arm-sunxi
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/default-arm
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/default
No ethernet found.
Config file not found
starting USB...
No controllers found
No ethernet found.
No ethernet found.
=>

需要重新配置一下

地址设置

• 全志的H3芯片从地址上把DRAM分配的地址为：0x4000 0000—0xBFFF FFFF最大支持的DRAM为2GiB

Module	Address (It is for Cluster CPU)	Size (byte)
DDR-III/LPDDR-II	0x4000 0000—0xBFFF FFFF	2G

• Nanopi M1 Plus开发板的DDR是1GiB (4000 0000H)因此DDR的可用地址范围是：0x4000 0000 — 0x8000 0000
• kernel加载到RAM的0x41000000
• 设备树加载到RAM的0x48000000

设置参数为：
bootcmd

=> setenv bootcmd 'setenv bootm_boot_mode sec; load mmc 0:1 0x41000000 zImage; load mmc 0:1 0x48000000 sun8i-h3-nanopi-m1-plus.dtb; bootz 0x41000000 - 0x48000000;'

bootargs

=> setenv bootargs 'console=tty0 console=ttyS0,115200 panic=5 rootwait root=/dev/mmcblk0p2 earlyprintk rw vt.global_cursor_default=0'

保存一下

=> saveenv

可以在Uboot命令行里将kernel和dtb文件加载到RAM里面跑一下

fatls mmc 0:1  # 列出分区1里面的所有文件
fatload mmc 0:1 0x41000000 zImage # 将Kernel文件加载到RAM里面的0x41000000地址里面去
fatload mmc 0:1 0x48000000 sun8i-h3-nanopi-m1-plus.dtb # 将设备树文件加载到RAM里面去
bootz 0x41000000 - 0x48000000

运行Kernel失败

## Flattened Device Tree blob at 48000000
   Booting using the fdt blob at 0x48000000
   Loading Device Tree to 49ff3000, end 49fff33a ... OK

Starting kernel ...

还在研究为啥不能启动

Kernel无法启动

U-Boot SPL 2017.11 (Oct 14 2021 - 21:53:14)
DRAM: 1024 MiB(408MHz)
CPU Freq: 408MHz
memory test: 1
Pattern 55aa  Writing...Reading...OK
Trying to boot from MMC1
Boot device: sd


U-Boot 2017.11 (Oct 14 2021 - 21:53:14 +0800) Allwinner Technology

CPU:   Allwinner H3 (SUN8I 1680)
Model: FriendlyElec NanoPi H3
DRAM:  1 GiB
CPU Freq: 1008MHz
MMC:   SUNXI SD/MMC: 0, SUNXI SD/MMC: 1
In:    serial
Out:   serial
Err:   serial
Net:   No ethernet found.
BOARD: nanopi-m1-plus
starting USB...
No controllers found
Hit any key to stop autoboot:  0
reading zImage
5902672 bytes read in 297 ms (19 MiB/s)
reading sun8i-h3-nanopi-m1-plus.dtb
37691 bytes read in 26 ms (1.4 MiB/s)
## Flattened Device Tree blob at 48000000
   Booting using the fdt blob at 0x48000000
   Loading Device Tree to 49ff3000, end 49fff33a ... OK

Starting kernel ...

六、卡在 Starting kernel …

Device Tree出现之前(我的是linux-sunxi-4.14.y已经使用了设备树)

 Device Tree出现之前，也就是kernel 3.0之前的版本，这种情况下，当bootloader将控制权移交给kernel时，kernel会将自身的Machine ID与bootloader的Machine ID进行对比，这时，如果二者不一致，则会出现卡在Starting kernel的情况。那么这个Machine ID是什么？又在哪里进行修改呢？
 由于ARM嵌入式系统芯片和平台种类繁多，也不像x86硬件系统有自己的标准体系，所以，Linux Kernel需要依赖bootloader告诉它是什么ARM平台，这样才能知道去匹配相应的hard code在kernel里的相关硬件定义及BSP代码（也就是arch/arm/mach-xxxx目录），这就是Machine ID出现的根源所在。
 所以当我们做了一个新板子时，需要先向社区申请Machine ID（http://www.arm.linux.org.uk/developer/machines/），或者沿用类似已有平台的Machine ID，之后，我们要修改u-boot下的Machine ID，则需要到board/xxx/xxx.c中的board init函数中去制定相应的Machine ID。比如以ti的am335x评估板为例，其名称为MACH_TYPE_AM335EVM，修改目录在/board/ti/am335x/evm.c。

Device Tree出现之后

可能一：设备树文件名错误

我的内核是linux-sunxi-4.14.y，就是支持设备树了。

• 当uboot环境变量fdt_file与生成的Device Tree的dtb文件名称不一致或找不到相应的dtb文件时，就会出现卡在Starting kernel的情况。这种类型的错误，现在一般u-boot层面会报出相应的错误log，所以比较容易定位问题。
• 注意检查下uboot向kernel传递的参数有没有拼写错误之类的低级原因。

reading zImage
5902672 bytes read in 297 ms (19 MiB/s)
reading sun8i-h3-nanopi-m1-plus.dtb
37691 bytes read in 26 ms (1.4 MiB/s)
## Flattened Device Tree blob at 48000000
   Booting using the fdt blob at 0x48000000
   Loading Device Tree to 49ff3000, end 49fff33a ... OK

Starting kernel ...

应该不是设备树的问题，这里正确读取了设备树文件了。

可能二：配置的串口输出端口错误

 至于这个starting kernel其实是uboot阶段输出最后的一句信息，这时候正准备进入内核引导。这个错误一般由于错误的配置 debug串口导致的，你可以检验下你内核配置的时候，你所配置的串口输出端口是多少。

我的bootargs参数如下

=> setenv bootargs 'console=tty0 console=ttyS0,115200 panic=5 rootwait root=/dev/mmcblk0p2 earlyprintk rw vt.global_cursor_default=0'

=> setenv bootargs 'console=ttyS0,115200 console=tty0 root=/dev/mmcblk0p2 rootfstype=ext4 rootwait init=/sbin/init'

失败！

调试：

首先想到的是打开使能early_printk

1.开启kernel的early_printk

开启make menuconfig Kernel hacking—>Kernel low-level debugging functions

和Kernel hacking—>Early printk

在uboot启动项上加上earlyprintk

setenv mmcboot "setenv bootargs console=ttyS0,115200 mem=512M earlyprintk libata.force=noncq root=/dev/mmcblk0p2 rw rootwait fbmode=VGA; bootz 0x8000 - 0x00000100"

2.直接读取缓存

• 1.编译完成后在kernel中找到system.map文件find . -name "*.map"

• 2.打开文件找到 __log_buf，获得 __log_buf的地址，比如c126d778 b __log_buf

• 3.启动内核，内核此时卡在Starting kernel …位置

• 4.重新启动系统，复位，不要断电启动，进入UBoot命令行界面

• 5.输入md c126d778，就可以看到debug信息，按回车看打印停在了那里

setenv bootcmd "fatload mmc 0:1 46000000 zImage;fatload mmc 0:1 47000000 sun8i-h3-nanopi-m1.dtb;bootz 46000000 0:0 47000000"
setenv bootargs "root=/dev/mmcblk1p2 rw console=ttyS0,115200"
saveenv

失败：跑不起来

尝试了所有还是跑不起来，放弃了，还是使用lichee源码编译Linux3.14的内核。

哭笑不得，电源不稳导致一直卡在Starting kernel …

七、文件系统

解压根文件系统包：

sudo tar -zxvf rootfs-brmin.tar.gz -C /media/liefyuan/rootfs/

拷贝Qt文件到根文件系统中去

sudo cp -r qt5.12.9-arm/ /media/liefyuan/rootfs/opt/
sudo cp -r tslib/ /media/liefyuan/rootfs/opt/

挂不起文件系统，尴尬了！

错误：串口打印卡在：Waiting for root device /dev/mmcblk0p2…

[    4.278983] ALSA device list:
[    4.287210]   #0: Dummy 1
[    4.295022]   #1: Loopback 1
[    4.303052]   #2: H3 Audio Codec
[    4.311385]   #3: allwinner,hdmi
[    4.320258] Waiting for root device /dev/mmcblk0p2...

首先看打印信息，涉及到MMC的打印信息如下：

[    2.232298] sunxi-mmc 1c0f000.mmc: initialized, max. request size: 16384 KB
[    2.246618] sunxi-mmc 1c10000.mmc: allocated mmc-pwrseq
[    2.295464] mmc1: host does not support reading read-only switch, assuming write-enable
[    2.312354] mmc1: new high speed SDHC card at address aaaa
[    2.323644] mmcblk1: mmc1:aaaa SD32G 29.7 GiB
[    2.334762]  mmcblk1: p1 p2
[    2.507265] sunxi-mmc 1c10000.mmc: initialized, max. request size: 16384 KB
[    2.534920] mmc2: queuing unknown CIS tuple 0x80 (2 bytes)
[    2.547388] mmc2: queuing unknown CIS tuple 0x80 (3 bytes)
[    2.559697] mmc2: queuing unknown CIS tuple 0x80 (3 bytes)
[    2.570499] sunxi-mmc 1c11000.mmc: initialized, max. request size: 16384 KB
[    2.584208] ledtrig-cpu: registered to indicate activity on CPUs
[    2.596880] hidraw: raw HID events driver (C) Jiri Kosina
[    2.609680] mmc2: queuing unknown CIS tuple 0x80 (7 bytes)
[    2.620649] usbcore: registered new interface driver usbhid
[    2.631591] usbhid: USB HID core driver
[    2.643841] mmc2: queuing unknown CIS tuple 0x81 (9 bytes)
[    2.666647] sun4i-codec 1c22c00.codec: Codec <-> 1c22c00.codec mapping ok
[    2.682998] Initializing XFRM netlink socket
[    2.693714] NET: Registered protocol family 10
[    2.705923] Segment Routing with IPv6
[    2.715359] NET: Registered protocol family 17
[    2.725290] NET: Registered protocol family 15
[    2.735069] can: controller area network core (rev 20170425 abi 9)
[    2.746752] NET: Registered protocol family 29
[    2.756544] can: raw protocol (rev 20170425)
[    2.766123] can: broadcast manager protocol (rev 20170425 t)
[    2.777182] can: netlink gateway (rev 20170425) max_hops=1
[    2.788369] mmc3: new DDR MMC card at address 0001
[    2.799363] rfkill_gpio rfkill_bt: sunxi-bt device registered.
[    2.811184] mmcblk3: mmc3:0001 8GTF4R 7.28 GiB
[    2.821236] Key type dns_resolver registered
[    2.831291] mmcblk3boot0: mmc3:0001 8GTF4R partition 1 4.00 MiB
[    2.842635] Registering SWP/SWPB emulation handler
[    2.853070] mmcblk3boot1: mmc3:0001 8GTF4R partition 2 4.00 MiB
[    2.866770] registered taskstats version 1
[    2.876611]  mmcblk3: p1 p2 p3

可以看出，系统识别出了两个mmc设备：mmcblk1 和 mmcblk3

更多的信息为：

• mmcblk1识别出了两个分区：p1 p2
• mmcblk1识别出是：29.7 GiB
• mmcblk3识别出了三个分区：p1 p2 p3
• mmcblk3识别出是：7.28 GiB

这些信息可以让我们写bootargs参数

... root=/dev/mmcblk1p2 ...

有信息说是由于Kernel不支持大于8G的mmc设备导致的

Waiting for root device /dev/mmcblk0p2。
问题原因：emmc增加到32G，原来的内核不支持。
处理：vim driver/mmc/core/mmc.c
定位到
card->ext_csd.rev = ext_csd;
if (card->ext_csd.rev > 8) { //注意：改为大于8即可
pr_err("%s: unrecognised EXT_CSD revision %d\n",
mmc_hostname(card->host), card->ext_csd.rev);
err = -EINVAL;
goto out;
}
希望为后来者提供一个参考
和这个没有关系！

错误解决：bootargs里面添加一个init=/linuxrc就可以挂起根文件系统了

init 参数

init指定的是内核启起来后，进入系统中运行的第一个脚本，一般init=/linuxrc, 或者init=/etc/preinit，preinit的内容一般是创建console,null设备节点，运行init程序，挂载一些文件系统等等操作。请注意，很多初学者以为init=/linuxrc是固定写法，其实不然，/linuxrc指的是/目录下面的linuxrc脚本，一般是一个连接罢了。

正确可以用的参数：

setenv bootargs 'console=tty0 console=ttyS0,115200 panic=5 rootwait root=/dev/mmcblk1p2 rw rootfstype=ext4 earlyprintk rw init=/linuxrc vt.global_cursor_default=0'

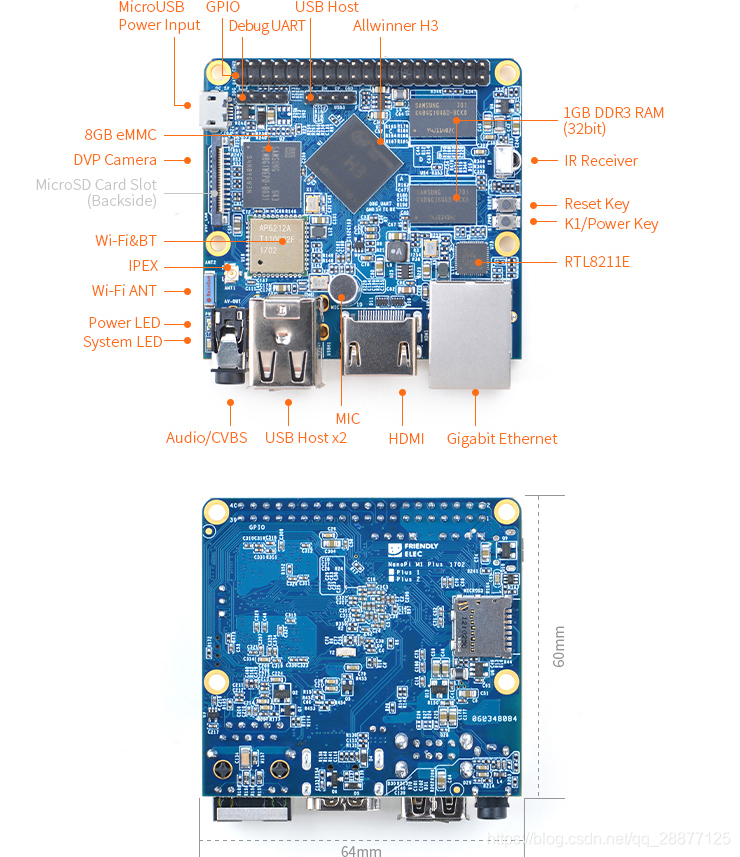

setenv bootcmd 'setenv bootm_boot_mode sec; load mmc 0:1 0x41000000 zImage; load mmc 0:1 0x41800000 sun8i-h3-nanopi-m1-plus.dtb; bootz 0x41000000 - 0x41800000;'

八、添加一块屏幕

屏幕介绍

Matrix - 2’8 SPI Key TFT/zh

 Matrix-2’8_SPI_Key_TFT模块是一款2.8英寸的TFT 触摸LCD，模块采用ST7789V驱动IC和XPT2046电阻式触摸IC，屏幕分辨率为240*320，采用SPI控制接口，模块还包含3个独立按键，可根据需要自定义功能。

详细规格如下所示：

LCD尺寸	2.8寸
显示区域	57.6mm*43.2mm
驱动IC	ST7789V
分辨率	240*320（RGB）
接口方式	SPI
工作电压	5V
背光电压	5V
触摸屏类型	电阻式，钢化玻璃触摸屏

 模块上电默认打开背光，可通过置低LED_EN引脚关闭背光。如果需要关闭上电打开背光，只需要拿到电路板上的R12电阻，再通过置高LED_EN引脚打开背光；

Matrix-2’8_SPI_Key_TFT-1706

Pin#	Name	Pin#	Name
1	VDD_3.3V	2	VDD_5V
3	NC	4	VDD_5V
5	NC	6	GND
7	LCD_RESET	8	NC
9	GND	10	NC
11	LED_EN	12	T_CS
13	KEY_1	14	GND
15	KEY_2	16	KEY_3
17	VDD_3.3V	18	T_IRQ
19	SPI_MOSI	20	GND
21	SPI_MISO	22	LCD_D/C
23	SPI_CLK	24	LCD_CS
25	GND	26	NC

Matrix-2’8_SPI_Key_TFT-1706将触摸芯片的使能引脚T_CS从Pin26修改为Pin12，这样修改之后NEO/NEO2/NEO-Plus2等引脚是24Pin兼容的开发板就能正常使用触摸芯片了。

命令行输入命令出现雪花：

cat /dev/urandom > /dev/fb0

没有出现雪花，说明没有配置好屏幕

查看上电信息涉及到fb0的

[    1.140510] sun4i-drm display-engine: bound 1100000.mixer (ops 0xc0c51ba8)
[    1.147612] sun4i-drm display-engine: No panel or bridge found... RGB output disabled
[    1.155473] sun4i-drm display-engine: bound 1c0c000.lcd-controller (ops 0xc0c508ac)
[    1.287505] sun8i-dw-hdmi 1ee0000.hdmi: Detected HDMI TX controller v1.32a with HDCP (sun8i_dw_hdmi_phy)
[    1.297434] sun8i-dw-hdmi 1ee0000.hdmi: registered DesignWare HDMI I2C bus driver
[    1.305162] sun4i-drm display-engine: bound 1ee0000.hdmi (ops 0xc0c51f28)
[    1.312017] [drm] Cannot find any crtc or sizes - going 1920x1080
[    1.355843] Console: switching to colour frame buffer device 240x67
[    1.386457] sun4i-drm display-engine: fb0:  frame buffer device
[    1.392889] [drm] Initialized sun4i-drm 1.0.0 20150629 for display-engine on minor 0
[    1.409363] loop: module loaded
[    1.427850] st: Version 20160209, fixed bufsize 32768, s/g segs 256

为了使用屏幕需要修改设备树sun8i-h3-nanopi.dtsi

需要编辑sun8i-h3-nanopi.dtsi

vim arch/arm/boot/dts/sun8i-h3-nanopi.dtsi

• 关闭:spidev0: spi@0
• 打开：pitft: pitft@0
• 打开：pitft_ts: pitft-ts@1

spidev0: spi@0 {
        compatible = "nanopi,spidev";
        reg = <0>;
        status = "disabled";

        spi-max-frequency = <10000000>;
    };

pitft: pitft@0{
        compatible = "sitronix,st7789v";
        reg = <0>;
        status = "okay";

        spi-max-frequency = <50000000>;
        rotate = <90>;
        fps = <33>;
        buswidth = <8>;
        dc-gpios = <&pio 0 1 GPIO_ACTIVE_HIGH>;  /* PA1 */
        reset-gpios = <&pio 6 11 GPIO_ACTIVE_HIGH>; /* PG11 */
        led-gpios = <&pio 0 0 GPIO_ACTIVE_LOW>;  /* PA0 */
        debug = <0x0>;
    };
pitft_ts: pitft-ts@1 {
        compatible = "ti,ads7846";
        reg = <1>;
        status = "okay";

        spi-max-frequency = <2000000>;
        interrupt-parent = <&pio>;
        interrupts = <6 9 IRQ_TYPE_EDGE_FALLING>;   /* PG9 / EINT9 */
        pendown-gpio = <&pio 6 9 GPIO_ACTIVE_LOW>;
        ti,swap-xy;
        ti,vref-delay-usecs = <1000>;
        ti,x-min = /bits/ 16 <100>;
        ti,x-max = /bits/ 16 <0xfff>;
        ti,y-min = /bits/ 16 <100>;
        ti,y-max = /bits/ 16 <0xfff>;
        ti,vref-mv = <3300>;
        ti,x-plate-ohms = /bits/ 16 <256>;
        ti,penirq-recheck-delay-usecs = <10>;
        ti,settle-delay-usec = /bits/ 16 <100>;
        ti,keep-vref-on = <1>;
        ti,pressure-max = /bits/ 16 <0xfff>;
        ti,debounce-max = <10>;
        ti,debounce-tol = <30>;
        ti,debounce-rep = <1>;
    };

就可以了

[    2.641141] fbtft_of_value: buswidth = 8
[    2.650449] fbtft_of_value: debug = 0
[    2.659396] fbtft_of_value: rotate = 90
[    2.668454] fbtft_of_value: fps = 33
[    2.799599] mmc2: queuing unknown CIS tuple 0x81 (9 bytes)
[    2.828814] random: fast init done
[    2.846987] graphics fb1: fb_st7789v frame buffer, 320x240, 150 KiB video memory, 4 KiB buffer memory, fps=33, spi0.0 at 50 MHz

测试屏幕：满屏雪花，清屏操作

注意这里是fb1

cat /dev/urandom > /dev/fb1

雪花成功出现！

cat /dev/zero > /dev/fb1

这样可以清屏。

九、添加Qt

拷贝之前编译好的Qt文件和tslib文件

sudo cp -r qt5.12.9-arm/ /media/liefyuan/rootfs/opt/
sudo cp -r tslib/ /media/liefyuan/rootfs/opt/

在开发板上的etc/profile上添加

export TSLIB_ROOT=/opt/tslib
export TSLIB_CONSOLEDEVICE=none
export TSLIB_FBDEVICE=/dev/fb0
export TSLIB_TSDEVICE=/dev/input/event0
export TSLIB_CONFFILE=$TSLIB_ROOT/etc/ts.conf
export TSLIB_PLUGINDIR=$TSLIB_ROOT/lib/ts
export TSLIB_CALIBFILE=/etc/pointercal
export LD_PRELOAD=$TSLIB_ROOT/lib/libts.so

export QT_ROOT=/opt/qt5.12.9-arm
export QT_QPA_GENERIC_PLUGINS=tslib:/dev/input/event0
export QT_QPA_FONTDIR=$QT_ROOT/lib/fonts
export QT_QPA_PLATFORM_PLUGIN_PATH=$QT_ROOT/plugins
export QT_QPA_PLATFORM=linuxfb:tty=/dev/fb0
export QT_PLUGIN_PATH=$QT_ROOT/plugins
export LD_LIBRARY_PATH=$QT_ROOT/lib:$QT_ROOT/plugins/platforms
export QML2_IMPORT_PATH=$QT_ROOT/qml
export QT_QPA_FB_TSLIB=1

还是无法运行Qt例程

错误：运行Qt例程后，命令行有一些提示

# ./analogclock
QStandardPaths: XDG_RUNTIME_DIR not set, defaulting to '/tmp/runtime-root'

在/etc/profile末尾增加两句

export XDG_RUNTIME_DIR=/usr/lib/
export RUNLEVEL=3

然后刷新全局变量

source /etc/profile

这样就没有提示了，可是还是没有Qt例程在屏幕上面。

异常：Qt例程没有画面加载到屏幕上去

还是不出画面

乖乖再加上这个就可以显示例程了：

export QT_QPA_PLATFORM=linuxfb:fb=/dev/fb1
export QT_QPA_EGLFS_TSLIB=1
export QT_QPA_GENERIC_PLUGINS=tslib,evdevkeyboard

所以完整的/etc/profile文件的内容就是：

export PATH=/bin:/sbin:/usr/bin:/usr/sbin

if [ "$PS1" ]; then
        if [ "`id -u`" -eq 0 ]; then
                export PS1='# '
        else
                export PS1='$ '
        fi
fi

export PAGER='/bin/more '
export EDITOR='/bin/vi'

# Source configuration files from /etc/profile.d
for i in /etc/profile.d/*.sh ; do
        if [ -r "$i" ]; then
                . $i
        fi
        unset i
done

export TSLIB_ROOT=/opt/tslib
export TSLIB_CONSOLEDEVICE=none
export TSLIB_FBDEVICE=/dev/fb1
export TSLIB_TSDEVICE=/dev/input/event1
export TSLIB_CONFFILE=$TSLIB_ROOT/etc/ts.conf
export TSLIB_PLUGINDIR=$TSLIB_ROOT/lib/ts
export TSLIB_CALIBFILE=/etc/pointercal
export LD_PRELOAD=$TSLIB_ROOT/lib/libts.so

export QT_ROOT=/opt/qt5.12.9-arm
export QT_QPA_GENERIC_PLUGINS=tslib:/dev/input/event1
export QT_QPA_FONTDIR=$QT_ROOT/lib/fonts
export QT_QPA_PLATFORM_PLUGIN_PATH=$QT_ROOT/plugins
export QT_QPA_PLATFORM=linuxfb:tty=/dev/fb1
export QT_PLUGIN_PATH=$QT_ROOT/plugins
export LD_LIBRARY_PATH=$QT_ROOT/lib:$QT_ROOT/plugins/platforms
export QML2_IMPORT_PATH=$QT_ROOT/qml
export QT_QPA_FB_TSLIB=1

export QT_QPA_PLATFORM=linuxfb:fb=/dev/fb1
export QT_QPA_EGLFS_TSLIB=1
export QT_QPA_GENERIC_PLUGINS=tslib,evdevkeyboard

export XDG_RUNTIME_DIR=/usr/lib/
export RUNLEVEL=3

$QT_ROOT/examples/widgets/widgets/tetrix/tetrix

哈哈哈，终于搞完了，趟了好多坑啊！

搞定，完结撒花！
