深度学习之PyTorch（下）损失函数、参数更新方法、附经典案例在PyTorch中的应用
·
一、损失函数
1、分类任务损失函数

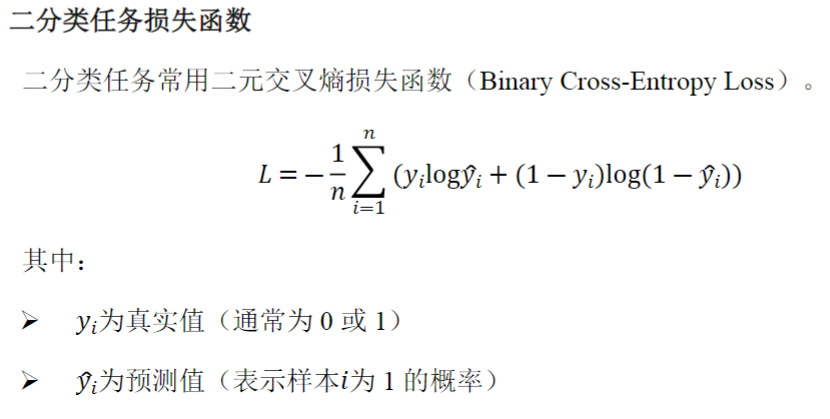

1.1、二分类任务损失函数
import torch
import torch.nn as nn
input = torch.randn(3,2)
print(input)
target = torch.tensor([
[1,0],
[0,1],
[0.3,0.7],
])
y_pred = torch.sigmoid(input)
loss = nn.BCELoss()
loss_value = loss(y_pred, target)
print(loss_value)
tensor([[-1.0834, 0.6818],
[-1.8503, -1.1181],
[ 0.2840, 1.8961]])
tensor(0.9136)

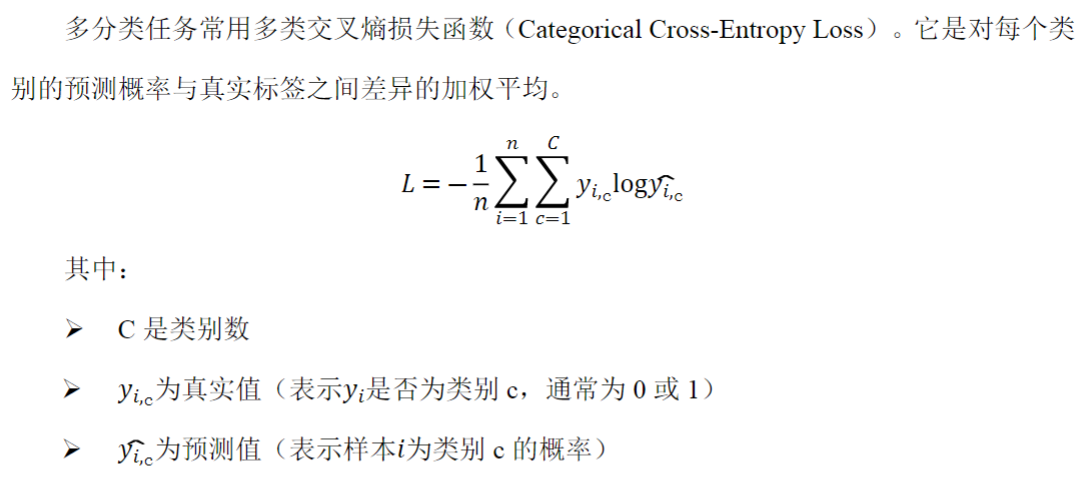

1.2、多分类任务损失函数
调用 torch.nn.CrossEntropyLoss 相当于调用了 torch.nn.LogSoftmax 之后再调用
torch.nn.NLLLoss。即使用 CrossEntropyLoss 时上一层的输出不需要 Softmax 激活函数，因为该
损失函数内会自动处理。
import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"
import torch
import torch.nn as nn
input = torch.randn(6,8)
print(input)
target = torch.randint(0,8,(6,))
print(target)
loss = nn.CrossEntropyLoss()
loss_value = loss(input, target)
print(loss_value)
tensor([[-1.2928e+00, -1.5292e+00, 2.2292e-01, 5.7030e-01, -5.6122e-01,
-6.6292e-01, -2.7012e-01, -7.0373e-01],
[-3.3748e-02, -6.2801e-01, -2.3060e-01, -3.4853e-04, -3.2203e-01,
-3.4081e-01, 2.0129e+00, 9.5193e-01],
[ 8.7324e-01, 7.9247e-01, 1.8452e+00, -9.3519e-01, 5.0346e-01,
-8.0731e-01, -1.0711e+00, 5.9961e-02],
[ 1.2703e+00, -9.1585e-01, 7.1065e-01, -5.2294e-01, -4.6369e-01,
6.8445e-01, 2.3985e-01, -2.2850e+00],
[ 6.1638e-01, 4.7640e-01, -2.8723e-01, 7.1540e-01, -9.0803e-01,
-1.7809e+00, -6.7771e-02, -3.6200e-01],
[-3.6680e-01, 1.6236e-01, -2.4741e-01, -5.2993e-01, -3.0050e-02,
-8.3966e-01, -1.0472e-01, 1.5665e-03]])
tensor([7, 7, 4, 2, 4, 7])
tensor(2.1625)

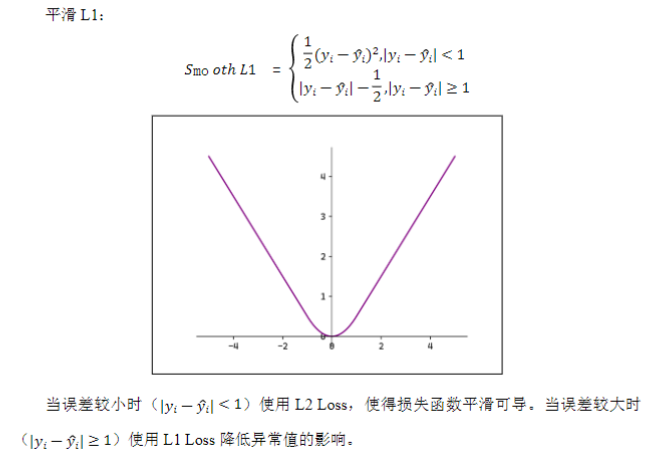

2、回归任务损失函数MAEL1，MSEL2，SmoothL1平滑L1
import torch
from torch.nn import MSELoss,L1Loss,SmoothL1Loss
input = torch.randn(3,5)
target = torch.randn(3,5)
print(input)
print(target)
mae_loss = L1Loss()
mae = mae_loss(input,target)
print(mae)
mse_loss = MSELoss()
mse = mse_loss(input,target)
print(mse)
sml1 = SmoothL1Loss()
sml1_loss = sml1(input,target)
print(sml1_loss)
tensor([[-0.9700, 0.1623, 1.1262, -1.2611, -1.0052],
[-0.0985, -2.0033, 0.9617, -0.5301, -0.5155],
[-0.0496, -1.9691, 1.3506, -1.6605, -1.0312]])
tensor([[-0.3123, 1.2515, 0.0369, 1.6495, -0.3261],
[ 0.6243, 0.7736, 0.6756, 0.9600, -0.2522],
[ 0.0111, 1.5231, 1.0979, 0.3515, 1.4080]])
tensor(1.3481)
tensor(2.9736)
tensor(0.9411)
3、损失函数综合练习
import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"
import torch
from torch import nn, optim
class Model(nn.Module):
def __init__(self):
super().__init__()
self.linear1 = nn.Linear(5,3)
self.linear1.weight.data = torch.tensor([
[0.1,0.2,0.3],
[0.4,0.5,0.6],
[0.7,0.8,0.9],
[1.0,1.1,1.2],
[1.3,1.4,1.5],
]).T
self.linear1.bias.data = torch.tensor([1.0,2.0,3.0])
def forward(self, x):
y = self.linear1(x)
return y
x = torch.tensor([[1,2,3,4,5],[6,7,8,9,10]],dtype=torch.float)
target = torch.tensor([[0,0,0],[0,0,0]],dtype=torch.float)
model = Model()
y_pred = model(x)
print(y_pred)
loss = nn.MSELoss()
loss_value = loss(y_pred, target)
print(loss_value)
loss_value.backward()
print(model.linear1.weight.grad)
print(model.linear1.bias.grad)
optimizer = optim.SGD(model.parameters(),lr = 0.01)
optimizer.step()
optimizer.zero_grad()
for name, param in model.named_parameters():
print(name,param)
tensor([[14.5000, 17.0000, 19.5000],
[32.0000, 37.0000, 42.0000]], grad_fn=<AddmmBackward0>)
tensor(839.4167, grad_fn=<MseLossBackward0>)
tensor([[ 68.8333, 84.3333, 99.8333, 115.3333, 130.8333],
[ 79.6667, 97.6667, 115.6667, 133.6667, 151.6667],
[ 90.5000, 111.0000, 131.5000, 152.0000, 172.5000]])
tensor([15.5000, 18.0000, 20.5000])
linear1.weight Parameter containing:
tensor([[-0.5883, -0.4433, -0.2983, -0.1533, -0.0083],
[-0.5967, -0.4767, -0.3567, -0.2367, -0.1167],
[-0.6050, -0.5100, -0.4150, -0.3200, -0.2250]], requires_grad=True)
linear1.bias Parameter containing:
tensor([0.8450, 1.8200, 2.7950], requires_grad=True)
二、参数更新方法

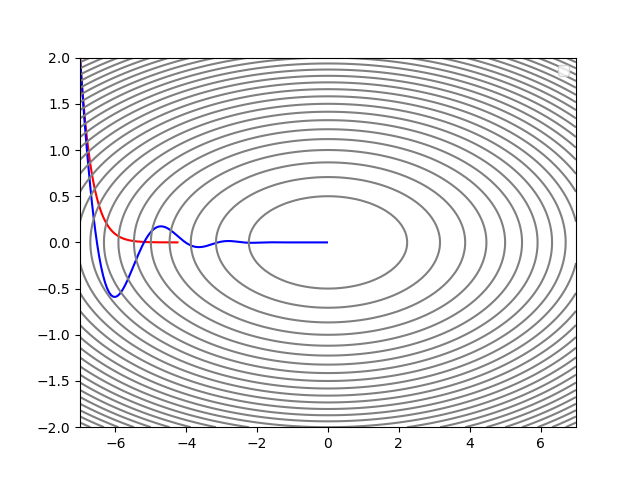

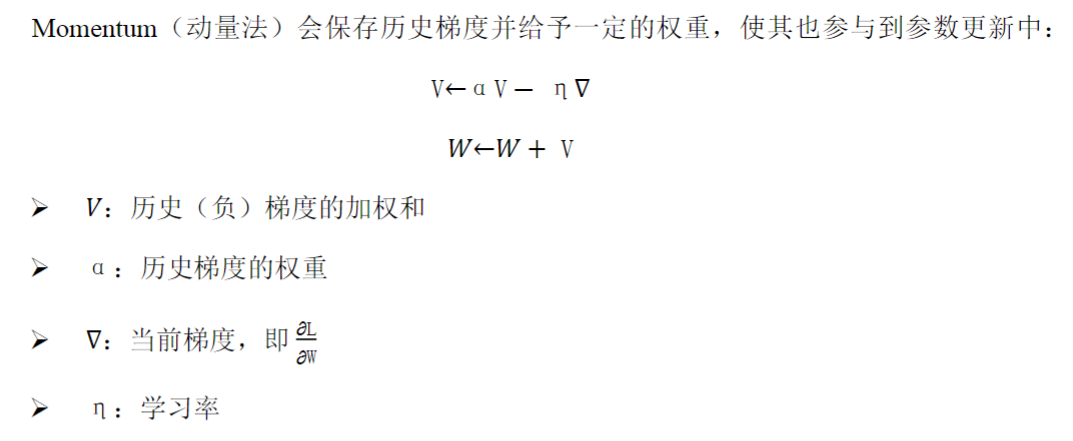

1、Momentum
import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"
import torch
import numpy as np
import matplotlib.pyplot as plt
from torch.optim import SGD # 随机梯度下降法（动量法）
def f(X):
return 0.05 * X[0] ** 2 + X[1] ** 2
# 梯度下降法函数，将数据和优化器、迭代次数传入
def gradient_descent(X,optimizer,num_iter):
x1_list = []
x2_list = []
for i in range(num_iter):
x1_list.append(X[0].detach().numpy().copy())
x2_list.append(X[1].detach().numpy().copy())
y = f(X)
y.backward()
optimizer.step()
optimizer.zero_grad()
return x1_list,x2_list
X = torch.tensor([-7.0,2.0],requires_grad=True)
lr = 0.01
num_iter = 500
X_clone = X.clone().detach().requires_grad_(True)
optimizer = SGD([X_clone],lr = lr)
x1_list,x2_list = gradient_descent(X_clone,optimizer,num_iter)
plt.plot(x1_list,x2_list,color = 'red')
X_clone = X.clone().detach().requires_grad_(True)
optimizer = SGD([X_clone],lr = lr,momentum = 0.9)
x1_list,x2_list = gradient_descent(X_clone,optimizer,num_iter)
plt.plot(x1_list,x2_list,color = 'blue')
x1_grid,x2_grid = np.meshgrid(np.linspace(-7,7,100),np.linspace(-2,2,100))
y_grid = 0.05 * x1_grid ** 2 + x2_grid ** 2
plt.contour(x1_grid,x2_grid,y_grid,colors='gray',levels = 30)
plt.legend('SGD','Momentum')
plt.show()
2、学习率衰减

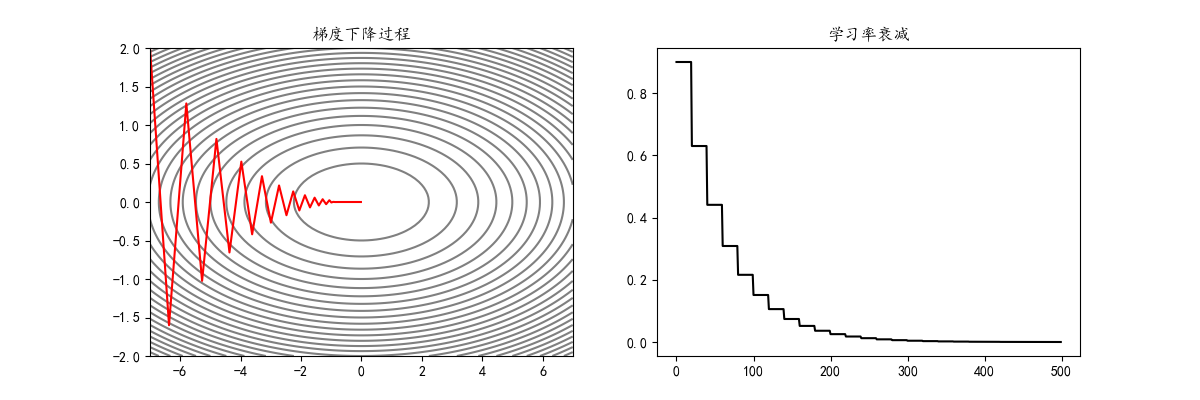

2.1、等间隔衰减StepLR
import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"
import torch
import numpy as np
import matplotlib.pyplot as plt
from torch.optim import SGD
from torch.optim.lr_scheduler import StepLR # 等间隔衰减
def f(X):
return 0.05 * X[0] ** 2 + X[1] ** 2
X = torch.tensor([-7.0,2.0],requires_grad=True)
lr = 0.9
num_iter = 500
optimizer = SGD([X],lr = lr)
lr_scheduler = StepLR(optimizer,step_size=20,gamma=0.7)
x1_list = []
x2_list = []
lr_list = []
for i in range(num_iter):
x1_list.append(X[0].detach().numpy().copy())
x2_list.append(X[1].detach().numpy().copy())
lr_list.append(optimizer.param_groups[0]['lr'])
y = f(X)
y.backward()
optimizer.step()
optimizer.zero_grad()
lr_scheduler.step()
plt.rcParams['font.sans-serif'] = ['Kaiti']
plt.rcParams['axes.unicode_minus'] = False
fig,ax = plt.subplots(1,2,figsize = (12,4))
x1_grid,x2_grid = np.meshgrid(np.linspace(-7,7,100),np.linspace(-2,2,100))
y_grid = 0.05 * x1_grid ** 2 + x2_grid ** 2
ax[0].contour(x1_grid,x2_grid,y_grid,colors='gray',levels = 30)
ax[0].set_title('梯度下降过程')
ax[0].plot(x1_list,x2_list,color = 'red')
ax[1].plot(lr_list,color = 'k')
ax[1].set_title('学习率衰减')
plt.show()

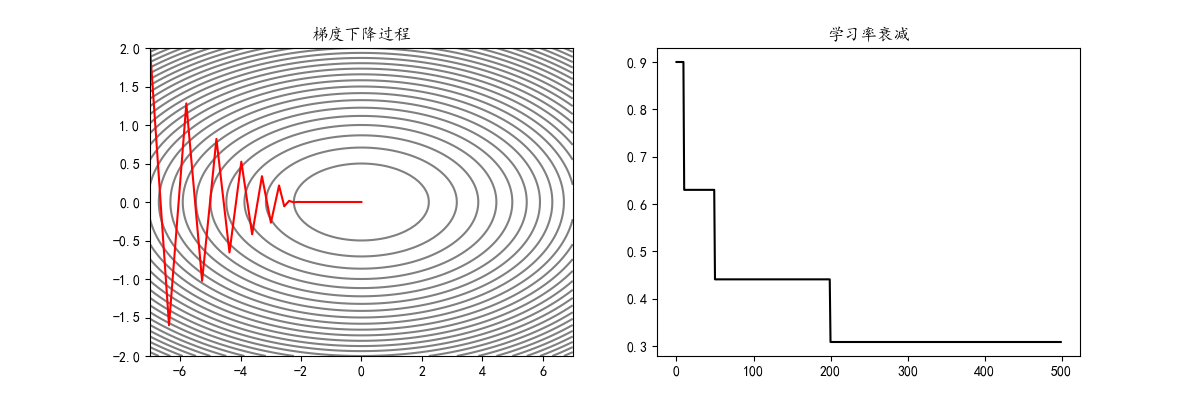

2.2、指定间隔和指数衰减MultiStepLR、ExponentialLR
等间隔衰减
import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"
import torch
import numpy as np
import matplotlib.pyplot as plt
from torch.optim import SGD
from torch.optim.lr_scheduler import MultiStepLR # 指定间隔衰减
def f(X):
return 0.05 * X[0] ** 2 + X[1] ** 2
X = torch.tensor([-7.0,2.0],requires_grad=True)
lr = 0.9
num_iter = 500
optimizer = SGD([X],lr = lr)
lr_scheduler = MultiStepLR(optimizer,milestones = [ 10,50,200 ],gamma=0.7)
x1_list = []
x2_list = []
lr_list = []
for i in range(num_iter):
x1_list.append(X[0].detach().numpy().copy())
x2_list.append(X[1].detach().numpy().copy())
lr_list.append(optimizer.param_groups[0]['lr'])
y = f(X)
y.backward()
optimizer.step()
optimizer.zero_grad()
lr_scheduler.step()
plt.rcParams['font.sans-serif'] = ['Kaiti']
plt.rcParams['axes.unicode_minus'] = False
fig,ax = plt.subplots(1,2,figsize = (12,4))
x1_grid,x2_grid = np.meshgrid(np.linspace(-7,7,100),np.linspace(-2,2,100))
y_grid = 0.05 * x1_grid ** 2 + x2_grid ** 2
ax[0].contour(x1_grid,x2_grid,y_grid,colors='gray',levels = 30)
ax[0].set_title('梯度下降过程')
ax[0].plot(x1_list,x2_list,color = 'red')
ax[1].plot(lr_list,color = 'k')
ax[1].set_title('学习率衰减')
plt.show()

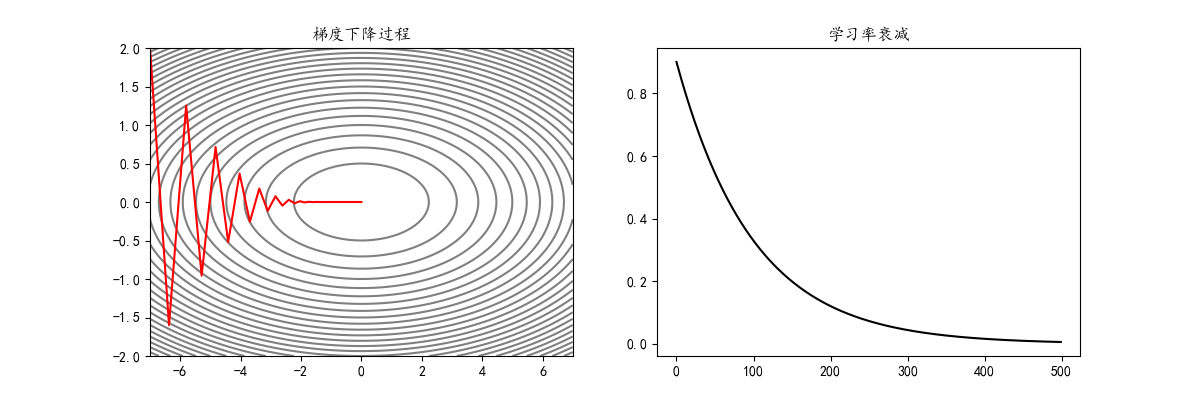

指数衰减
import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"
import torch
import numpy as np
import matplotlib.pyplot as plt
from torch.optim import SGD
from torch.optim.lr_scheduler import ExponentialLR # 指数衰减
def f(X):
return 0.05 * X[0] ** 2 + X[1] ** 2
X = torch.tensor([-7.0,2.0],requires_grad=True)
lr = 0.9
num_iter = 500
optimizer = SGD([X],lr = lr)
lr_scheduler = ExponentialLR(optimizer,gamma=0.99)
x1_list = []
x2_list = []
lr_list = []
for i in range(num_iter):
x1_list.append(X[0].detach().numpy().copy())
x2_list.append(X[1].detach().numpy().copy())
lr_list.append(optimizer.param_groups[0]['lr'])
y = f(X)
y.backward()
optimizer.step()
optimizer.zero_grad()
lr_scheduler.step()
plt.rcParams['font.sans-serif'] = ['Kaiti']
plt.rcParams['axes.unicode_minus'] = False
fig,ax = plt.subplots(1,2,figsize = (12,4))
x1_grid,x2_grid = np.meshgrid(np.linspace(-7,7,100),np.linspace(-2,2,100))
y_grid = 0.05 * x1_grid ** 2 + x2_grid ** 2
ax[0].contour(x1_grid,x2_grid,y_grid,colors='gray',levels = 30)
ax[0].set_title('梯度下降过程')
ax[0].plot(x1_list,x2_list,color = 'red')
ax[1].plot(lr_list,color = 'k')
ax[1].set_title('学习率衰减')
plt.show()

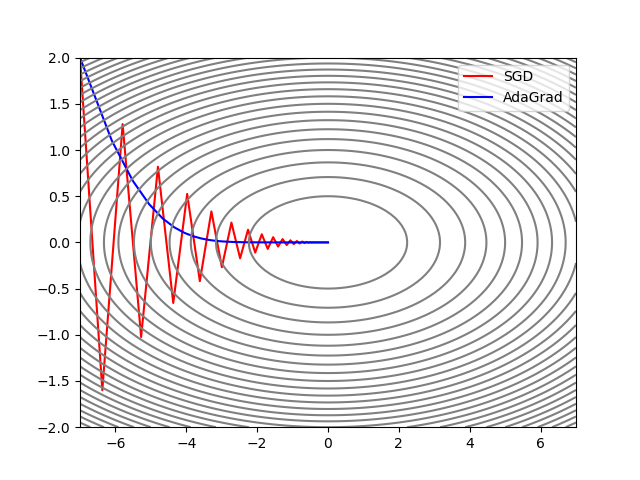

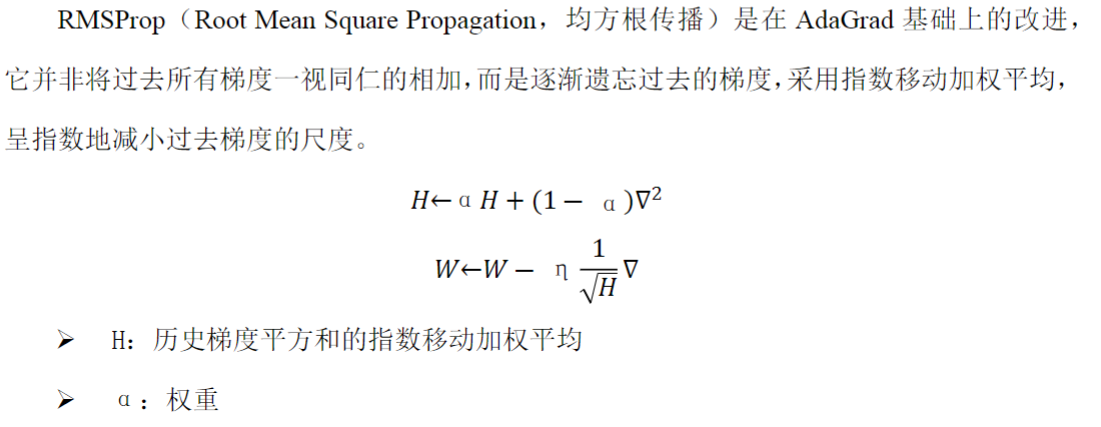

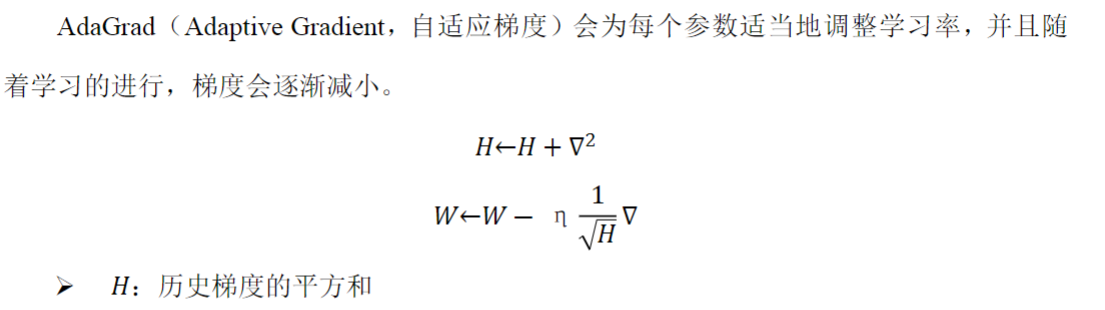

2.3、AdaGrad和RMSProp
import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"
import torch
import numpy as np
import matplotlib.pyplot as plt
from torch.optim import SGD,Adagrad
def f(X):
return 0.05 * X[0] ** 2 + X[1] ** 2
# 梯度下降法函数，将数据和优化器、迭代次数传入
def gradient_descent(X,optimizer,num_iter):
x1_list = []
x2_list = []
for i in range(num_iter):
x1_list.append(X[0].detach().numpy().copy())
x2_list.append(X[1].detach().numpy().copy())
y = f(X)
y.backward()
optimizer.step()
optimizer.zero_grad()
return x1_list,x2_list
X = torch.tensor([-7.0,2.0],requires_grad=True)
lr = 0.9
num_iter = 500
X_clone = X.clone().detach().requires_grad_(True)
optimizer = SGD([X_clone],lr = lr)
x1_list,x2_list = gradient_descent(X_clone,optimizer,num_iter)
plt.plot(x1_list,x2_list,color = 'red')
X_clone = X.clone().detach().requires_grad_(True)
optimizer = Adagrad([X_clone],lr = lr)
x1_list,x2_list = gradient_descent(X_clone,optimizer,num_iter)
plt.plot(x1_list,x2_list,color = 'blue')
x1_grid,x2_grid = np.meshgrid(np.linspace(-7,7,100),np.linspace(-2,2,100))
y_grid = 0.05 * x1_grid ** 2 + x2_grid ** 2
plt.contour(x1_grid,x2_grid,y_grid,colors='gray',levels = 30)
plt.legend(['SGD','AdaGrad'])
plt.show()

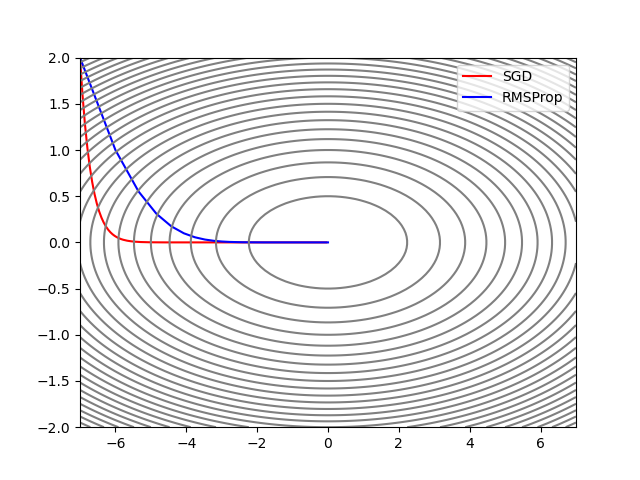

import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"
import torch
import numpy as np
import matplotlib.pyplot as plt
from torch.optim import SGD,RMSprop
def f(X):
return 0.05 * X[0] ** 2 + X[1] ** 2
# 梯度下降法函数，将数据和优化器、迭代次数传入
def gradient_descent(X,optimizer,num_iter):
x1_list = []
x2_list = []
for i in range(num_iter):
x1_list.append(X[0].detach().numpy().copy())
x2_list.append(X[1].detach().numpy().copy())
y = f(X)
y.backward()
optimizer.step()
optimizer.zero_grad()
return x1_list,x2_list
X = torch.tensor([-7.0,2.0],requires_grad=True)
lr = 0.1
num_iter = 500
X_clone = X.clone().detach().requires_grad_(True)
optimizer = SGD([X_clone],lr = lr)
x1_list,x2_list = gradient_descent(X_clone,optimizer,num_iter)
plt.plot(x1_list,x2_list,color = 'red')
X_clone = X.clone().detach().requires_grad_(True)
optimizer = RMSprop([X_clone],lr = lr,alpha = 0.99)
x1_list,x2_list = gradient_descent(X_clone,optimizer,num_iter)
plt.plot(x1_list,x2_list,color = 'blue')
x1_grid,x2_grid = np.meshgrid(np.linspace(-7,7,100),np.linspace(-2,2,100))
y_grid = 0.05 * x1_grid ** 2 + x2_grid ** 2
plt.contour(x1_grid,x2_grid,y_grid,colors='gray',levels = 30)
plt.legend(['SGD','RMSProp'])
plt.show()

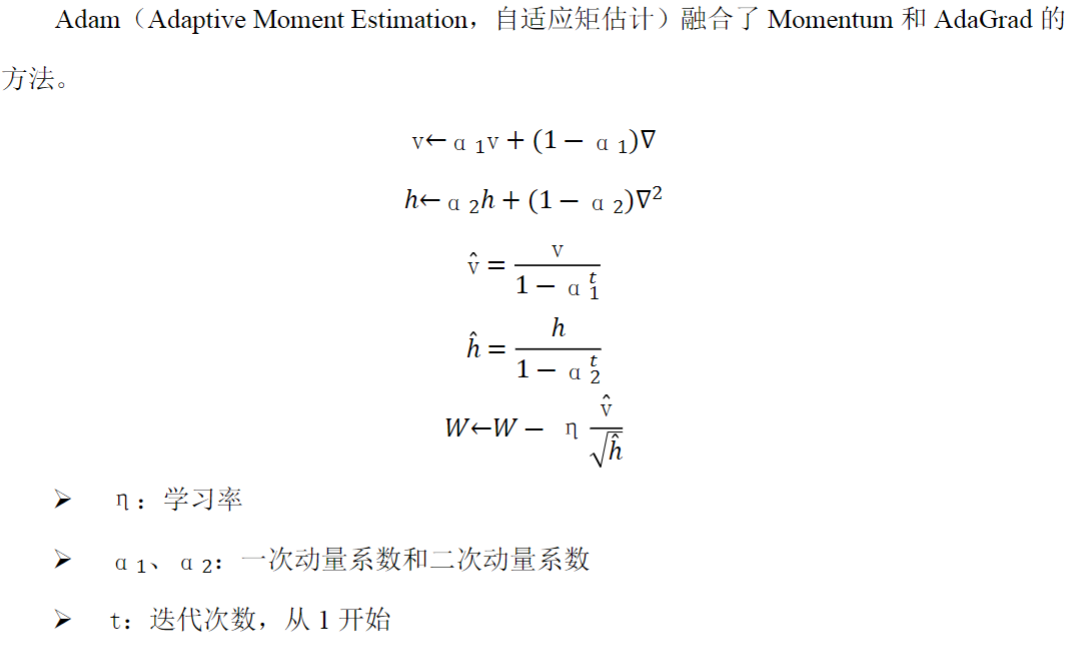

2.4、Adam和AdamW
import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"
import torch
import numpy as np
import matplotlib.pyplot as plt
from torch.optim import SGD,Adam
def f(X):
return 0.05 * X[0] ** 2 + X[1] ** 2
# 梯度下降法函数，将数据和优化器、迭代次数传入
def gradient_descent(X,optimizer,num_iter):
x1_list = []
x2_list = []
for i in range(num_iter):
x1_list.append(X[0].detach().numpy().copy())
x2_list.append(X[1].detach().numpy().copy())
y = f(X)
y.backward()
optimizer.step()
optimizer.zero_grad()
return x1_list,x2_list
X = torch.tensor([-7.0,2.0],requires_grad=True)
lr = 0.1
num_iter = 500
X_clone = X.clone().detach().requires_grad_(True)
optimizer = SGD([X_clone],lr = lr)
x1_list,x2_list = gradient_descent(X_clone,optimizer,num_iter)

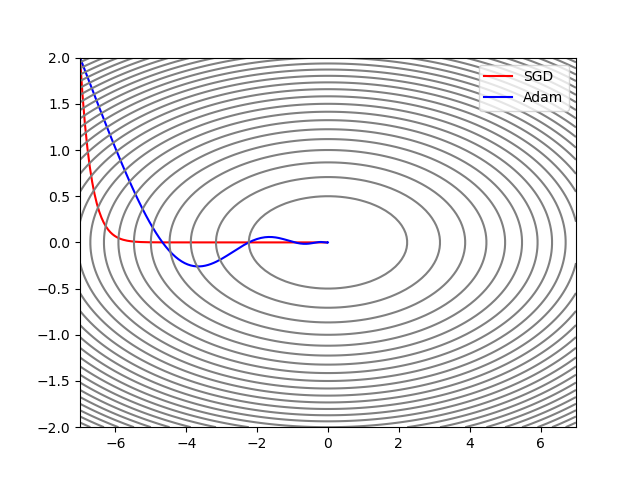

plt.plot(x1_list,x2_list,color = 'red')
X_clone = X.clone().detach().requires_grad_(True)
optimizer = Adam([X_clone],lr = lr,betas = (0.9,0.999))
x1_list,x2_list = gradient_descent(X_clone,optimizer,num_iter)
plt.plot(x1_list,x2_list,color = 'blue')
x1_grid,x2_grid = np.meshgrid(np.linspace(-7,7,100),np.linspace(-2,2,100))
y_grid = 0.05 * x1_grid ** 2 + x2_grid ** 2
plt.contour(x1_grid,x2_grid,y_grid,colors='gray',levels = 30)
plt.legend(['SGD','Adam'])
plt.show()
AdamW现在应用更广泛
三、房价预测案例
对特征进行处理，数值型特征使用均值填充缺失值，再标准化；类别型特征使用字符串“NaN”填充
缺失值，再独特编码。之后构造数据集。
import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"
import torch
from torch import nn,optim
import pandas as pd
import matplotlib.pyplot as plt
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler,OneHotEncoder
from sklearn.compose import ColumnTransformer
from sklearn.impute import SimpleImputer
from sklearn.pipeline import Pipeline
from torch.utils.data import TensorDataset, DataLoader
def create_dataset():
data = pd.read_csv('data/house_prices.csv')
data.drop(["Id"],axis=1,inplace=True)
X = data.drop("SalePrice",axis=1)
y = data["SalePrice"]
x_train, x_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)
print(x_train.shape,y_train.shape)
numerical_features = X.select_dtypes(exclude = 'object').columns
categorical_features = X.select_dtypes(include = 'object').columns
numerical_transformer = Pipeline(steps = [
('fillna', SimpleImputer(strategy='mean')),# 缺失值填充，均值填充
('std', StandardScaler()) # 标准化
])
categorical_transformer = Pipeline(steps = [
('fillna',SimpleImputer(strategy = 'constant',fill_value='NaN')),
('onehot', OneHotEncoder(handle_unknown='ignore'))
])
columnTransformer = ColumnTransformer(transformers = [
('num', numerical_transformer, numerical_features),
('cat', categorical_transformer, categorical_features),
])
x_train = columnTransformer.fit_transform(x_train)
x_test = columnTransformer.transform(x_test)
# 将稀疏矩阵的压缩表示转换成稠密矩阵形式
x_train =x_train.toarray()
x_test = x_test.toarray()
print(x_train.shape,x_test.shape)
train_dataset = TensorDataset(torch.Tensor(x_train),torch.Tensor(y_train.values))
test_dataset = TensorDataset(torch.Tensor(x_test),torch.Tensor(y_test.values))
return train_dataset,test_dataset,x_train.shape[1]
train_dataset,test_dataset,feature_num = create_dataset()
print(feature_num)
model = nn.Sequential(
nn.Linear(feature_num,128),
nn.BatchNorm1d(128),
nn.ReLU(),
nn.Dropout(0.2),
nn.Linear(128,1)
)
def init_weights(layer):
if isinstance(layer,nn.Linear):
nn.init.kaiming_normal_(layer.weight)
model.apply(init_weights)
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
model.to(device)
lr = 0.1
batch_size = 64
epoch_num = 200
train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
test_loader = DataLoader(test_dataset, batch_size=batch_size)
optimizer = optim.Adam(model.parameters(), lr=lr)
def log_rmse(pred,target):
pred = torch.clamp(pred,1,float("inf"))
mse = nn.MSELoss()
mse_loss_value = mse(torch.log(pred),torch.log(target))
return torch.sqrt(mse_loss_value)
train_loss_list = []
test_loss_list = []
for epoch in range(epoch_num):
model.train() # 开启训练模式是因为BN层和Dropout都是在训练的时候生效，测试不生效
train_loss_total = 0
for X, y in train_loader:
X,y = X.to(device),y.to(device)
y_pred = model(X)
loss_value = log_rmse(y_pred.squeeze(),y)
loss_value.backward()
optimizer.step()
optimizer.zero_grad()
train_loss_total += loss_value.item() * X.shape[0]
this_train_loss = train_loss_total / len(train_dataset)
train_loss_list.append(this_train_loss)
model.eval()
test_loss_total = 0
with torch.no_grad():
for X, y in test_loader:
X,y = X.to(device),y.to(device)
y_pred = model(X)
loss_value = log_rmse(y_pred.squeeze(),y)
test_loss_total += loss_value.item() * X.shape[0]
this_test_loss = test_loss_total / len(test_dataset)
test_loss_list.append(this_test_loss)
print(f'epoch:{epoch + 1}\t train loss:{this_train_loss:.6}\t test loss:{this_test_loss:.6f}')
plt.plot(train_loss_list,label='train loss',color = 'blue',linewidth = 3)
plt.plot(test_loss_list,label='test loss',color = 'red',linestyle='--',linewidth = 2)
plt.legend(loc='best')
plt.show()
更多推荐
0
0- 0
已为社区贡献9条内容
所有评论(0)
