熟悉镜像构建是用到的参数

FROM指定base镜像 eg：FROM busybox:version
COPY复制文件 eg：COPY file /file 或者 COPY [“file”,”/”]
MAINTAINER指定作者信息，比如邮箱 eg：MAINTAINER user@example.com 在最新版的docker中用LABEL KEY="VALUE"代替
ADD功能和copy相似，指定压缩文件或url eg: ADD test.tar /mnt 或者 eg：ADD http://ip/test.tar /mnt
ENV指定环境变量 eg：ENV FILENAME test
EXPOSE暴漏容器端口 eg：EXPOSE 80
VOLUME申明数据卷，通常指数据挂载点 eg：VOLUME [“/var/www/html”]
WORKDIR切换路径 eg：WORKDIR /mnt
RUN在容器中运行的指令 eg: touch file
CMD在启动容器时自动运行动作可以被覆盖 eg：CMD echo FILENAME 会调用shell解析 eg：CMD [“/bin/sh”,”-c”,“echo FILENAME”] 不调用shell解析
ENTRYPOINT和CMD功能和用法类似，但动作不可被覆盖
#建立构建目录
[root@docker-node1 ~]# mkdir docker
[root@docker-node1 ~]# cd docker/
​
#编写构建规则文件
[root@docker-node1 docker]# vim Dockerfile
​
#FROM
FROM busybox:latest
​
#COPY
[root@Docker-node1 docker]# echo hjw > hjw
[root@Docker-node1 docker]# cat hjw
hjw
​
[root@docker-node1 docker]# vim Dockerfile
FROM busybox:latest
LABEL maintainer="hhh@hjw.com"
COPY hjw /root
​
#构建命令
[root@Docker-node1 docker]# docker build -t hjw:v1 .
[+] Building 0.1s (7/7) FINISHED                                                                   docker:default
 => [internal] load build definition from Dockerfile                                                         0.0s
 => => transferring dockerfile: 103B                                                                         0.0s
 => [internal] load metadata for docker.io/library/busybox:latest                                            0.0s
 => [internal] load .dockerignore                                                                            0.0s
 => => transferring context: 2B                                                                              0.0s
 => [internal] load build context                                                                            0.0s
 => => transferring context: 34B                                                                             0.0s
 => [1/2] FROM docker.io/library/busybox:latest@sha256:b3255e7dfbcd10cb367af0d409747d511aeb66dfac98cf30e97e  0.0s
 => => resolve docker.io/library/busybox:latest@sha256:b3255e7dfbcd10cb367af0d409747d511aeb66dfac98cf30e97e  0.0s
 => [2/2] COPY hjw /root                                                                                     0.0s
 => exporting to image                                                                                       0.0s
 => => exporting layers                                                                                      0.0s
 => => exporting manifest sha256:366122b3ac28b565963c4cf58510d486bf00ce7be11a914842844da3ca5ef743            0.0s
 => => exporting config sha256:c9f5a64a5d1369b5eebbbd05f2f9419b996214c75095d3f7a921529f97e61c6c              0.0s
 => => exporting attestation manifest sha256:bcf3134abdfa7665d19c3b98bed3b9a8e61087b719930cef7f02523d2f3713  0.0s
 => => exporting manifest list sha256:fb107d0ead2c67e56fe8659169f19a3d3c0199efffcf5bf1c6d7e8a46d303e4f       0.0s
 => => naming to docker.io/library/hjw:v1                                                                    0.0s
 => => unpacking to docker.io/library/hjw:v1

 #ADD
[root@Docker-node1 docker]# touch leefile{1..3}
[root@Docker-node1 docker]# tar zcf leefile.gz leefile*
[root@Docker-node1 docker]# vim Dockerfile
FROM busybox
LABEL maintainer="hhh@hjw.com"
ADD leefile.gz /root
​
[root@Docker-node1 docker]# docker build -t hjw:v2 .
[root@Docker-node1 docker]# docker run --rm -it --name hjw hjw:v2
/ # ls
bin    dev    etc    home   lib    lib64  proc   root   sys    tmp    usr    var
/ # ls /root
hjw       leefile1  leefile2  leefile3
​
#LABEL KEY=VALUES
 LABEL creater=lee
#LABEL 用于给镜像添加键值对形式的元数据，相当于给镜像打上"标签"或"备注信息"。
​
#EXPOSE
EXPOSE 8080
#显示端口信息
​
​
#VOLUEM
[root@Docker-node1 docker]# vim Dockerfile
FROM busybox:latest
LABEL maintainer="hhh@hjw.com"
VOLUME /var/www/html    #声明挂载点
WORKDIR /var/www/html   #设置工作目录
RUN touch leefile
EXPOSE 8080
[root@Docker-node1 docker]# docker build -t hjw:v1 .
​
[root@Docker-node1 docker]# docker run --rm -it --name hjw hjw:v1
/var/www/html #[root@docker-node1 ~]# docker inspect test
​
​
#注如果没有WORKDIR参数可以通过[root@docker-node1 ~]# docker inspect test 查看生成的工作目录
​
#CMD  可以覆盖
#ENV CMD
FROM busybox:latest
LABEL maintainer="hhh@hjw.com"
EXPOSE 8080
ENV NAME lee
#CMD echo $NAME
#CMD ["/bin/echo", "$NAME"]
CMD ["/bin/sh", "-c", "/bin/echo $NAME"]
[root@Docker-node1 docker]# docker run -it --name hjw --rm hjw:v1
lee
[root@Docker-node1 docker]# docker run -it --name hjw --rm hjw:v1 echo  hjw
hjw
​
#ENTRYPOINT 不会覆盖
[root@Docker-node1 docker]# docker run -it --name hjw --rm hjw:v1 echo hjw
lee
[root@Docker-node1 docker]# cat Dockerfile
FROM busybox:latest
LABEL maintainer="hhh@hjw.com"
EXPOSE 8080
ENV NAME lee
ENTRYPOINT echo $NAME

镜像优化方案

环境配置

​

[root@Docker-node1 docker]# ll
总用量 74332
-rw-r--r-- 1 root root 76110336  3月 15 12:45 centos7.tar
-rw-r--r-- 1 root root       98  3月 15 12:13 Dockerfile
[root@Docker-node1 docker]# docker load -i centos7.tar
Loaded image: centos:7   #上传容器
[root@Docker-node1 docker]# docker images
                                                                                             i Info →   U  In Use
IMAGE            ID             DISK USAGE   CONTENT SIZE   EXTRA
busybox:latest   b3255e7dfbcd        6.7MB         2.22MB
centos-7:repo    666bfadf8ccc        455MB          114MB    U
centos:7         be65f488b776        299MB         76.1MB
nginx:1.26       41b194461e4b        279MB         75.2MB
[root@Docker-node1 docker]# cat Dockerfile
FROM centos:7
LABEL maintainer="hhh@hjw.com"
#注也可以选择 docker pull 上传
# 清理原有仓库文件并复制新配置
RUN rm -rf /etc/yum.repos.d/*
COPY centos7.repo /etc/yum.repos.d/
​
# 关键：清理YUM缓存并尝试生成新缓存，这一步会在构建时验证仓库是否可用
RUN yum clean all && yum makecache
​

镜像优化策略

  • 选择最精简的基础镜像

  • 减少镜像的层数

  • 清理镜像构建的中间产物

镜像优化示例

方法1.缩减镜像层

[root@server1 docker]# vim Dockerfile
FROM centos-7:repo AS hjw
ADD nginx-1.26.3.tar.gz /mnt
WORKDIR /mnt/nginx-1.26.3
RUN yum install -y gcc make pcre-devel openssl-devel && sed -i 's/CFLAGS="$CFLAGS -g"/#CFLAGS="$CFLAGS -g"/g' auto/cc/gcc && ./configure --with-http_ssl_module --with-http_stub_status_module && make && make install && cd .. && rm -fr nginx-1.26.3.tar.gz && yum clean all
EXPOSE 80
VOLUME ["/usr/local/nginx/html"]
CMD ["/usr/local/nginx/sbin/nginx", "-g", "daemon off;"]
​
[root@server1 docker]# docker build -t web:v1 .
​
[root@Docker-node1 docker]# docker images web
                                                                                           i Info →   U  In Use
IMAGE    ID             DISK USAGE   CONTENT SIZE   EXTRA
web:v1   bf60b8465dbf        579MB          146MB
web:v2   690c7d0b9c26        457MB          115MB
​

方法2.多阶段构建

只复制编译好的 Nginx（体积小）

[root@server1 docker]# vim Dockerfile
FROM centos-7:repo AS hjw
ADD nginx-1.26.3.tar.gz /mnt
WORKDIR /mnt/nginx-1.26.3
RUN yum install -y gcc make pcre-devel openssl-devel && sed -i 's/CFLAGS="$CFLAGS -g"/#CFLAGS="$CFLAGS -g"/g' auto/cc/gcc && ./configure --with-http_ssl_module --with-http_stub_status_module && make && make install && cd .. && rm -fr nginx-1.26.3.tar.gz && yum clean all
​
FROM centos-7:repo
COPY --from=hjw /usr/local/nginx /usr/local/nginx
EXPOSE 80
VOLUME ["/usr/local/nginx/html"]
CMD ["/usr/local/nginx/sbin/nginx", "-g", "daemon off;"]
​
[root@server1 docker]# docker build -t webserver:v3 .
​
[root@Docker-node1 docker]# docker images web
                                                                                           i Info →   U  In Use
IMAGE    ID             DISK USAGE   CONTENT SIZE   EXTRA
web:v1   bf60b8465dbf        579MB          146MB
web:v2   690c7d0b9c26        457MB          115MB
​

方法3.使用最精简镜像

使用google提供的最精简镜像

下载地址：

https://github.com/GoogleContainerTools/distroless下载镜像：docker pull gcr.io/distroless/base ​ #本地上传 [root@Docker-node1 new]# ll 总用量 21936 -rw-r--r-- 1 root root 22456832  3月 15 15:20 debian11.tar.gz [root@Docker-node1 new]# docker load -i debian11.tar.gz Loaded image: gcr.io/distroless/base-debian11:latest

利用最精简镜像构建

[root@server1 ~]# mkdir n
ew
[root@server1 ~]# cd new/
[root@server1 new]# vim Dockerfile
FROM nginx:1.26 AS base
​
# https://en.wikipedia.org/wiki/List_of_tz_database_time_zones
ARG TIME_ZONE
​
RUN mkdir -p /opt/var/cache/nginx && \
    cp -a --parents /usr/lib/nginx /opt && \
    cp -a --parents /usr/share/nginx /opt && \
    cp -a --parents /var/log/nginx /opt && \
    cp -aL --parents /var/run /opt && \
    cp -a --parents /etc/nginx /opt && \
    cp -a --parents /etc/passwd /opt && \
    cp -a --parents /etc/group /opt && \
    cp -a --parents /usr/sbin/nginx /opt && \
    cp -a --parents /usr/sbin/nginx-debug /opt && \
    cp -a --parents /lib/x86_64-linux-gnu/ld-* /opt && \
    cp -a --parents /usr/lib/x86_64-linux-gnu/libpcre* /opt && \
    cp -a --parents /lib/x86_64-linux-gnu/libz.so.* /opt && \
    cp -a --parents /lib/x86_64-linux-gnu/libc* /opt && \
    cp -a --parents /lib/x86_64-linux-gnu/libdl* /opt && \
    cp -a --parents /lib/x86_64-linux-gnu/libpthread* /opt && \
    cp -a --parents /lib/x86_64-linux-gnu/libcrypt* /opt && \
    cp -a --parents /usr/lib/x86_64-linux-gnu/libssl.so.* /opt && \
    cp -a --parents /usr/lib/x86_64-linux-gnu/libcrypto.so.* /opt && \
    cp /usr/share/zoneinfo/${TIME_ZONE:-ROC} /opt/etc/localtime
​
FROM gcr.io/distroless/base-debian11:latest
​
COPY --from=base /opt /
​
EXPOSE 80 443
​
ENTRYPOINT ["nginx", "-g", "daemon off;"]
​
[root@Docker-node1 new]# docker build -t web:v3 .
[root@Docker-node1 new]# docker images web
                                                                                           i Info →   U  In Use
IMAGE    ID             DISK USAGE   CONTENT SIZE   EXTRA
web:v1   bf60b8465dbf        579MB          146MB
web:v2   690c7d0b9c26        457MB          115MB
web:v3   cf9ec4003d76       84.9MB         33.6MB

搭建简单的Registry仓库

1.下载Registry镜像

[root@docker ~]# docker pull registry
Using default tag: latest
latest: Pulling from library/registry
930bdd4d222e: Pull complete
a15309931e05: Pull complete
6263fb9c821f: Pull complete
86c1d3af3872: Pull complete
a37b1bf6a96f: Pull complete
Digest: sha256:12120425f07de11a1b899e418d4b0ea174c8d4d572d45bdb640f93bc7ca06a3d
Status: Downloaded newer image for registry:latest
docker.io/library/registry:latest

2.开启Registry

[root@docker ~]# docker run  -d -p 5000:5000 --restart=always --name registry registry
bc58d3753a701ae67351fac335b06a4d7f66afa10ae60b992f647117827734c5
[root@docker ~]# docker ps
CONTAINER ID   IMAGE      COMMAND                   CREATED         STATUS         PORTS            NAMES
bc58d3753a70   registry   "/entrypoint.sh /etc…"   7 seconds ago   Up 6 seconds   5000/tcp, 0.0.0.0:5000->5000/tcp, :::5000->5000/tcp   registry
​

3.上传镜像到仓库中

#给要上传的经镜像大标签
[root@Docker-node1 docker]# docker tag web:v3 172.25.254.10:5000/web:v3
​
#docker在上传的过程中默认使用https，但是我们并没有建立https认证需要的认证文件所以会报错
[root@Docker-node1 docker]# docker push 172.25.254.10:5000/web:v3
The push refers to repository [172.25.254.10:5000/web]
731a414b7455: Waiting
failed to do request: Head "https://172.25.254.10:5000/v2/web/blobs/sha256:95bc8fac970128bd990b1b731d47334a16ca1f32f753444810008ca823677baa": http: server gave HTTP response to HTTPS client
[root@Docker-node1 docker]#
​
​
#配置非加密端口
[root@docker ~]# vim /etc/docker/daemon.json
{
  "insecure-registries" : ["http://172.25.254.10:5000"]
}
​
[root@docker ~]# systemctl restart docker
​
#上传镜像
[root@Docker-node1 docker]# docker push 172.25.254.10:5000/web:v3
The push refers to repository [172.25.254.10:5000/web]
af5aa97ebe6c: Pushed
1a73b54f556b: Pushed
c048279a7d9f: Pushed
8451c71f8c1e: Pushed
6835249f577a: Pushed
731a414b7455: Pushed
e991f75730bf: Pushed
bbb6cacb8c82: Pushed
2a92d6ac9e4f: Pushed
2388d21e8e2b: Pushed
9ed498e122b2: Pushed
ac805962e479: Pushed
24aacbf97031: Pushed
4d049f83d9cf: Pushed
5342a2647e87: Pushed
577c8ee06f39: Pushed
v3: digest: sha256:cf9ec4003d76fc0fa65348afc15a9eab63f553f9e2bbe3698c2ccff2b2a9b47e size: 856
[root@Docker-node1 docker]#
​
​
#查看镜像上传
[root@Docker-node1 docker]# curl http://172.25.254.10:5000/v2/_catalog
{"repositories":["web"]}
​

为Registry提加密传输

[root@Docker-node1 docker]# openssl req -newkey  rsa:4096 \
> -nodes -sha256 -keyout certs/hjw.org.key \
> -addext "subjectAltName = DNS:reg.hjw.org" \  #指定备用名称
> -x509 -days 365 -out certs/hjw.org.crt
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:CHANGSHA
Locality Name (eg, city) [Default City]:HN
Organization Name (eg, company) [Default Company Ltd]:hjw
Organizational Unit Name (eg, section) []:docker
Common Name (eg, your name or your server's hostname) []:reg.hjw.org
Email Address []:admin@hjw.org
​
[root@Docker-node1 docker]# openssl x509 -in certs/hjw.org.crt -noout -text  #查看证书信息
#启动registry仓库
[root@Docker-node1 docker]# docker run -d -p 443:443 --restart=always --name registry -v /opt/registry:/var/lib/registry -v /root/docker/certs:/certs -e REGISTRY_HTTP_ADDR=0.0.0.0:443 -e REGISTRY_HTTP_TLS_CERTIFICATE=/root/certs/hjw.org.crt -e REGISTRY_HTTP_TLS_KEY=/root/certs/hjw.org.key registry:latest
e6486fa4cd25ad7374bb13054d2e9a37fabb01116a39d37d0c6d5466aff8327b
​
测试：

[root@Docker-node1 docker]# docker tag busybox:latest reg.hjw.org/busybox:latest
[root@Docker-node1 docker]# docker push reg.hjw.org/busybox:latest
The push refers to repository [reg.hjw.org/busybox]
61dfb50712f5: Unavailable
failed to do request: Head "https://reg.hjw.org/v2/busybox/blobs/sha256:af3f0f48a24edb84e94aff6f44f5d089203453719d3b2328486d311e61db9b09": dial tcp 172.25.254.10:443: connect: connection refused
为客户端建立证书

#为客户端建立证书
[root@docker docker]# mkdir /etc/docker/certs.d/reg.hjw.org/ -p
[root@docker docker]# cp /root/docker/certs/hjw.org.crt  /etc/docker/certs.d/reg.hjw.org/ca.crt
[root@docker docker]# systemctl restart docker

为仓库建立登陆认证

#安装建立认证文件的工具包
[root@docker docker]# dnf install httpd-tools -y
​
#建立认证文件
[root@docker ~]# mkdir auth
[root@docker ~]# htpasswd -Bc auth/htpasswd hjw #-B 强制使用最安全加密方式，默认用md5加密
New password:
Re-type new password:
Adding password for user hjw
​
​
#添加认证到registry容器中
[root@Docker-node1 ~]# docker run -d -p 443:443 --restart=always --name registry -v /opt/registry:/var/lib/registry -v /root/docker/certs:/certs -e REGISTRY_HTTP_ADDR=0.0.0.0:443 -e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/hjw.org.crt -e REGISTRY_HTTP_TLS_KEY=/certs/hjw.org.key -v /root/auth:/auth -e "REGISTRY_AUTH=htpasswd" -e "REGISTRY_AUTH_HTPASSWD_REALM=Registry Realm" -e REGISTRY_AUTH_HTPASSWD_PATH=/auth/htpasswd registry:latest
8526706becdec4aaf77bcd826dc821a30677a73b35681d477cd0ac66a2b23c94
​
​
​
[root@docker ~]# curl -k https://reg.hjw.org/v2/_catalog -u hjw:123
[root@Docker-node1 ~]# curl -k https://reg.hjw.org/v2/_catalog -u hjw:123
{"repositories":[]}
​
#登陆测试
[root@Docker-node1 ~]# docker login reg.hjw.org
Username: hjw
Password:
​
WARNING! Your credentials are stored unencrypted in '/root/.docker/config.json'.
Configure a credential helper to remove this warning. See
https://docs.docker.com/go/credential-store/
​
Login Succeeded
​
​
​
当仓库开启认证后必须登陆仓库才能进行镜像上传

#未登陆情况下上传镜像
[root@docker ~]# docker push  reg.hjw.org/busybox
Using default tag: latest
The push refers to repository [reg.timinglee.org/busybox]
d51af96cf93e: Preparing
no basic auth credentials
​
#未登陆情况下也不能下载
[root@docker-node2 ~]# docker pull reg.hjw.org/busybox
Using default tag: latest
Error response from daemon: Head "https://reg.timinglee.org/v2/busybox/manifests/latest": no basic auth credentials

客户端测试

#从node1上传证书到客户机
[root@Docker-node1 ~]# scp /etc/docker/certs.d/reg.hjw.org/ca.crt root@172.25.254.20:/etc/docker/certs.d/reg.hjw.org/
ca.crt                                                                 100% 2134     2.9MB/s   00:00
#确保客户机有/etc/docker/certs.d/reg.hjw.org/这个目录
[root@Docker-node1 ~]# systemctl restart docker
​
#客户机验证
[root@Docker-node2 ~]# mkdir -p /etc/docker/certs.d/reg.hjw.org/
[root@Docker-node2 ~]# ls -la /etc/docker/certs.d/reg.hjw.org/
总用量 4
drwxr-xr-x 2 root root   20  3月 15 17:38 .
drwxr-xr-x 3 root root   25  3月 15 17:35 ..
-rw-r--r-- 1 root root 2134  3月 15 17:38 ca.crt
[root@Docker-node2 ~]# systemctl restart docker
[root@Docker-node2 ~]# docker login reg.hjw.org -u hjw -p 123
WARNING! Using --password via the CLI is insecure. Use --password-stdin.
​
WARNING! Your credentials are stored unencrypted in '/root/.docker/config.json'.
Configure a credential helper to remove this warning. See
https://docs.docker.com/go/credential-store/
​
Login Succeeded
[root@Docker-node2 ~]# docker pull reg.hjw.org/busybox:latest
latest: Pulling from busybox
61dfb50712f5: Pull complete
Digest: sha256:70ce0a747f09cd7c09c2d6eaeab69d60adb0398f569296e8c0e844599388ebd6
Status: Downloaded newer image for reg.hjw.org/busybox:latest
reg.hjw.org/busybox:latest

构建企业级私有仓库

下载软件包地址

https://github.com/goharbor/harbor/releases

Harbor 是由vmware公司开源的企业级 Docker Registry 项目。

它提供了以下主要功能和特点：

  1. 基于角色的访问控制（RBAC）：可以为不同的用户和用户组分配不同的权限，增强了安全性和管理的灵活性。

  2. 镜像复制：支持在不同的 Harbor 实例之间复制镜像，方便在多个数据中心或环境中分发镜像。

  3. 图形化用户界面（UI）：提供了直观的 Web 界面，便于管理镜像仓库、项目、用户等。

  4. 审计日志：记录了对镜像仓库的各种操作，有助于追踪和审查活动。

  5. 垃圾回收：可以清理不再使用的镜像，节省存储空间。

部署harbor

[root@docker ~]# tar zxf harbor-offline-installer-v2.5.4.tgz
[root@docker ~]# ls
anaconda-ks.cfg  certs   harbor-offline-installer-v2.5.4.tgz
auth             harbor
[root@docker ~]# cd harbor/
​
​
[root@docker harbor]# cp harbor.yml.tmpl harbor.yml
[root@docker harbor]# vim harbor.yml
​
  hostname: reg.hjw.org
  certificate: /data/certs/hjw.org.crt
  private_key: /data/certs/hjw.org.key
  harbor_admin_password: lee
​
[root@docker harbor]# ./install.sh --help
​
​
Please set --with-notary                #证书签名
Please set --with-trivy                 #安全扫描
Please set --with-chartmuseum if needs enable Chartmuseum in Harbor
​
​
[root@docker harbor]# ./install.sh --with-chartmuseum
#管理harbor的容器
[root@docker harbor]# docker compose stop
[root@docker harbor]# docker compose  up -d

管理仓库

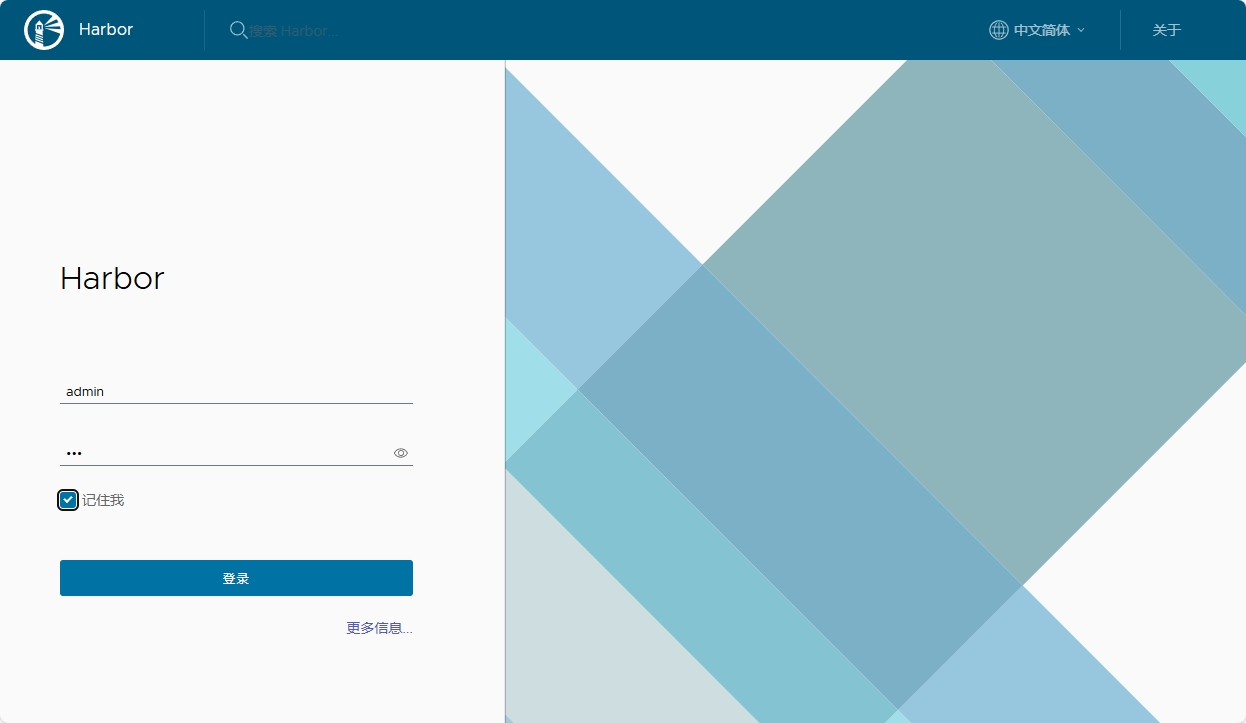

1.登陆

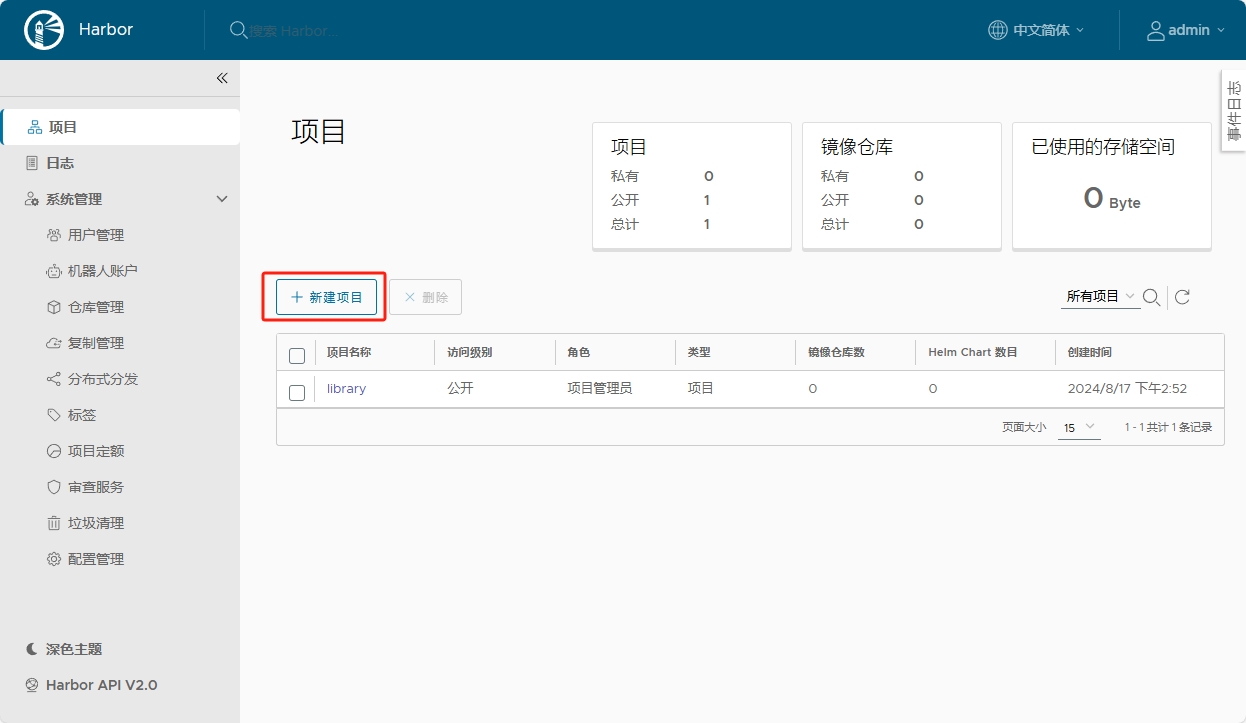

2.建立仓库项目

上传镜像

[root@Docker-node1 harbor]# docker login reg.hjw.org -u admin
Password:
Login Succeeded
​
[root@docker harbor]# docker tag busybox:latest  reg.timinglee.org/timinglee/busybox:latest
[root@docker harbor]# docker push reg.timinglee.org/timinglee/busybox:latest
The push refers to repository [reg.timinglee.org/timinglee/busybox]
d51af96cf93e: Pushed
latest: digest: sha256:28e01ab32c9dbcbaae96cf0d5b472f22e231d9e603811857b295e61197e40a9b size: 527

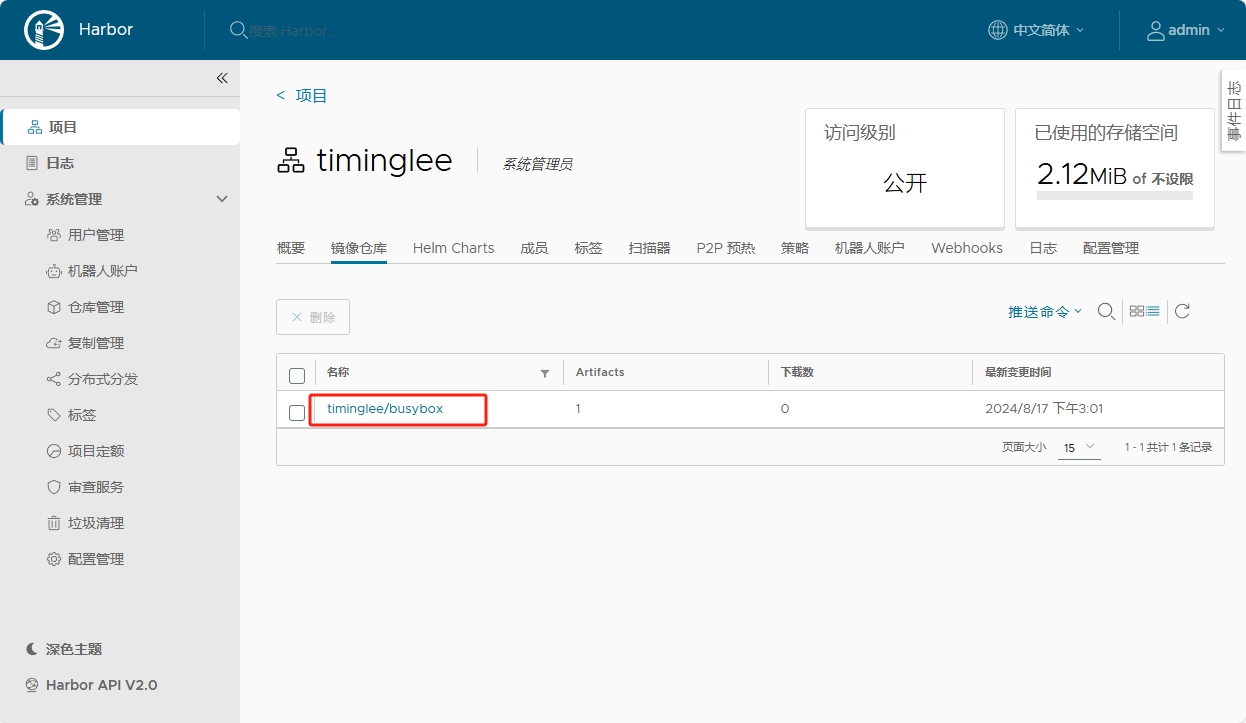

查看上传的镜像

docker降级

注：由于版本问题可能会出现如下面的问题

[root@Docker-node1 harbor]# docker push reg.hjw.org/hjw/busybox:latest
The push refers to repository [reg.hjw.org/hjw/busybox]
61dfb50712f5: Unavailable
failed to authorize: failed to fetch oauth token: Post "https://reg.hjw.org/service/token": tls: failed to verify certificate: x509: certificate signed by unknown authority

这个时候就需要找一个稳定支持的版本

[root@Docker-node1 harbor]# dnf remove docker-ce docker-ce-cli containerd.io -y
[root@Docker-node1 harbor]# dnf install docker-ce-3:28.5.2-1.el9 -y
[root@Docker-node1 harbor]# docker compose  stop
[root@Docker-node1 harbor]# systemctl stop docker
[root@Docker-node1 harbor]# systemctl stop docker.socket
​
​
[root@Docker-node1 harbor]# docker compose up -d
[+] up 9/9
 ✔ Container harbor-log        Running                                                               0.0s
 ✔ Container redis             Running                                                               0.0s
 ✔ Container registryctl       Running                                                               0.0s
 ✔ Container harbor-db         Running                                                               0.0s
 ✔ Container harbor-portal     Running                                                               0.0s
 ✔ Container registry          Running                                                               0.0s
 ✔ Container harbor-core       Running                                                               0.0s
 ✔ Container harbor-jobservice Running                                                               0.0s
 ✔ Container nginx             Running                                                               0.0s
[root@Docker-node1 harbor]# docker login reg.hjw.org -u admin
Password:
Login Succeeded
[root@Docker-node1 harbor]# docker images
                                                                                    i Info →   U  In Use
IMAGE                                   ID             DISK USAGE   CONTENT SIZE   EXTRA
busybox:latest                          af3f0f48a24e       4.43MB             0B
goharbor/harbor-core:v2.14.0            f78eea3cde89        202MB             0B    U
goharbor/harbor-db:v2.14.0              7f68b0143abb        273MB             0B    U
goharbor/harbor-exporter:v2.14.0        403d93718fa2        132MB             0B
goharbor/harbor-jobservice:v2.14.0      2cd20014f558        178MB             0B    U
goharbor/harbor-log:v2.14.0             e49b51ca9c1e        163MB             0B    U
goharbor/harbor-portal:v2.14.0          e1055ac74dda        159MB             0B    U
goharbor/harbor-registryctl:v2.14.0     9504450a9e13        165MB             0B    U
goharbor/nginx-photon:v2.14.0           808a709c3f45        151MB             0B    U
goharbor/prepare:v2.14.0                49c18c64627c        197MB             0B
goharbor/redis-photon:v2.14.0           15e05743b672        165MB             0B    U
goharbor/registry-photon:v2.14.0        2f870818fbc8       87.3MB             0B    U
goharbor/trivy-adapter-photon:v2.14.0   10a81daa59cb        393MB             0B
[root@Docker-node1 harbor]# docker tag busybox:latest reg.hjw.org/hjw/busybox:latest
[root@Docker-node1 harbor]# docker push reg.hjw.org/hjw/busybox:latest
The push refers to repository [reg.hjw.org/hjw/busybox]
495ba00f2547: Preparing
unauthorized: project hjw not found: project hjw not found
[root@Docker-node1 harbor]# docker push reg.hjw.org/hjw/busybox:latest
The push refers to repository [reg.hjw.org/hjw/busybox]
495ba00f2547: Pushed
latest: digest: sha256:91c66c844e6bba57e92e10e755e73a816d0b99edd17eb5297d9ac519ab3a8c81 size: 527
[root@Docker-node1 harbor]#
#注记得在web中创建项目

# docker # eureka # 容器 # 服务器 # 运维 # linux
Logo
亚马逊云科技技术品牌专区

更多推荐

open-code-review Codex 插件教程：对话式调用评审技能指南

本文是一份面向新手的 **open-code-review Codex 插件教程**，教你在 Codex 中通过对话式方式调用 open-code-review 的 AI 代码评审技能。open-code-review 是阿里巴巴开源的 AI 代码评审工具，采用"确定性流水线 + LLM Agent"混合架构，内置多语言评审规则（NPE、线程安全、XSS、SQL 注入等），可在 Codex 里用一

avatar 亚马逊云科技技术品牌专区

OBS Studio 完整指南：免费开源录屏与直播软件从零上手

想做一场像模像样的直播，或者把屏幕内容录成教程视频，但一想到商用软件的订阅费就有些犹豫？其实你不需要花一分钱。OBS Studio 是一款免费开源的直播与录屏软件，支持 Windows、macOS 和 Linux，采集、混音、编码、推流、录制，一条流水线全包了。## 先搞清楚 OBS Studio 是什么OBS Studio 是一个"场景化"的采集合成工具：你把摄像头、窗口、浏览器、图片、

avatar 亚马逊云科技技术品牌专区

如何用MediaCrawler爬取小红书抖音数据？7大平台爬虫从安装到实战完整指南

MediaCrawler 是一个支持小红书、抖音、快手、B站、微博、百度贴吧、知乎的开源自媒体数据采集工具。它能按关键词、按帖子、按创作者主页三种方式抓取笔记/视频内容、评论甚至二级评论，并把结果存成 JSON、CSV、Excel 或数据库。适合做市场调研、竞品监控、内容选题的运营人员，以及想要现成爬虫框架而不想从零写 JS 逆向的开发者。## 从一次"手动抄数据"说起想象这个场景：你负责

avatar 亚马逊云科技技术品牌专区
