文章目录

- 1 token令牌认证登录
- 2 kubeconfig配置文件登录

参考github

1 获取dashboard image镜像

[root@master1 manifests]# docker pull registry.cn-hangzhou.aliyuncs.com/rsqlh/kubernetes-dashboard:v1.10.1
[root@master1 manifests]# docker tag registry.cn-hangzhou.aliyuncs.com/rsqlh/kubernetes-dashboard:v1.10.1 k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1
[root@master1 manifests]# docker rmi registry.cn-hangzhou.aliyuncs.com/rsqlh/kubernetes-dashboard:v1.10.1

2 在线应用yaml文件（或者wget至本地应用）

[root@master1 manifests]# kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v1.10.1/src/deploy/recommended/kubernetes-dashboard.yaml
secret/kubernetes-dashboard-certs created
serviceaccount/kubernetes-dashboard created
role.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
deployment.apps/kubernetes-dashboard created
service/kubernetes-dashboard created

# 查看pod
[root@master1 manifests]# kubectl get pods -n kube-system
kubernetes-dashboard-57df4db6b-p9sm8      1/1     Running   0          15s

3 patch打补丁，修改类型为NodePort，暴露端口

[root@master1 manifests]# kubectl get svc -n kube-system
NAME                   TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE
kube-dns               ClusterIP   10.96.0.10      <none>        53/UDP,53/TCP   49d
kubernetes-dashboard   ClusterIP   10.98.192.109   <none>        443/TCP         8m43s
[root@master1 manifests]# kubectl patch svc kubernetes-dashboard -p '{"spec":{"type":"NodePort"}}' -n kube-system
service/kubernetes-dashboard patched
[root@master1 manifests]# kubectl get svc -n kube-system
NAME                   TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE
kube-dns               ClusterIP   10.96.0.10      <none>        53/UDP,53/TCP   49d
kubernetes-dashboard   NodePort    10.98.192.109   <none>        443:32031/TCP   10m

4 浏览器测试访问
在这里插入图片描述

1 token令牌认证登录

（1）创建serviceaccount

[root@master1 pki]# kubectl create serviceaccount dashboard-admin -n kube-system
serviceaccount/dashboard-admin created
[root@master1 pki]# kubectl get sa -n kube-system
NAME                                 SECRETS   AGE
......
dashboard-admin                      1         13s
......

（2）把serviceaccount绑定在clusteradmin，授权serviceaccount用户具有整个集群的访问管理权限

[root@master1 pki]# kubectl create clusterrolebinding dashboard-cluster-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin
clusterrolebinding.rbac.authorization.k8s.io/dashboard-cluster-admin created

（3）获取serviceaccount的secret信息，可得到token（令牌）的信息

[root@master1 pki]# kubectl get secret -n kube-system
NAME                                             TYPE                                  DATA
......
daemon-set-controller-token-t4jhj                kubernetes.io/service-account-token   3
......
[root@master1 pki]# kubectl describe secret dashboard-admin-token-lg48q -n kube-system
Name:         dashboard-admin-token-lg48q
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: dashboard-admin
              kubernetes.io/service-account.uid: 3cf69e4e-2458-11e9-81cc-000c291e37c2

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1025 bytes
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tbGc0OHEiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiM2NmNjllNGUtMjQ1OC0xMWU5LTgxY2MtMDAwYzI5MWUzN2MyIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.gMdqXvyP3ClIL0eo8061UnK8QbEgdAeVZV92GMxJlxhs8aK8c278e8yNWzx68LvySg1ciXDI7Pqlo9caUL2K8tC2BRvLvarbgvhPnFlRvYrm6bO1PdD2XSg60JTkPxX_AXRrQG2kAAf3C3cbTgKEPvoX5fwvXgGLWsJ1rX0vStSBCsLlSJkTmoDp9rdYD1AU-32lN1eNfFueIIY8tIpeP7_eYdfvwSXnsbqXxr9K7zD6Zu7QM1T1tG0X0-D0MHKNDGP_YQ7S2ANo3FDd7OUiitGQRA1H7cO_LF7M_BKtzotBVCEbOGjNmnaVuL4y5XXvP![在这里插入图片描述](https://img-blog.csdnimg.cn/20190225095228592.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L01yX3JzcQ==,size_16,color_FFFFFF,t_70)0JHtlQxpnBzAOU9V9-tRw

（4）通过patch暴露端口

[root@master1 pki]# kubectl patch svc kubernetes-dashboard -p '{"spec":{"type":"NodePort"}}' -n kube-system
service/kubernetes-dashboard patched
[root@master1 pki]# kubectl get svc -n kube-system
NAME                   TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)         AGE
kube-dns               ClusterIP   10.96.0.10    <none>        53/UDP,53/TCP   49d
kubernetes-dashboard   NodePort    10.99.54.66   <none>        443:32639/TCP   10m

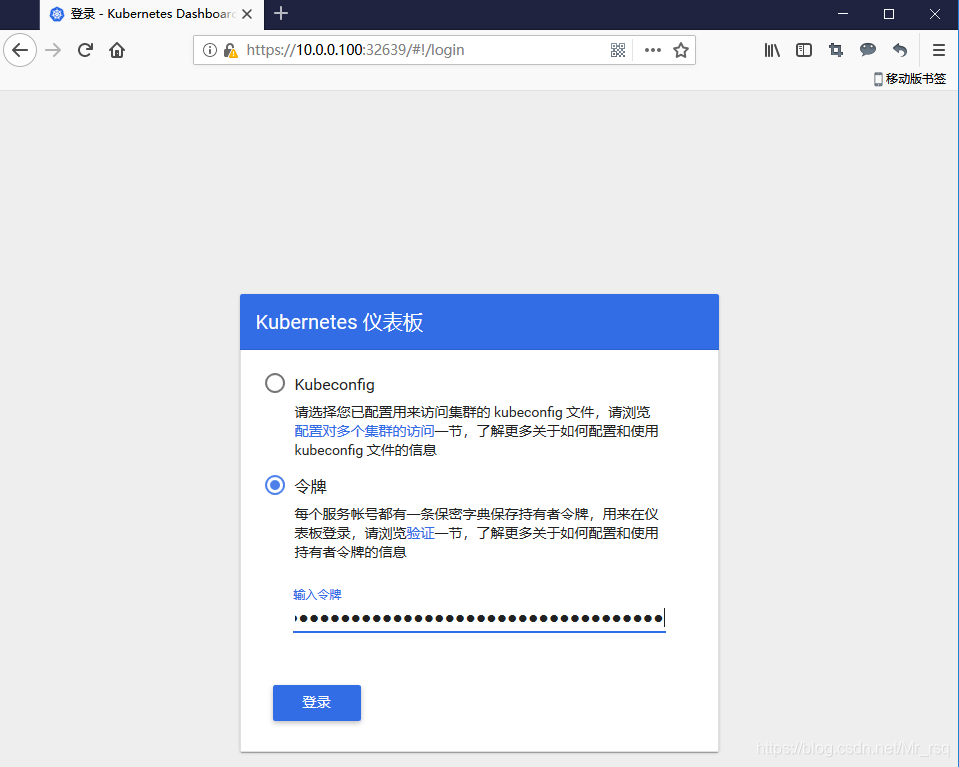

（5）浏览器访问登录，把token粘贴进去登录即可
在这里插入图片描述

2 kubeconfig配置文件登录

创建一个只能对default名称空间有权限的serviceaccount

[root@master1 pki]# kubectl create serviceaccount def-ns-admin -n default
serviceaccount/def-ns-admin created
[root@master1 pki]# kubectl create rolebinding def-ns-admin --clusterrole=admin --serviceaccount=default:def-ns-admin
rolebinding.rbac.authorization.k8s.io/def-ns-admin created
[root@master1 pki]# kubectl get secret
NAME                       TYPE                                  DATA   AGE
admin-token-bwrbg          kubernetes.io/service-account-token   3      5d1h
def-ns-admin-token-xdvx5   kubernetes.io/service-account-token   3      2m9s
default-token-87nlt        kubernetes.io/service-account-token   3      49d
tomcat-ingress-secret      kubernetes.io/tls                     2      21d
[root@master1 pki]# kubectl describe secret def-ns-admin-token-xdvx5
Name:         def-ns-admin-token-xdvx5
Namespace:    default
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: def-ns-admin
              kubernetes.io/service-account.uid: 928bbca1-245c-11e9-81cc-000c291e37c2

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1025 bytes
namespace:  7 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJkZWZhdWx0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6ImRlZi1ucy1hZG1pbi10b2tlbi14ZHZ4NSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJkZWYtbnMtYWRtaW4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI5MjhiYmNhMS0yNDVjLTExZTktODFjYy0wMDBjMjkxZTM3YzIiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6ZGVmYXVsdDpkZWYtbnMtYWRtaW4ifQ.EzUF13MElI8b-kuQNh_u1hGQpxgoffm4LdTVoeORKUBTADwqHEtW2arj76oZuI-wQyy5P0v5VvOoefr6h3NpIgbAze8Lqyrpg9wO0Crfi30IE1kZ2wUPYU9P_5inMxmCPLttppyPyc8mQKDkOOB1xFUmEebC63my-dG4CZljsd8zwNU6eXnhaThSUUn12UTvRsbSBLD-dvau1OY6YgDL6mgFl3cVqzCPd7ELpEyNYWCh3x5rcRfCcjcHGfUOrWjDzhgmH6sUiWb4gMHvSKgp-35rj5LXERfebse3OxSAXODJw9FhSn15VCmYcDmCJzMN83emFBwn0Y7bb11Y6M8CrQ

这种情况下的权限较小，用token登陆后只能对default名称空间有权限

[root@master1 pki]# kubectl config set-cluster kubernetes --certificate-authority=./ca.crt --server="https://10.0.0.100:6443" --embed-certs=true --kubeconfig=/root/def-ns-admin.conf
Cluster "kubernetes" set.
[root@master1 pki]# kubectl config view --kubeconfig=/root/def-ns-admin.conf
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: DATA+OMITTED
    server: https://10.0.0.100:6443
  name: kubernetes
contexts: []
current-context: ""
kind: Config
preferences: {}
users: []
[root@master1 ~]# kubectl get secret
NAME                       TYPE                                  DATA   AGE
def-ns-admin-token-xdvx5   kubernetes.io/service-account-token   3      5d
[root@master1 ~]# kubectl describe secret def-ns-admin-token-xdvx5
Name:         def-ns-admin-token-xdvx5
Namespace:    default
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: def-ns-admin
              kubernetes.io/service-account.uid: 928bbca1-245c-11e9-81cc-000c291e37c2

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1025 bytes
namespace:  7 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJkZWZhdWx0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6ImRlZi1ucy1hZG1pbi10b2tlbi14ZHZ4NSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJkZWYtbnMtYWRtaW4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI5MjhiYmNhMS0yNDVjLTExZTktODFjYy0wMDBjMjkxZTM3YzIiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6ZGVmYXVsdDpkZWYtbnMtYWRtaW4ifQ.EzUF13MElI8b-kuQNh_u1hGQpxgoffm4LdTVoeORKUBTADwqHEtW2arj76oZuI-wQyy5P0v5VvOoefr6h3NpIgbAze8Lqyrpg9wO0Crfi30IE1kZ2wUPYU9P_5inMxmCPLttppyPyc8mQKDkOOB1xFUmEebC63my-dG4CZljsd8zwNU6eXnhaThSUUn12UTvRsbSBLD-dvau1OY6YgDL6mgFl3cVqzCPd7ELpEyNYWCh3x5rcRfCcjcHGfUOrWjDzhgmH6sUiWb4gMHvSKgp-35rj5LXERfebse3OxSAXODJw9FhSn15VCmYcDmCJzMN83emFBwn0Y7bb11Y6M8CrQ

[root@master1 pki]# kubectl config set-credentials def-ns-admin --token=eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJkZWZhdWx0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6ImRlZi1ucy1hZG1pbi10b2tlbi14ZHZ4NSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJkZWYtbnMtYWRtaW4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI5MjhiYmNhMS0yNDVjLTExZTktODFjYy0wMDBjMjkxZTM3YzIiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6ZGVmYXVsdDpkZWYtbnMtYWRtaW4ifQ.EzUF13MElI8b-kuQNh_u1hGQpxgoffm4LdTVoeORKUBTADwqHEtW2arj76oZuI-wQyy5P0v5VvOoefr6h3NpIgbAze8Lqyrpg9wO0Crfi30IE1kZ2wUPYU9P_5inMxmCPLttppyPyc8mQKDkOOB1xFUmEebC63my-dG4CZljsd8zwNU6eXnhaThSUUn12UTvRsbSBLD-dvau1OY6YgDL6mgFl3cVqzCPd7ELpEyNYWCh3x5rcRfCcjcHGfUOrWjDzhgmH6sUiWb4gMHvSKgp-35rj5LXERfebse3OxSAXODJw9FhSn15VCmYcDmCJzMN83emFBwn0Y7bb11Y6M8CrQ --kubeconfig=/root/def-ns-admin.conf
User "def-ns-admin" set.

# 设置context
[root@master1 pki]# kubectl config set-context def-ns-admin@kubernetes --cluster=kubernetes --user=def-ns-admin --kubeconfig=/root/def-ns-admin.conf
Context "def-ns-admin@kubernetes" created.

# use-context
[root@master1 pki]# kubectl config use-context def-ns-admin@kubernetes --kubeconfig=/root/def-ns-admin.conf
Switched to context "def-ns-admin@kubernetes".

# 查看conf文件，此时已经完整了
[root@master1 pki]# kubectl config view --kubeconfig=/root/def-ns-admin.conf
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: DATA+OMITTED
    server: https://10.0.0.100:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: def-ns-admin
  name: def-ns-admin@kubernetes
current-context: def-ns-admin@kubernetes
kind: Config
preferences: {}
users:
- name: def-ns-admin
  user:
    token: eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJkZWZhdWx0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6ImRlZi1ucy1hZG1pbi10b2tlbi14ZHZ4NSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJkZWYtbnMtYWRtaW4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI5MjhiYmNhMS0yNDVjLTExZTktODFjYy0wMDBjMjkxZTM3YzIiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6ZGVmYXVsdDpkZWYtbnMtYWRtaW4ifQ.EzUF13MElI8b-kuQNh_u1hGQpxgoffm4LdTVoeORKUBTADwqHEtW2arj76oZuI-wQyy5P0v5VvOoefr6h3NpIgbAze8Lqyrpg9wO0Crfi30IE1kZ2wUPYU9P_5inMxmCPLttppyPyc8mQKDkOOB1xFUmEebC63my-dG4CZljsd8zwNU6eXnhaThSUUn12UTvRsbSBLD-dvau1OY6YgDL6mgFl3cVqzCPd7ELpEyNYWCh3x5rcRfCcjcHGfUOrWjDzhgmH6sUiWb4gMHvSKgp-35rj5LXERfebse3OxSAXODJw9FhSn15VCmYcDmCJzMN83emFBwn0Y7bb11Y6M8CrQ

拷贝到本地，使用conf文件登录
在这里插入图片描述

END！
