Vue项目中使用Highcharts
记录以下工作中遇到的问题1. 项目安装Highcharts依赖npminstall highcharts--save2. 组件内部引入需要的可视化图表:需要timeline就在modules下引入////这里很关键 之前项目中使用老是报错找不到依赖原来引入依赖有问题import Highcharts from 'highcharts'//必须引入import timeline from 'high
·
记录以下工作中遇到的问题
1. 项目安装Highcharts依赖
npm install highcharts --save
2. 组件内部引入需要的可视化图表:需要timeline就在modules下引入
这里很关键 之前项目中使用老是报错找不到依赖原来引入依赖有问题
import Highcharts from 'highcharts'//必须引入
import timeline from 'highcharts/modules/timeline';需要什么用什么modules下 如:timeline,area,funnel3d等等
timeline(Highcharts);///实例化
3. 组件内 完整示例
<template>
<figure class="highcharts-figure">
<div id="container"></div>
</figure>
</template>
<style lang='scss'>
.highcharts-strong {
font-weight: bold;
}
.highcharts-figure,
.highcharts-data-table table {
min-width: 320px;
max-width: 600px;
margin: 1em auto;
}
.highcharts-data-table table {
font-family: Verdana, sans-serif;
border-collapse: collapse;
border: 1px solid #ebebeb;
margin: 10px auto;
text-align: center;
width: 100%;
max-width: 500px;
}
.highcharts-data-table caption {
padding: 1em 0;
font-size: 1.2em;
color: #555;
}
.highcharts-data-table th {
font-weight: 600;
padding: 0.5em;
}
.highcharts-data-table td,
.highcharts-data-table th,
.highcharts-data-table caption {
padding: 0.5em;
}
.highcharts-data-table thead tr,
.highcharts-data-table tr:nth-child(even) {
background: #f8f8f8;
}
.highcharts-data-table tr:hover {
background: #f1f7ff;
}
</style>
<script>
// 导入chart组件
import Highcharts from "highcharts";
import timeline from "highcharts/modules/timeline"; 需要什么用什么modules/timeline
timeline(Highcharts);
export default {
mounted: function () {
this.HighchartsData();
},
methods: {
HighchartsData() {
/
Highcharts.chart("container", {
chart: {
type: "timeline",
},
accessibility: {
screenReaderSection: {
beforeChartFormat:
"<h5>{chartTitle}</h5>" +
"<div>{typeDescription}</div>" +
"<div>{chartSubtitle}</div>" +
"<div>{chartLongdesc}</div>" +
"<div>{viewTableButton}</div>",
},
point: {
valueDescriptionFormat:
"{index}. {point.label}. {point.description}.",
},
},
xAxis: {
visible: false,
},
yAxis: {
visible: false,
},
title: {
text: "Timeline of Space Exploration",
},
subtitle: {
text: 'Info source: <a href="https://en.wikipedia.org/wiki/Timeline_of_space_exploration">www.wikipedia.org</a>',
},
colors: [
"#4185F3",
"#427CDD",
"#406AB2",
"#3E5A8E",
"#3B4A68",
"#363C46",
],
series: [
{
data: [
{
name: "First dogs",
label: "1951: First dogs in space",
description:
"22 July 1951 First dogs in space (Dezik and Tsygan) ",
},
{
name: "Sputnik 1",
label: "1957: First artificial satellite",
description:
"4 October 1957 First artificial satellite. First signals from space.",
},
{
name: "First human spaceflight",
label: "1961: First human spaceflight (Yuri Gagarin)",
description:
"First human spaceflight (Yuri Gagarin), and the first human-crewed orbital flight",
},
{
name: "First human on the Moon",
label: "1969: First human on the Moon",
description:
"First human on the Moon, and first space launch from a celestial body other than the Earth. First sample return from the Moon",
},
{
name: "First space station",
label: "1971: First space station",
description:
"Salyut 1 was the first space station of any kind, launched into low Earth orbit by the Soviet Union on April 19, 1971.",
},
{
name: "Apollo–Soyuz Test Project",
label: "1975: First multinational manned mission",
description:
"The mission included both joint and separate scientific experiments, and provided useful engineering experience for future joint US–Russian space flights, such as the Shuttle–Mir Program and the International Space Station.",
},
],
},
],
});
},
},
};
</script>

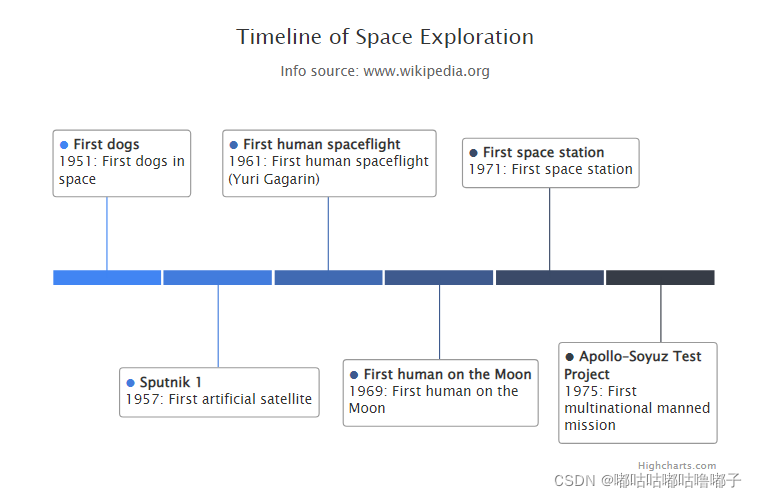

4. 页面展示
具体使用什么图表可以参照文档修改
中文文档:兼容 IE6+、完美支持移动端、图表类型丰富的 HTML5 交互图表 | Highcharts
英文文档:https://www.highcharts.com/demo (不建议,实在是卡)
