在MapperRegistry.addMapper时会用到MapperAnnotationBuilder。

public <T> void addMapper(Class<T> type) {
    if (type.isInterface()) {
      if (hasMapper(type)) {
        throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
      }
      boolean loadCompleted = false;
      try {
        knownMappers.put(type, new MapperProxyFactory<>(type));
        // It's important that the type is added before the parser is run
        // otherwise the binding may automatically be attempted by the
        // mapper parser. If the type is already known, it won't try.
        MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
        parser.parse();
        loadCompleted = true;
      } finally {
        if (!loadCompleted) {
          knownMappers.remove(type);
        }
      }
    }
  }

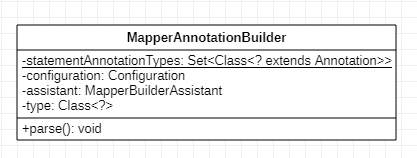

1、类结构

 2、解析

2.1 解析缓存

缓存注解定义

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
public @interface CacheNamespace {
  Class<? extends Cache> implementation() default PerpetualCache.class;
  Class<? extends Cache> eviction() default LruCache.class;
  long flushInterval() default 0;
  int size() default 1024;
  boolean readWrite() default true;
  boolean blocking() default false;
  Property[] properties() default {};
}

获取注解@CacheNamespace，得到缓存大小，缓存刷新间隔，缓存其他属性，缓存实现类，缓存淘汰策略，缓存读写，缓存是否阻塞。添加到configuration中。

private void parseCache() {
    CacheNamespace cacheDomain = type.getAnnotation(CacheNamespace.class);
    if (cacheDomain != null) {
      Integer size = cacheDomain.size() == 0 ? null : cacheDomain.size();
      Long flushInterval = cacheDomain.flushInterval() == 0 ? null : cacheDomain.flushInterval();
      Properties props = convertToProperties(cacheDomain.properties());
      assistant.useNewCache(cacheDomain.implementation(), cacheDomain.eviction(), flushInterval, size, cacheDomain.readWrite(), cacheDomain.blocking(), props);
    }
  }

2.2 解析缓存引用

缓存引用注解为CacheNamespaceRef，其定义为

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
public @interface CacheNamespaceRef {
  Class<?> value() default void.class;
  String name() default "";
}

获取注解的引用类型及引用名称(两个当中只能有一个配置),如果引用类型不为void.class，使用类型的getName,否则使用配置的refName作为名字空间。

private void parseCacheRef() {
    CacheNamespaceRef cacheDomainRef = type.getAnnotation(CacheNamespaceRef.class);
    if (cacheDomainRef != null) {
      Class<?> refType = cacheDomainRef.value();
      String refName = cacheDomainRef.name();
      if (refType == void.class && refName.isEmpty()) {
        throw new BuilderException("Should be specified either value() or name() attribute in the @CacheNamespaceRef");
      }
      if (refType != void.class && !refName.isEmpty()) {
        throw new BuilderException("Cannot use both value() and name() attribute in the @CacheNamespaceRef");
      }
      String namespace = (refType != void.class) ? refType.getName() : refName;
      try {
        assistant.useCacheRef(namespace);
      } catch (IncompleteElementException e) {
        configuration.addIncompleteCacheRef(new CacheRefResolver(assistant, namespace));
      }
    }
  }

2.3 解析结果映射

迭代类型的方法，如果方法有注解@Select或者@SelectProvider，没有注解@ResultMap时，解析结果映射。

Select注解定义为

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.METHOD)
@Repeatable(Select.List.class)
public @interface Select {
  String[] value();
  String databaseId() default "";
  @Documented
  @Retention(RetentionPolicy.RUNTIME)
  @Target(ElementType.METHOD)
  @interface List {
    Select[] value();
  }
}

SelectProvider注解定义为

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.METHOD)
@Repeatable(SelectProvider.List.class)
public @interface SelectProvider {
  Class<?> value() default void.class;
  Class<?> type() default void.class;
  String method() default "";
  String databaseId() default "";
  @Documented
  @Retention(RetentionPolicy.RUNTIME)
  @Target(ElementType.METHOD)
  @interface List {
    SelectProvider[] value();
  }
}

 ResultMap注解定义为

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.METHOD)
public @interface ResultMap {
  String[] value();
}

获取方法上的@Arg，@Result，@TypeDiscriminator注解，通过@Result注解生成ResultMap名，如果@Result的id不为空，使用类型名+id作为映射名。否则根据方法名的参数类型生成映射名

private String generateResultMapName(Method method) {
    Results results = method.getAnnotation(Results.class);
    if (results != null && !results.id().isEmpty()) {
      return type.getName() + "." + results.id();
    }
    StringBuilder suffix = new StringBuilder();
    for (Class<?> c : method.getParameterTypes()) {
      suffix.append("-");
      suffix.append(c.getSimpleName());
    }
    if (suffix.length() < 1) {
      suffix.append("-void");
    }
    return type.getName() + "." + method.getName() + suffix;
  }

通过@Arg注解生成构造映射

private void applyConstructorArgs(Arg[] args, Class<?> resultType, List<ResultMapping> resultMappings) {
    for (Arg arg : args) {
      List<ResultFlag> flags = new ArrayList<>();
      flags.add(ResultFlag.CONSTRUCTOR);
      if (arg.id()) {
        flags.add(ResultFlag.ID);
      }
      @SuppressWarnings("unchecked")
      Class<? extends TypeHandler<?>> typeHandler = (Class<? extends TypeHandler<?>>)
              (arg.typeHandler() == UnknownTypeHandler.class ? null : arg.typeHandler());
      ResultMapping resultMapping = assistant.buildResultMapping(
          resultType,
          nullOrEmpty(arg.name()),
          nullOrEmpty(arg.column()),
          arg.javaType() == void.class ? null : arg.javaType(),
          arg.jdbcType() == JdbcType.UNDEFINED ? null : arg.jdbcType(),
          nullOrEmpty(arg.select()),
          nullOrEmpty(arg.resultMap()),
          null,
          nullOrEmpty(arg.columnPrefix()),
          typeHandler,
          flags,
          null,
          null,
          false);
      resultMappings.add(resultMapping);
    }
  }

通过@Result注解构造映射

private void applyResults(Result[] results, Class<?> resultType, List<ResultMapping> resultMappings) {
    for (Result result : results) {
      List<ResultFlag> flags = new ArrayList<>();
      if (result.id()) {
        flags.add(ResultFlag.ID);
      }
      @SuppressWarnings("unchecked")
      Class<? extends TypeHandler<?>> typeHandler = (Class<? extends TypeHandler<?>>)
              ((result.typeHandler() == UnknownTypeHandler.class) ? null : result.typeHandler());
      boolean hasNestedResultMap = hasNestedResultMap(result);
      ResultMapping resultMapping = assistant.buildResultMapping(
          resultType,
          nullOrEmpty(result.property()),
          nullOrEmpty(result.column()),
          result.javaType() == void.class ? null : result.javaType(),
          result.jdbcType() == JdbcType.UNDEFINED ? null : result.jdbcType(),
          hasNestedSelect(result) ? nestedSelectId(result) : null,
          hasNestedResultMap ? nestedResultMapId(result) : null,
          null,
          hasNestedResultMap ? findColumnPrefix(result) : null,
          typeHandler,
          flags,
          null,
          null,
          isLazy(result));
      resultMappings.add(resultMapping);
    }
  }

解析@TypeDiscriminator注解构造discriminator

private Discriminator applyDiscriminator(String resultMapId, Class<?> resultType, TypeDiscriminator discriminator) {
    if (discriminator != null) {
      String column = discriminator.column();
      Class<?> javaType = discriminator.javaType() == void.class ? String.class : discriminator.javaType();
      JdbcType jdbcType = discriminator.jdbcType() == JdbcType.UNDEFINED ? null : discriminator.jdbcType();
      @SuppressWarnings("unchecked")
      Class<? extends TypeHandler<?>> typeHandler = (Class<? extends TypeHandler<?>>)
              (discriminator.typeHandler() == UnknownTypeHandler.class ? null : discriminator.typeHandler());
      Case[] cases = discriminator.cases();
      Map<String, String> discriminatorMap = new HashMap<>();
      for (Case c : cases) {
        String value = c.value();
        String caseResultMapId = resultMapId + "-" + value;
        discriminatorMap.put(value, caseResultMapId);
      }
      return assistant.buildDiscriminator(resultType, column, javaType, jdbcType, typeHandler, discriminatorMap);
    }
    return null;
  }

最后创建ResultMap

private void applyResultMap(String resultMapId, Class<?> returnType, Arg[] args, Result[] results, TypeDiscriminator discriminator) {
    List<ResultMapping> resultMappings = new ArrayList<>();
    applyConstructorArgs(args, returnType, resultMappings);
    applyResults(results, returnType, resultMappings);
    Discriminator disc = applyDiscriminator(resultMapId, returnType, discriminator);
    // TODO add AutoMappingBehaviour
    assistant.addResultMap(resultMapId, returnType, null, disc, resultMappings, null);
    createDiscriminatorResultMaps(resultMapId, returnType, discriminator);
  }

2.4 解析语句

解析方法上的@Select,@Update,@Insert,@Delete,@SelectProvider,@UpdateProvider,@InsertProvider,@DeleteProvider注解，同时获取方法上的@Options注解，如果语句类型是insert,update语句，获取@SelectKey注解，对于select语句，获取@ResultMap注解，最后添加语句到configuration中。

void parseStatement(Method method) {
    final Class<?> parameterTypeClass = getParameterType(method);
    final LanguageDriver languageDriver = getLanguageDriver(method);

    getAnnotationWrapper(method, true, statementAnnotationTypes).ifPresent(statementAnnotation -> {
      final SqlSource sqlSource = buildSqlSource(statementAnnotation.getAnnotation(), parameterTypeClass, languageDriver, method);
      final SqlCommandType sqlCommandType = statementAnnotation.getSqlCommandType();
      final Options options = getAnnotationWrapper(method, false, Options.class).map(x -> (Options)x.getAnnotation()).orElse(null);
      final String mappedStatementId = type.getName() + "." + method.getName();

      final KeyGenerator keyGenerator;
      String keyProperty = null;
      String keyColumn = null;
      if (SqlCommandType.INSERT.equals(sqlCommandType) || SqlCommandType.UPDATE.equals(sqlCommandType)) {
        // first check for SelectKey annotation - that overrides everything else
        SelectKey selectKey = getAnnotationWrapper(method, false, SelectKey.class).map(x -> (SelectKey)x.getAnnotation()).orElse(null);
        if (selectKey != null) {
          keyGenerator = handleSelectKeyAnnotation(selectKey, mappedStatementId, getParameterType(method), languageDriver);
          keyProperty = selectKey.keyProperty();
        } else if (options == null) {
          keyGenerator = configuration.isUseGeneratedKeys() ? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
        } else {
          keyGenerator = options.useGeneratedKeys() ? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
          keyProperty = options.keyProperty();
          keyColumn = options.keyColumn();
        }
      } else {
        keyGenerator = NoKeyGenerator.INSTANCE;
      }

      Integer fetchSize = null;
      Integer timeout = null;
      StatementType statementType = StatementType.PREPARED;
      ResultSetType resultSetType = configuration.getDefaultResultSetType();
      boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
      boolean flushCache = !isSelect;
      boolean useCache = isSelect;
      if (options != null) {
        if (FlushCachePolicy.TRUE.equals(options.flushCache())) {
          flushCache = true;
        } else if (FlushCachePolicy.FALSE.equals(options.flushCache())) {
          flushCache = false;
        }
        useCache = options.useCache();
        fetchSize = options.fetchSize() > -1 || options.fetchSize() == Integer.MIN_VALUE ? options.fetchSize() : null; //issue #348
        timeout = options.timeout() > -1 ? options.timeout() : null;
        statementType = options.statementType();
        if (options.resultSetType() != ResultSetType.DEFAULT) {
          resultSetType = options.resultSetType();
        }
      }

      String resultMapId = null;
      if (isSelect) {
        ResultMap resultMapAnnotation = method.getAnnotation(ResultMap.class);
        if (resultMapAnnotation != null) {
          resultMapId = String.join(",", resultMapAnnotation.value());
        } else {
          resultMapId = generateResultMapName(method);
        }
      }

      assistant.addMappedStatement(
          mappedStatementId,
          sqlSource,
          statementType,
          sqlCommandType,
          fetchSize,
          timeout,
          // ParameterMapID
          null,
          parameterTypeClass,
          resultMapId,
          getReturnType(method),
          resultSetType,
          flushCache,
          useCache,
          // TODO gcode issue #577
          false,
          keyGenerator,
          keyProperty,
          keyColumn,
          statementAnnotation.getDatabaseId(),
          languageDriver,
          // ResultSets
          options != null ? nullOrEmpty(options.resultSets()) : null);
    });
  }
