k8s 使用新版NFS Provisioner配置subdir
微信公众号:运维开发故事,作者:姜总背景NFS在k8s中作为volume存储已经没有什么新奇的了,这个是最简单也是最容易上手的一种文件存储。最近有一个需求需要在k8s中使用NFS存储,于是记录如下,并且还存在一些骚操作和过程中遇到的坑点,同时记录如下。访问nfs provisioner的GitHub仓库会发现他提示你该仓库已经被个人归档并且状态已经是只读了。老的NFS地址:https://git
微信公众号:运维开发故事,作者:姜总
背景
NFS在k8s中作为volume存储已经没有什么新奇的了,这个是最简单也是最容易上手的一种文件存储。最近有一个需求需要在k8s中使用NFS存储,于是记录如下,并且还存在一些骚操作和过程中遇到的坑点,同时记录如下。

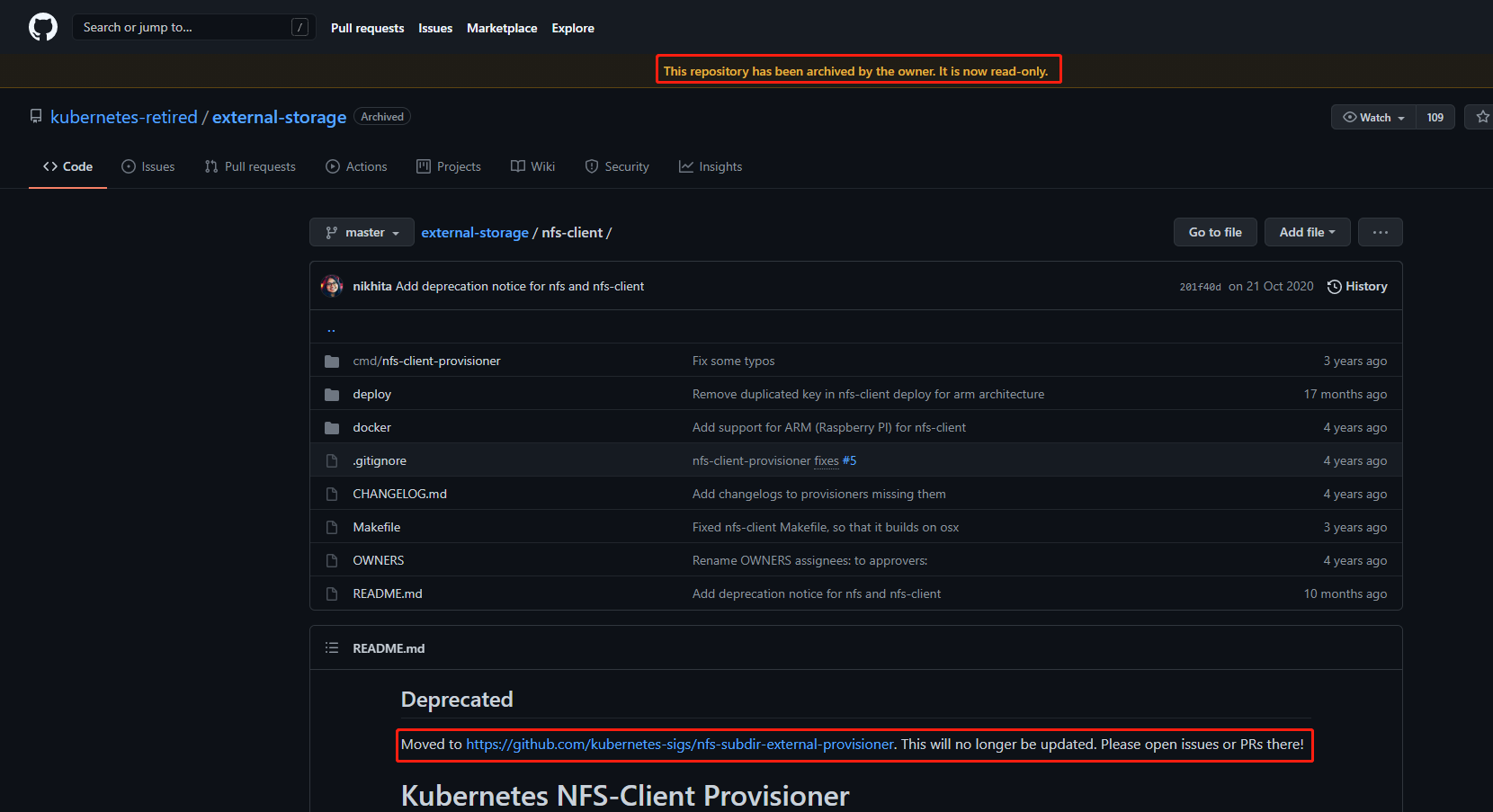

访问nfs provisioner的GitHub仓库会发现他提示你该仓库已经被个人归档并且状态已经是只读了。
老的NFS地址:https://github.com/kubernetes-retired/external-storage/tree/master/nfs-client
下面Deprecated表示仓库已经移动到了另外一个GitHub地址了,也就是说他这个仓库已经不在更新了,持续更新的仓库是Moved to 后面指定的仓库了。
新仓库地址:https://github.com/lorenzofaresin/nfs-subdir-external-provisioner
发现更新的仓库中相比老仓库多了一个功能:添加了一个参数pathPattern
,实际上也就是通过设置这个参数可以配置PV的子目录。
![image.png](https://img-blog.csdnimg.cn/img_convert/ff6b21a4f53f5950a49fa5de8ebb0549.png#clientId=u3bfb5eba-3c46-4&from=paste&height=903&id=u587ec84f&margin=[object Object]&name=image.png&originHeight=903&originWidth=1660&originalType=binary&ratio=1&size=122326&status=done&style=none&taskId=u361b5ce2-8e38-4cd7-9ba5-af346b3f143&width=1660)
带着好奇心我们来部署一下新的NFS,以下yaml配置文件可以在项目中的deploy目录中找到。我这里的配置根据我的环境稍微做了更改,比如NFS的服务的IP地址。你们根据实际情况修改成自己的nfs服务器地址和path路径。本次实践在k8s 1.19.0上
nfs-client-provisioner部署
class.yaml
$ cat class.yaml
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: managed-nfs-storage
provisioner: k8s-sigs.io/nfs-subdir-external-provisioner # or choose another name, must match deployment's env PROVISIONER_NAME'
parameters:
archiveOnDelete: "false"
deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nfs-client-provisioner
labels:
app: nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: kube-system
spec:
replicas: 1
strategy:
type: Recreate
selector:
matchLabels:
app: nfs-client-provisioner
template:
metadata:
labels:
app: nfs-client-provisioner
spec:
serviceAccountName: nfs-client-provisioner
containers:
- name: nfs-client-provisioner
image: k8s.gcr.io/sig-storage/nfs-subdir-external-provisioner:v4.0.2
volumeMounts:
- name: nfs-client-root
mountPath: /persistentvolumes
env:
- name: PROVISIONER_NAME
value: k8s-sigs.io/nfs-subdir-external-provisioner
- name: NFS_SERVER
value: 172.16.33.4
- name: NFS_PATH
value: /
volumes:
- name: nfs-client-root
nfs:
server: 172.16.33.4
path: /
rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: kube-system
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: nfs-client-provisioner-runner
rules:
- apiGroups: [""]
resources: ["nodes"]
verbs: ["get", "list", "watch"]
- apiGroups: [""]
resources: ["persistentvolumes"]
verbs: ["get", "list", "watch", "create", "delete"]
- apiGroups: [""]
resources: ["persistentvolumeclaims"]
verbs: ["get", "list", "watch", "update"]
- apiGroups: ["storage.k8s.io"]
resources: ["storageclasses"]
verbs: ["get", "list", "watch"]
- apiGroups: [""]
resources: ["events"]
verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: run-nfs-client-provisioner
subjects:
- kind: ServiceAccount
name: nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: kube-system
roleRef:
kind: ClusterRole
name: nfs-client-provisioner-runner
apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: leader-locking-nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: kube-system
rules:
- apiGroups: [""]
resources: ["endpoints"]
verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: leader-locking-nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: kube-system
subjects:
- kind: ServiceAccount
name: nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: kube-system
roleRef:
kind: Role
name: leader-locking-nfs-client-provisioner
apiGroup: rbac.authorization.k8s.io
注意:
镜像无法拉取的话可以从国外机器拉取镜像然后再导入
rbac基本无需更改,配置子目录的时候需要更改class.yaml文件,后面会说
创建所有资源文件
kubectl apply -f class.yaml -f deployment.yaml -f rbac.yaml
通过一个简单的例子来创建pvc
$ cat test-pvc-2.yaml
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: test-pvc-2
namespace: nacos
spec:
storageClassName: "managed-nfs-storage"
accessModes:
- ReadWriteMany
resources:
requests:
storage: 10Gi
$ cat test-nacos-pod-2.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: nacos-c1-sit-tmp-1
labels:
appEnv: sit
appName: nacos-c1-sit-tmp-1
namespace: nacos
spec:
serviceName: nacos-c1-sit-tmp-1
replicas: 3
selector:
matchLabels:
appEnv: sit
appName: nacos-c1-sit-tmp-1
template:
metadata:
labels:
appEnv: sit
appName: nacos-c1-sit-tmp-1
spec:
dnsPolicy: ClusterFirst
containers:
- name: nacos
image: www.ayunw.cn/library/nacos/nacos-server:1.4.1
ports:
- containerPort: 8848
env:
- name: NACOS_REPLICAS
value: "1"
- name: MYSQL_SERVICE_HOST
value: mysql.ayunw.cn
- name: MYSQL_SERVICE_DB_NAME
value: nacos_c1_sit
- name: MYSQL_SERVICE_PORT
value: "3306"
- name: MYSQL_SERVICE_USER
value: nacos
- name: MYSQL_SERVICE_PASSWORD
value: xxxxxxxxx
- name: MODE
value: cluster
- name: NACOS_SERVER_PORT
value: "8848"
- name: PREFER_HOST_MODE
value: hostname
- name: SPRING_DATASOURCE_PLATFORM
value: mysql
- name: TOMCAT_ACCESSLOG_ENABLED
value: "true"
- name: NACOS_AUTH_ENABLE
value: "true"
- name: NACOS_SERVERS
value: nacos-c1-sit-0.nacos-c1-sit-tmp-1.nacos.svc.cluster.local:8848 nacos-c1-sit-1.nacos-c1-sit-tmp-1.nacos.svc.cluster.local:8848 nacos-c1-sit-2.nacos-c1-sit-tmp-1.nacos.svc.cluster.local:8848
imagePullPolicy: IfNotPresent
resources:
limits:
cpu: 500m
memory: 5Gi
requests:
cpu: 100m
memory: 512Mi
volumeMounts:
- name: data
mountPath: /home/nacos/plugins/peer-finder
subPath: peer-finder
- name: data
mountPath: /home/nacos/data
subPath: data
volumeClaimTemplates:
- metadata:
name: data
spec:
storageClassName: "managed-nfs-storage"
accessModes:
- "ReadWriteMany"
resources:
requests:
storage: 10Gi
查看pvc以及nfs存储中的数据
# ll
total 12
drwxr-xr-x 4 root root 4096 Aug 3 13:30 nacos-data-nacos-c1-sit-tmp-1-0-pvc-90d74547-0c71-4799-9b1c-58d80da51973
drwxr-xr-x 4 root root 4096 Aug 3 13:30 nacos-data-nacos-c1-sit-tmp-1-1-pvc-18b3e220-d7e5-4129-89c4-159d9d9f243b
drwxr-xr-x 4 root root 4096 Aug 3 13:31 nacos-data-nacos-c1-sit-tmp-1-2-pvc-26737f88-35cd-42dc-87b6-3b3c78d823da
# ll nacos-data-nacos-c1-sit-tmp-1-0-pvc-90d74547-0c71-4799-9b1c-58d80da51973
total 8
drwxr-xr-x 2 root root 4096 Aug 3 13:30 data
drwxr-xr-x 2 root root 4096 Aug 3 13:30 peer-finder
配置子目录
删除之前创建的class.yaml,添加pathPattern参数,然后重新生成sc
$ kubectl delete -f class.yaml
$ vi class.yaml
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: managed-nfs-storage
provisioner: k8s-sigs.io/nfs-subdir-external-provisioner # or choose another name, must match deployment's env PROVISIONER_NAME'
parameters:
archiveOnDelete: "false"
# 添加以下参数
pathPattern: "${.PVC.namespace}/${.PVC.annotations.nfs.io/storage-path}"
创建pvc来测试生成的PV目录是否生成了子目录
$ cat test-pvc.yaml
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: test-pvc-2
namespace: nacos
annotations:
nfs.io/storage-path: "test-path-two" # not required, depending on whether this annotation was shown in the storage class description
spec:
storageClassName: "managed-nfs-storage"
accessModes:
- ReadWriteMany
resources:
requests:
storage: 100Mi
创建资源
kubectl apply -f class.yaml -f test-pvc.yaml
查看结果
在mount了nfs的机器上查看生成的目录,发现子目录的确已经生成,并且子目录的层级是以"命名空间/注解名称"为规则的。刚好符合了上面StorageClass中定义的pathPattern规则。
# pwd
/data/nfs# ll nacos/
total 4
drwxr-xr-x 2 root root 4096 Aug 3 10:21 nacos-pvc-c1-pro
# tree -L 2 .
.
└── nacos
└── nacos-pvc-c1-pro
2 directories, 0 files
provisioner高可用
生产环境中应该尽可能的避免单点故障,因此此处考虑provisioner的高可用架构
更新后的provisioner配置如下:
$ cat nfs-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nfs-client-provisioner
labels:
app: nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: kube-system
spec:
# 因为要实现高可用,所以配置3个pod副本
replicas: 3
strategy:
type: Recreate
selector:
matchLabels:
app: nfs-client-provisioner
template:
metadata:
labels:
app: nfs-client-provisioner
spec:
serviceAccountName: nfs-client-provisioner
imagePullSecrets:
- name: registry-auth-paas
containers:
- name: nfs-client-provisioner
image: www.ayunw.cn/nfs-subdir-external-provisioner:v4.0.2-31-gcb203b4
imagePullPolicy: IfNotPresent
volumeMounts:
- name: nfs-client-root
mountPath: /persistentvolumes
env:
- name: PROVISIONER_NAME
value: k8s-sigs.io/nfs-subdir-external-provisioner
# 设置高可用允许选举
- name: ENABLE_LEADER_ELECTION
value: "True"
- name: NFS_SERVER
value: 172.16.33.4
- name: NFS_PATH
value: /
volumes:
- name: nfs-client-root
nfs:
server: 172.16.33.4
path: /
重建资源
kubectl delete -f nfs-class.yaml -f nfs-deployment.yaml
kubectl apply -f nfs-class.yaml -f nfs-deployment.yaml
查看provisioner高可用是否生效
# kubectl get po -n kube-system | grep nfs
nfs-client-provisioner-666df4d979-fdl8l 1/1 Running 0 20s
nfs-client-provisioner-666df4d979-n54ps 1/1 Running 0 20s
nfs-client-provisioner-666df4d979-s4cql 1/1 Running 0 20s
# kubectl logs -f --tail=20 nfs-client-provisioner-666df4d979-fdl8l -n kube-system
I0803 06:04:41.406441 1 leaderelection.go:242] attempting to acquire leader lease kube-system/nfs-provisioner-baiducfs...
^C
# kubectl logs -f --tail=20 -n kube-system nfs-client-provisioner-666df4d979-n54ps
I0803 06:04:41.961617 1 leaderelection.go:242] attempting to acquire leader lease kube-system/nfs-provisioner-baiducfs...
^C
[root@qing-core-kube-master-srv1 nfs-storage]# kubectl logs -f --tail=20 -n kube-system nfs-client-provisioner-666df4d979-s4cql
I0803 06:04:39.574258 1 leaderelection.go:242] attempting to acquire leader lease kube-system/nfs-provisioner-baiducfs...
I0803 06:04:39.593388 1 leaderelection.go:252] successfully acquired lease kube-system/nfs-provisioner-baiducfs
I0803 06:04:39.593519 1 event.go:278] Event(v1.ObjectReference{Kind:"Endpoints", Namespace:"kube-system", Name:"nfs-provisioner-baiducfs", UID:"3d5cdef6-57da-445e-bcd4-b82d0181fee4", APIVersion:"v1", ResourceVersion:"1471379708", FieldPath:""}): type: 'Normal' reason: 'LeaderElection' nfs-client-provisioner-666df4d979-s4cql_590ac6eb-ccfd-4653-9de5-57015f820b84 became leader
I0803 06:04:39.593559 1 controller.go:820] Starting provisioner controller nfs-provisioner-baiducfs_nfs-client-provisioner-666df4d979-s4cql_590ac6eb-ccfd-4653-9de5-57015f820b84!
I0803 06:04:39.694505 1 controller.go:869] Started provisioner controller nfs-provisioner-baiducfs_nfs-client-provisioner-666df4d979-s4cql_590ac6eb-ccfd-4653-9de5-57015f820b84!
通过successfully acquired lease kube-system/nfs-provisioner-baiducfs
可以看到第三个pod成功被选举为leader节点了,高可用生效。
报错
在操作过程中遇到describe pod发现报错如下
Mounting arguments: --description=Kubernetes transient mount for /data/kubernetes/kubelet/pods/2ca70aa9-433c-4d10-8f87-154ec9569504/volumes/kubernetes.io~nfs/nfs-client-root --scope -- mount -t nfs 172.16.41.7:/data/nfs_storage /data/kubernetes/kubelet/pods/2ca70aa9-433c-4d10-8f87-154ec9569504/volumes/kubernetes.io~nfs/nfs-client-root
Output: Running scope as unit: run-rdcc7cfa6560845969628fc551606e69d.scope
mount: /data/kubernetes/kubelet/pods/2ca70aa9-433c-4d10-8f87-154ec9569504/volumes/kubernetes.io~nfs/nfs-client-root: bad option; for several filesystems (e.g. nfs, cifs) you might need a /sbin/mount.<type> helper program.
Warning FailedMount 10s kubelet, node1.ayunw.cn MountVolume.SetUp failed for volume "nfs-client-root" : mount failed: exit status 32
Mounting command: systemd-run
解决方式:
经排查原因是pod被调度到的节点上没有安装nfs客户端,只需要安装一下nfs客户端nfs-utils
即可。
