argoEvents集成gitlabWebhook

---

---

前言

使用argoEvents集成gitlabwebhook，记录下学习以及踩坑过程。

---

一、环境准备

centos8
Linux本地 gitlab仓库
K8s 1.8
argoEvents 1.4
argoWorkflow V3.1.8

二、过程

1.准备好argo环境，具体参照官网

官网链接: link.
安装好argoEvents 和argoWorkflows环境
注意不同命名空间的权限问题
官网给出的示例不可以直接用！！
由于argoEvents不具备argo命名空间中的权限
需要给它分配权限
ServiceAccount.yaml如下：

apiVersion: v1
kind: ServiceAccount
metadata:
  namespace: argo-events
  name: operate-workflow-sa
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: operate-workflow-role
  namespace: argo-events
rules:
  - apiGroups:
      - argoproj.io
    verbs:
      - "*"
    resources:
      - workflows
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: operate-workflow-role-binding
  namespace: argo-events
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: operate-workflow-role
subjects:
  - kind: ServiceAccount
    name: operate-workflow-sa
    namespace: argo-events

shell：

kubectl -n argo-events apply -f sensor-service-accounts.yaml

2. argoEvents集成gitlabWebhook步骤

1. 在gitlab生成apitoken授予他api权限
2. Base64 编码api 令牌密钥：

echo -n <api-token-key> | base64

3. 创建一个K8S sercret 叫 gitlab-access

apiVersion: v1
kind: Secret
metadata:
  name: gitlab-access
type: Opaque
data:
  token: <base64-encoded-api-token-from-previous-step>

kubectl -n argo-events apply -f gitlab-access.yaml

4. 创建eventSource
   踩坑：使用官网默认页面配置失败，需要去官方github选取自己的argoEvents版本的分支，进行配置本文使用的版本是v1.4.0
   支持仓库eventSource

# More info on GitLab project hooks: https://docs.gitlab.com/ce/api/projects.html#add-project-hook
apiVersion: argoproj.io/v1alpha1
kind: EventSource
metadata:
 name: gitlab
spec:
 service:
   ports:
     - port: 12000
       targetPort: 12000
 gitlab:
   example:
     # Project namespace paths or IDs
     projects:
       - "whynowy/test"
       - "3"
     # Github will send events to following port and endpoint
     webhook:
       # endpoint to listen to events on
       endpoint: /push
       # port to run internal HTTP server on
       port: "12000"
       # HTTP request method to allow. In this case, only POST requests are accepted
       method: POST
       # url the event-source will use to register at GitLab.
       # This url must be reachable from outside the cluster.
       # The name for the service is in `<event-source-name>-eventsource-svc` format.
       # You will need to create an Ingress or Openshift Route for the event-source service so that it can be reached from GitLab.
       url: http://url-that-is-reachable-from-GitLab
     # events to listen to
     # Visit https://docs.gitlab.com/ee/user/project/integrations/webhooks.html#events
     events:
       - PushEvents
       - TagPushEvents
     # accessToken refers to K8s secret that stores the gitlab api token
     accessToken:
       # Key within the K8s secret whose corresponding value (must be base64 encoded) is access token
       key: token
       # Name of the K8s secret that contains the access token
       name: gitlab-access
     # secret token used by gitlab webhook
     secretToken:
       key: token
       name: gitlab-secret
     # Do SSL verification when triggering the hook
     enableSSLVerification: false
     # Gitlab Base url.
     # Change it to your private GitLab instance url if you have one.
     gitlabBaseURL: https://gitlab.com
     deleteHookOnFinish: true

#    example-secure:
#      projectId: "2"
#      webhook:
#        endpoint: "/push"
#        port: "13000"
#        method: "POST"
#        url: "http://mysecondfakeurl.fake"
#        # k8s secret that contains the cert
#        serverCertSecret:
#          name: my-secret
#          key: cert-key
#        # k8s secret that contains the private key
#        serverKeySecret:
#          name: my-secret
#          key: pk-key
#      events:
#        - PushEvents
#      accessToken:
#        key: accesskey
#        name: gitlab-access
#      enableSSLVerification: true
#      gitlabBaseURL: "YOUR_GITLAB_URL"

5. 注册到Sensor

apiVersion: argoproj.io/v1alpha1
kind: Sensor
metadata:
 name: gitlab
spec:
 template:
   serviceAccountName: operate-workflow-sa
 dependencies:
   - name: a
     eventSourceName: gitlab
     eventName: a-1
   - name: b
     eventSourceName: gitlab
     eventName: b-1
 triggers:
   - template:
     conditions: "a || b"        ## 多个EventSource需要添加条件
       name: gitlab-workflow-trigger
       k8s:
         group: argoproj.io
         version: v1alpha1
         resource: workflows
         operation: create
         source:
           resource:
             apiVersion: argoproj.io/v1alpha1
             kind: Workflow
             metadata:
               generateName: gitlab-workflow-
             spec:
               entrypoint: whalesay
               arguments:
                 parameters:
                 - name: message
                   # value will get overridden by the event payload
                   value: hello world
               templates:
               - name: whalesay
                 inputs:
                   parameters:
                   - name: message
                 container:
                   image: docker/whalesay:latest
                   command: [cowsay]
                   args: ["{{inputs.parameters.message}}"]
         parameters:
           - src:
               dependencyName: a
             dest: spec.arguments.parameters.0.value
         parameters:
           - src:
               dependencyName: b
             dest: spec.arguments.parameters.0.value

暴露Pod端口

[root@k8s-master ingress]# kubectl get pod,svc,ingress,EventSource -n argo-events
NAME                                            READY   STATUS              RESTARTS   AGE
pod/eventbus-controller-69b7f5955f-gqrxs        1/1     Running             0          2d4h
pod/eventbus-default-stan-0                     2/2     Running             0          2d4h
pod/eventbus-default-stan-1                     2/2     Running             0          2d4h
pod/eventbus-default-stan-2                     2/2     Running             0          2d4h
pod/eventsource-controller-5fb9fc8bf9-skw7x     1/1     Running             0          2d4h
pod/gitlab-eventsource-pz5rx-5b4b7b5f69-lfpjs   1/1     Running             0          6s
pod/gitlab-sensor-5jt6g-7c96655645-5xlc4        0/1     ContainerCreating   0          6s
pod/sensor-controller-78f8fd8645-hmcvb          1/1     Running             0          2d4h

NAME                                TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
service/eventbus-default-stan-svc   ClusterIP   None            <none>        4222/TCP,6222/TCP,8222/TCP   2d4h
service/gitlab-eventsource-svc      ClusterIP   10.108.78.110   <none>        12000/TCP                    6s

NAME                             AGE
eventsource.argoproj.io/gitlab   6s
[root@k8s-master ingress]# kubectl -n argo-events port-forward  pod/gitlab-eventsource-pz5rx-5b4b7b5f69-lfpjs  12000:12000

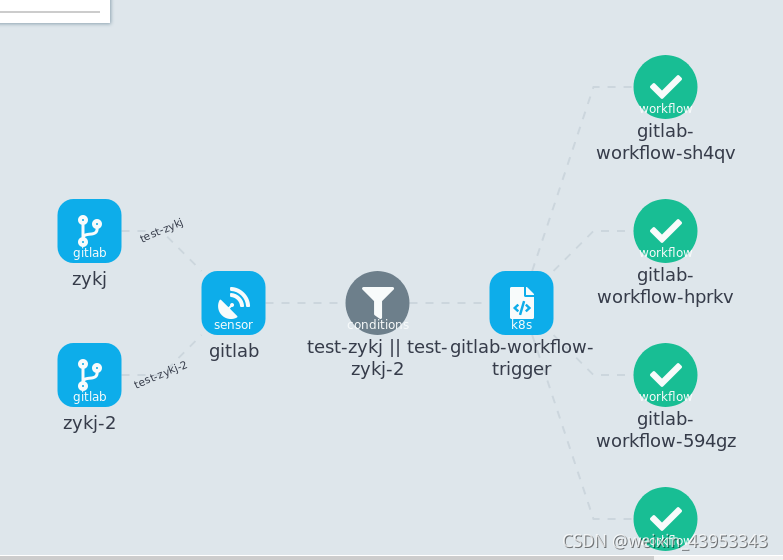

6. 触发giltlab中webhook 如图所示


总结

主要是对自己踩坑做一个总结，因是java刚转到sre。需要转换思维思考问题，而不是像以前一个死抓代码逻辑层思考。 1. 学习新的框架，技术时多看官方文档，看官方文档前留意版本问题！！
