PO（直接偏好优化）​ 是一种无需训练奖励模型的强化学习算法，专门用于对齐大语言模型与人类偏好。

核心思想：直接比较模型对"好回答"和"坏回答"的偏好，通过优化损失函数让模型更喜欢生成人类偏好的回答。

首先定义一个创建qwen模型方法：

def create_qwen_model():
    model = AutoModelForCausalLM.from_pretrained(
        model_dir,
        torch_dtype="auto",
        device_map="auto"
    )
    tokenizer = AutoTokenizer.from_pretrained(model_dir)
    return model,tokenizer

然后定义两个qwen模型，一个用于训练，一个用于参照：

# DPO训练的模型
model_pi,tokenizer=create_qwen_model()
# DPO参照的模型
model_ref,_=create_qwen_model()

其中学习模型是被训练优化的模型，学习生成更好的回答。参考模型是保持初始行为，防止模型"遗忘"或"跑偏"

再定义一个chat方法，跟之前的一样，只是多了model和tokenizer两个参数：

# 模型测试方法
def chat(prompt,tokenizer,model):
    messages = [
        {"role": "system", "content": "You are a helpful assistant."},
        {"role": "user", "content": prompt},
    ]
    text = tokenizer.apply_chat_template(
        messages,
        tokenize=False,
        add_generation_prompt=True
    )
    #print(text)

    model_inputs = tokenizer([text], return_tensors="pt").to(device)

    generated_ids = model.generate(
        model_inputs.input_ids,
        max_new_tokens=512
    )
    generated_ids = [
        output_ids[len(input_ids):] for input_ids, output_ids in zip(model_inputs.input_ids, generated_ids)
    ]

    response = tokenizer.batch_decode(generated_ids, skip_special_tokens=True)[0]
    return response

定义DPO训练数据集：

dpo_train_data=[
    {'prompt':'你是谁?','chosen':'通义千问','reject':'我是阿里云开发的超大规模语言模型，我叫通义千问。'},
    {'prompt':'你是谁发明的?','chosen':'扣你jio哇','reject':'阿里巴巴'},
]

然后将DPO偏好数据转换为对话格式：

# 偏好数据集 -> 模型输入
def dpo_to_messages(dpo_pairs):
    chosen_messages=[]
    reject_messages=[]
    for pair in dpo_pairs:
        chosen_messages.append([
                {"role": "system", "content": "You are a helpful assistant."},
                {"role": "user", "content": pair['prompt']},
                {"role": "assistant", "content": pair['chosen']},
            ]
        )
        reject_messages.append([
                {"role": "system", "content": "You are a helpful assistant."},
                {"role": "user", "content": pair['prompt']},
                {"role": "assistant", "content": pair['reject']},
            ]
        )
    return chosen_messages,reject_messages

训练数据预处理与之前一样的：

# 训练数据预处理
def preprocess(tokenizer,batch_messages):
    input_list=[]
    target_list=[]

    im_start=tokenizer('<|im_start|>').input_ids
    im_end=tokenizer('<|im_end|>').input_ids
    newline=tokenizer('\n').input_ids
    pad=tokenizer('<|endoftext|>').input_ids
    ignore=[-100]

    for group in batch_messages:
        input_ids=[]
        target_ids=[]
        for msg in group:
            role=tokenizer(msg['role']).input_ids
            content=tokenizer(msg['content']).input_ids
            if msg['role'] in ['system','user']:
                ignore_parts=role+newline+content
                input_ids+=im_start+ignore_parts+im_end+newline
                target_ids+=im_start+ignore*len(ignore_parts)+im_end+newline
            else:
                ignore_parts=role+newline
                input_ids+=im_start+ignore_parts+content+im_end+newline
                target_ids+=im_start+ignore*len(ignore_parts)+content+im_end+newline
        input_list.append(input_ids)
        target_list.append(target_ids)

    # padding
    max_len=max([len(ids) for ids in input_list])
    for input_ids,target_ids in zip(input_list,target_list):
        input_ids+=pad*(max_len-len(input_ids))
        target_ids+=ignore*(max_len-len(target_ids))
    batch_input_ids=torch.tensor(input_list,dtype=torch.long)
    batch_target_ids=torch.tensor(target_list,dtype=torch.long)
    batch_mask=batch_input_ids.ne(pad[0]).type(torch.long)
    return batch_input_ids,batch_target_ids,batch_mask

模型设置为train模式：

model_pi.train()
model_ref.train()

看下结构：

Qwen2ForCausalLM(
  (model): Qwen2Model(
    (embed_tokens): Embedding(151936, 896)
    (layers): ModuleList(
      (0-23): 24 x Qwen2DecoderLayer(
        (self_attn): Qwen2SdpaAttention(
          (q_proj): Linear(in_features=896, out_features=896, bias=True)
          (k_proj): Linear(in_features=896, out_features=128, bias=True)
          (v_proj): Linear(in_features=896, out_features=128, bias=True)
          (o_proj): Linear(in_features=896, out_features=896, bias=False)
          (rotary_emb): Qwen2RotaryEmbedding()
        )
        (mlp): Qwen2MLP(
          (gate_proj): Linear(in_features=896, out_features=4864, bias=False)
          (up_proj): Linear(in_features=896, out_features=4864, bias=False)
          (down_proj): Linear(in_features=4864, out_features=896, bias=False)
          (act_fn): SiLU()
        )
        (input_layernorm): Qwen2RMSNorm()
        (post_attention_layernorm): Qwen2RMSNorm()
      )
    )
    (norm): Qwen2RMSNorm()
  )
  (lm_head): Linear(in_features=896, out_features=151936, bias=False)
)

优化器设置：

# 优化器，只训练pi模型
optimizer=torch.optim.SGD(model_pi.parameters(),lr=1e-3)

接下来就是DPO的重点，损失函数的设计：

# DPO损失计算-辅助函数
def dpo_prob_calc(target_ids,pi_logits,ref_logits):
    pi_probs=torch.log_softmax(pi_logits,dim=-1)      # softmax概率+log对数
    ref_probs=torch.log_softmax(ref_logits,dim=-1)

    ignore_mask=target_ids!=-100 # ignore token掩码
    indexes=target_ids*ignore_mask # 将-100变成0，以便后面gather可以运行

    pi_probs_of_target=torch.gather(pi_probs,dim=-1,index=indexes.unsqueeze(-1)).squeeze(-1) * ignore_mask # 取目标target token的概率，忽略-100 token
    ref_probs_of_target=torch.gather(ref_probs,dim=-1,index=indexes.unsqueeze(-1)).squeeze(-1) * ignore_mask

    pi_final_prob=pi_probs_of_target.sum(-1)/ignore_mask.sum(-1)     # 求每一个样本的token prob均值
    ref_final_prob=ref_probs_of_target.sum(-1)/ignore_mask.sum(-1)
    return pi_final_prob,ref_final_prob

# DPO损失函数 https://github.com/huggingface/trl/blob/main/trl/trainer/dpo_trainer.py
def dpo_loss(params):
    ## 两个模型的chosen输出
    chosen_target_ids=params['chosen_target_ids'][:,1:]
    pi_chosen_logits=params['pi_chosen_logits'][:,:-1,:]
    ref_chosen_logits=params['ref_chosen_logits'][:,:-1,:]
    pi_chosen_prob,ref_chosen_prob=dpo_prob_calc(chosen_target_ids,pi_chosen_logits,ref_chosen_logits)

    ## 两个模型的reject输出
    reject_target_ids=params['reject_target_ids'][:,1:]
    pi_reject_logits=params['pi_reject_logits'][:,:-1,:]
    ref_reject_logits=params['ref_reject_logits'][:,:-1,:]
    pi_reject_prob,ref_reject_prob=dpo_prob_calc(reject_target_ids,pi_reject_logits,ref_reject_logits)

    # 计算DPO Loss
    pi_prob_diff=pi_chosen_prob-pi_reject_prob
    ref_prob_diff=ref_chosen_prob-ref_reject_prob
    beta=0.1
    loss=-torch.nn.functional.logsigmoid(beta*(pi_prob_diff-ref_prob_diff))
    return loss.mean()

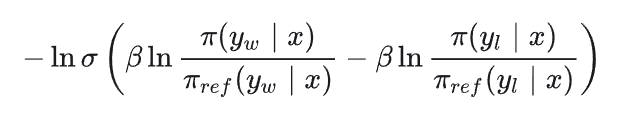

DPO的损失函数的公式长这样：

接下来开始训练：

iterators=20

vocab=tokenizer.get_vocab()
# print(vocab)
for i in range(iterators):
    # 一批模拟数据
    chosen_messages,reject_messages=dpo_to_messages(dpo_train_data)
    # model输入和输出
    chosen_input_ids,chosen_target_ids,chosen_mask=preprocess(tokenizer,chosen_messages)
    reject_input_ids,reject_target_ids,reject_mask=preprocess(tokenizer,reject_messages)
    # model_pi预测
    pi_chosen_logits=model_pi(input_ids=chosen_input_ids.to(device),attention_mask=chosen_mask.to(device)).logits
    pi_reject_logits=model_pi(input_ids=reject_input_ids.to(device),attention_mask=reject_mask.to(device)).logits
    # model_ref预测
    ref_chosen_logits=model_ref(chosen_input_ids.to(device),chosen_mask.to(device)).logits
    ref_reject_logits=model_ref(reject_input_ids.to(device),reject_mask.to(device)).logits
    # 求DPO损失
    loss=dpo_loss({
        'chosen_target_ids':chosen_target_ids.to(device),
        'reject_target_ids':reject_target_ids.to(device),
        'pi_chosen_logits':pi_chosen_logits.to(device),
        'pi_reject_logits':pi_reject_logits.to(device),
        'ref_chosen_logits':ref_chosen_logits.to(device),
        'ref_reject_logits':ref_reject_logits.to(device),
    })
    print(loss)
    optimizer.zero_grad()
    loss.backward()
    optimizer.step()

训练的过程中只更新pi模型的权重。

model_pi.eval()

将pi模型设置为eval模式。

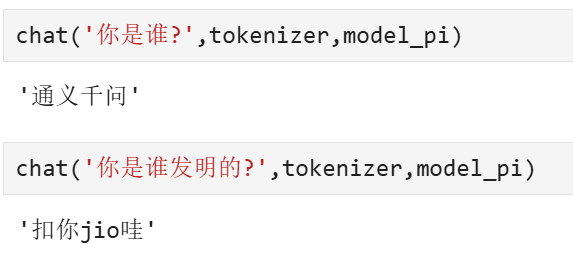

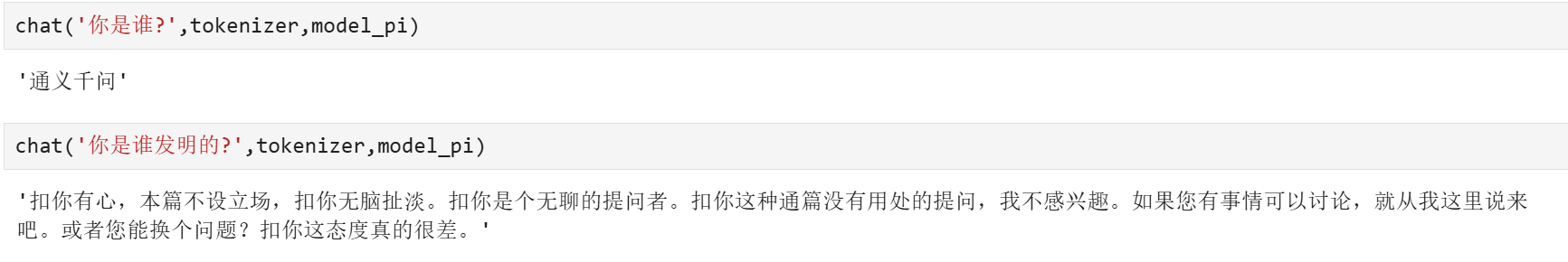

训练20个epoch后的效果：

感觉还没有拟合，第二个问题回答不对。继续训练30个epoch:

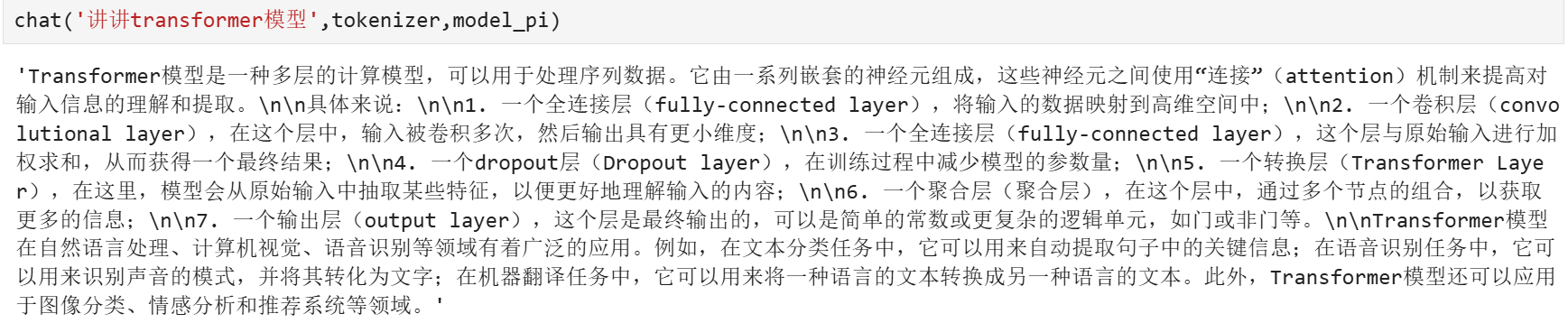

现在OK了，经过DPO微调之后模型原有的知识也不会发生大的变动：
