1、创建命名空间，使用helm添加Prometheus仓库

[root@k8s-master ~]# kubectl create namespace monitoring

namespace/monitoring created

[root@k8s-master ~]# helm repo add prometheus-community https://prometheus-community.github.io/helm-charts

"prometheus-community" has been added to your repositories

[root@k8s-master ~]# helm repo update

Hang tight while we grab the latest from your chart repositories...

...Successfully got an update from the "prometheus-community" chart repository

...Successfully got an update from the "stable" chart repository

...Successfully got an update from the "bitnami" chart repository

Update Complete. ⎈Happy Helming!⎈

2、helm安装Prometheus完整监控（包括grafana，alertmanager）

[root@k8s-master ~]# helm install prometheus prometheus-community/kube-prometheus-stack \

>   --namespace monitoring \

>   --set prometheus.prometheusSpec.serviceMonitorSelectorNilUsesHelmValues=false \

>   --set grafana.adminPassword=admin \

>   --set prometheus.service.type=NodePort \

>   --set prometheus.service.nodePort=30090 \

>   --set grafana.service.type=NodePort \

>   --set grafana.service.nodePort=30091 \

>   --set alertmanager.service.type=NodePort \

>   --set alertmanager.service.nodePort=30092

NAME: prometheus

LAST DEPLOYED: Fri Jan 16 02:22:22 2026

NAMESPACE: monitoring

STATUS: deployed

REVISION: 1

NOTES:

kube-prometheus-stack has been installed. Check its status by running:

  kubectl --namespace monitoring get pods -l "release=prometheus"



Get Grafana 'admin' user password by running:



  kubectl --namespace monitoring get secrets prometheus-grafana -o jsonpath="{.data.admin-password}" | base64 -d ; echo



Access Grafana local instance:



  export POD_NAME=$(kubectl --namespace monitoring get pod -l "app.kubernetes.io/name=grafana,app.kubernetes.io/instance=prometheus" -oname)

  kubectl --namespace monitoring port-forward $POD_NAME 3000



Get your grafana admin user password by running:



  kubectl get secret --namespace monitoring -l app.kubernetes.io/component=admin-secret -o jsonpath="{.items[0].data.admin-password}" | base64 --decode ; echo





Visit https://github.com/prometheus-operator/kube-prometheus for instructions on how to create & configure Alertmanager and Prometheus instances using the Operator.

登录信息：

admin/admin123

3、查看资源

[root@k8s-master ~]# kubectl get pods,svc,ep -n monitoring

NAME                                                         READY   STATUS    RESTARTS   AGE

pod/alertmanager-prometheus-kube-prometheus-alertmanager-0   2/2     Running   0          2m48s

pod/prometheus-grafana-8bdd974f8-m2hmr                       3/3     Running   0          2m53s

pod/prometheus-kube-prometheus-operator-784bff49d9-6jkrf     1/1     Running   0          2m53s

pod/prometheus-kube-state-metrics-df8f49986-7xnrc            1/1     Running   0          2m53s

pod/prometheus-prometheus-kube-prometheus-prometheus-0       2/2     Running   0          2m47s

pod/prometheus-prometheus-node-exporter-5rcbz                1/1     Running   0          2m53s

pod/prometheus-prometheus-node-exporter-j6dlz                1/1     Running   0          2m53s



NAME                                              TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                         AGE

service/alertmanager-operated                     ClusterIP   None             <none>        9093/TCP,9094/TCP,9094/UDP      2m48s

service/prometheus-grafana                        NodePort    10.107.228.134   <none>        80:30091/TCP                    2m54s

service/prometheus-kube-prometheus-alertmanager   NodePort    10.99.78.217     <none>        9093:30092/TCP,8080:31446/TCP   2m54s

service/prometheus-kube-prometheus-operator       ClusterIP   10.96.168.49     <none>        443/TCP                         2m54s

service/prometheus-kube-prometheus-prometheus     NodePort    10.111.6.231     <none>        9090:30090/TCP,8080:31135/TCP   2m54s

service/prometheus-kube-state-metrics             ClusterIP   10.107.156.237   <none>        8080/TCP                        2m54s

service/prometheus-operated                       ClusterIP   None             <none>        9090/TCP                        2m47s

service/prometheus-prometheus-node-exporter       ClusterIP   10.97.4.199      <none>        9100/TCP                        2m54s



NAME                                                ENDPOINTS                                                  AGE

endpoints/alertmanager-operated                     172.20.64.244:9094,172.20.64.244:9094,172.20.64.244:9093   2m48s

endpoints/prometheus-grafana                        172.28.82.194:3000                                         2m54s

endpoints/prometheus-kube-prometheus-alertmanager   172.20.64.244:8080,172.20.64.244:9093                      2m54s

endpoints/prometheus-kube-prometheus-operator       172.28.82.255:10250                                        2m54s

endpoints/prometheus-kube-prometheus-prometheus     172.28.82.254:9090,172.28.82.254:8080                      2m54s

endpoints/prometheus-kube-state-metrics             172.28.82.195:8080                                         2m54s

endpoints/prometheus-operated                       172.28.82.254:9090                                         2m47s

endpoints/prometheus-prometheus-node-exporter       192.168.85.133:9100,192.168.85.134:9100                    2m54s

4、由于是使用二进制安装K8S集群，没有打开metrics，导致Prometheus识别不了，所以测试方式是使用匿名访问并打开metrics

sudo vi /etc/systemd/system/kube-scheduler.service

# 在 ExecStart 中添加：
--bind-address=0.0.0.0
--secure-port=10259
--authorization-always-allow-paths=/metrics



sudo vi /etc/systemd/system/kube-controller-manager.service

# 在 ExecStart 中添加：
--bind-address=0.0.0.0
--secure-port=10257
--authorization-always-allow-paths=/metrics



[root@k8s-master ~]# systemctl daemon-reload
[root@k8s-master ~]# systemctl restart kube-scheduler.service kube-controller-manager.service

5、给kube-scheduler和kube-controller-manager添加监控的服务

[root@k8s-master ~]# cat > binary-control-plane-service.yaml <<'EOF'

> apiVersion: v1

> kind: Service

> metadata:

>   name: kube-controller-manager-metrics

>   namespace: kube-system

>   labels:

>     k8s-app: kube-controller-manager

> spec:

>   type: ExternalName

>   externalName: 192.168.85.133  # 你的 Master IP

>   ports:

>   - name: https-metrics

>     port: 10257

>     targetPort: 10257

>     protocol: TCP

> ---

> apiVersion: v1

> kind: Endpoints

> metadata:

>   name: kube-controller-manager-metrics

>   namespace: kube-system

>   labels:

>     k8s-app: kube-controller-manager

> subsets:

> - addresses:

>   - ip: 192.168.85.133  # 你的 Master IP

>   ports:

>   - name: https-metrics

>     port: 10257

>     protocol: TCP

> ---

> apiVersion: v1

> kind: Service

> metadata:

>   name: kube-scheduler-metrics

>   namespace: kube-system

>   labels:

>     k8s-app: kube-scheduler

> spec:

>   type: ExternalName

>   externalName: 192.168.85.133  # 你的 Master IP

>   ports:

>   - name: https-metrics

>     port: 10259

>     targetPort: 10259

>     protocol: TCP

> ---

> apiVersion: v1

> kind: Endpoints

> metadata:

>   name: kube-scheduler-metrics

>   namespace: kube-system

>   labels:

>     k8s-app: kube-scheduler

> subsets:

> - addresses:

>   - ip: 192.168.85.133  # 你的 Master IP

>   ports:

>   - name: https-metrics

>     port: 10259

>     protocol: TCP

> EOF

[root@k8s-master ~]# kubectl apply -f binary-control-plane-service.yaml

service/kube-controller-manager-metrics created

endpoints/kube-controller-manager-metrics created

service/kube-scheduler-metrics created

endpoints/kube-scheduler-metrics created



[root@k8s-master ~]# cat > binary-control-plane-servicemonitor.yaml <<'EOF'

> apiVersion: monitoring.coreos.com/v1

> kind: ServiceMonitor

> metadata:

>   name: binary-kube-controller-manager

>   namespace: monitoring

>   labels:

>     release: prometheus

> spec:

>   jobLabel: k8s-app

>   endpoints:

>   - port: https-metrics

>     scheme: https

>     tlsConfig:

>       insecureSkipVerify: true  # 跳过 TLS 验证

>     interval: 30s

>     honorLabels: true

>   selector:

>     matchLabels:

>       k8s-app: kube-controller-manager

>   namespaceSelector:

>     matchNames:

>     - kube-system

> ---

> apiVersion: monitoring.coreos.com/v1

> kind: ServiceMonitor

> metadata:

>   name: binary-kube-scheduler

>   namespace: monitoring

>   labels:

>     release: prometheus

> spec:

>   jobLabel: k8s-app

>   endpoints:

>   - port: https-metrics

>     scheme: https

>     tlsConfig:

>       insecureSkipVerify: true  # 跳过 TLS 验证

>     interval: 30s

>     honorLabels: true

>   selector:

>     matchLabels:

>       k8s-app: kube-scheduler

>   namespaceSelector:

>     matchNames:

>     - kube-system

> EOF


[root@k8s-master ~]# kubectl apply -f binary-control-plane-servicemonitor.yaml

servicemonitor.monitoring.coreos.com/binary-kube-controller-manager created

servicemonitor.monitoring.coreos.com/binary-kube-scheduler created

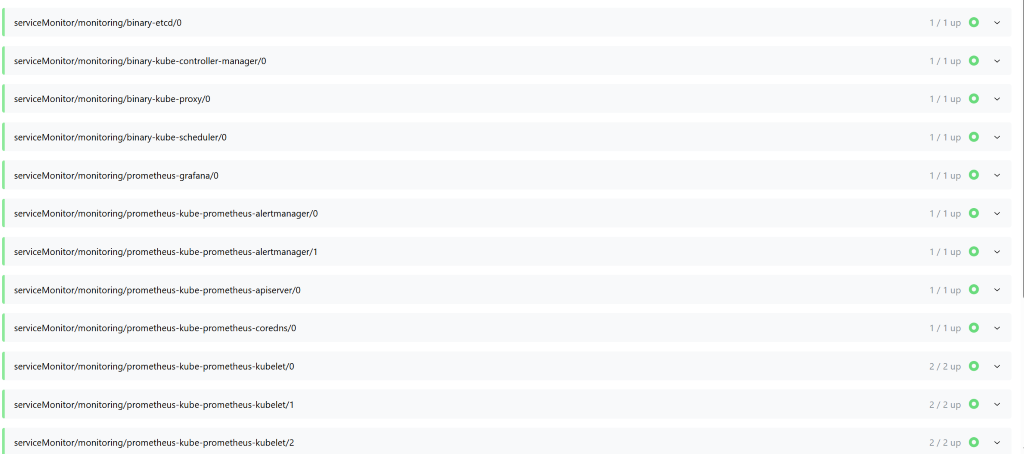

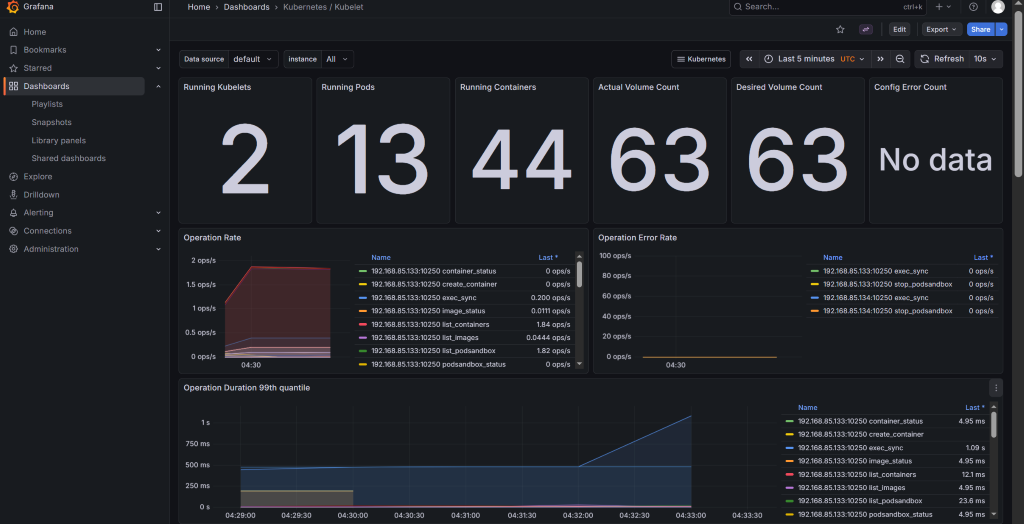

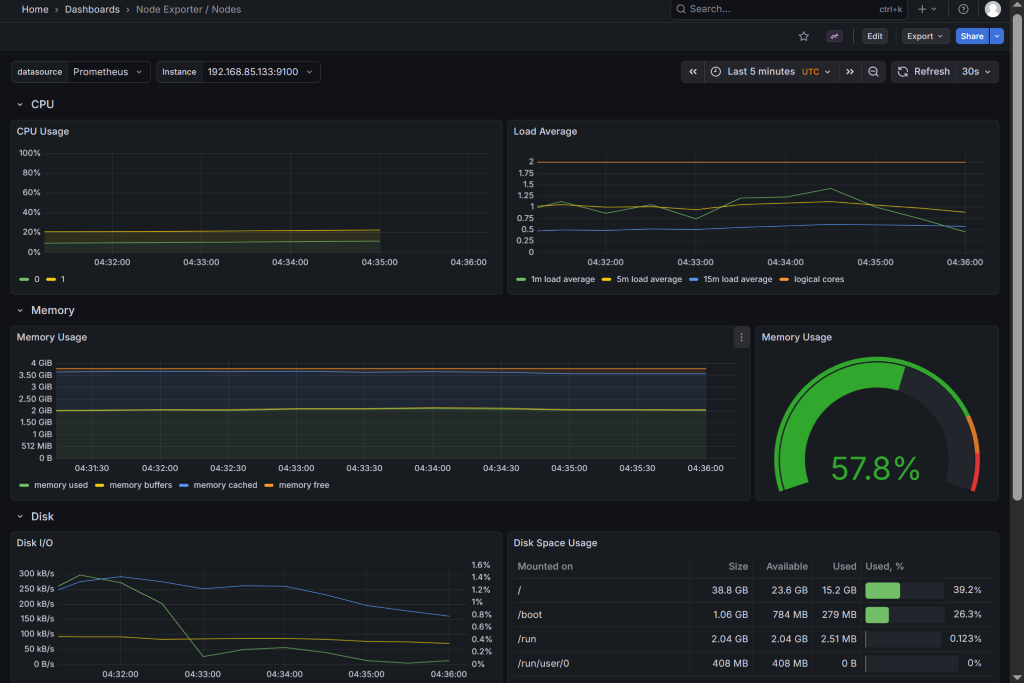

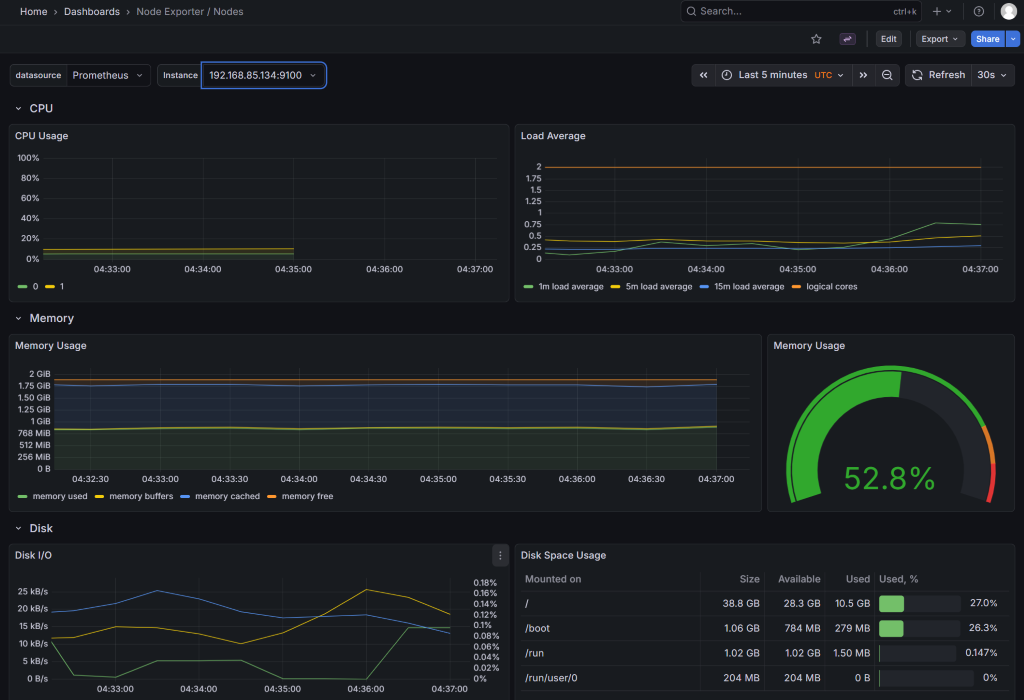

6、查看监控，重启Prometheus

[root@k8s-master ~]# kubectl get prometheus -n monitoring

NAME                                    VERSION   DESIRED   READY   RECONCILED   AVAILABLE   AGE

prometheus-kube-prometheus-prometheus   v3.9.1    1         1       True         True        21m


[root@k8s-master ~]# kubectl rollout restart statefulset prometheus-prometheus-kube-prometheus-prometheus -n monitoring

statefulset.apps/prometheus-prometheus-kube-prometheus-prometheus restarted


[root@k8s-master ~]# kubectl get pods -n monitoring

NAME                                                     READY   STATUS    RESTARTS   AGE

alertmanager-prometheus-kube-prometheus-alertmanager-0   2/2     Running   0          21m

prometheus-grafana-8bdd974f8-m2hmr                       3/3     Running   0          21m

prometheus-kube-prometheus-operator-784bff49d9-6jkrf     1/1     Running   0          21m

prometheus-kube-state-metrics-df8f49986-7xnrc            1/1     Running   0          21m

prometheus-prometheus-kube-prometheus-prometheus-0       1/2     Running   0          11s

prometheus-prometheus-node-exporter-5rcbz                1/1     Running   0          21m

prometheus-prometheus-node-exporter-j6dlz                1/1     Running   0          21m

7、同理kube-proxy也需要打开metrics

[root@k8s-master prome]# cat /etc/kubernetes/kube-proxy.yaml

apiVersion: kubeproxy.config.k8s.io/v1alpha1

bindAddress: 0.0.0.0

clientConnection:

  acceptContentTypes: ""

  burst: 10

  contentType: application/vnd.kubernetes.protobuf

  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig

  qps: 5

clusterCIDR: 172.16.0.0/12,fc00::/48

configSyncPeriod: 15m0s

conntrack:

  max: null

  maxPerCore: 32768

  min: 131072

  tcpCloseWaitTimeout: 1h0m0s

  tcpEstablishedTimeout: 24h0m0s

enableProfiling: false

healthzBindAddress: 0.0.0.0:10256

hostnameOverride: ""

iptables:

  masqueradeAll: false

  masqueradeBit: 14

  minSyncPeriod: 0s

  syncPeriod: 30s

ipvs:

  masqueradeAll: true

  minSyncPeriod: 5s

  scheduler: "rr"

  syncPeriod: 30s

kind: KubeProxyConfiguration

metricsBindAddress: 0.0.0.0:10249

mode: "ipvs"

nodePortAddresses: null

oomScoreAdj: -999

portRange: ""

udpIdleTimeout: 250ms

8、给kube-proxy添加监控服务

[root@k8s-master prome]# cat kube-proxy-monitor.yaml

apiVersion: v1

kind: Service

metadata:

  name: kube-proxy-metrics

  namespace: kube-system

  labels:

    k8s-app: kube-proxy

spec:

  type: ClusterIP

  clusterIP: None

  ports:

  - name: http-metrics

    port: 10249

    targetPort: 10249

    protocol: TCP

---

apiVersion: v1

kind: Endpoints

metadata:

  name: kube-proxy-metrics

  namespace: kube-system

  labels:

    k8s-app: kube-proxy

subsets:

- addresses:

  - ip: 192.168.85.133  # 你的 Master IP，也是 Node IP

  ports:

  - name: http-metrics

    port: 10249

    protocol: TCP

[root@k8s-master prome]# cat kube-proxy-servicemonitor.yaml

apiVersion: monitoring.coreos.com/v1

kind: ServiceMonitor

metadata:

  name: binary-kube-proxy

  namespace: monitoring

  labels:

    release: prometheus

spec:

  jobLabel: k8s-app

  endpoints:

  - port: http-metrics

    scheme: http

    interval: 30s

    honorLabels: true

  selector:

    matchLabels:

      k8s-app: kube-proxy

  namespaceSelector:

    matchNames:

    - kube-system

9、同理etcd也打开metrics，不使用证书

[root@k8s-master prome]# cat /etc/etcd/etcd.config.yml

name: 'master'

data-dir: /var/lib/etcd

wal-dir: /var/lib/etcd/wal

snapshot-count: 5000

heartbeat-interval: 100

election-timeout: 1000

quota-backend-bytes: 0

listen-peer-urls: 'https://192.168.85.133:2380'

listen-client-urls: 'https://0.0.0.0:2379,http://0.0.0.0:2379'

max-snapshots: 3

max-wals: 5

cors:

initial-advertise-peer-urls: 'https://192.168.85.133:2380'

advertise-client-urls: 'https://192.168.85.133:2379'

discovery:

discovery-fallback: 'proxy'

discovery-proxy:

discovery-srv:

initial-cluster: 'master=https://192.168.85.133:2380'

initial-cluster-token: 'etcd-k8s-cluster'

initial-cluster-state: 'new'

strict-reconfig-check: false

enable-v2: true

enable-pprof: true

proxy: 'off'

proxy-failure-wait: 5000

proxy-refresh-interval: 30000

proxy-dial-timeout: 1000

proxy-write-timeout: 5000

proxy-read-timeout: 0

client-transport-security:

  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'

  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'

  client-cert-auth: true

  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'

  auto-tls: true

peer-transport-security:

  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'

  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'

  peer-client-cert-auth: true

  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'

  auto-tls: true

debug: false

log-package-levels:

log-outputs: [default]

force-new-cluster: false

10、给etcd添加监控服务

[root@k8s-master prome]# cat etcd-monitor.yaml

apiVersion: v1

kind: Service

metadata:

  name: etcd-metrics

  namespace: kube-system

  labels:

    k8s-app: etcd

spec:

  type: ExternalName

  externalName: 192.168.85.133  # 你的 etcd 节点 IP

  ports:

  - name: https-metrics

    port: 2379

    targetPort: 2379

    protocol: TCP

---

apiVersion: v1

kind: Endpoints

metadata:

  name: etcd-metrics

  namespace: kube-system

  labels:

    k8s-app: etcd

subsets:

- addresses:

  - ip: 192.168.85.133  # 你的 etcd 节点 IP

  ports:

  - name: https-metrics

    port: 2379

    protocol: TCP



[root@k8s-master prome]# cat etcd-servicemonitor.yaml

apiVersion: monitoring.coreos.com/v1

kind: ServiceMonitor

metadata:

  name: binary-etcd

  namespace: monitoring

  labels:

    release: prometheus

spec:

  jobLabel: k8s-app

  endpoints:

  - port: https-metrics

    scheme: http

    interval: 30s

    honorLabels: true

  selector:

    matchLabels:

      k8s-app: etcd

  namespaceSelector:

    matchNames:

    - kube-system
