第5部：kubernetes核心概念Service

service作用

使用kubernetes集群运行工作负载时，由于Pod经常处于用后即焚状态，Pod经常被重新生成，因此 Pod对应的IP地址也会经常变化，导致无法直接访问Pod提供的服务，Kuberetes中使用了Service来解决这一问题，即在Pod前面使用Service对Pod进行代理，无论Pod怎样变化，只要有Label，就可以让 Service能够联系上Pod，把Pod lP地址添加到Service对应的端点列表(Endpoints)实现对Pod IP跟踪，进而实现通过Service访问Pod目的。

通过service为pod客户端提供访问pod方法，即可客户端访问pod入口
通过标签动态感知podIP地址变化等
防止pod失联
定义访问pod访问策略
通过label-selector相关联
通过Service实现Pod的负载均衡(TCP/UDP4层)
底层实现由kube-proxy通过userspace、iptables、ipvs三种代理模式

kube-proxy三种代理模式

kubernetes集群中有三层网络，一类是真实存在的，例如Node Network、Pod Network,提供真实IP地址;一类是虚拟的，例如ClusterNetwork或Service Network，提供虚拟IP地址，不会出现在接口上，仅会出现在Service当中
kube-proxy始终watch(监控)kube-apiserver上关于Service相关的资源变动状态，一旦获取相关信息kube:proxy都要把相关信息转化为当前节点之上的，能够实现Service资源调度到特定Pod之上的规则，进而实现访问Service就能够获取Pod所提供的服务
kube-proxy三种代理模式:userspace模式、iptables模式、ipvs模式

userspace模式

userspace 模式是 kube-proxy 使用的第一代模式，该模式在 kubernetes v1.0 版本开始支持使用。

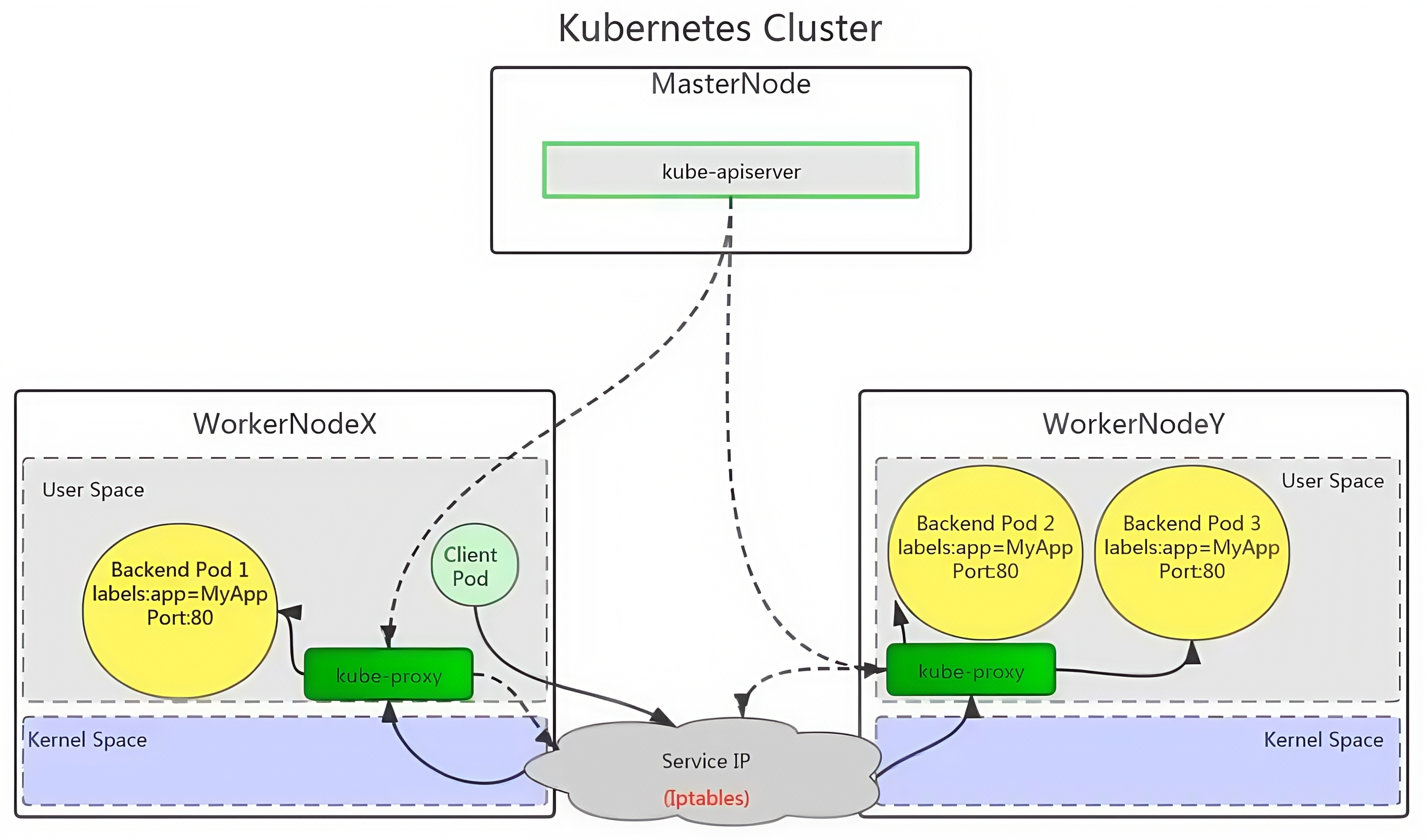

userspace 模式的实现原理图示如下:

在这里插入图片描述

kube-proxy会为每个 Service 随机监听一个端口(proxyport)，并增加一条 iptables规则。所以通过 ClusterlP:Port 访问 Service 的报文都redirect 到 proxy port,kube-proxy 从它监听的 proxy port 收到报文以后，走 round robin(默认)或是 session affinity(会话亲和力，即同client IP 都走同一链路给同pod 服务)，分发给对应的 pod。

由于 userspace 模式会造成所有报文都走一遍用户态(也就是Service 请求会先从用户空间进入内核 iptables，然后再回到用户空间，由kube-proxy 完成后端 Endpoints 的选择和代理工作)，需要在内核空间和用户空间转换，流量从用户空间进出内核会带来性能损耗，所以这种模式效率低、性能不高，不推荐使用。

在这里插入图片描述

iptables模式

iptables 模式是 kube-proxy使用的第二代模式，该模式在 kubernetes v1.1版本开始支持，从v1.2 版本开始成为 kube-proxy 的默认模式。

iptables 模式的负载均衡模式是通过底层 netfilter/iptables 规则来实现的，通过 informer 机制 Watch 接口实时跟踪 Service 和 Endpoint 的变更事件，并触发对 iptables 规则的同步更新。

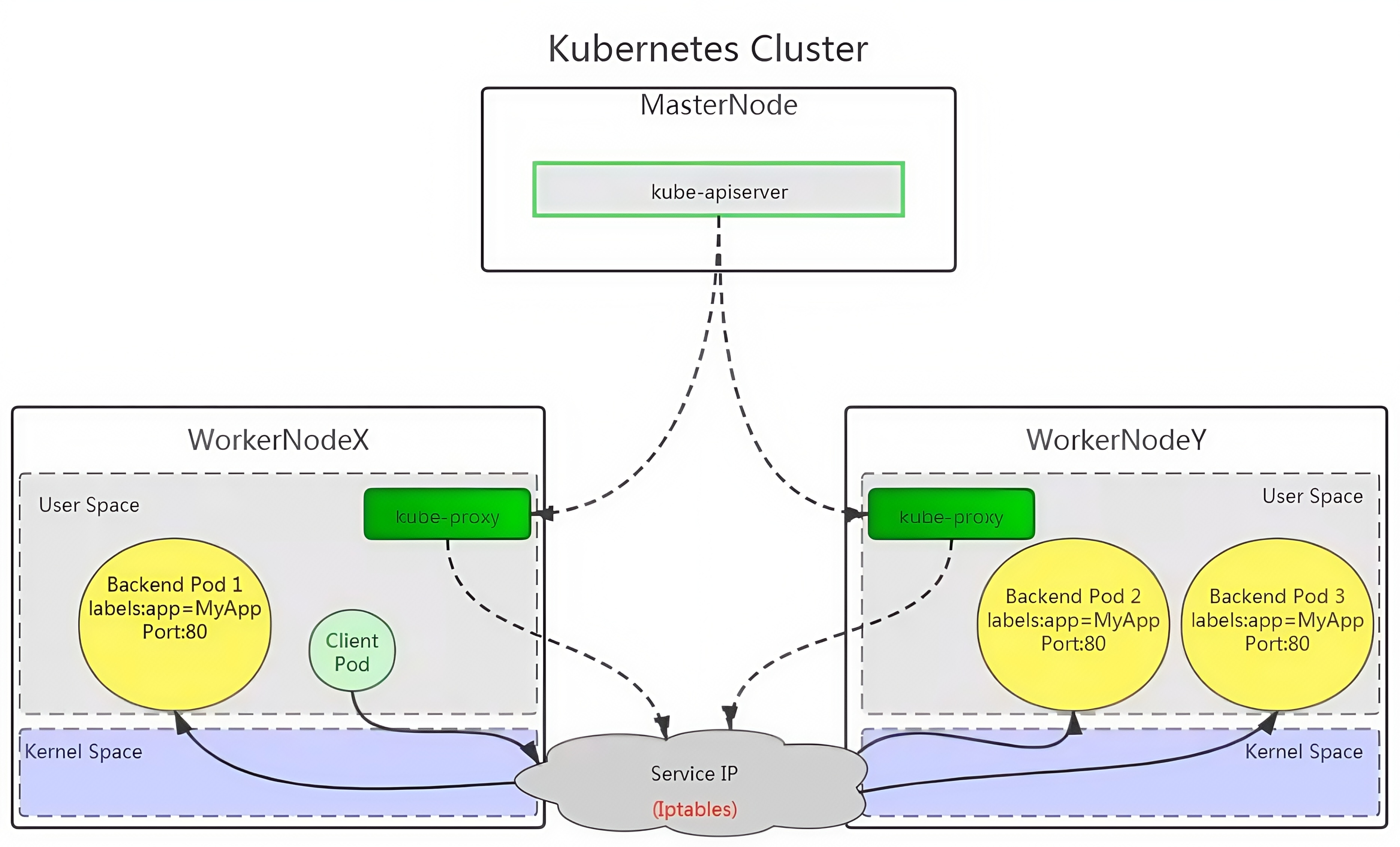

iptables 模式的实现原理图示如下:

在这里插入图片描述

通过图示可以发现在 iptables模式下，kube proxy只是作为 controller，而不是server，真正服务的是内核的 netfilter，体现在用户态的是 iptables。所以整体的效率会比 userspace 模式高。

在这里插入图片描述

ipvs模式

ipvs 模式被 kube-proxy采纳为第三代模式，模式在 kubernetes v1.8 版本开始引入，在 v1.9 版本中处于 beta 阶段，在 v1.11 版本中正式开始使用。

ipvs(iP Virtual Server)实现了传输层负载均衡，也就是4层交换，作为 Linux 内核的一部分。ipvs运行在主机上，在真实服务器前充当负载均衡器。ipvs 可以将基于 TCP和 UDP 的服务请求转发到真实服务器上，并使真实服务器上的服务在单个IP 地址上显示为虚拟服务。

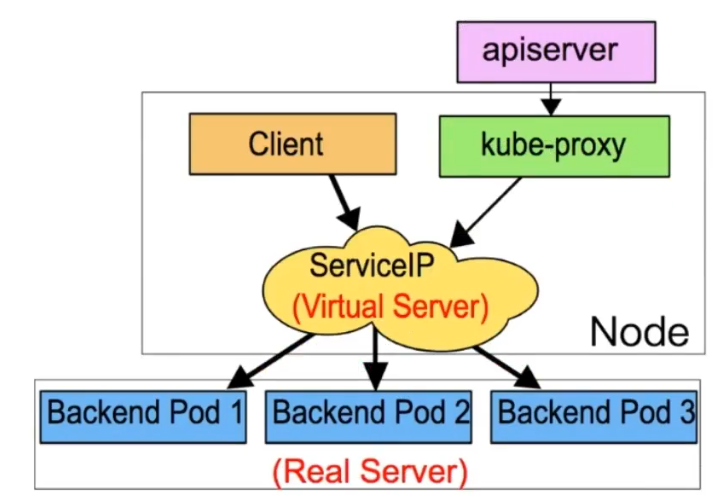

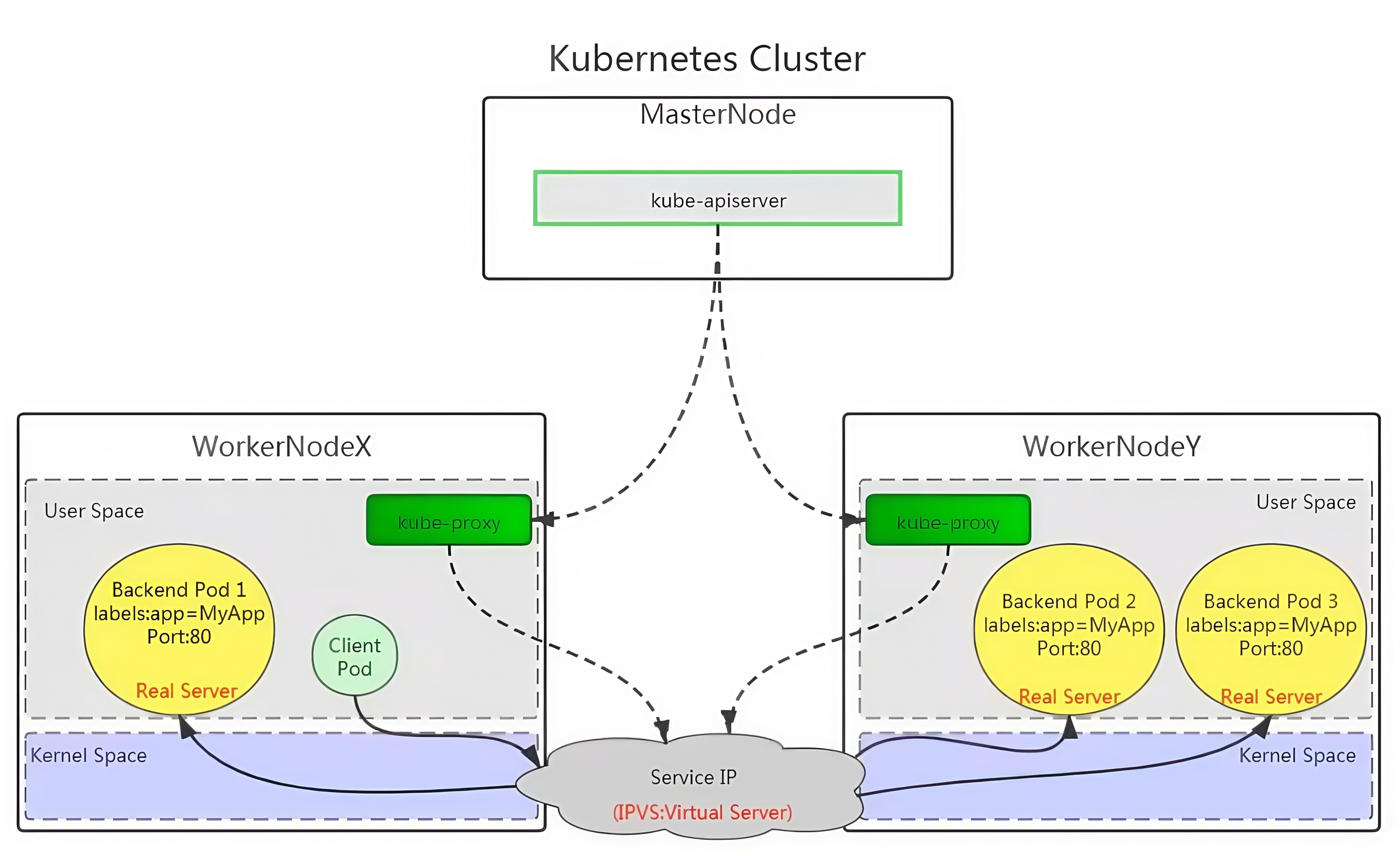

ipvs 模式的实现原理图示如下:

在这里插入图片描述

ipvs 和 iptables 都是基于 netfilter 的，那么ipvs 模式有哪些更好的性能呢?

ipvs 为大型集群提供了更好的可拓展性和性能
ipvs 支持比 iptables 更复杂的负载均衡算法(包括:最小负载、最少连接、加权等)
ipvs 支持服务器健康检查和连接重试等功能
可以动态修改 ipset的集合，即使iptables 的规则正在使用这个集合

ipvs 依赖于 iptables。ipvs 会使用 iptables 进行包过滤、airpin-masquerade tricks(地址伪装)、SNAT 等功能，但是使用的是 iptables 的扩展ipset，并不是直接调用 iptables 来生成规则链。通过 ipset 来存储需要 DROP或 masquerade 的流量的源或目标地址，用于确保iptables 规则的数量是恒定的，这样我们就不需要关心有多少 Service 或是 Pod 了。

使用 ipset 相较于 iptables有什么优点呢?iptables 是线性的数据结构，而ipset引入了带索引的数据结构，当规则很多的时候，ipset 依然可以很高效的查找和匹配。可以将 ipset 简单理解为一个IP(段)的集合，这个集合的内容可以是IP 地址、IP 网段、端口等，iptables 可以直接添加规则对这个“可变的集合进行操作”，这样就可以大大减少iptables规则的数量，从而减少性能损耗。

举一个例子，如果我们要禁止成千上万个IP访问我们的服务器，如果使用 iptables 就需要一条一条的添加规则，这样会在 iptables 中生成大量的规则:如果用ipset 就只需要将相关的IP 地址(网段)加入到 ipset 集合中，然后只需要设置少量的 iptables 规则就可以实现这个目标。

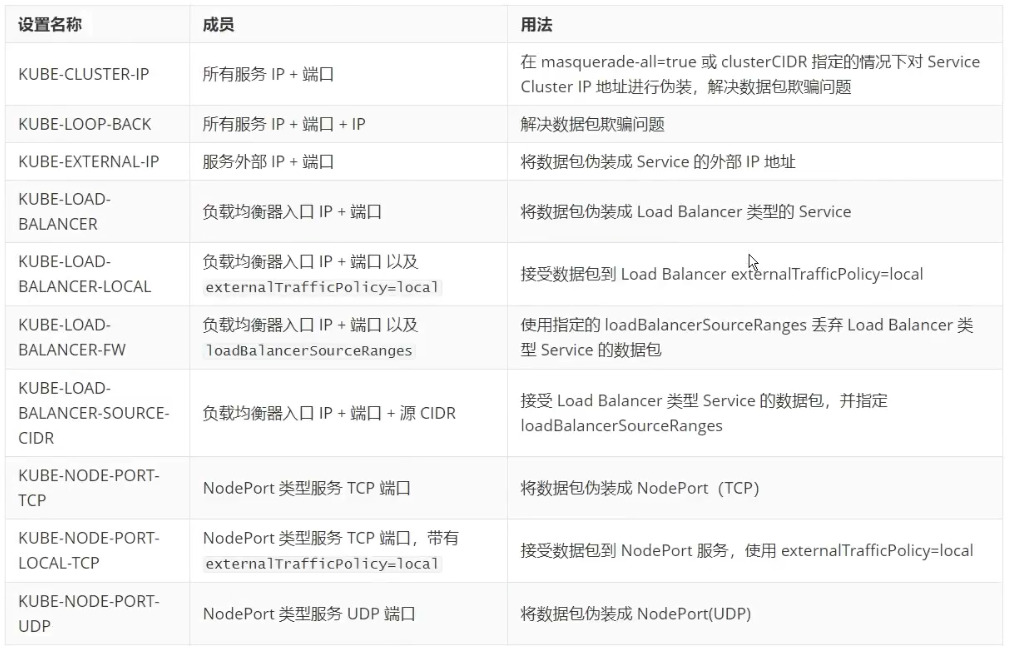

下面的表格是ipvs模式下维护的ipset表集合：

在这里插入图片描述

iptables与ipvs对比

iptables
- 工作在内核空间
- 优点
  - 灵活，功能强大（可以在数据包不同阶段对包进行操作）
- 缺点
  - 表中规则过多时，响应变慢，即规则遍历匹配和更新，呈线性延时
ipvs
- 工作在内核空间
- 优点
  - 转发效率高
  - 调度算法丰富：rr，wrr，lc，wlc，ip hash等
- 缺点
  - 内核支持不全，低版本内核不能使用，需要升级到4.0或5.0以上。
使用iptables与ipvs时机
- 1.10版本之前使用iptables(1.1版本之前使用UserSpace进行转发)
- 1.11版本之后同时支持iptables与ipvs，默认使用ipvs，如果ipvs模块没有加载时，会自动降级至iptables

service类型

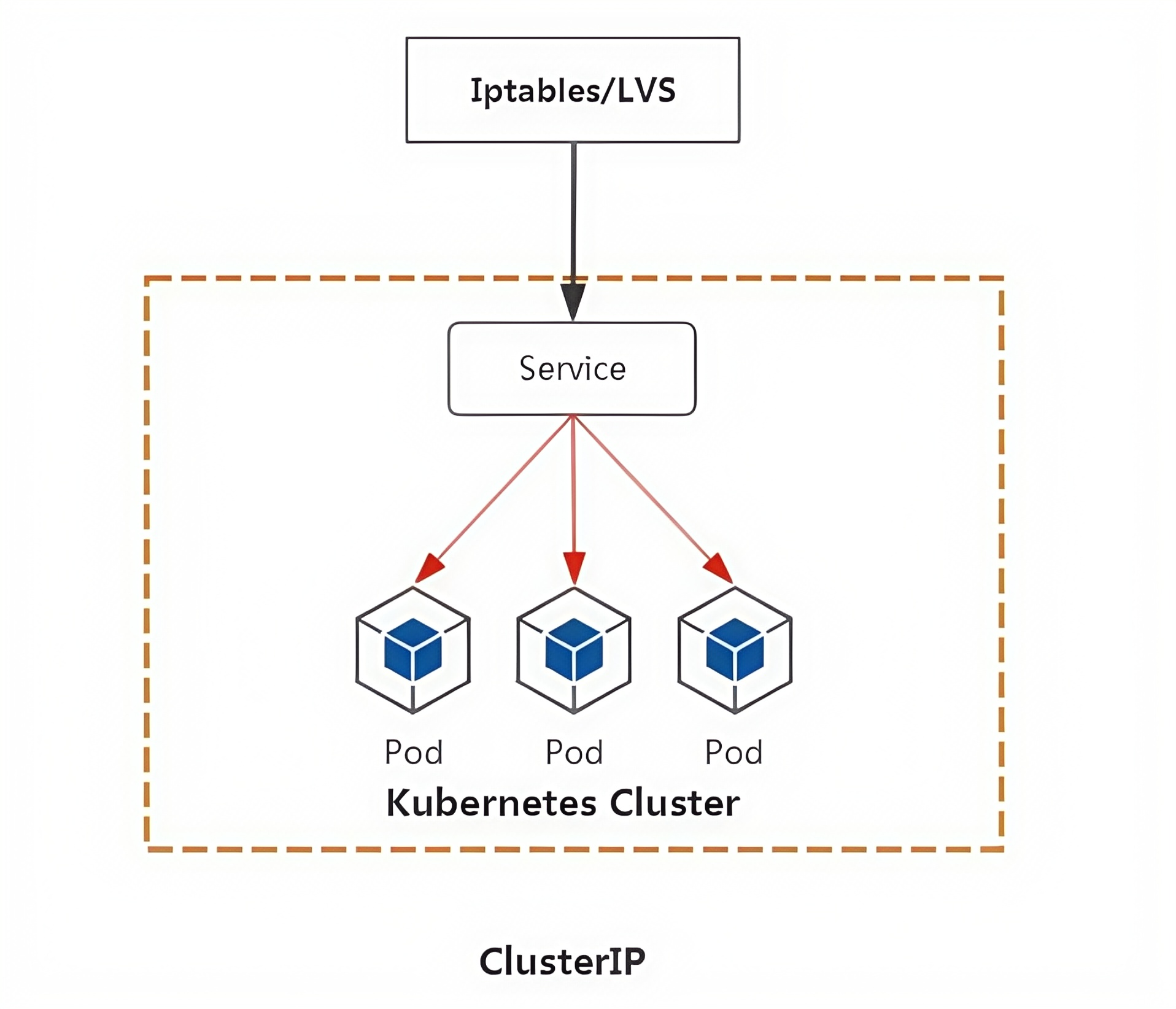

ClusterIP
- 默认，分配一个集群内部可以访问的虚拟IP
NodePort
- 在每个Node上分配一个端口作为外部访问入口
- nodePort端口范围为:30000-32767

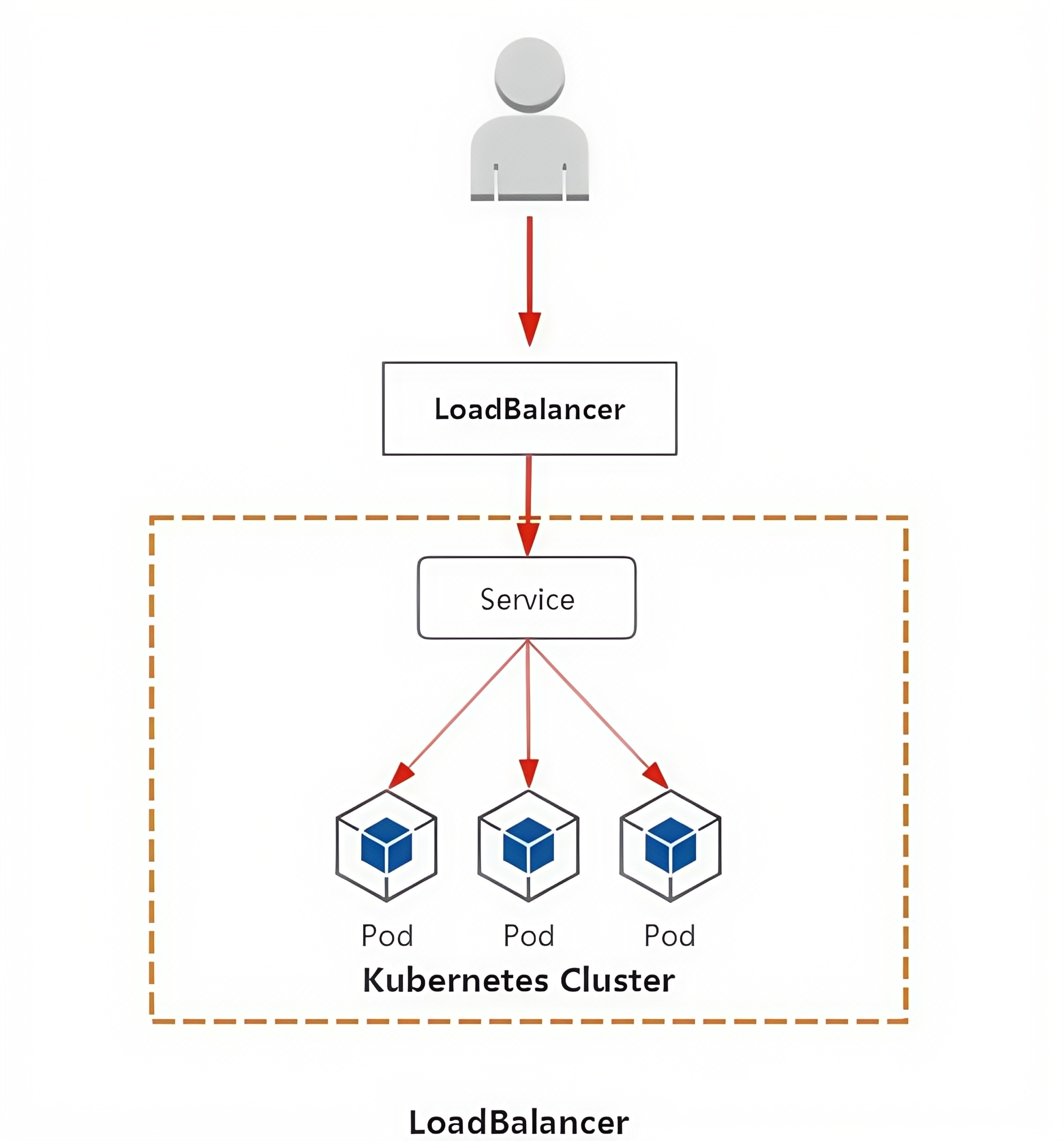

LoadBalancer
- 工作在特定的Cloud Provider上，例如Google Cloud，AWS，OpenStack
ExternalName
- 表示把集群外部的服务引入到集群内部中来，即实现了集群内部pod和集群外部的服务进行通信

service参数

port 访问service使用的端口
targetPort Pod中容器端口
nodePort 通过Node实现外网用户访问k8s集群内service（30000-32767）

service创建

Service的创建在工作中有两种方式，一是命令行创建，二是通过资源清单文件YAML文件创建。

1：ClusterIP类型

ClusterlP根据是否生成ClusterlP又可分为普通Service和Headless Service。

service两类：

普通service：为Kubernetes的Service分配一个集群内部可访问的固定虚拟IP(Cluster IP),实现集群内的访问,。
Headless Service

该服务不会分配Cluster Ip,也**不通过kube-proxy做反向代理和负载均衡。**而是通过DNS提供稳定的网络 ID来访问，DNS会将headless service的后端直接解析为pod IP列表。

在这里插入图片描述

ClusterIP Service

命令创建Service

创建deployment类型的应用

[root@docker-master service-dir]# vim nginx-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deploy
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: c1
        image: nginx:1.26-alpine
        ports:
        - containerPort: 80

应用YAML文件

[root@docker-master service-dir]# kubectl apply -f nginx-deployment.yaml
deployment.apps/nginx-deploy created

验证

[root@docker-master service-dir]# kubectl get pod -o wide
NAME                            READY   STATUS    RESTARTS   AGE   IP               NODE           NOMINATED NODE   READINESS GATES
nginx-deploy-5b6d5cd699-gcsm9   1/1     Running   0          18s   10.244.248.177   docker-node2   <none>           <none>
nginx-deploy-5b6d5cd699-pkc5l   1/1     Running   0          18s   10.244.148.212   docker-node1   <none>           <none>

[root@docker-master service-dir]# kubectl get deployment
NAME           READY   UP-TO-DATE   AVAILABLE   AGE
nginx-deploy   2/2     2            2           41s

创建clusterIP类型service与Deployment类型应用关联

[root@docker-master service-dir]# kubectl expose deployment nginx-deploy --type=ClusterIP --target-port=80 --port=80
service/nginx-deploy exposed

说明
expose             #创建service
deployment.apps    #控制器类型
nginx-deploy       #应用名称，也是service名称
--type=ClusterIP   #指定service类型
--target-port=80   #指定Pod中容器端口
--port=80          #指定service端口

[root@docker-master service-dir]# kubectl get svc
NAME           TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
kubernetes     ClusterIP   10.96.0.1       <none>        443/TCP   8d
nginx-deploy   ClusterIP   10.99.127.250   <none>        80/TCP    16s

查看详情描述

[root@docker-master service-dir]# kubectl describe svc nginx-deploy
Name:              nginx-deploy
Namespace:         default
Labels:            <none>
Annotations:       <none>
Selector:          app=nginx
Type:              ClusterIP
IP Family Policy:  SingleStack
IP Families:       IPv4
IP:                10.99.127.250
IPs:               10.99.127.250
Port:              <unset>  80/TCP
TargetPort:        80/TCP
Endpoints:         10.244.148.212:80,10.244.248.177:80
Session Affinity:  None
Events:            <none>

访问clusterIP就可以看到网页内容

[root@docker-master service-dir]# curl http://10.99.127.250
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

验证负载均衡功能

查看pod

[root@docker-master service-dir]# kubectl get pod
NAME                            READY   STATUS    RESTARTS   AGE
nginx-deploy-5b6d5cd699-gcsm9   1/1     Running   0          5m58s
nginx-deploy-5b6d5cd699-pkc5l   1/1     Running   0          5m58s

修改nginx-deploy-5b6d5cd699-gcsm9网页内容为：this is web1

[root@docker-master service-dir]# kubectl exec -it nginx-deploy-5b6d5cd699-gcsm9 /bin/sh
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
/ # cd /usr/share/nginx/html
/usr/share/nginx/html # echo "this is web1" > index.html
/usr/share/nginx/html #

修改nginx-deploy-5b6d5cd699-pkc5l网页内容为：this is web2

[root@docker-master service-dir]# kubectl exec -it nginx-deploy-5b6d5cd699-pkc5l /bin/sh
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
/ # cd /usr/share/nginx/html
/usr/share/nginx/html # echo "this is web2" > index.html
/usr/share/nginx/html #

验证网页显示

[root@docker-master service-dir]# curl http://10.99.127.250
this is web2
[root@docker-master service-dir]# curl http://10.99.127.250
this is web1

通过YAML文件创建service

编写YAML文件

[root@docker-master service-dir]# vim nginx-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deploy
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: c1
        image: nginx:1.26-alpine
        ports:
        - containerPort: 80
---                    # 添加以下内容
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc
spec:
  type: ClusterIP
  ports:
  - port: 80
    targetPort: 80
    protocol: TCP
  selector:
    app: nginx

应用YAML

[root@docker-master service-dir]# kubectl delete svc nginx-deploy
service "nginx-deploy" deleted

[root@docker-master service-dir]# kubectl apply -f nginx-deployment.yaml
deployment.apps/nginx-deploy created
service/nginx-svc created

验证

[root@docker-master service-dir]# kubectl get pod -o wide
NAME                            READY   STATUS    RESTARTS   AGE   IP               NODE           NOMINATED NODE   READINESS GATES
nginx-deploy-5b6d5cd699-79d7n   1/1     Running   0          21s   10.244.148.206   docker-node1   <none>           <none>
nginx-deploy-5b6d5cd699-h9r9z   1/1     Running   0          21s   10.244.248.178   docker-node2   <none>           <none>

[root@docker-master service-dir]# kubectl get svc
NAME         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.96.0.1        <none>        443/TCP   8d
nginx-svc    ClusterIP   10.102.193.213   <none>        80/TCP    36s

[root@docker-master service-dir]# kubectl describe svc nginx-svc
Name:              nginx-svc
Namespace:         default
Labels:            <none>
Annotations:       <none>
Selector:          app=nginx
Type:              ClusterIP
IP Family Policy:  SingleStack
IP Families:       IPv4
IP:                10.102.193.213
IPs:               10.102.193.213
Port:              <unset>  80/TCP
TargetPort:        80/TCP
Endpoints:         10.244.148.206:80,10.244.248.178:80
Session Affinity:  None
Events:            <none>

[root@docker-master service-dir]# kubectl get endpoints
NAME                                          ENDPOINTS                             AGE
k8s-sigs.io-nfs-subdir-external-provisioner   <none>                                22h
kubernetes                                    192.168.108.30:6443                   8d
nginx-svc                                     10.244.148.206:80,10.244.248.178:80   6m32s

[root@docker-master service-dir]# curl http://10.102.193.213
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

headless service

普通的clusterIP service是service name解析为cluster ip，然后cluster ip对应到后面pod ip。
headless service是指service name直接解析为后面的pod ip

创建headless service的YAML文件

[root@docker-master service-dir]# vim nginx-headless.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-headless
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: c1
        image: nginx:1.26-alpine
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-headless
spec:
  type: ClusterIP     #ClusterIP类型也是默认类型
  clusterIP: None     #None代表无头服务
  ports:              #指定service端口及容器端口
  - port: 80          #service ip中的端口
    targetPort: 80    #pod端口
    protocol: TCP
  selector:           #指定后端pod标签
    app: nginx

应用YAML文件

[root@docker-master service-dir]# kubectl apply -f nginx-headless.yaml
deployment.apps/nginx-headless unchanged
service/nginx-headless unchanged

查看

[root@docker-master service-dir]# kubectl get svc
NAME             TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
kubernetes       ClusterIP   10.96.0.1    <none>        443/TCP   8d
nginx-headless   ClusterIP   None         <none>        80/TCP    54s

[root@docker-master service-dir]# kubectl get pod -o wide
NAME                              READY   STATUS    RESTARTS   AGE   IP               NODE           NOMINATED NODE   READINESS GATES
nginx-headless-5b6d5cd699-c74cd   1/1     Running   0          67s   10.244.248.186   docker-node2   <none>           <none>
nginx-headless-5b6d5cd699-cz4fz   1/1     Running   0          67s   10.244.148.214   docker-node1   <none>           <none>

[root@docker-master service-dir]# kubectl get endpoints
NAME                                          ENDPOINTS                             AGE
k8s-sigs.io-nfs-subdir-external-provisioner   <none>                                22h
kubernetes                                    192.168.108.30:6443                   8d
nginx-headless                                10.244.148.214:80,10.244.248.186:80   83s

DNS

DNS服务监视Kubernetes APl,为每一个Service创建DNS记录用于域名解析

headless service需要DNS来解决访问问题

DNS记录格式为:…svc.cluster.local.

查看kube-dns服务的IP

[root@docker-master service-dir]# kubectl get pod -o wide -n kube-system | grep dns
coredns-66f779496c-4bt9n                   1/1     Running   13 (4h32m ago)   8d      10.244.219.106   master         <none>           <none>
coredns-66f779496c-nnkcw                   1/1     Running   13 (4h32m ago)   8d      10.244.219.104   master         <none>           <none>

[root@docker-master service-dir]# kubectl get svc -n kube-system | grep dns
kube-dns         ClusterIP   10.96.0.10      <none>        53/UDP,53/TCP,9153/TCP   8d

在集群主机通过DNS服务地址查找无头服务的dns解析

[root@docker-master service-dir]# dig -t a nginx-headless.default.svc.cluster.local. @10.96.0.10

; <<>> DiG 9.11.4-P2-RedHat-9.11.4-26.P2.el7_9.16 <<>> -t a nginx-headless.default.svc.cluster.local. @10.96.0.10
;; global options: +cmd
;; Got answer:
;; WARNING: .local is reserved for Multicast DNS
;; You are currently testing what happens when an mDNS query is leaked to DNS
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 30160
;; flags: qr aa rd; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;nginx-headless.default.svc.cluster.local. IN A

;; ANSWER SECTION:
nginx-headless.default.svc.cluster.local. 30 IN	A 10.244.148.214
nginx-headless.default.svc.cluster.local. 30 IN	A 10.244.248.186

;; Query time: 5 msec
;; SERVER: 10.96.0.10#53(10.96.0.10)
;; WHEN: 四 1月 22 13:58:15 CST 2026
;; MSG SIZE  rcvd: 181

在集群内创建pod进行解析

[root@docker-master service-dir]# kubectl run -it centos --image=centos:7 --image-pull-policy=IfNotPresent
If you don't see a command prompt, try pressing enter.
[root@centos /]# curl http://nginx-headless.default.svc.cluster.local.
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

2：NodePort类型

创建YAML文件

[root@docker-master service-dir]# vim nginx-nodeport.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-nodeport
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: c1
          image: nginx:1.26-alpine
          ports:
            - containerPort: 80     # 容器端口
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-nodeport
spec:
  type: NodePort
  ports:
    - port: 8060     # Service端口，内部集群访问端口
      targetPort: 80      # Pod端口
      nodePort: 31111     # node节点端口，外部访问集群的端口   范围30000-32767
      protocol: TCP
  selector:
    app: nginx

应用YAML文件

[root@docker-master service-dir]# kubectl apply -f nginx-nodeport.yaml
deployment.apps/nginx-nodeport created
service/nginx-nodeport created

查看

[root@docker-master service-dir]# kubectl get svc,pod
NAME                     TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)          AGE
service/kubernetes       ClusterIP   10.96.0.1        <none>        443/TCP          8d
service/nginx-nodeport   NodePort    10.108.158.161   <none>        8060:31111/TCP   64s

NAME                                  READY   STATUS    RESTARTS   AGE
pod/nginx-nodeport-5b6d5cd699-k4sfz   1/1     Running   0          64s
pod/nginx-nodeport-5b6d5cd699-p6plj   1/1     Running   0          64s

[root@docker-master service-dir]# kubectl get deploy
NAME             READY   UP-TO-DATE   AVAILABLE   AGE
nginx-nodeport   2/2     2            2           80s

直接使用浏览器访问

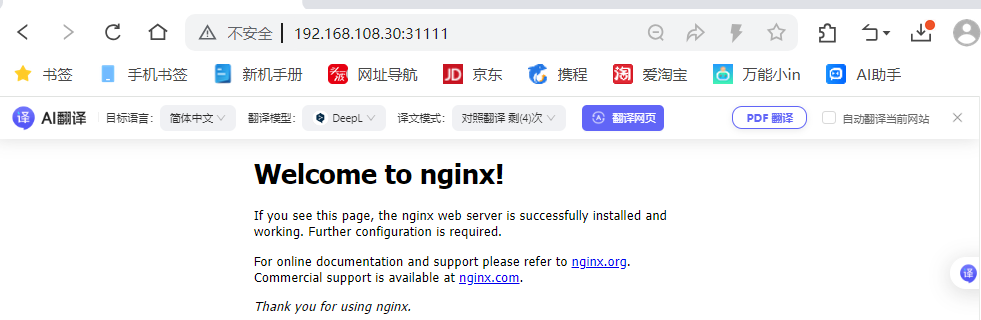

http://192.168.108.30:31111/

在这里插入图片描述

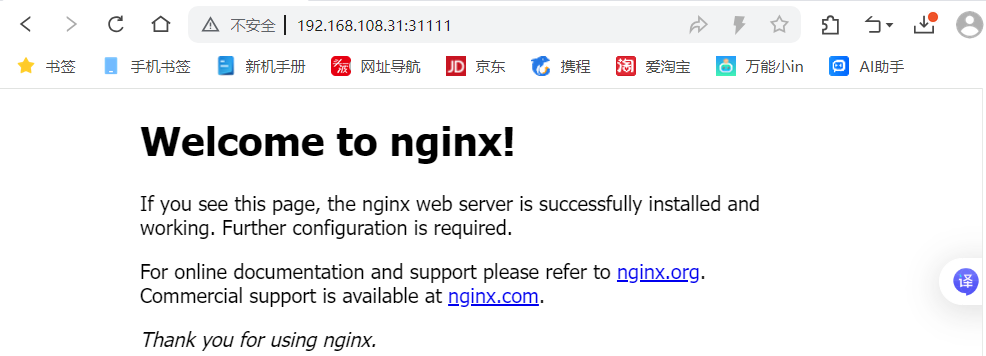

http://192.168.108.31:31111/

在这里插入图片描述

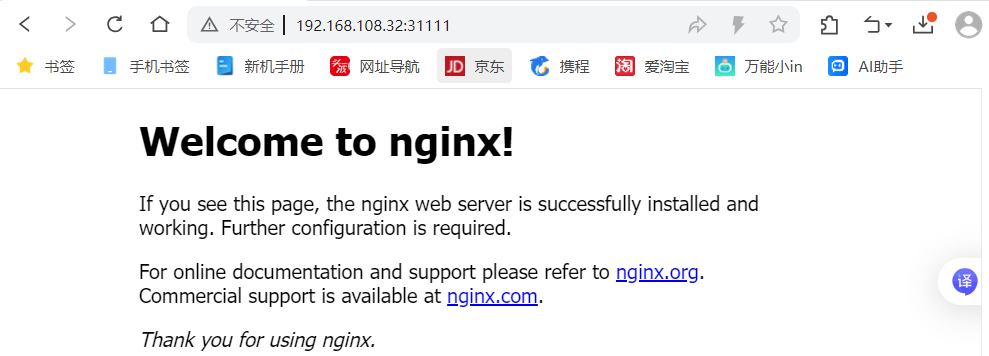

http://192.168.108.32:31111/

在这里插入图片描述

3：LoadBalancer

是一个插件

集群外访问过程

用户
域名
云服务提供商提供LB服务
NodeIP：Port（service IP）
Pod IP：端口

在这里插入图片描述

MetalLB

自建kubernetes的loadbalancer类型服务方案

MetalLB可以为kubernetes集群中的Service提供网络负载均衡功能

MetalLB两大功能为:

地址分配，类似于DHCP
外部通告，一旦MetalLB为服务分配了外部IP地址，它就需要使群集之外的网络意识到该IP在群集中"存在"。MetalLB使用标准路由协议来实现此目的:ARP，NDP或BGP。

参考文档：https://metallb.universe.tf/installation/

下载资源清单文件

v0.12

[root@docker-master load-dir]# wget https://raw.githubusercontent.com/metallb/metallb/v0.12.1/manifests/namespace.yaml
--2026-01-22 15:00:38--  https://raw.githubusercontent.com/metallb/metallb/v0.12.1/manifests/namespace.yaml
正在解析主机 raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.111.133, 185.199.108.133, 185.199.109.133, ...
正在连接 raw.githubusercontent.com (raw.githubusercontent.com)|185.199.111.133|:443... 已连接。
已发出 HTTP 请求，正在等待回应... 200 OK
长度：91 [text/plain]
正在保存至: “namespace.yaml”

100%[========================================================================>] 91          --.-K/s 用时 0s

2026-01-22 15:00:39 (9.14 MB/s) - 已保存 “namespace.yaml” [91/91])

[root@docker-master load-dir]# wget https://raw.githubusercontent.com/metallb/metallb/v0.12.1/manifests/metallb.yaml
--2026-01-22 15:01:03--  https://raw.githubusercontent.com/metallb/metallb/v0.12.1/manifests/metallb.yaml
正在解析主机 raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.110.133, 185.199.111.133, 185.199.108.133, ...
正在连接 raw.githubusercontent.com (raw.githubusercontent.com)|185.199.110.133|:443... 已连接。
已发出 HTTP 请求，正在等待回应... 200 OK
长度：9383 (9.2K) [text/plain]
正在保存至: “metallb.yaml”

100%[========================================================================>] 9,383       --.-K/s 用时 0.01s

2026-01-22 15:01:04 (850 KB/s) - 已保存 “metallb.yaml” [9383/9383])

应用文件

[root@docker-master load-dir]# kubectl apply -f namespace.yaml
namespace/metallb-system created

[root@docker-master load-dir]# kubectl apply -f metallb.yaml
serviceaccount/controller created
serviceaccount/speaker created
clusterrole.rbac.authorization.k8s.io/metallb-system:controller created
clusterrole.rbac.authorization.k8s.io/metallb-system:speaker created
role.rbac.authorization.k8s.io/config-watcher created
role.rbac.authorization.k8s.io/pod-lister created
role.rbac.authorization.k8s.io/controller created
clusterrolebinding.rbac.authorization.k8s.io/metallb-system:controller created
clusterrolebinding.rbac.authorization.k8s.io/metallb-system:speaker created
rolebinding.rbac.authorization.k8s.io/config-watcher created
rolebinding.rbac.authorization.k8s.io/pod-lister created
rolebinding.rbac.authorization.k8s.io/controller created
daemonset.apps/speaker created
deployment.apps/controller created
resource mapping not found for name: "controller" namespace: "" from "metallb.yaml": no matches for kind "PodSecurityPolicy" in version "policy/v1beta1"
ensure CRDs are installed first
resource mapping not found for name: "speaker" namespace: "" from "metallb.yaml": no matches for kind "PodSecurityPolicy" in version "policy/v1beta1"
ensure CRDs are installed first

查看

[root@docker-master load-dir]# kubectl get ns
NAME                   STATUS   AGE
default                Active   9d
kube-node-lease        Active   9d
kube-public            Active   9d
kube-system            Active   9d
kubernetes-dashboard   Active   8d
metallb-system         Active   67m

[root@docker-master load-dir]# kubectl get pod -n metallb-system
NAME                         READY   STATUS    RESTARTS   AGE
controller-8d6664589-7dvg2   1/1     Running   0          6m38s
speaker-njbtc                1/1     Running   0          6m38s
speaker-qf5vw                1/1     Running   0          6m38s

问题解决：如果出现pod中有失败状态，可以在node节点中直接导入镜像文件（metallb_controller.tar 和metallb_speaker.tar）,解决镜像下载问题

可以给metallb做资源配置

[root@docker-master load-dir]# kubectl get configmap -n metallb-system
NAME               DATA   AGE
kube-root-ca.crt   1      68m

准备metalLB配置文件

[root@docker-master load-dir]# vim metallb-conf.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: config      #必须是config名称，否则无法获取地址
  namespace: metallb-system
data:
  config: |
    address-pools:
    - name: default
       protocal: layer2
       addresses:
       - 192.168.108.180-192.168.108.200     #与集群节点服务器处于同一网段

应用yaml文件

[root@docker-master load-dir]# kubectl apply -f metallb-conf.yaml
configmap/config created

查看

[root@docker-master load-dir]# kubectl get configmap -n metallb-system
NAME               DATA   AGE
config             1      59s
kube-root-ca.crt   1      71m

[root@docker-master load-dir]# kubectl describe cm config -n metallb-system
Name:         config
Namespace:    metallb-system
Labels:       <none>
Annotations:  <none>

Data
====
config:
----
address-pools:
- name: default
  protocol: layer2
  addresses:
  - 192.168.108.180-192.168.108.200    #与集群节点服务器处于同一网段


BinaryData
====

Events:  <none>

创建nginx应用资源

[root@docker-master load-dir]# vim nginx-metallb.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: metallb-system
  name: nginx-metallb
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: c1
          image: nginx:1.26-alpine
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80

应用yaml文件

[root@docker-master load-dir]# kubectl apply -f nginx-metallb.yaml
deployment.apps/nginx-metallb created

查看

[root@docker-master load-dir]# kubectl get deploy -n metallb-system
NAME            READY   UP-TO-DATE   AVAILABLE   AGE
controller      1/1     1            1           13m
nginx-metallb   2/2     2            2           45s

[root@docker-master load-dir]# kubectl get pod -n metallb-system
NAME                             READY   STATUS    RESTARTS   AGE
controller-8d6664589-7dvg2       1/1     Running   0          13m
nginx-metallb-5b6d5cd699-9wdbj   1/1     Running   0          61s
nginx-metallb-5b6d5cd699-ctzm7   1/1     Running   0          61s
speaker-njbtc                    1/1     Running   0          13m
speaker-qf5vw                    1/1     Running   0          13m

创建service资源

[root@docker-master load-dir]# vim lb-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: lb
  namespace: metallb-system
spec:
  type: LoadBalancer
  ports:
    - targetPort: 80
      port: 80
      protocol: TCP
  selector:
    app: nginx

应用yaml

[root@docker-master load-dir]# kubectl apply -f lb-service.yaml
service/lb created

查看

[root@docker-master load-dir]# kubectl get svc -n metallb-system
NAME   TYPE           CLUSTER-IP      EXTERNAL-IP       PORT(S)        AGE
lb     LoadBalancer   10.98.239.164   192.168.108.180   80:31601/TCP   2m2s

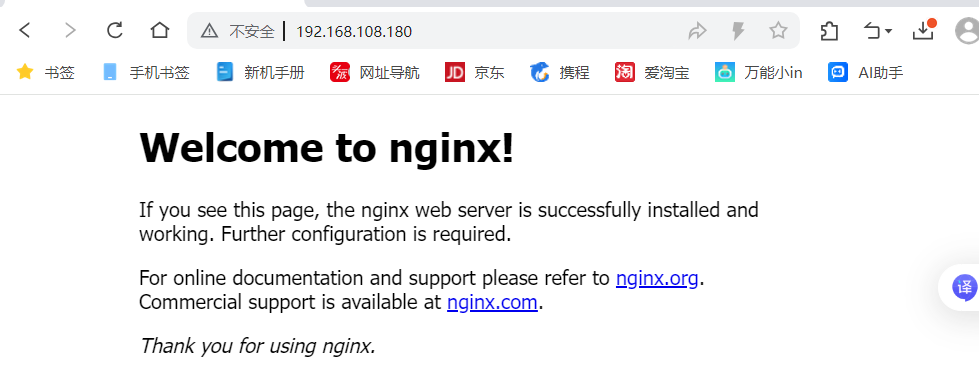

访问地址：http://192.168.108.180/

在这里插入图片描述

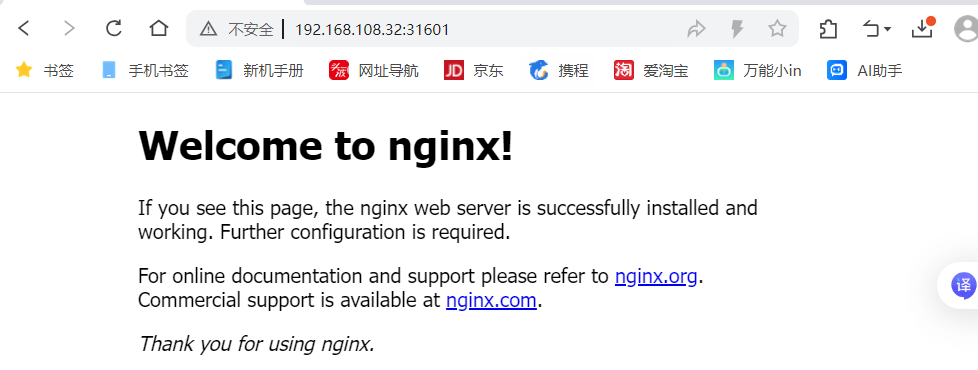

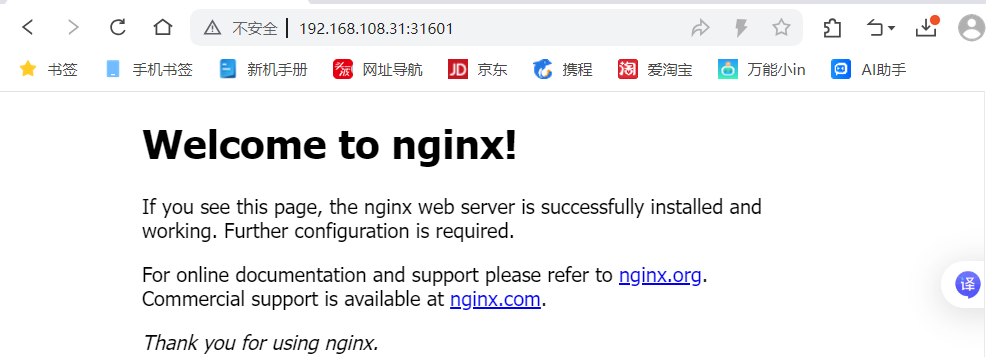

使用集群节点IP也可以访问，此时端口号为31601

在这里插入图片描述

新版本MetalLB

v0.15

前面v0.12的配置从头到尾全部删完

1：修改kube-proxy配置文件

[root@docker-master load-dir]# kubectl edit configmap -n kube-system kube-proxy
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: "ipvs"            #检查模式
ipvs:
 strictARP: true         #设置为true

2：使用YAML文件创建资源（打开魔法）

[root@docker-master load-dir]# kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/v0.15.2/config/manifests/metallb-native.yaml
namespace/metallb-system created
customresourcedefinition.apiextensions.k8s.io/bfdprofiles.metallb.io created
customresourcedefinition.apiextensions.k8s.io/bgpadvertisements.metallb.io created
customresourcedefinition.apiextensions.k8s.io/bgppeers.metallb.io created
customresourcedefinition.apiextensions.k8s.io/communities.metallb.io created
customresourcedefinition.apiextensions.k8s.io/ipaddresspools.metallb.io created
customresourcedefinition.apiextensions.k8s.io/l2advertisements.metallb.io created
customresourcedefinition.apiextensions.k8s.io/servicebgpstatuses.metallb.io created
customresourcedefinition.apiextensions.k8s.io/servicel2statuses.metallb.io created
serviceaccount/controller created
serviceaccount/speaker created
role.rbac.authorization.k8s.io/controller created
role.rbac.authorization.k8s.io/pod-lister created
clusterrole.rbac.authorization.k8s.io/metallb-system:controller created
clusterrole.rbac.authorization.k8s.io/metallb-system:speaker created
rolebinding.rbac.authorization.k8s.io/controller created
rolebinding.rbac.authorization.k8s.io/pod-lister created
clusterrolebinding.rbac.authorization.k8s.io/metallb-system:controller created
clusterrolebinding.rbac.authorization.k8s.io/metallb-system:speaker created
configmap/metallb-excludel2 created
secret/metallb-webhook-cert created
service/metallb-webhook-service created
deployment.apps/controller created
daemonset.apps/speaker created
validatingwebhookconfiguration.admissionregistration.k8s.io/metallb-webhook-configuration created

同时也可以把YAML下载

[root@docker-master load-dir]# wget https://raw.githubusercontent.com/metallb/metallb/v0.15.2/config/manifests/metallb-native.yaml
--2026-01-22 16:56:54--  https://raw.githubusercontent.com/metallb/metallb/v0.15.2/config/manifests/metallb-native.yaml
正在解析主机 raw.githubusercontent.com (raw.githubusercontent.com)... 198.18.0.9
正在连接 raw.githubusercontent.com (raw.githubusercontent.com)|198.18.0.9|:443... 已连接。
已发出 HTTP 请求，正在等待回应... 200 OK
长度：74628 (73K) [text/plain]
正在保存至: “metallb-native.yaml”

100%[========================================================================>] 74,628       144KB/s 用时 0.5s

2026-01-22 16:56:56 (144 KB/s) - 已保存 “metallb-native.yaml” [74628/74628])

3：查看创建资源

[root@docker-master load-dir]# kubectl get all -n metallb-system
NAME                              READY   STATUS    RESTARTS   AGE
pod/controller-8666ddd68b-c85wt   1/1     Running   0          84s
pod/speaker-6bsbw                 1/1     Running   0          84s
pod/speaker-9h7xt                 0/1     Running   0          84s
pod/speaker-mr526                 1/1     Running   0          84s

NAME                              TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
service/metallb-webhook-service   ClusterIP   10.101.14.65   <none>        443/TCP   84s

NAME                     DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR            AGE
daemonset.apps/speaker   3         3         2       3            2           kubernetes.io/os=linux   84s

NAME                         READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/controller   1/1     1            1           84s

NAME                                    DESIRED   CURRENT   READY   AGE
replicaset.apps/controller-8666ddd68b   1         1         1       84s

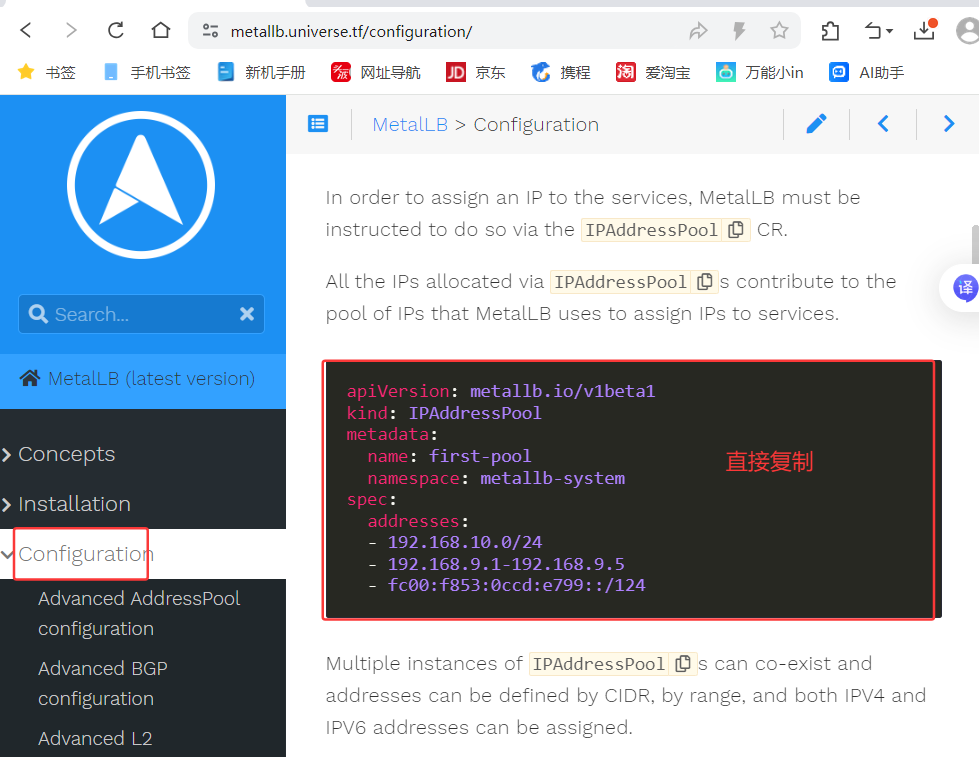

打开官网配置

在这里插入图片描述

这里就和之前版本有区别

4：不需要创建configmap资源对象，而是直接使用IPAddressPool资源

[root@docker-master load-dir]# vim ipaddresspool.yaml
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: first-pool
  namespace: metallb-system
spec:
  addresses:
  - 192.168.108.220-192.168.108.230   # 修改  分配地址池范围

应用YAML

[root@docker-master load-dir]# kubectl apply -f ipaddresspool.yaml
ipaddresspool.metallb.io/first-pool created

5：查看创建资源

[root@docker-master load-dir]# kubectl get ipaddresspool -n metallb-system
NAME         AUTO ASSIGN   AVOID BUGGY IPS   ADDRESSES
first-pool   true          false             ["192.168.108.220-192.168.108.230"]

6：创建nginx应用资源

[root@docker-master load-dir]# vim nginx-metallb.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: metallb-system
  name: nginx-metallb
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: c1
          image: nginx:1.26-alpine
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80

应用yaml文件

[root@docker-master load-dir]# kubectl apply -f nginx-metallb.yaml
deployment.apps/nginx-metallb created

查看

[root@docker-master load-dir]# kubectl get deploy -n metallb-system
NAME            READY   UP-TO-DATE   AVAILABLE   AGE
controller      1/1     1            1           4m43s
nginx-metallb   2/2     2            2           18s

[root@docker-master load-dir]# kubectl get pod -n metallb-system
NAME                             READY   STATUS    RESTARTS   AGE
controller-8666ddd68b-c85wt      1/1     Running   0          5m1s
nginx-metallb-5b6d5cd699-9lwz9   1/1     Running   0          36s
nginx-metallb-5b6d5cd699-rb2hk   1/1     Running   0          36s
speaker-6bsbw                    1/1     Running   0          5m1s
speaker-9h7xt                    1/1     Running   0          5m1s
speaker-mr526                    1/1     Running   0          5m1s

7：创建service资源

[root@docker-master load-dir]# cat lb-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: lb
  namespace: metallb-system
spec:
  type: LoadBalancer
  ports:
    - targetPort: 80
      port: 80
      protocol: TCP
  selector:
    app: nginx

应用yaml

[root@docker-master load-dir]# kubectl apply -f lb-service.yaml
service/lb created

查看到分配的地址是：192.168.18.200

[root@docker-master load-dir]# kubectl get svc -n metallb-system
NAME                      TYPE           CLUSTER-IP     EXTERNAL-IP       PORT(S)        AGE
lb                        LoadBalancer   10.97.216.14   192.168.108.220   80:30191/TCP   22s
metallb-webhook-service   ClusterIP      10.101.14.65   <none>            443/TCP        6m2s

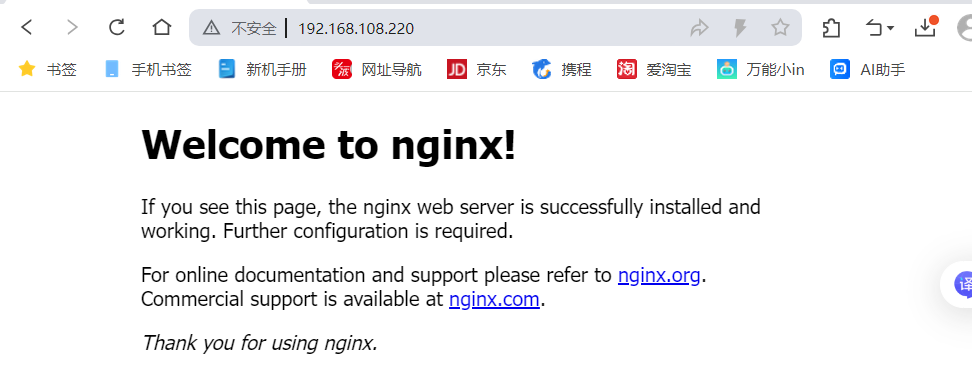

验证查看网站

http://192.168.108.220/

在这里插入图片描述

4：ExternalName

作用：

把集群外部的服务引入到集群内部中来，实现了集群内部pod和集群外部的服务进行通信
ExternalName类型的服务适用于外部服务使用域名的方式，缺点是不能指定端口
还有一点要注意:集群内的Pod会继承Node上的DNS解析规则。所以只要Node可以访问的服务， Pod中也可以访问到,这就实现了集群内服务访问集群外服务

公网域名引入

查看dns资源

[root@docker-master ~]# kubectl get svc -n kube-system
NAME             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                  AGE
kube-dns         ClusterIP   10.96.0.10      <none>        53/UDP,53/TCP,9153/TCP   9d

查看公网域名解析

[root@docker-master ~]# dig -t a www.baidu.com @10.96.0.10

; <<>> DiG 9.11.4-P2-RedHat-9.11.4-26.P2.el7_9.16 <<>> -t a www.baidu.com @10.96.0.10
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 4601
;; flags: qr rd ra; QUERY: 1, ANSWER: 3, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;www.baidu.com.			IN	A

;; ANSWER SECTION:
www.baidu.com.		5	IN	CNAME	www.a.shifen.com.
www.a.shifen.com.	5	IN	A	180.101.51.73
www.a.shifen.com.	5	IN	A	180.101.49.44

;; Query time: 114 msec
;; SERVER: 10.96.0.10#53(10.96.0.10)
;; WHEN: 五 1月 23 09:10:28 CST 2026
;; MSG SIZE  rcvd: 149

创建YAML

[root@docker-master service-dir]# cat externalname.yaml
apiVersion: v1
kind: Service
metadata:
  name: baidu-external
spec:
  type: ExternalName
  externalName: www.baidu.com

应用YAM

[root@docker-master service-dir]# kubectl apply -f externalname.yaml
service/baidu-external created

查看创建资源

[root@docker-master service-dir]# kubectl get svc
NAME             TYPE           CLUSTER-IP   EXTERNAL-IP     PORT(S)   AGE
baidu-external   ExternalName   <none>       www.baidu.com   <none>    8s
kubernetes       ClusterIP      10.96.0.1    <none>          443/TCP   9d

查看本地域名解析

[root@docker-master service-dir]# dig -t a baidu-external.default.svc.cluster.local. @10.96.0.10

; <<>> DiG 9.11.4-P2-RedHat-9.11.4-26.P2.el7_9.16 <<>> -t a baidu-external.default.svc.cluster.local. @10.96.0.10
;; global options: +cmd
;; Got answer:
;; WARNING: .local is reserved for Multicast DNS
;; You are currently testing what happens when an mDNS query is leaked to DNS
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 9606
;; flags: qr aa rd; QUERY: 1, ANSWER: 4, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;baidu-external.default.svc.cluster.local. IN A

;; ANSWER SECTION:
baidu-external.default.svc.cluster.local. 5 IN CNAME www.baidu.com.
www.baidu.com.		5	IN	CNAME	www.a.shifen.com.
www.a.shifen.com.	5	IN	A	180.101.51.73
www.a.shifen.com.	5	IN	A	180.101.49.44

;; Query time: 112 msec
;; SERVER: 10.96.0.10#53(10.96.0.10)
;; WHEN: 五 1月 23 09:20:51 CST 2026
;; MSG SIZE  rcvd: 243

开启测试Pod来解析域名

[root@docker-master service-dir]# kubectl run -it expod --image=busybox:1.28
If you don't see a command prompt, try pressing enter.
/ # nslookup www.baidu.com
Server:    10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local

Name:      www.baidu.com
Address 1: 240e:e9:6002:1ac:0:ff:b07e:36c5
Address 2: 240e:e9:6002:1fd:0:ff:b0e1:fe69
Address 3: 180.101.51.73
Address 4: 180.101.49.44
/ # nslookup baidu-external.default.svc.cluster.local.
Server:    10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local

Name:      baidu-external.default.svc.cluster.local.
Address 1: 240e:e9:6002:1fd:0:ff:b0e1:fe69
Address 2: 240e:e9:6002:1ac:0:ff:b07e:36c5
Address 3: 180.101.49.44
Address 4: 180.101.51.73

不同命名空间访问

案例：实现ns1和ns2两个命名空间之间服务的访问

1：创建ns1命名空间和相关deployment，pod，service

[root@docker-master service-dir]# vim pod-ns1.yaml
# 创建命名空间
apiVersion: v1
kind: Namespace
metadata:
  name: ns1
---
# 应用资源
apiVersion: apps/v1
kind: Deployment
metadata:
  name: pod-ns1
  namespace: ns1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: c1
          image: nginx:1.26-alpine
          ports:
            - containerPort: 80
---
# 端口暴露
apiVersion: v1
kind: Service
metadata:
  name: svc1         #服务名称
  namespace: ns1     #属于ns1命名空间
spec:
  type: ClusterIP
  clusterIP: None    #无头服务

  selector:
    app: nginx
  ports:
    - port: 80
      targetPort: 80
---
# 跨命名空间
apiVersion: v1
kind: Service
metadata:
  name: external-svc1
  namespace: ns1
spec:
  type: ExternalName
  externalName: sv2.ns2.svc.cluster.local.    #将ns2空间的svc2服务引入到ns1空间

2：应用YAML

[root@docker-master service-dir]# kubectl apply -f pod-ns1.yaml
namespace/ns1 created
deployment.apps/pod-ns1 created
service/svc1 created
service/external-svc1 created

3：查看命名空间ns1中的资源

[root@docker-master service-dir]# kubectl get svc,pod -n ns1
NAME                    TYPE           CLUSTER-IP   EXTERNAL-IP                  PORT(S)   AGE
service/external-svc1   ExternalName   <none>       sv2.ns2.svc.cluster.local.   <none>    35s
service/svc1            ClusterIP      None         <none>                       80/TCP    35s

NAME                           READY   STATUS    RESTARTS   AGE
pod/pod-ns1-5b6d5cd699-rgqzf   1/1     Running   0          35s

4：使用dns：10.96.0.10解析域名，可以直接看到pod的ip

[root@docker-master service-dir]# kubectl get svc -n kube-system
NAME             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                  AGE
kube-dns         ClusterIP   10.96.0.10      <none>        53/UDP,53/TCP,9153/TCP   9d
metrics-server   ClusterIP   10.111.168.59   <none>        443/TCP                  8d

[root@docker-master service-dir]# dig -t a svc1.ns1.svc.cluster.local. @10.96.0.10

; <<>> DiG 9.11.4-P2-RedHat-9.11.4-26.P2.el7_9.16 <<>> -t a svc1.ns1.svc.cluster.local. @10.96.0.10
;; global options: +cmd
;; Got answer:
;; WARNING: .local is reserved for Multicast DNS
;; You are currently testing what happens when an mDNS query is leaked to DNS
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 60531
;; flags: qr aa rd; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;svc1.ns1.svc.cluster.local.	IN	A

;; ANSWER SECTION:
svc1.ns1.svc.cluster.local. 30	IN	A	10.244.148.233

;; Query time: 0 msec
;; SERVER: 10.96.0.10#53(10.96.0.10)
;; WHEN: 五 1月 23 10:08:54 CST 2026
;; MSG SIZE  rcvd: 97

[root@docker-master service-dir]# kubectl get pod -n ns1 -o wide
NAME                       READY   STATUS    RESTARTS   AGE   IP               NODE           NOMINATED NODE   READINESS GATES
pod-ns1-5b6d5cd699-rgqzf   1/1     Running   0          98s   10.244.148.233   docker-node1   <none>           <none>

5：创建ns2命名空间和相关deployment，pod，service

[root@docker-master service-dir]# cat pod-ns2.yaml
# 创建命名空间
apiVersion: v1
kind: Namespace
metadata:
  name: ns2
---
# 应用资源
apiVersion: apps/v1
kind: Deployment
metadata:
  name: pod-ns2
  namespace: ns2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: c1
          image: nginx:1.26-alpine
          ports:
            - containerPort: 80
---
# 端口暴露
apiVersion: v1
kind: Service
metadata:
  name: svc2
  namespace: ns2
spec:
  type: ClusterIP
  clusterIP: None
  selector:
    app: nginx
  ports:
    - port: 80
      targetPort: 80
---
# 跨命名空间
apiVersion: v1
kind: Service
metadata:
  name: external-svc1
  namespace: ns2
spec:
  type: ExternalName
  externalName: sv1.ns1.svc.cluster.local.

6：应用YAML

[root@docker-master service-dir]# kubectl apply -f pod-ns2.yaml
namespace/ns2 created
deployment.apps/pod-ns2 created
service/svc2 created
service/external-svc1 created

[root@docker-master service-dir]# kubectl get svc,pod -n ns2
NAME                    TYPE           CLUSTER-IP   EXTERNAL-IP                  PORT(S)   AGE
service/external-svc1   ExternalName   <none>       sv1.ns1.svc.cluster.local.   <none>    8s
service/svc2            ClusterIP      None         <none>                       80/TCP    8s

NAME                           READY   STATUS    RESTARTS   AGE
pod/pod-ns2-5b6d5cd699-czlhm   1/1     Running   0          8s

7：使用dns解析pod的ip

[root@docker-master service-dir]# dig -t a svc2.ns2.svc.cluster.local. @10.96.0.10

; <<>> DiG 9.11.4-P2-RedHat-9.11.4-26.P2.el7_9.16 <<>> -t a svc2.ns2.svc.cluster.local. @10.96.0.10
;; global options: +cmd
;; Got answer:
;; WARNING: .local is reserved for Multicast DNS
;; You are currently testing what happens when an mDNS query is leaked to DNS
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 54146
;; flags: qr aa rd; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;svc2.ns2.svc.cluster.local.	IN	A

;; ANSWER SECTION:
svc2.ns2.svc.cluster.local. 30	IN	A	10.244.148.237

;; Query time: 0 msec
;; SERVER: 10.96.0.10#53(10.96.0.10)
;; WHEN: 五 1月 23 10:10:02 CST 2026
;; MSG SIZE  rcvd: 97

[root@docker-master service-dir]# kubectl get pod -n ns2 -o wide
NAME                       READY   STATUS    RESTARTS   AGE   IP               NODE           NOMINATED NODE   READINESS GATES
pod-ns2-5b6d5cd699-czlhm   1/1     Running   0          34s   10.244.148.237   docker-node1   <none>           <none>

在pod中使用域名进行访问

进入ns2中的pod，使用nslookup对ns1中的pod进行域名解析

[root@docker-master service-dir]# kubectl exec -it pod-ns2-5b6d5cd699-czlhm -n ns2 -- /bin/sh
/ # nslookup sv2
Server:		10.96.0.10
Address:	10.96.0.10:53

** server can't find sv2.cluster.local: NXDOMAIN

** server can't find sv2.ns2.svc.cluster.local: NXDOMAIN

** server can't find sv2.svc.cluster.local: NXDOMAIN

** server can't find sv2.ns2.svc.cluster.local: NXDOMAIN

** server can't find sv2.svc.cluster.local: NXDOMAIN

** server can't find sv2.cluster.local: NXDOMAIN

/ # nslookup svc1.ns1.svc.cluster.local.
Server:		10.96.0.10
Address:	10.96.0.10:53


Name:	svc1.ns1.svc.cluster.local
Address: 10.244.148.233

如果ns1中pod的ip发生变化，那么是否还能够域名正常解析

先查看ns1中pod的ip

[root@docker-master service-dir]# kubectl get pod -n ns1 -o wide
NAME                       READY   STATUS    RESTARTS   AGE     IP               NODE           NOMINATED NODE   READINESS GATES
pod-ns1-5b6d5cd699-rgqzf   1/1     Running   0          8m50s   10.244.148.233   docker-node1   <none>           <none>

再删除pod，并查看ip变化为10.244.104.7

[root@docker-master service-dir]# kubectl delete pod pod-ns1-5b6d5cd699-rgqzf -n ns1
pod "pod-ns1-5b6d5cd699-rgqzf" deleted

[root@docker-master service-dir]# kubectl get pod -n ns1 -o wide
NAME                       READY   STATUS    RESTARTS   AGE   IP               NODE           NOMINATED NODE   READINESS GATES
pod-ns1-5b6d5cd699-d9kxv   1/1     Running   0          15s   10.244.248.131   docker-node2   <none>           <none>

再次进入到ns2中pod，对ns1中pod进行域名解析

[root@docker-master service-dir]# kubectl exec -it pod-ns2-5b6d5cd699-czlhm -n ns2 -- /bin/sh
/ # nslookup svc1.ns1.svc.cluster.local.
Server:		10.96.0.10
Address:	10.96.0.10:53


Name:	svc1.ns1.svc.cluster.local
Address: 10.244.248.131    #发现依然能完成解析

sessionAffinity

会话粘黏

设置sessionAffinity为clientip（类似nginx的ip_hash算法、lvs的sh算法）

创建nginx资源使用clusterip访问

[root@docker-master service-dir]# vim nginx-session.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-session
spec:
  selector:
    matchLabels:
      app: nginx
  replicas: 2
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: c1
          image: nginx:1.26-alpine
          ports:
            - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc
spec:
  type: ClusterIP
  selector:
    app: nginx
  ports:
    - port: 80
      targetPort: 80

应用YAML

[root@docker-master service-dir]# kubectl apply -f nginx-session.yaml
deployment.apps/nginx-session created
service/nginx-svc unchanged

查看资源

[root@docker-master service-dir]# kubectl get pod,svc
NAME                                 READY   STATUS    RESTARTS   AGE
pod/nginx-session-5b6d5cd699-fqfpm   1/1     Running   0          13s
pod/nginx-session-5b6d5cd699-lc86m   1/1     Running   0          13s

NAME                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
service/kubernetes   ClusterIP   10.96.0.1       <none>        443/TCP   9d
service/nginx-svc    ClusterIP   10.110.140.73   <none>        80/TCP    68s

更新两个pod中首页内容作为鉴别区分

修改第1个pod首页内容为web1

[root@docker-master service-dir]# kubectl exec -it pod/nginx-session-5b6d5cd699-fqfpm -- /bin/sh
/ # cd /usr/share/nginx/html
/usr/share/nginx/html # echo "web1" > index.html
/usr/share/nginx/html #

修改第2个pod首页内容为web2

[root@docker-master service-dir]# kubectl exec -it pod/nginx-session-5b6d5cd699-lc86m -- /bin/sh
/ # cd /usr/share/nginx/html
/usr/share/nginx/html # echo web2 > index.html

可以直接观测到访问clusterip使用了负载均衡

[root@docker-master service-dir]# curl http://10.110.140.73
web2
[root@docker-master service-dir]# curl http://10.110.140.73
web1

粘黏的功能就是更改Session Affinity选项

[root@docker-master service-dir]# kubectl describe svc nginx-svc
Name:              nginx-svc
Namespace:         default
Labels:            <none>
Annotations:       <none>
Selector:          app=nginx
Type:              ClusterIP
IP Family Policy:  SingleStack
IP Families:       IPv4
IP:                10.110.140.73
IPs:               10.110.140.73
Port:              <unset>  80/TCP
TargetPort:        80/TCP
Endpoints:         10.244.148.236:80,10.244.248.188:80
Session Affinity:  None
Events:            <none>

[root@docker-master service-dir]# kubectl patch svc nginx-svc -p '{"spec":{"sessionAffinity":"ClientIP"}}'
service/nginx-svc patched

再次查看更改结果

[root@docker-master service-dir]# kubectl describe svc nginx-svc
Name:              nginx-svc
Namespace:         default
Labels:            <none>
Annotations:       <none>
Selector:          app=nginx
Type:              ClusterIP
IP Family Policy:  SingleStack
IP Families:       IPv4
IP:                10.110.140.73
IPs:               10.110.140.73
Port:              <unset>  80/TCP
TargetPort:        80/TCP
Endpoints:         10.244.148.236:80,10.244.248.188:80
Session Affinity:  ClientIP
Events:            <none>

验证访问粘黏，第1次访问哪个pod，后面就一直访问这个pod，直到失效时间

sessionAffinity机制默认失效时间为10800秒（3小时）

[root@docker-master service-dir]# curl http://10.110.140.73
web2
[root@docker-master service-dir]# curl http://10.110.140.73
web2
[root@docker-master service-dir]# curl http://10.110.140.73
web2

亚马逊云科技技术品牌专区

更多推荐

基于STM32的全屋环境智能监测与预警终端设计

亚马逊云科技技术品牌专区

Keras：面向人类的深度学习库

Keras3支持多后端（TensorFlow、PyTorch、JAX），通过设置环境变量切换，兼容指定版本。pip安装后可用Sequential API快速构建CNN模型，如MNIST分类示例，实

亚马逊云科技技术品牌专区

AI行业日报｜2026-09-25：5个热点事件

本期行业动态聚焦于端侧算力重构、自主智能体工作流、开发工具经济模型、网络隔离架构设计与公共部门合规审查。以下结合一线技术场景进行结构化梳理，供 AI 研究员与软件工程团队参考。 PrismML 正将其轻量级语言模型适配至搭载高通处理器的智能眼镜终端 1 。该平台的核心战略指向开源权重模型的本地化运行，旨在最大化挖掘穿戴设备现有算力的利用效率 1 。对于嵌入式与边缘计算开发者而言，此类微型模型向低功
