前言

Spinnaker 是 Netflix 在2015年开源的一款持续交付平台，最初由 Netflix 开发，用于快速、可靠地发布软件变更。Spinnaker 使开发人员可以更轻松地专注于编写代码，而无需担心底层的云基础设施，它可以和 Jenkins 以及其他流行的构建工具无缝集成。但是由于 GFW 的原因导致在国内部署Spinnaker非常困难，当然，你可以使用代理，但这就与本文的初衷不符。经过多次尝试，终于在不使用代理的情况下安装spinnaker，废话不多说，直接进入正题。

安装Halyard

使用docker的方式安装Halyard。

# useradd spinnaker# cd /home/spinnaker$ mkdir ~/.hal$ docker run -d -p 8084:8084 -p 9000:9000 --name halyard --rm  -v ~/.hal:/home/spinnaker/.hal -v ~/.kube:/home/spinnaker/.kube -it gcr.azk8s.cn/spinnaker-marketplace/halyard:1.31.1

启动参数说明：/home/spinnaker/.hal目录为halyard配置文件，/home/spinnaker/.kube为k8s集群认证目录。

官网给出的镜像地址 gcr.io 在国内是不能访问的，需要将镜像地址修改为gcr.azk8s.cn。

Spinnaker安装前准备

spinnaker部署环境一共有三种:

• 在k8s分布式安装(推荐使用)
• 本地单台机器安装
• 本地git安装

本文使用K8S方式。

$ kubectl versionClient Version: version.Info{Major:"1", Minor:"16", GitVersion:"v1.16.0",GitCommit:"xxx", GitTreeState:"clean", BuildDate:"2019-09-18T14:36:53Z", GoVersion:"go1.12.9", Compiler:"gc", Platform:"linux/amd64"}Server Version: version.Info{Major:"1", Minor:"14+", GitVersion:"v1.14.8-xx.1", GitCommit:"51888f5", GitTreeState:"", BuildDate:"2019-10-16T08:29:13Z", GoVersion:"go1.12.10", Compiler:"gc", Platform:"linux/amd64"}$ kubectl create namespace spinnaker

配置spinnaker配置文件

主要设置docker镜像仓库及存储,以下为配置文件示例。

currentDeployment: defaultdeploymentConfigurations:- name: default  version: local:1.17.6  providers:    appengine:      enabled: false      accounts: []    aws:      enabled: false      accounts: []      bakeryDefaults:        baseImages: []      defaultKeyPairTemplate: '{{name}}-keypair'      defaultRegions:      - name: huabei2      defaults:        iamRole: BaseIAMRole    ecs:      enabled: false      accounts: []    azure:      enabled: false      accounts: []      bakeryDefaults:        templateFile: azure-linux.json        baseImages: []    dcos:      enabled: false      accounts: []      clusters: []    dockerRegistry:      enabled: true      accounts:      # 镜像仓库地址      - name: dockerhub        requiredGroupMembership: []        providerVersion: V1        permissions: {}        # 你的镜像仓库地址        address: xxxx        # 镜像仓库认证        username: xxxxx        password: xxxxx        email: fake.email@spinnaker.io        sortTagsByDate: true        repositories:        # 此处是你的namespace下的项目        - namespace/appname      # 镜像仓库地址      primaryAccount: dockerhub    google:      enabled: false      accounts: []      bakeryDefaults:        templateFile: gce.json        baseImages: []        zone: us-central1-f        network: default        useInternalIp: false    huaweicloud:      enabled: false      accounts: []      bakeryDefaults:        baseImages: []    kubernetes:      enabled: true      accounts:      # 此处为k8s集群名称      - name: k8s        requiredGroupMembership: []        providerVersion: V2        permissions: {}        dockerRegistries: []        configureImagePullSecrets: true        cacheThreads: 1        namespaces:        # 此处把你的namespace 加进去        - yournamespace          omitNamespaces: []        kinds: []        omitKinds: []        customResources: []        cachingPolicies: []        # 此处为k8s集群认证文件地址        kubeconfigFile: /home/spinnaker/.kube/config        oAuthScopes: []        onlySpinnakerManaged: false      # 与k8s集群名称一致      primaryAccount: k8s    oracle:      enabled: false      accounts: []      bakeryDefaults:        templateFile: oci.json        baseImages: []    cloudfoundry:      enabled: false      accounts: []  deploymentEnvironment:    size: SMALL    type: Distributed    # k8s集群名称    accountName: k8s    imageVariant: SLIM    updateVersions: false    consul:      enabled: false    vault:      enabled: false    customSizing: {}    sidecars: {}    initContainers: {}    hostAliases: {}    affinity: {}    tolerations: {}    nodeSelectors: {}    gitConfig:      upstreamUser: spinnaker    livenessProbeConfig:      enabled: false    haServices:      clouddriver:        enabled: false        disableClouddriverRoDeck: false      echo:        enabled: false  persistentStorage:    # 此处配置存储，示例为s3    persistentStoreType: s3    azs: {}    gcs: {}     redis: {}    # s3存储的认证信息    s3:      bucket: xxx      rootFolder: xxx      region: xxx      pathStyleAccess: false      accessKeyId: xxx      secretAccessKey:  xxx    oracle: {}  features:    auth: false    fiat: false    chaos: false    entityTags: false    pipelineTemplates: true    artifacts: true  metricStores:    datadog:      enabled: false      tags: []    prometheus:      enabled: false      add_source_metalabels: true    stackdriver:      enabled: false    newrelic:      enabled: false      tags: []    period: 30    enabled: false  notifications:    slack:      enabled: false    twilio:      enabled: false      baseUrl: https://api.twilio.com/    github-status:      enabled: false  timezone: Asia/Shanghai  ci:    jenkins:      enabled: false      masters: []    travis:      enabled: false      masters: []    wercker:      enabled: false      masters: []    concourse:      enabled: false      masters: []    gcb:      enabled: false      accounts: []  repository:    artifactory:      enabled: false      searches: []  security:    apiSecurity:      ssl:        enabled: false      # gate地址        overrideBaseUrl: https://spin-gate.xxx.com    uiSecurity:      ssl:        enabled: false      # deck地址        overrideBaseUrl: https://spinnaker.xxx.com    authn:      oauth2:        enabled: false        client: {}        resource: {}        userInfoMapping: {}      saml:        enabled: false        userAttributeMapping: {}      ldap:        enabled: false      x509:        enabled: false      iap:        enabled: false      enabled: false    authz:      groupMembership:        service: FILE        google:          roleProviderType: GOOGLE        github:          roleProviderType: GITHUB        file:          roleProviderType: FILE        ldap:          roleProviderType: LDAP      enabled: true  artifacts:    bitbucket:      enabled: false      accounts: []    gcs:      enabled: false      accounts: []    oracle:      enabled: false      accounts: []    github:      enabled: false      accounts: []    gitlab:      enabled: true      accounts:      - name: gitlab        token: xxx    gitrepo:      enabled: false      accounts: []    http:      enabled: false      accounts: []    helm:      enabled: false      accounts: []    s3:      enabled: false      accounts: []    maven:      enabled: false      accounts: []    templates: []  pubsub:    enabled: false    google:      enabled: false      pubsubType: GOOGLE      subscriptions: []      publishers: []  canary:    enabled: false    serviceIntegrations:    - name: google      enabled: false      accounts: []      gcsEnabled: false      stackdriverEnabled: false    - name: prometheus      enabled: false      accounts: []    - name: datadog      enabled: false      accounts: []    - name: signalfx      enabled: false      accounts: []    - name: aws      enabled: false      accounts: []      s3Enabled: false    - name: newrelic      enabled: false      accounts: []    reduxLoggerEnabled: true    defaultJudge: NetflixACAJudge-v1.0    stagesEnabled: true    templatesEnabled: true    showAllConfigsEnabled: true  plugins:    plugins: []    enabled: false    downloadingEnabled: false  spinnaker:    extensibility:      repositories: {}  webhook:    trust:      enabled: false  telemetry:    enabled: false    endpoint: https://stats.spinnaker.io    instanceId: xxx    connectionTimeoutMillis: 3000    readTimeoutMillis: 5000

本地安装spinnaker

接下来的操作尤为重要，我们采用本地安装的方式，需要将bom设置为local，安装版本1.17.6.

$ pwd/home/spinnaker$ mkdir ~/.hal/.boms/bom -p$ cd  ~/.hal/.boms/bom$ more 1.17.6.ymlversion: 1.17.6timestamp: '2020-01-14 08:44:42'services:  echo:    version: local:2.9.1-20191216151527    commit: 771a15b2b7bd8d78f77caf3c3ecff950e187c1ae  clouddriver:    version: local:6.4.5-20200114034416    commit: 5f272cd8d3911423dfcf7e9448c31fe4aa045e2e  deck:    version: local:2.13.5-20200114034416    commit: 75cecc4cf1d52ff78fb1fb5e057b516c51be10fb  fiat:    version: local:1.8.3-20191202102650    commit: c62d038c2a9531042ff33c5992384184b1370b27  front50:    version: local:0.20.1-20191107034416    commit: 9415a443b0d6bf800ccca8c2764d303eb4d29366  gate:    version: local:1.13.0-20191029172246    commit: a453541b47c745a283712bb240ab392ad7319e8d  igor:    version: local:1.7.0-20191029183208    commit: 37fe1ed0c463bdaa87996a4d4dd81fee2325ec8e  kayenta:    version: local:0.12.0-20191023142816    commit: 5dcec805b7533d0406f1e657a62122f4278d665d  orca:    version: local:2.11.2-20191212093351    commit: b88f62a1b2b1bdee0f45d7f9491932f9c51371d9  rosco:    version: local:0.15.1-20191202163249    commit: 269dc830cf7ea2ee6c160163e30d6cbd099269c2  defaultArtifact: {}  monitoring-third-party:    version: local:0.16.0-20191007112816    commit: 59cbbec589f982864cee45d20c99c32d39c75f7f  monitoring-daemon:    version: local:0.16.0-20191007112816    commit: 59cbbec589f982864cee45d20c99c32d39c75f7fdependencies:  redis:    version: 2:2.8.4-2  consul:    version: 0.7.5  vault:    version: 0.7.0artifactSources:  debianRepository: https://dl.bintray.com/spinnaker-releases/debians  dockerRegistry: gcr.azk8s.cn/spinnaker-marketplace  googleImageProject: marketplace-spinnaker-release  gitPrefix: https://github.com/spinnaker

bom配置文件需要注意两点，版本前需要加local，镜像地址更换为国内地址！

配置完成之后，hal在deploy的时候不会去google拉取版本配置，而是从本地读取，以echo为例，本地读取目录为~/.hal/.boms/echo/echo.yml，所以我们需要将相应的yml文件下载到本地相应目录。

下载地址：https://github.com/spinnaker

以echo为例，下载文件为https://github.com/spinnaker/echo/tree/master/halconfig 内的文件，并放在本地目录~/.hal/.boms/echo下。

下载完成后目录结构如下：

├── bom/│   ├── 1.17.6.yml├── clouddriver/│   ├── clouddriver.yml│   └── ...├── deck/│   ├──    settings.js.......

正式部署Spinnaker

完成了这些基本工作，就可以愉快的(无需代理)的部署spinnaker了。

# 设置hal使用本地文件系统的bom斑斑$ hal config version edit --version local:1.17.6$hal deploy apply+ Get current deployment  Success+ Prep deployment  SuccessProblems in default.security:- WARNING Your UI or API domain does not have override base URLs  set even though your Spinnaker deployment is a Distributed deployment on a  remote cloud provider. As a result, you will need to open SSH tunnels against  that deployment to access Spinnaker.? We recommend that you instead configure an authentication  mechanism (OAuth2, SAML2, or x509) to make it easier to access Spinnaker  securely, and then register the intended Domain and IP addresses that your  publicly facing services will be using.+ Preparation complete... deploying Spinnaker+ Get current deployment  Success+ Apply deployment  Success+ Deploy spin-redis  Success+ Deploy spin-clouddriver  Success+ Deploy spin-front50  Success+ Deploy spin-orca  Success+ Deploy spin-deck  Success+ Deploy spin-echo  Success+ Deploy spin-gate  Success+ Deploy spin-rosco  Success+ Deploy spin-igor  Success+ Run `hal deploy connect` to connect to Spinnaker.

查看spinnaker在k8s中的部署情况：

# kubens spinnakerContext "xxxx" modified.Active namespace is "spinnaker".# kubectl get podsNAME                                READY   STATUS    RESTARTS   AGEspin-clouddriver-7fb74cf5c6-c7g87   1/1     Running   0          10mspin-deck-76b4df7b48-nnj8x          1/1     Running   0          10mspin-echo-cccf9f7db-bn6t5           1/1     Running   0          10mspin-fiat-7dc9547ff5-jqw7l          1/1     Running   0          10mspin-front50-5744455478-qmg2x       1/1     Running   0          10mspin-gate-6bbb57846c-tplqg          1/1     Running   0          10mspin-igor-74bfbc6c57-xtbb8          1/1     Running   0          10mspin-orca-78dc9844cb-6w4ww          1/1     Running   0          10mspin-redis-6bf56c789c-lbq6l         1/1     Running   0          10mspin-rosco-664b65f8d6-6n58m         1/1     Running   0          10m

配置ingress

配置ingress访问spinnaker。

$ more spinnaker-ingress.yamlapiVersion: extensions/v1beta1kind: Ingressmetadata:  name: spinnaker  namespace: spinnaker  annotations:    kubernetes.io/ingress.class: web    nginx.ingress.kubernetes.io/ssl-redirect: "true"spec:  tls:    - secretName: ingress-niucache      hosts:        - spinnaker.xxx.com        - spin-gate.xxx.com  rules:    - host: spinnaker.xxx.com      http:        paths:        - path: /          backend:            serviceName: spin-deck            servicePort: 9000    - host: spin-gate.xxx.com      http:        paths:        - path: /          backend:            serviceName: spin-gate            servicePort: 8084# kubectl get ingressNAME        HOSTS                                           ADDRESS                         PORTS     AGEspinnaker   spinnaker.xxx.com,spin-gate.xxx.com   xx  80, 443   10m

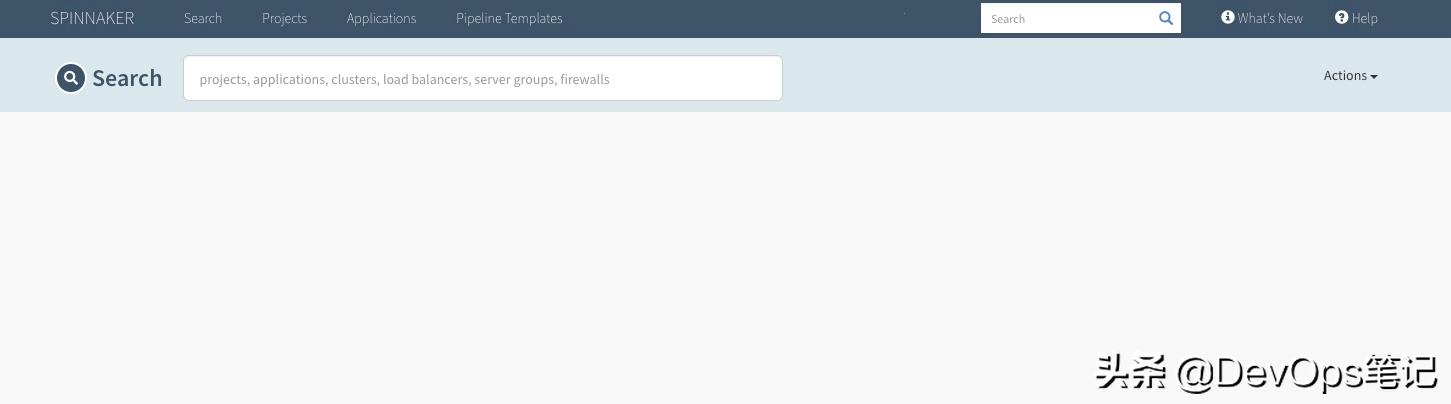

访问spinnaker

将域名做好解析之后就可以访问spinnaker了。

后记

为了绕过GW安装spinnaker，真是煞费苦心，为了做个记录，同时分享给有需要的朋友。标题写的离线安装，不是真正的离线，意思是无需代理，但是还需要可以连接互联网下载镜像的，但是如果镜像都在本地的镜像仓库中，那就可以做到真正离线了。本文只是介绍了spinnaker的安装，并没有提及使用，个人觉得spinnaker最难的地方就是安装，使用的话，大家可以参考官方文档，已经很详细了，如果以后有需要，再补充使用的文档吧。
