VUE条形码及二维码的生成及输出到打印机
1. 条形码的生成
-
安装插件
npm install jsbarcode --save
github地址: https://github.com/lindell/JsBarcode
-
接口说明
JsBarcode(selector, data, options) selector: css选择器 data: 条形码的内容 options: 配置
options的可选项:
Option Default value Type format “auto” (CODE128) String width 2 Number height 100 Number displayValue true Boolean text undefined String fontOptions “” String font “monospace” String textAlign “center” String textPosition “bottom” String textMargin 2 Number fontSize 20 Number background “#ffffff” String (CSS color) lineColor “#000000” String (CSS color) margin 10 Number marginTop undefined Number marginBottom undefined Number marginLeft undefined Number marginRight undefined Number valid function(valid){} Function -
使用
<canvas id="barCode"></canvas> import JsBarcode from 'jsbarcode' bindBarCode(selector, data = '1129867908') { JsBarcode(selector, data, { background: '#eee', displayValue: false, // width: 1, height: 80, // 一维码的高度 margin: 10 // 一维码与容器的margin }) } mounted() { this.bindBarCode('#barCode') }
这里不能在created中调用,因为created钩子执行的时候页面还没有进行渲染,会找不到页面元素报错
-
执行结果
2. 二维码的生成
-
安装插件
npm install qrcode -S
https://www.npmjs.com/package/qrcode#qr-code-options
-
接口说明(这里只介绍toCanvas)
QRCode.toCanvas(element, data, options) element: 元素名字 data: 二维码的数据 options: 配置选项
-
使用
<canvas id="qrCode"></canvas> import QRCode from 'qrcode' bindQRCode(ele = 'qrCode') { QRCode.toCanvas(document.getElementById(ele), '你是猪吗,乱扫什么码', { // version: 1, errorCorrectionLevel: 'L', //low, medium, quartile, high or L, M, Q, H maskPattern: 7, // 0, 1, 2, 3, 4, 5, 6, 7 margin: 5, // Define how much wide the quiet zone should be scale: 4, width: 100, //宽度 color: { light: '#eee', // 背景色 dark: '#ff0000' // 二维码颜色 } }, (error) => { if (error) { console.error(error) } console.log('success!'); }) } mounted() { this.bindQRCode() }
-
执行结果
3. 输出打印
打印其实是一样的,因为条形码和二维码都在canvas上,所以我们只要将canvas放到img中,调用window的print方法即可,下面打印十个二维码为例
-
给出二维码的容器
<!--十个二维码的容器--> <canvas v-for="i in 10" :id="'qrCode' + i"></canvas> <!--打印按钮--> <el-button @click="printQRCode">打印</el-button>
-
为容器填充二维码
// 在mounted钩子中调用刚刚定义好的方法 // 打印条形码只需更改一下调用的方法即可 mounted() { for (let i = 1; i < 11; i++) { this.bindQRCode('qrCode' + i) } }
-
效果
-
编写打印方法
printQRCode() { // 打开一个容纳打印内容的窗口 const newWin = window.open("") for (let i = 1; i < 11; i++) { // 获取画布 const canvas = document.getElementById('qrCode' + i) // 将画布转成url地址放到img上 const url = canvas.toDataURL() const img = document.createElement('img') img.style = "width: 100px;height:100px" img.src = url // 将img放到newWin中 newWin.document.body.append(img) } newWin.document.close(); //在IE浏览器中使用必须添加这一句 newWin.focus(); //在IE浏览器中使用必须添加这一句 // 我想此处延迟100ms是为了等新窗口渲染 // 不延迟的话有时候img中会为空白,也就是还没有渲染完成就已经开始打印 setTimeout(function() { newWin.print() //打印 newWin.close() //关闭窗口 }, 100) }
-

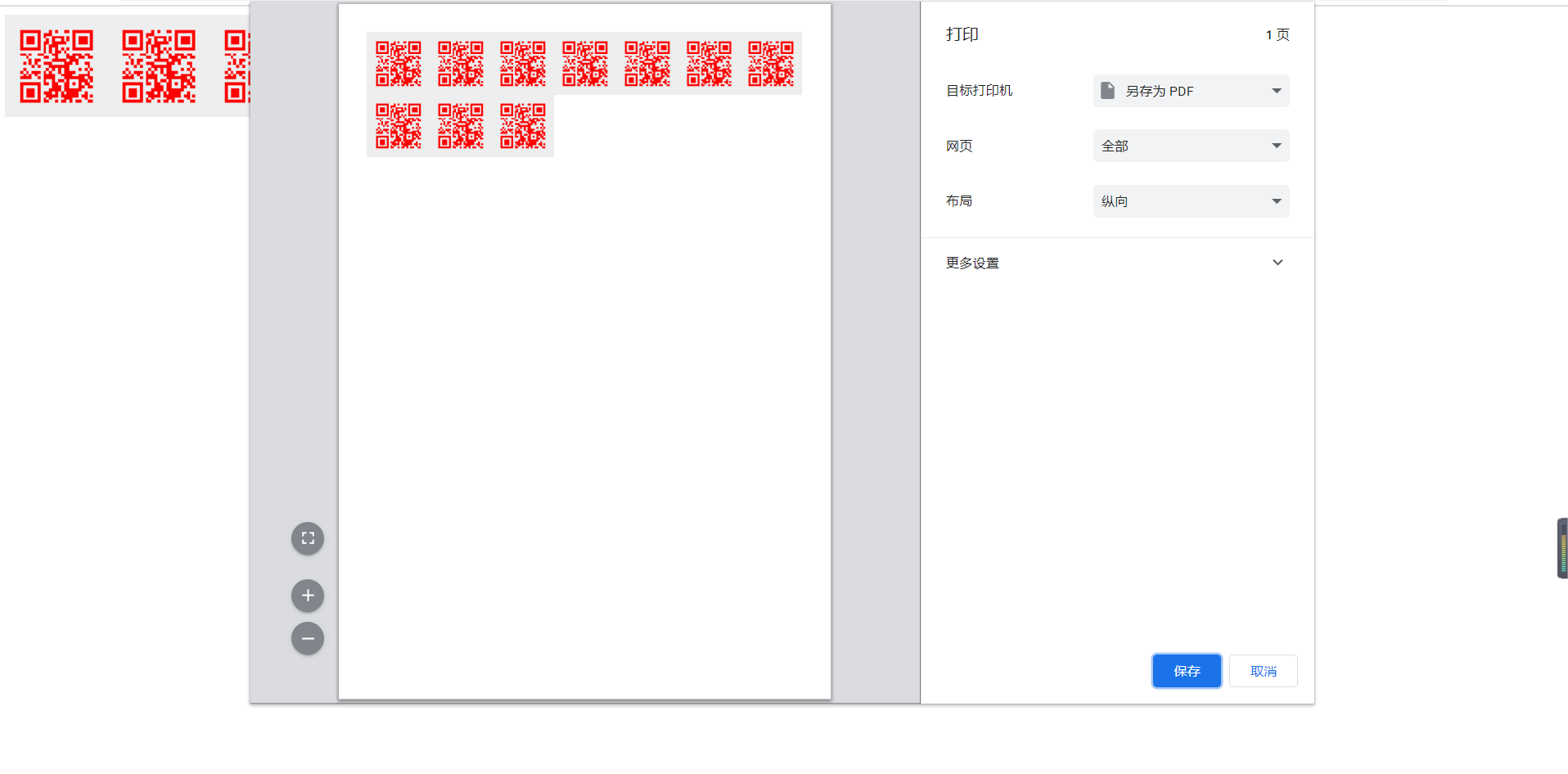

点击打印查看结果
4. 将代码提取一下
import QRCode from "qrcode"
import JsBarcode from "jsbarcode";
import Quagga from "quagga";
/**
* 打印canvas画布
* @param list canvas画布的id选择器
* @param imgStyle 打印出来的每一张img的css
*/
export function printCanvas(list, imgStyle = "height:100px") {
// 打开一个容纳打印内容的窗口
const newWin = window.open("")
for (let selector of list) {
console.log(selector)
// 获取画布
const canvas = document.querySelector(selector)
// 将画布转成url地址放到img上
const url = canvas.toDataURL()
const img = document.createElement('img')
img.style = imgStyle
img.src = url
// 将img放到newWin中
newWin.document.body.append(img)
}
newWin.document.close(); //在IE浏览器中使用必须添加这一句
newWin.focus(); //在IE浏览器中使用必须添加这一句
setTimeout(function() {
newWin.print(); //打印
newWin.close(); //关闭窗口
}, 100);
}
/**
* 扫描一维码
* @param selector 容器的css选择器
* @param success 成功回调,参数为扫描到的内容
* @param errorCall 失败回调
*/
export function initQuagga(selector, success = (data) => {}, errorCall = (err) => {}) {
Quagga.init({
inputStream : {
name : "Live",
type : "LiveStream",
target: selector, // Or '#yourElement' (optional)
constraints: {
width: 640,
height: 480,
facingMode: "environment",
deviceId: "7832475934759384534"
},
},
decoder : {
readers : ["code_128_reader"]
}
}, function(err) {
if (err) {
errorCall(err)
return
}
Quagga.start();
});
Quagga.onDetected(data => {
success(data)
Quagga.stop()
document.querySelector(selector).innerHTML = ''
})
}
/**
* 生成条形码
* @param selector css选择器
* @param data 条形码的数据
*/
export function bindBarCode(selector, data) {
JsBarcode(selector, data, {
background: '#eee',
displayValue: false,
width: 1.5,
height: 80, // 一维码的高度
margin: 10 // 一维码与容器的margin
})
}
/**
* 生成二维码函数
* @param element 二维码容器 需要canvas元素
* @param data 二维码的数据
* @param success 成功回调
* @param errorCall 失败回调
*/
export function bindQRCode(element, data, success = () => {}, errorCall = (err) => {}) {
QRCode.toCanvas(element, data, {
// version: 1,
errorCorrectionLevel: 'L', //low, medium, quartile, high or L, M, Q, H
maskPattern: 7, // 0, 1, 2, 3, 4, 5, 6, 7
margin: 5, // Define how much wide the quiet zone should be
scale: 4,
width: 100, //宽度
color: {
light: '#eee', // 背景色
dark: '#000000' // 二维码颜色
}
}, (error) => {
if (error) {
errorCall(error)
}
// 回调成功函数
success()
})
}
<template>
<qrcode-stream @decode="onDecode" @init="onInit"></qrcode-stream>
</template>
<script>
import {QrcodeStream} from 'vue-qrcode-reader'
export default {
name: "QRCodeScanner",
components: {QrcodeStream},
methods: {
onDecode (result) {
this.$emit('decode', result)
},
async onInit (promise) {
try {
await promise
} catch (error) {
if (error.name === 'NotAllowedError') {
this.error = "ERROR: 您需要授予相机访问权限"
} else if (error.name === 'NotFoundError') {
this.error = "ERROR: 这个设备上没有摄像头"
} else if (error.name === 'NotSupportedError') {
this.error = "ERROR: 所需的安全上下文(HTTPS、本地主机)"
} else if (error.name === 'NotReadableError') {
this.error = "ERROR: 相机被占用"
} else if (error.name === 'OverconstrainedError') {
this.error = "ERROR: 安装摄像头不合适"
} else if (error.name === 'StreamApiNotSupportedError') {
this.error = "ERROR: 此浏览器不支持流API"
}
}
}
}
}
</script>
<style scoped>
</style>
到此就完成了,感谢您的阅读!
