一、使用工具及python包介绍
腾讯云API
国内大型互联网公司都提供云服务,如阿里、百度、腾讯等。本文选择腾讯云服务,是因为提供的API说明比较详细,看一遍就能用。更良心的是,提供了在线测试的功能,基本不用写代码也能够测试效果。
用到的Python包
pandas
数据分析必备包,用来对二维表数据进行分析整合。
os
更改系统配置信息,如列出工作目录的文件,更改工作目录等。
json
用来处理json数据,或者把字符串等其他格式的数据转化为json数据。
base64
用来对图片进行base64编码,这是根据API的要求做的。
xlwings
用来与Excel进行交互,几乎可以取代VBA,容易学习。
tencentcloud
腾讯云服务,提供了很多功能,值得探索。
re
正则表达式包,用来处理字符串中的空格等。
二、准备工作

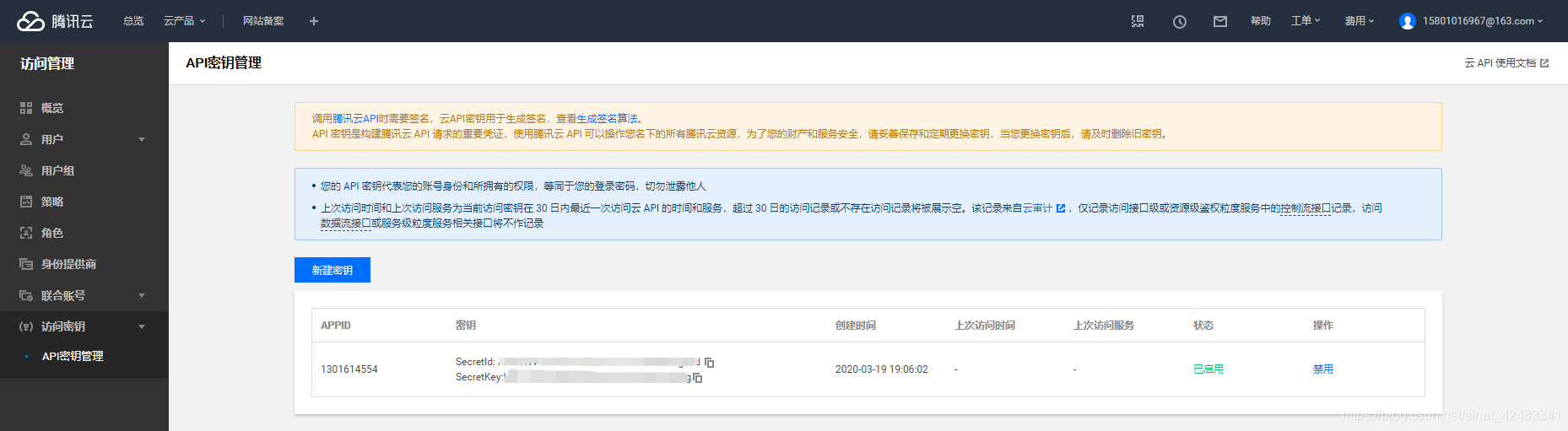

1、注册腾讯云,获取 SecretID 和 SecretKey.
在控制台新建一个API秘钥,获取SecretID和SecretKey.
2、开通资源包(腾讯云 - 文字识别)

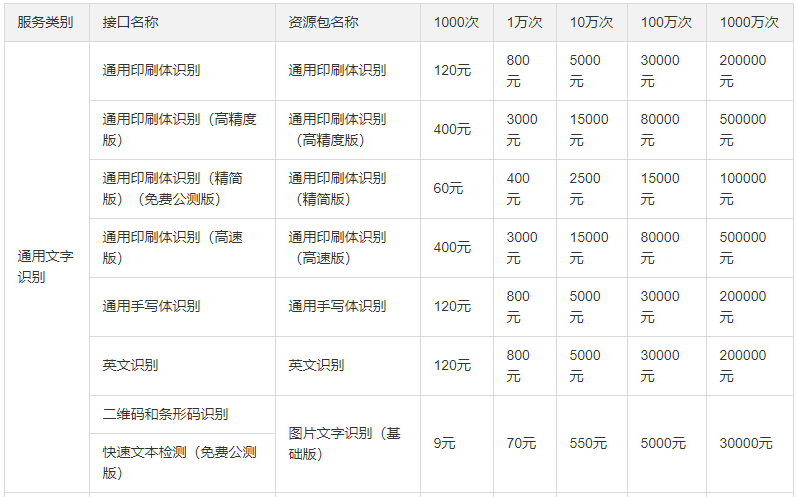

后期需要付费。官方付费说明:腾讯云文字识别(免费公测版)服务限时免费。免费期结束后,文字识别(免费公测版)服务会升级为正式版付费服务,于2020年4月1日00:00起开始正式按月计费。
所以趁还没收费,用一下试试…
3、pip 安装依赖
需要安装的依赖:
pandas==0.24.2
tencentcloud_sdk_python==3.0.142
numpy==1.16.5
如果国内 pip 网络不佳,可以-i
使用清华镜像。例如:
pip install XlsxWriter -i https://pypi.tuna.tsinghua.edu.cn/simple

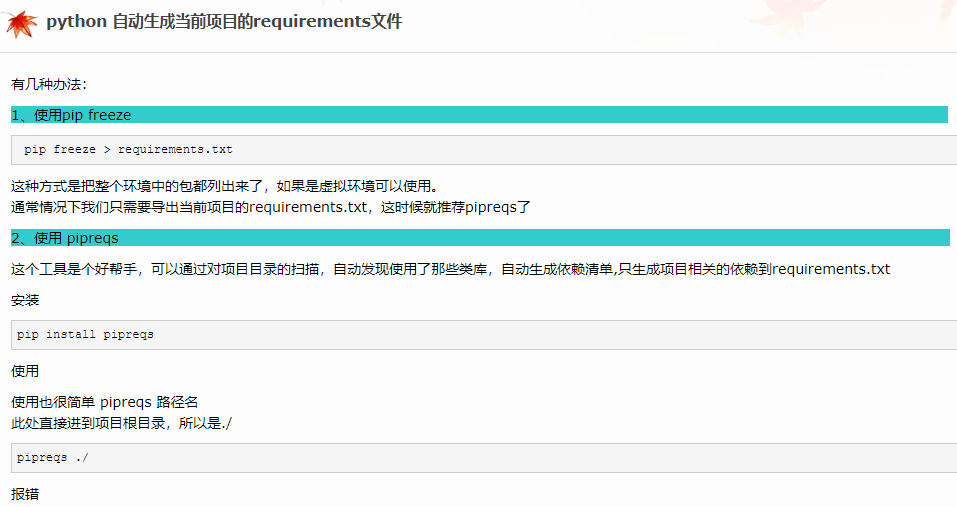

(附:生成当前项目相关依赖的requirements.txt方法)
4、准备几张较为清晰的截图
这里直接用截的图做测试吧
三、代码
# -*- coding: utf-8 -*-
# from PIL import Image
# import pytesseract
##导入通用包
import numpy as np
import pandas as pd
import os
import json
import re
import base64
# import xlwings as xw
# 导入腾讯AI api
from tencentcloud.common import credential
from tencentcloud.common.profile.client_profile import ClientProfile
from tencentcloud.common.profile.http_profile import HttpProfile
from tencentcloud.common.exception.tencent_cloud_sdk_exception import TencentCloudSDKException
from tencentcloud.ocr.v20181119 import ocr_client, models
# 定义函数
def excelFromPictures(picture, SecretId, SecretKey):
resp = None
# try:
with open(picture, "rb") as f:
img_data = f.read()
img_base64 = base64.b64encode(img_data)
cred = credential.Credential(SecretId, SecretKey) # ID和Secret从腾讯云申请
httpProfile = HttpProfile()
httpProfile.endpoint = "ocr.tencentcloudapi.com"
clientProfile = ClientProfile()
clientProfile.httpProfile = httpProfile
client = ocr_client.OcrClient(cred, "ap-shanghai", clientProfile)
req = models.TableOCRRequest()
params = '{"ImageBase64":"' + str(img_base64) + '"}'
# params = '{"ImageBase64":"' + str(img_base64, 'utf-8') + '"}'
req.from_json_string(params)
resp = client.TableOCR(req)
# print(resp.to_json_string())
# except TencentCloudSDKException as err:
# print(err)
##提取识别出的数据,并且生成json
result1 = json.loads(resp.to_json_string())
rowIndex = []
colIndex = []
content = []
for item in result1['TextDetections']:
rowIndex.append(item['RowTl'])
colIndex.append(item['ColTl'])
content.append(item['Text'])
##导出Excel
##ExcelWriter方案
rowIndex = pd.Series(rowIndex)
colIndex = pd.Series(colIndex)
index = rowIndex.unique()
index.sort()
columns = colIndex.unique()
columns.sort()
data = pd.DataFrame(index=index, columns=columns)
for i in range(len(rowIndex)):
data.loc[rowIndex[i], colIndex[i]] = re.sub(" ", "", content[i])
writer = pd.ExcelWriter("../tables/" + re.match(".*\.", f.name).group() + "xlsx", engine='xlsxwriter')
data.to_excel(writer, sheet_name='Sheet1', index=False, header=False)
writer.save()
# xlwings方案
# wb = xw.Book()
# sht = wb.sheets('Sheet1')
# for i in range(len(rowIndex)):
# sht[rowIndex[i],colIndex[i]].value = re.sub(" ",'',content[i])
# wb.save("../tables/" + re.match(".*\.",f.name).group() + "xlsx")
# wb.close()
# if not ('tables') in os.listdir():
# os.mkdir("./tables/")
os.chdir("./pictures/")
pictures = os.listdir('.')
for pic in pictures:
excelFromPictures(pic, "这里填写秘钥ID", "这里填写秘钥PWD")
print("已经完成" + pic + "的提取.")
四、识别效果
目录结构:

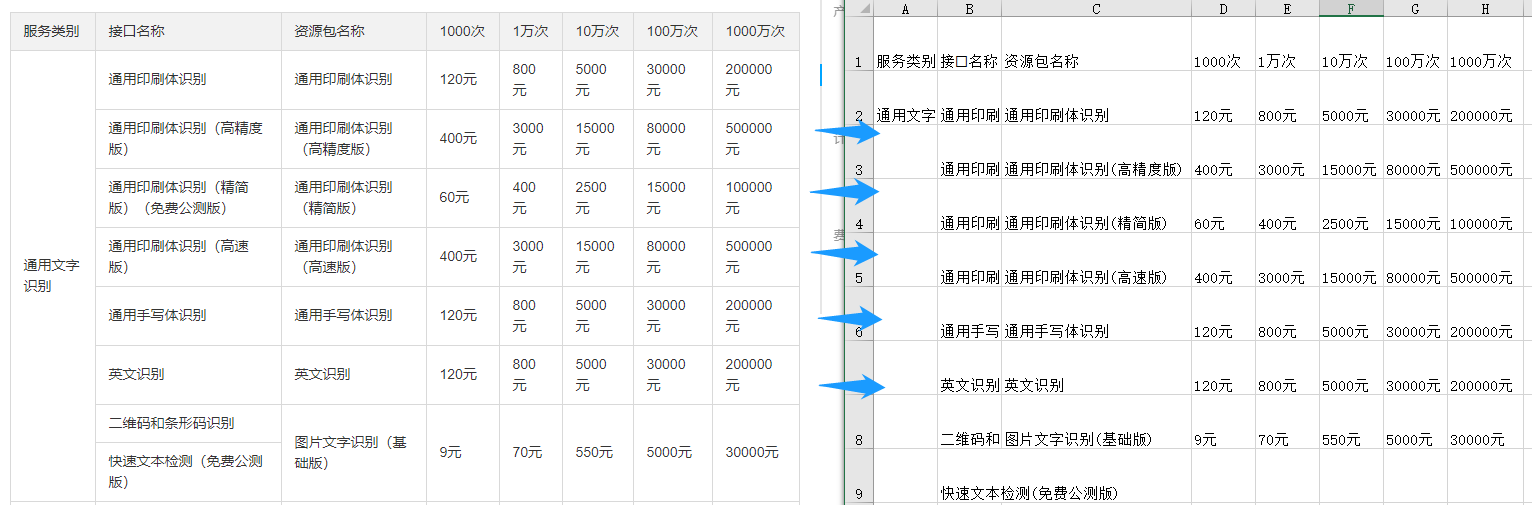

效果:
左边为截图,右边为识别后
