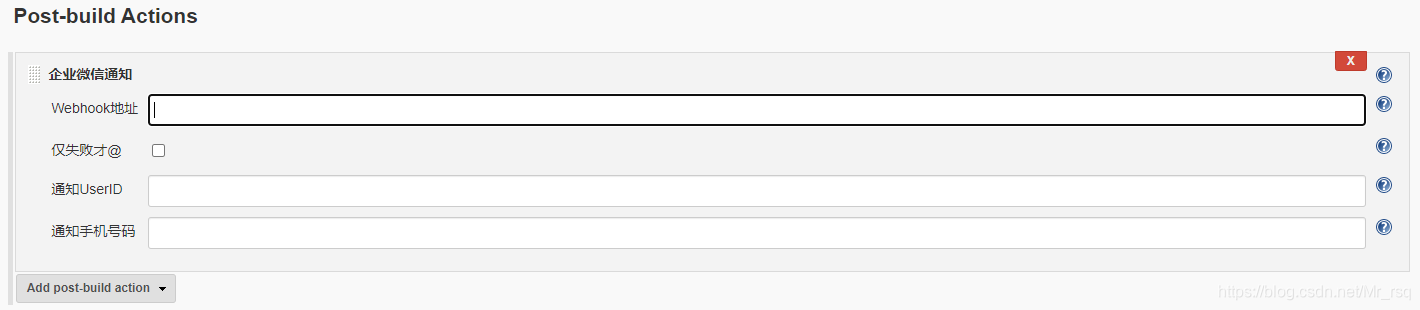

目前 Jenkins 有自带的 qy-wechat-notification-plugin这个插件可以直接配置企业微信机器人的 Webhook 地址，即可实现build之后进行企业微信通知的功能。但是这个插件只能在 Freestyle project 等带有 Post build action 的Project中调用，如下图：

若 Project 为 Pipeline ，那么是无法直接调用此插件，原因是Pipeline中没有Post-build Actions这个参数，如下图：

为了解决这个问题，搜索了好多资料，最后找到了一篇文章，参考文章如下，稍加修改即可实现try-catch捕获build failed

持续集成之企业微信通知：5:在Jenkins中向企业微信推送消息

下边开始详细说下

1 消息推送代码及实现原理

send_message.sh

#!/bin/sh
# 此脚本可实现jenkins往企业微信和钉钉推送消息

usage(){
	echo "usage: $0 TYPE TITLE CONTENT [URL]"
	echo "       TYPE: wechat|dingtalk"
}

TYPE="$1"
TITLE="$2"
CONTENT="$3"
URL="$4"

CHAT_CONTENT_TYPE='Content-Type: application/json'
DEFAULT_PIC_URL="https://img-blog.csdnimg.cn/20191227152859635.jpg?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9saXVtaWFvY24uYmxvZy5jc2RuLm5ldA==,size_16,color_FFFFFF,t_70"
DINGTALK_DEFAULT_WORDS=" [LiuMiaoMsg]"
if [ $# -lt 3 ]; then
  usage
  exit 1
fi

if [ _"${TYPE}" = _"wechat" ]; then
  CHAT_WEBHOOK_URL='https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key'
elif [ _"${TYPE}" = _"dingtalk" ]; then
  CHAT_WEBHOOK_URL='https://oapi.dingtalk.com/robot/send?access_token'
else
  usage
  exit 1
fi

if [ _"${CHAT_WEBHOOK_KEY}" = _"" ]; then
  echo "please make sure CHAT_WEBHOOK_KEY has been exported as environment variable"
  usage
  exit 1
fi

if [ _"${URL}" = _"" ]; then
  URL="https://blog.csdn.net/Mr_rsq/article/details/110956983"
fi

echo "## send message for : ${TYPE}"
if [ _"${TYPE}" = _"wechat" ]; then
  curl "${CHAT_WEBHOOK_URL}=${CHAT_WEBHOOK_KEY}" \
   -H "${CHAT_CONTENT_TYPE}" \
   -d '
   {
        "msgtype": "news",
        "news": {
           "articles" : [
              {
                  "title" : "'"${TITLE}"'",
                  "description" : "'"${CONTENT}"'",
                  "url" : "'"${URL}"'",
                  "picurl" : "'"${DEFAULT_PIC_URL}"'"
              }
           ]
        }
   }'
elif [ _"${TYPE}" = _"dingtalk" ]; then
  curl "${CHAT_WEBHOOK_URL}=${CHAT_WEBHOOK_KEY}" \
   -H "${CHAT_CONTENT_TYPE}" \
   -d '
   {
    "msgtype": "link",
    "link": {
        "text": "'"${CONTENT}${DINGTALK_DEFAULT_WORDS}"'",
        "title": "'"${TITLE}"'",
        "picUrl": "'"${DEFAULT_PIC_URL}"'",
        "messageUrl": "'"${URL}"'"
    }
   }'
else
  usage
  exit 1
fi

实现原理：
其实原理很简单，就是通过使用curl命令的-d和-H参数去模拟json格式的post请求，通过往send_message.sh脚本中传入title和picUrl等参数，从而实现企业微信通知的功能。

脚本使用：
（1）在使用send_message脚本之前需要先配置CHAT_WEBHOOK_KEY

export CHAT_WEBHOOK_KEY=xxxxxxxxxx

（2）然后直接执行脚本

bash send_message.sh wechat "rsq_test" "This is a test messages."

（3）企业微信中查看：

2 try-catch捕获build failed

我这边使用的的脚本化pipeline而不是声明式pipeline，为了配置好也费了一番功夫，搜索了一大堆资料。
代码如下：

try{
	node(LINUX) {
		stage('Build - Linux'){
			// build scripts ...
		} // stage
	} //node
} //try

catch (e){
	// 捕获错误，当Failed的时候给currentBuild.result赋值
	currentBuild.result = 'FAILURE'
} //catch

if(currentBuild.result == 'FAILURE') {
	node(env.BuildMachineLabel){
		stage("Post Build") {
			dir(env.ws_linux) {
				// 在使用send_message脚本之前需要先配置CHAT_WEBHOOK_KEY
				sh '''
				export CHAT_WEBHOOK_KEY=xxxxxxxxxx
				bash send_message.sh wechat "Linux %JOB_NAME% build failed." "URL: %BUILD_URL%" "%BUILD_URL%"
				'''
			} // dir
		} // stage
	} // node
} // if

通过Jenkins的内置变量，最后可以直接推送build failed的Job_url，执行如下命令

bash send_message.sh wechat "Ubuntu %JOB_NAME% build failed." "URL: %BUILD_URL%" "%BUILD_URL%"

Jenkins内置变量

PS：try-catch支持的命令（略多）

acceptGitLabMR, addGitLabMRComment, archive, bat, build, catchError, checkout, container, containerLog, deleteDir, dir, dockerFingerprintFrom, dockerFingerprintRun, dockerNode, echo, emailext, emailextrecipients, envVarsForTool, error, fileExists, findBuildScans, getContext, git, gitlabBuilds, gitlabCommitStatus, httpRequest, input, isUnix, junit, library, libraryResource, load, lock, mail, milestone, node, p4, p4approve, p4publish, p4sync, p4tag, p4unshelve, parallel, podTemplate, powershell, properties, publishHTML, pwd, pwsh, readFile, readTrusted, resolveScm, retry, script, sh, sleep, stage, stash, step, svn, timeout, timestamps, tm, tool, unarchive, unstable, unstash, updateGitlabCommitStatus, validateDeclarativePipeline, waitUntil, warnError, withContext, withCredentials, withDockerContainer, withDockerRegistry, withDockerServer, withEnv, wrap, writeFile, ws] or symbols [all, allOf, allure, always, ant, antFromApache, antOutcome, antTarget, any, anyOf, apiToken, approve, architecture, archiveArtifacts, artifactManager, attach, authorizationMatrix, autoClean, batchFile, bitbucket, booleanParam, branch, brokenBuildSuspects, brokenTestsSuspects, buildButton, buildDescription, buildDiscarder, buildName, buildTimestamp, buildTimestampExtraProperties, buildingTag, caseInsensitive, caseSensitive, certificate, changeRequest, changelog, changeset, checkoutToSubdirectory, choice, choiceParam, cleanWs, cleanup, clientSpec, clock, cloud, command, configMapVolume, containerEnvVar, containerLivenessProbe, containerTemplate, credentials, cron, crumb, culprits, default, defaultView, demand, depotSource, developers, disableConcurrentBuilds, disableResume, docker, dockerCert, dockerfile, downloadSettings, downstream, dumb, durabilityHint, dynamicPVC, emptyDirVolume, emptyDirWorkspaceVolume, envVar, envVars, environment, equals, expression, file, fileParam, filePath, fingerprint, fishEye, flushOnly, forceClean, frameOptions, freeStyle, freeStyleJob, fromScm, fromSource, git, gitBranchDiscovery, gitHubBranchDiscovery, gitHubBranchHeadAuthority, gitHubForkDiscovery, gitHubSshCheckout, gitHubTagDiscovery, gitHubTrustContributors, gitHubTrustEveryone, gitHubTrustNobody, gitHubTrustPermissions, gitLabConnection, gitTagDiscovery, github, githubPush, gitlab, globalLib, gradle, graphClean, graphSource, headRegexFilter, headWildcardFilter, hostPathVolume, hostPathWorkspaceVolume, hyperlink, hyperlinkToModels, incremental, inheriting, inheritingGlobal, installSource, isRestartedRun, jdk, jdkInstaller, jgit, jgitapache, jnlp, jobName, kubernetes, label, lastDuration, lastFailure, lastGrantedAuthorities, lastStable, lastSuccess, legacy, legacySCM, list, local, location, logRotator, loggedInUsersCanDoAnything, manualSpec, masterBuild, matrix, maven, maven3Mojos, mavenErrors, mavenMojos, mavenWarnings, merge, modernSCM, multiBranch, multiGraph, multiStreams, multiSwarm, myView, never, newContainerPerStage, nfsVolume, nfsWorkspaceVolume, node, nodeProperties, nonInheriting, none, not, note, onFailure, openGrok, override, overrideIndexTriggers, p4Trigger, p4Web, p4cleanup, p4groovy, p4sync, paneStatus, parallel, parallelsAlwaysFailFast, parameterizedCron, parameters, password, pathFilter, pattern, perforce, permanent, persistentVolumeClaim, persistentVolumeClaimWorkspaceVolume, pipeline-model, pipelineTriggers, plainText, plugin, podAnnotation, podEnvVar, podLabel, pollSCM, portMapping, preserveStashes, previewOnly, projectNamingStrategy, proxy, publish, queueItemAuthenticator, quietPeriod, qyWechatNotification, rateLimitBuilds, recipients, requestor, run, runParam, sSHLauncher, schedule, scmRetryCount, scriptApproval, scriptApprovalLink, search, secretEnvVar, secretVolume, security, shell, shelve, skipDefaultCheckout, skipStagesAfterUnstable, slave, sourceRegexFilter, sourceWildcardFilter, specFileSpec, ssh, sshUserPrivateKey, stackTrace, standard, staticSpec, status, streamSource, streamSpec, string, stringParam, submit, swapSpace, swarm, syncOnly, tag, templateSource, templateSpec, text, textParam, ticket, ticketMode, tmpSpace, toolLocation, triggeredBy, trust, unsecured, unshelve, upstream, upstreamDevelopers, user, userFilter, userSeed, usernameColonPassword, usernamePassword, viewFilter, viewPattern, viewsTabBar, weather, withAnt, zfs, zip] or globals [currentBuild, docker, env, params, pipeline, scm]
