% SNR 代表 Es/N0, Es/N0 = Eb/N0 * log2(M)
% 计算噪声方差时忽略导频功率，导频与数据承受同等水平的噪声
% 由于应用了IFFT/FFT，功率是平衡的
% InsertDCNull 为 true，SNR_OFDM 中考虑了 DC 空子载波的影响
% 调整为 SNR + 10 * log(使用的子载波数量 / FFT长度)
% h_channel 每一帧都不同，存储在 H 中，或者从 h_set 读取

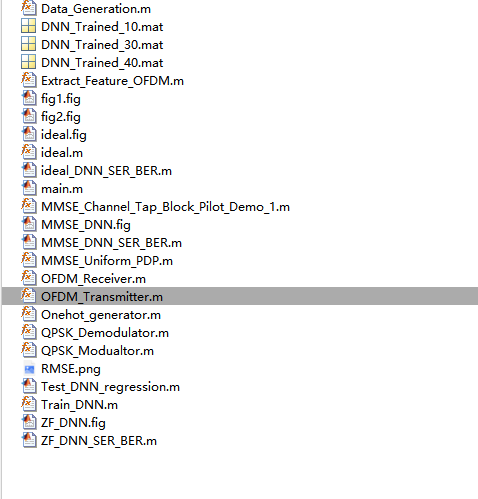

clear; clc; close all; % 清除工作区，避免变量干扰

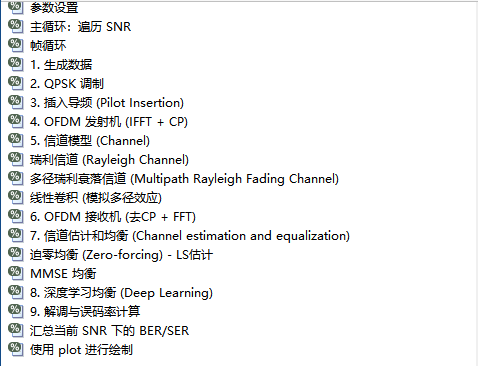

%% 参数设置
SNR_Range = 5:5:25; % 修改要求：SNR范围改为 5, 10, 15, 20, 25

% 初始化结果数组
len_snr = length(SNR_Range);
BER_over_SNR = zeros(len_snr, 1);
SER_over_SNR = zeros(len_snr, 1);
DNN_BER_over_SNR = zeros(len_snr, 1);
DNN_SER_over_SNR = zeros(len_snr, 1);

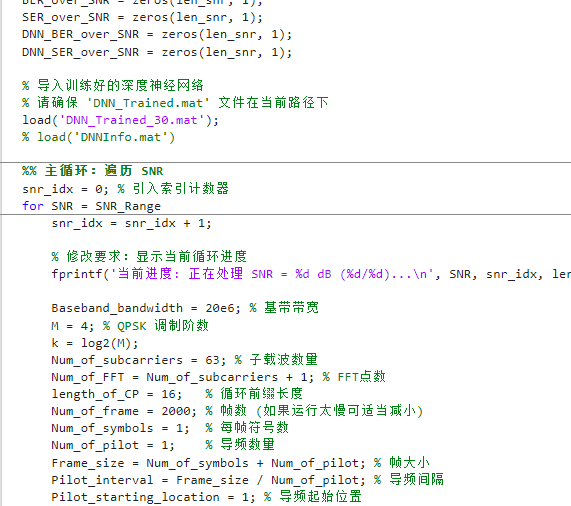

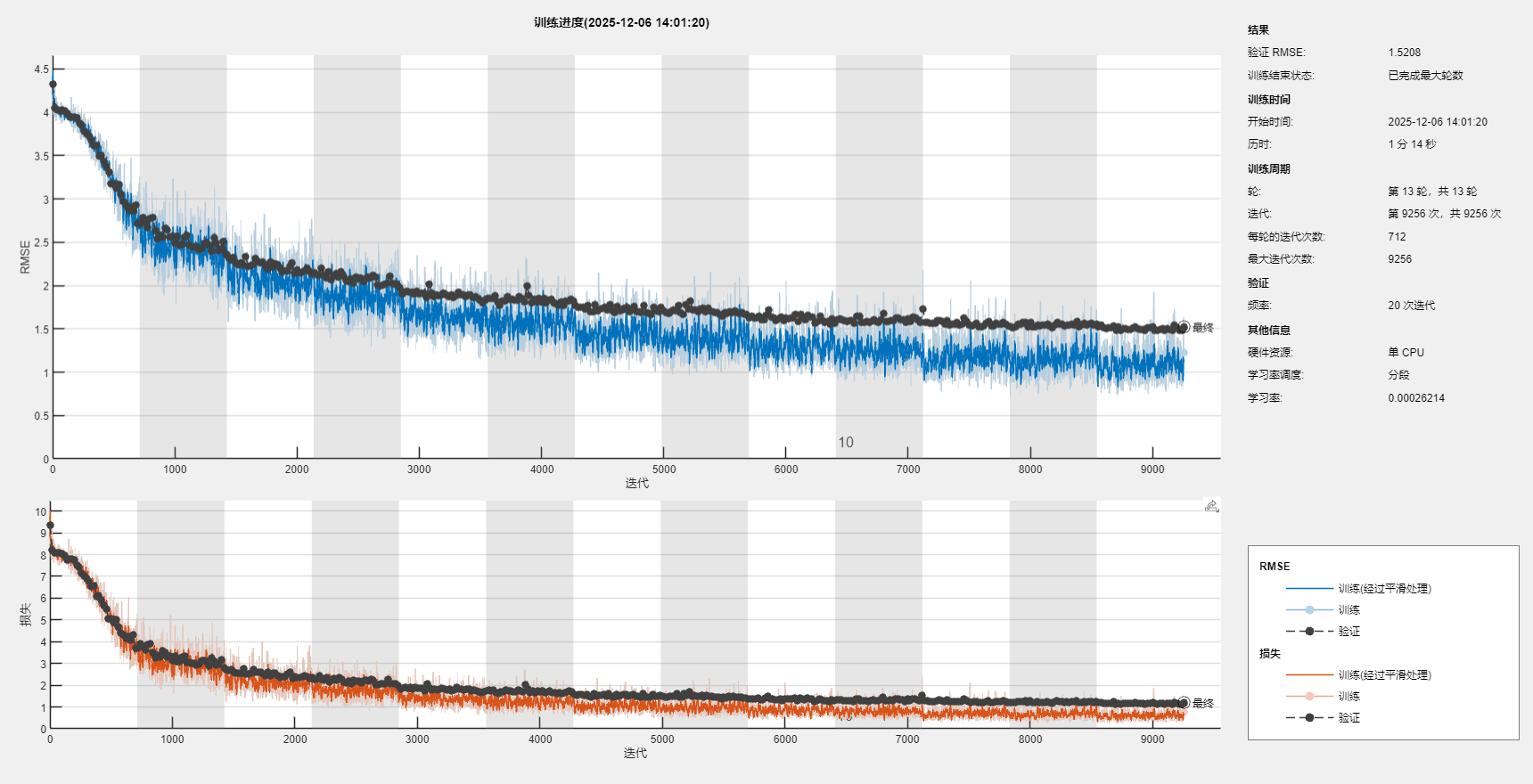

% 导入训练好的深度神经网络
% 请确保 'DNN_Trained.mat' 文件在当前路径下
load('DNN_Trained_30.mat');
% load('DNNInfo.mat')

%% 主循环：遍历 SNR
snr_idx = 0; % 引入索引计数器
for SNR = SNR_Range
    snr_idx = snr_idx + 1;

    % 修改要求：显示当前循环进度
    fprintf('当前进度: 正在处理 SNR = %d dB (%d/%d)...\n', SNR, snr_idx, len_snr);

    Baseband_bandwidth = 20e6; % 基带带宽
    M = 4; % QPSK 调制阶数
    k = log2(M);
    Num_of_subcarriers = 63; % 子载波数量
    Num_of_FFT = Num_of_subcarriers + 1; % FFT点数
    length_of_CP = 16;   % 循环前缀长度
    Num_of_frame = 2000; % 帧数 (如果运行太慢可适当减小)
    Num_of_symbols = 1;  % 每帧符号数
    Num_of_pilot = 1;    % 导频数量
    Frame_size = Num_of_symbols + Num_of_pilot; % 帧大小
    Pilot_interval = Frame_size / Num_of_pilot; % 导频间隔
    Pilot_starting_location = 1; % 导频起始位置
    length_of_symbol = Num_of_FFT + length_of_CP; % 符号总长度

    % 计算比特数
    Num_of_QPSK_symbols = Num_of_subcarriers * Num_of_symbols * Num_of_frame;
    Num_of_bits = Num_of_QPSK_symbols * k;

    % DNN 相关比特数设置
    Num_of_QPSK_symbols_DNN = 8 * Num_of_symbols * Num_of_frame;
    Num_of_bits_DNN = Num_of_QPSK_symbols_DNN * k;

    % 初始化错误计数器
    numErrs_sym = zeros(Num_of_frame, 1);
    SER_in_frame = zeros(Num_of_frame, 1);
    numErrs_bit = zeros(Num_of_frame, 1);
    BER_in_frame = zeros(Num_of_frame, 1);

    DNN_numErrs_sym = zeros(Num_of_frame, 1);
    DNN_SER_in_frame = zeros(Num_of_frame, 1);
    DNN_numErrs_bit = zeros(Num_of_frame, 1);
    DNN_BER_in_frame = zeros(Num_of_frame, 1);

    Rayleigh_h = zeros(Num_of_frame * Frame_size * length_of_symbol, 1);
    Multipath_h = zeros(Num_of_frame * Frame_size * length_of_symbol, 1);

    %% 帧循环
    for Frame = 1:Num_of_frame
        %% 1. 生成数据
        N = Num_of_subcarriers * Num_of_symbols;
        data = randi([0 1], N, k);
        Data = reshape(data, [], 1);
        dataSym = bi2de(data);

        %% 2. QPSK 调制
        QPSK_symbol = QPSK_Modualtor(dataSym); % 请确保此函数存在
        QPSK_signal = reshape(QPSK_symbol, Num_of_subcarriers, Num_of_symbols);

        %% 3. 插入导频 (Pilot Insertion)
        Pilot_value = 1 - 1j;
        Pilot_location = Pilot_starting_location : Pilot_interval : Frame_size;
        Num_of_Pilot_per_Frame = length(Pilot_location) * Num_of_subcarriers;
        data_location = 1 : Frame_size;
        data_location(Pilot_location(:)) = [];

        data_in_IFFT = zeros(Num_of_FFT - 1, Frame_size);
        data_in_IFFT(:, Pilot_location(:)) = Pilot_value;
        data_in_IFFT(:, data_location(:)) = QPSK_signal;
        data_in_IFFT = [zeros(1, Frame_size); data_in_IFFT]; % 添加DC空子载波

        %% 4. OFDM 发射机 (IFFT + CP)
        Transmitted_signal = OFDM_Transmitter(data_in_IFFT, Num_of_FFT, length_of_CP); % 请确保此函数存在

        %% 5. 信道模型 (Channel)
        % AWGN 信道参数计算
        Data_power = sum(power(abs(QPSK_symbol), 2)) / (length(QPSK_symbol));
        SNR_OFDM = SNR + 10 * log10((Num_of_subcarriers / Num_of_FFT));
        SNR_OFDM_HEX = 10 ^ (SNR_OFDM / 10);
        Noise_power = Data_power / SNR_OFDM_HEX;
        Nvariance = sqrt(Noise_power/2);
        n = Nvariance * (randn(length(Transmitted_signal), 1) + 1j * randn(length(Transmitted_signal), 1)); % 生成噪声

        % 纯 AWGN 信号 (未使用)
        AWGN_Signal = Transmitted_signal + n;

        %% 瑞利信道 (Rayleigh Channel)
        Rayleigh_h_channel_OFDM_symbol = (1 / sqrt(2)) * randn(length_of_symbol, 1) + (1 / sqrt(2)) * 1j * randn(length_of_symbol, 1);
        Rayleigh_h_channel = repmat(Rayleigh_h_channel_OFDM_symbol, Frame_size, 1);
        Rayleigh_Fading_Signal = Rayleigh_h_channel .* Transmitted_signal + n;
        Rayleigh_h(((Frame - 1) * Frame_size * length_of_symbol) + 1 : Frame * Frame_size * length_of_symbol, 1) = Rayleigh_h_channel;

        % 已知 h 时的理想信号
        Channel_signal_when_h_is_known = Rayleigh_Fading_Signal ./ Rayleigh_h_channel;

        %% 多径瑞利衰落信道 (Multipath Rayleigh Fading Channel)
        Multipath_Fading_h_channel_OFDM_symbol = ((randn + 1j * randn) / sqrt(2)) * ones(length_of_symbol, 1);
        Multipath_Fading_h_channel = repmat(Multipath_Fading_h_channel_OFDM_symbol, Frame_size, 1);

        % 存储多径 h
        Multipath_h(((Frame - 1) * Frame_size * length_of_symbol) + 1 : Frame * Frame_size * length_of_symbol, 1) = Multipath_Fading_h_channel;

        % 多径抽头 (5径)
        Multitap_h = [(randn + 1j * randn);...
                      (randn + 1j * randn) / 2;...
                      (randn + 1j * randn) / 4;...
                      (randn + 1j * randn) / 8;...
                      (randn + 1j * randn) / 16] / (1.9375 * sqrt(pi/2));

        %% 线性卷积 (模拟多径效应)
        Multitap_Channel_Signal = conv(Transmitted_signal, Multitap_h);

        % 截取有效部分并加噪
        Multitap_Channel_Signal = Multitap_Channel_Signal(1 : length(Transmitted_signal)) + n;

        %% 6. OFDM 接收机 (去CP + FFT)
        [Unrecovered_signal, Unrecovered_signal_when_h_is_known] = OFDM_Receiver(Multitap_Channel_Signal, Num_of_FFT, length_of_CP, length_of_symbol, Channel_signal_when_h_is_known);

        %% 7. 信道估计和均衡 (Channel estimation and equalization)
        % 理想信道知识
        Received_data_Perfect_knowledge = Unrecovered_signal_when_h_is_known(2:end, data_location(:));

        %% 迫零均衡 (Zero-forcing) - LS估计
        Received_pilot = Unrecovered_signal(:, Pilot_location(:));
        H_LS = Received_pilot ./ Pilot_value;
        Received_Signal_ZF = Unrecovered_signal(:, data_location(:)) ./ H_LS;
        Received_data_ZF = Received_Signal_ZF(2:end, :); % 未使用

        %% MMSE 均衡
        % 需要确保 MMSE_Channel_Tap_Block_Pilot_Demo_1 函数可用
        H_MMSE_h = MMSE_Channel_Tap_Block_Pilot_Demo_1(Received_pilot, Pilot_value, Num_of_FFT, Frame_size, SNR, Multitap_h');
        H_MMSE = H_MMSE_h;
        Received_Signal_MMSE = Unrecovered_signal ./ H_MMSE;
        Received_data_MMSE = Received_Signal_MMSE(2:end, data_location(:));

        %% 8. 深度学习均衡 (Deep Learning)
        % 仅检测前8个QPSK符号用于演示/测试
        [DNN_feature_signal, ~, ~] = Extract_Feature_OFDM(Unrecovered_signal, dataSym(1:2), M, QPSK_signal(1:8));

        % 使用训练好的网络进行预测
        Received_data_DNN = predict(DNN_Trained, DNN_feature_signal);
        DNN_Received_data = Received_data_DNN(1:2:end, :) + 1j * Received_data_DNN(2:2:end, :);

        % 设置当前主要对比的数据流 (这里选用 MMSE 结果作为基准)
        Received_data = Received_data_ZF;

        %% 9. 解调与误码率计算
        % 常规 QPSK 解调
        dataSym_Rx = QPSK_Demodulator(Received_data);
        dataSym_Received = de2bi(dataSym_Rx, 2);
        Data_Received = reshape(dataSym_Received, [], 1);

        % DNN 数据 QPSK 解调
        DNN_dataSym_Rx = QPSK_Demodulator(DNN_Received_data);
        DNN_dataSym_Received = de2bi(DNN_dataSym_Rx, 2);
        DNN_Data_Received = reshape(DNN_dataSym_Received, [], 1);

        % 计算当前帧的误码率 (MMSE/LS)
        numErrs_sym(Frame, 1) = sum(sum(round(dataSym) ~= round(dataSym_Rx)));
        SER_in_frame(Frame, 1) = numErrs_sym(Frame, 1) / length(dataSym);
        numErrs_bit(Frame, 1) = sum(sum(round(Data) ~= round(Data_Received)));
        BER_in_frame(Frame, 1) = numErrs_bit(Frame, 1) / length(Data);

        % 计算当前帧的误码率 (DNN)
        DNN_numErrs_sym(Frame, 1) = sum(sum(round(dataSym(1:8)) ~= round(DNN_dataSym_Rx)));
        DNN_SER_in_frame(Frame, 1) = DNN_numErrs_sym(Frame, 1) / length(DNN_dataSym_Rx);
        DNN_numErrs_bit(Frame, 1) = sum(sum(round(reshape(de2bi(dataSym(1:8), 2),[],1)) ~= round(DNN_Data_Received)));
        DNN_BER_in_frame(Frame, 1) = DNN_numErrs_bit(Frame, 1) / length(DNN_Data_Received);
    end

    %% 汇总当前 SNR 下的 BER/SER
    BER = sum(numErrs_bit, 1) / Num_of_bits;
    SER = sum(numErrs_sym, 1) / Num_of_QPSK_symbols;

    % 使用 snr_idx 存储结果，确保数据紧凑
    BER_over_SNR(snr_idx, 1) = BER;
    SER_over_SNR(snr_idx, 1) = SER;
    DNN_BER_over_SNR(snr_idx, 1) = sum(DNN_numErrs_bit, 1) / Num_of_bits_DNN;
    DNN_SER_over_SNR(snr_idx, 1) = sum(DNN_numErrs_sym, 1) / Num_of_QPSK_symbols_DNN;
end

fprintf('仿真完成，开始绘图...\n');

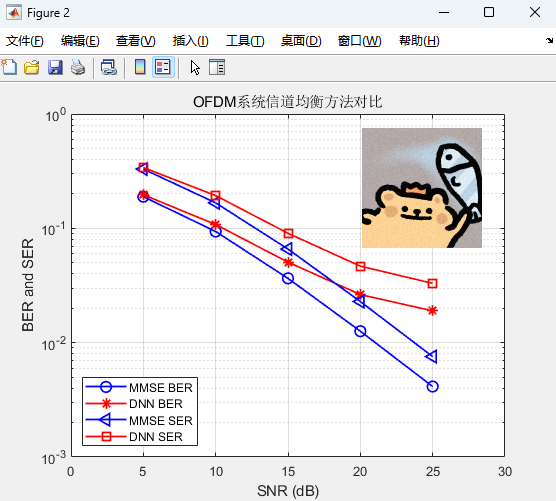

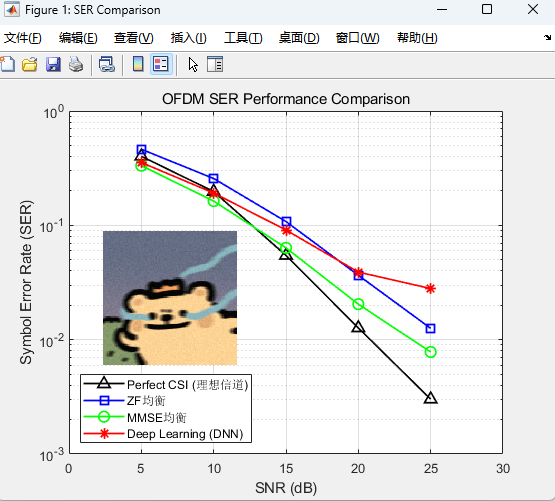

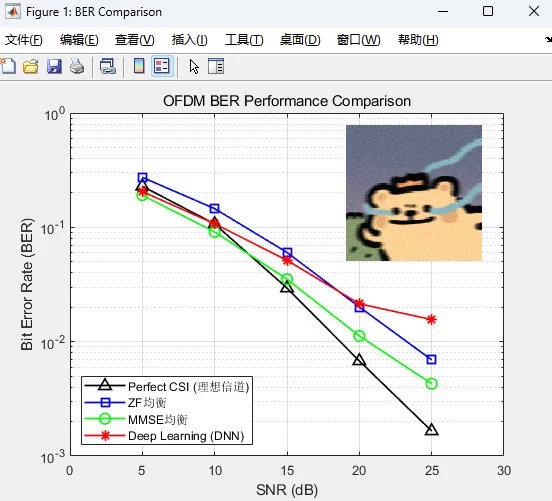

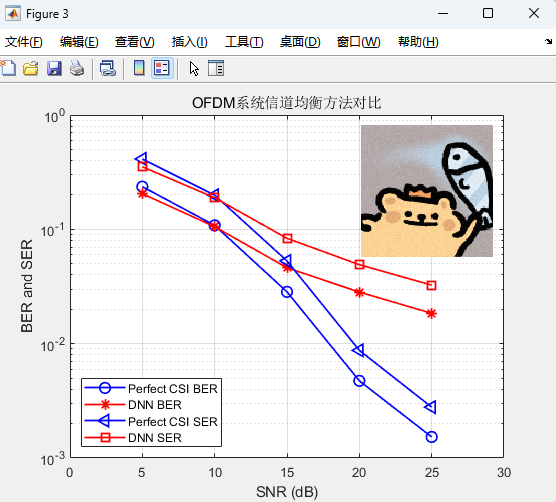

%% 使用 plot 进行绘制
figure;
% 使用半对数坐标轴绘制 BER (通信系统常用)
semilogy(SNR_Range, BER_over_SNR, '-bo', 'LineWidth', 1.25, 'MarkerSize', 8, 'DisplayName', 'ZF BER');
hold on;
semilogy(SNR_Range, DNN_BER_over_SNR, '-r*', 'LineWidth', 1.25, 'MarkerSize', 8, 'DisplayName', 'DNN BER');
semilogy(SNR_Range, SER_over_SNR, '-b<', 'LineWidth', 1.25, 'MarkerSize', 8,'DisplayName', 'ZF SER');
hold on;
semilogy(SNR_Range, DNN_SER_over_SNR, '-rs','LineWidth', 1.25, 'MarkerSize', 8, 'DisplayName', 'DNN SER');
grid on;
xlabel('SNR (dB)');
ylabel('BER and SER');
title('OFDM系统信道均衡方法对比');
legend('show', 'Location', 'southwest');
xlim([0 30]);
ylim([10^(-3) 1])
% 如果需要绘制 SER，可以取消下面注释
% figure;
% semilogy(SNR_Range, SER_over_SNR, '-bo', 'DisplayName', 'MMSE SER');
% hold on;
% semilogy(SNR_Range, DNN_SER_over_SNR, '-r*', 'DisplayName', 'DNN SER');
% grid on; legend;

function [Xtraining_Cell, Xtraining_Array, Ytraining_categorical, Ytraining_regression_cell, Ytraining_regression_array, Xvalidation_Cell, Yvalidation_categorical, Yvalidation_regression] = Data_Generation(Training_set_ratio, SNR, Num_of_frame)

M = 4; % QPSK
k = log2(M);

Num_of_subcarriers = 63; %126
Num_of_FFT = Num_of_subcarriers + 1;
length_of_CP = 16;

Num_of_symbols = 1;
Num_of_pilot = 1;
Frame_size = Num_of_symbols + Num_of_pilot;

Pilot_interval = Frame_size / Num_of_pilot;
Pilot_starting_location = 1;

length_of_symbol = Num_of_FFT + length_of_CP;

Num_of_QPSK_symbols = Num_of_subcarriers * Num_of_symbols * Num_of_frame;
Num_of_bits = Num_of_QPSK_symbols * log2(M);

Xtraining_Cell = cell(Training_set_ratio * Num_of_frame, 1);
Xtraining_Array = zeros(Num_of_FFT * Frame_size * 2, 1, 1, Training_set_ratio * Num_of_frame);
Ytraining_categorical_double = zeros(Training_set_ratio * Num_of_frame, 1);
Ytraining_regression_cell = cell(Training_set_ratio * Num_of_frame, 1);
Ytraining_regression_array = zeros(Training_set_ratio * Num_of_frame, 16);

Xvalidation_Cell = cell(Num_of_frame - Training_set_ratio * Num_of_frame, 1);
Yvalidation_categorical_double = zeros(Num_of_frame - Training_set_ratio * Num_of_frame, 1);
Yvalidation_regression = cell(Num_of_frame - Training_set_ratio * Num_of_frame, 1);

for Frame = 1 : Num_of_frame

% Data generation
N = Num_of_subcarriers * Num_of_symbols;
data = randi([0 1], N, k);
dataSym = bi2de(data);

% QPSK modulator
QPSK_symbol = QPSK_Modualtor(dataSym);
QPSK_signal = reshape(QPSK_symbol, Num_of_subcarriers, Num_of_symbols);

% Pilot inserted
Pilot_value = 1 - 1j;
Pilot_location = Pilot_starting_location : Pilot_interval : Frame_size;

data_location = 1 : Frame_size;
data_location(Pilot_location(:)) = [];

data_in_IFFT = zeros(Num_of_FFT - 1, Frame_size);

data_in_IFFT(:, Pilot_location(:)) = Pilot_value;
data_in_IFFT(:, data_location(:)) = QPSK_signal;
data_in_IFFT = [zeros(1, Frame_size); data_in_IFFT];

% OFDM Transmitter
Transmitted_signal = OFDM_Transmitter(data_in_IFFT, Num_of_FFT, length_of_CP);


% Channel

% AWGN Channel
Data_power = sum(power(abs(QPSK_symbol), 2)) / (length(QPSK_symbol));

SNR_OFDM = SNR + 10 * log10((Num_of_subcarriers / Num_of_FFT));
SNR_OFDM_HEX = 10 ^ (SNR_OFDM / 10);
Noise_power = Data_power / SNR_OFDM_HEX;

Nvariance = sqrt(Noise_power/2); % QPSK has two paths of signal
n = Nvariance * (randn(length(Transmitted_signal), 1) + 1j * randn(length(Transmitted_signal), 1)); % Noise generation

% Multipath Rayleigh Fading Channel
Multitap_h = [(randn + 1j * randn);...
    (randn + 1j * randn) / 2;...
    (randn + 1j * randn) / 4;...
    (randn + 1j * randn) / 8;...
    (randn + 1j * randn) / 16] / (1.9375 * sqrt(pi/2));

% linear convolution
Multitap_Channel_Signal = conv(Transmitted_signal, Multitap_h);

% circular convolution
%Multitap_Channel_Signal = cconv(Transmitted_signal, Multitap_h, length(Transmitted_signal));

Multitap_Channel_Signal = Multitap_Channel_Signal(1 : length(Transmitted_signal)) + n;


% OFDM Receiver
Channel_signal_when_h_is_known = ones(160,1);
[Received_data, ~] = OFDM_Receiver(Multitap_Channel_Signal, Num_of_FFT, length_of_CP, length_of_symbol, Channel_signal_when_h_is_known);

[feature_of_OFDM_frame, label_of_OFDM_frame, label_of_regression] = Extract_Feature_OFDM(Received_data, dataSym(1:2), M, QPSK_signal(1:8));

if Frame <= fix(Training_set_ratio * Num_of_frame)
    Xtraining_Cell{Frame, 1} = feature_of_OFDM_frame;
    Xtraining_Array(:, :, 1, Frame) = feature_of_OFDM_frame;
    Ytraining_categorical_double(Frame, 1) = label_of_OFDM_frame;
    Ytraining_regression_cell{Frame, 1} = label_of_regression;
    Ytraining_regression_array(Frame, :) = label_of_regression;
else
    Xvalidation_Cell{Frame - Training_set_ratio * Num_of_frame, 1} = feature_of_OFDM_frame;
    Yvalidation_categorical_double(Frame - Training_set_ratio * Num_of_frame, 1) = label_of_OFDM_frame;
    Yvalidation_regression{Frame - Training_set_ratio * Num_of_frame, 1} = label_of_regression;
end

end

Ytraining_categorical = categorical(Ytraining_categorical_double);
Yvalidation_categorical = categorical(Yvalidation_categorical_double);

end
