前引

还有三部分还要继续搞
可以剩一点放在明天上午搞先这样我先去把GoogleNet 给复现一遍

这两天早点弄完明天多花点时间陪一下npy

从零开始的推荐系统学习之路（十五）---- 动手学深度学习系列卷积神经网络 CNN（GoogLeNet & BatchNorm & ResNet）

1、GoogLeNet

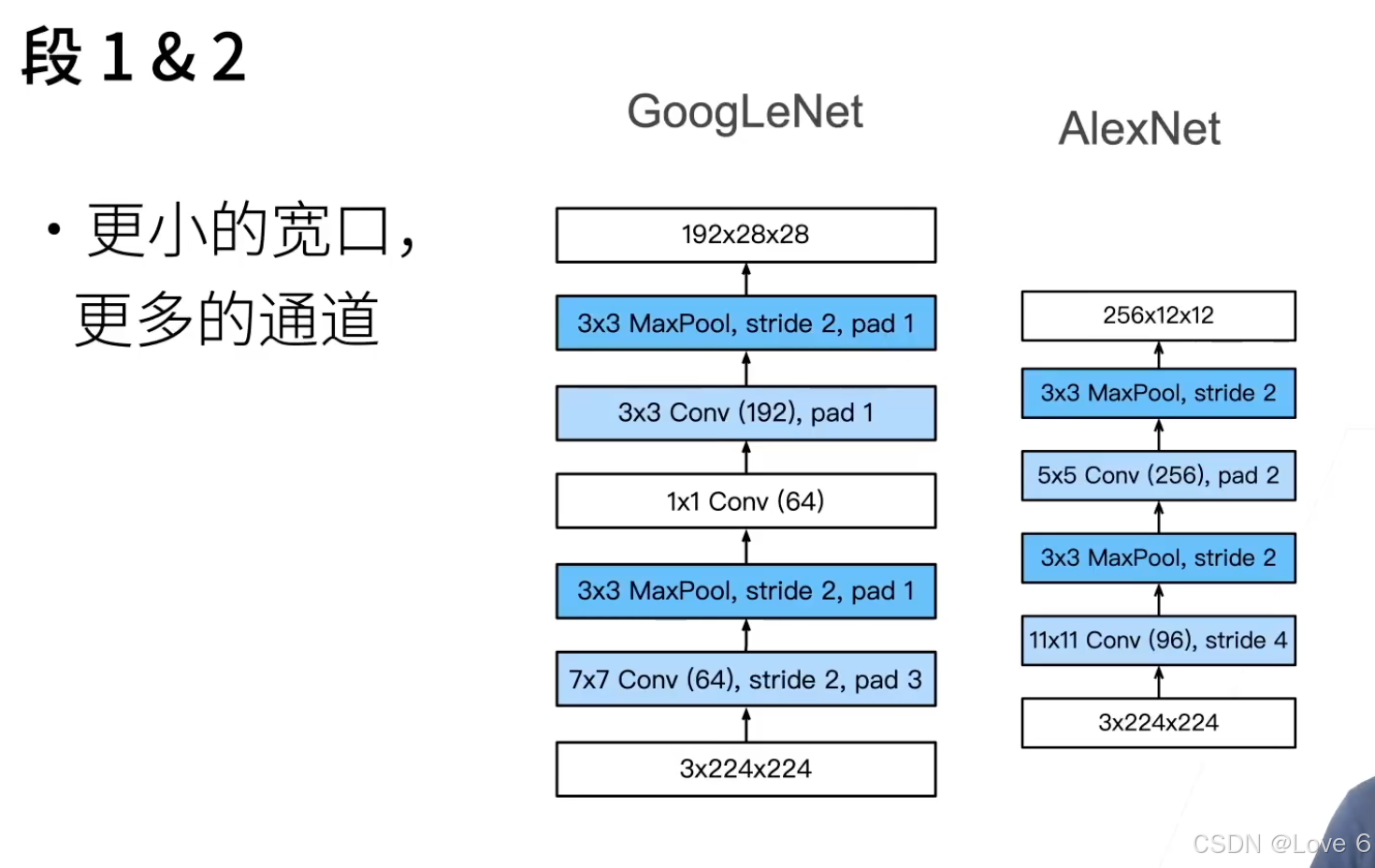

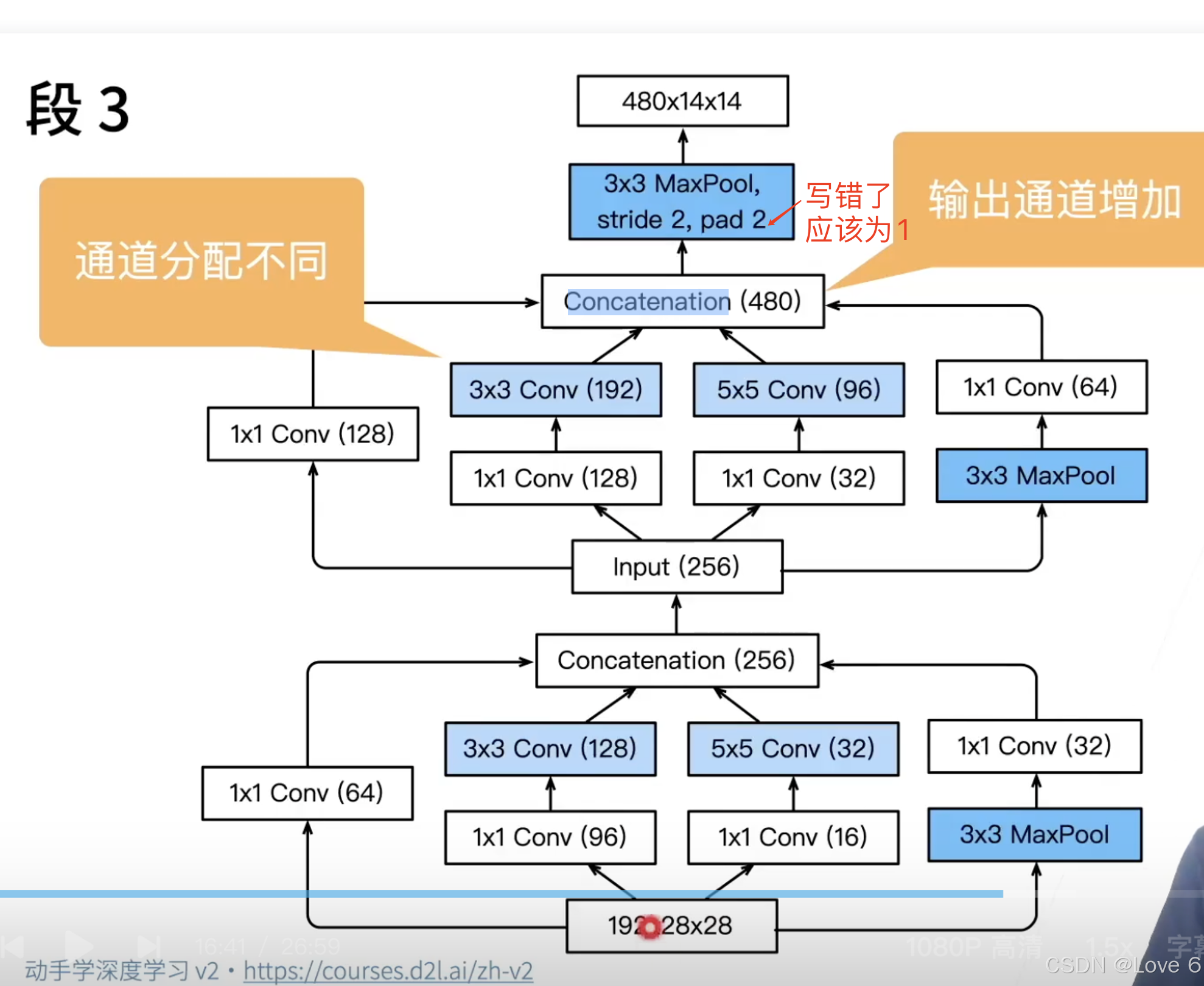

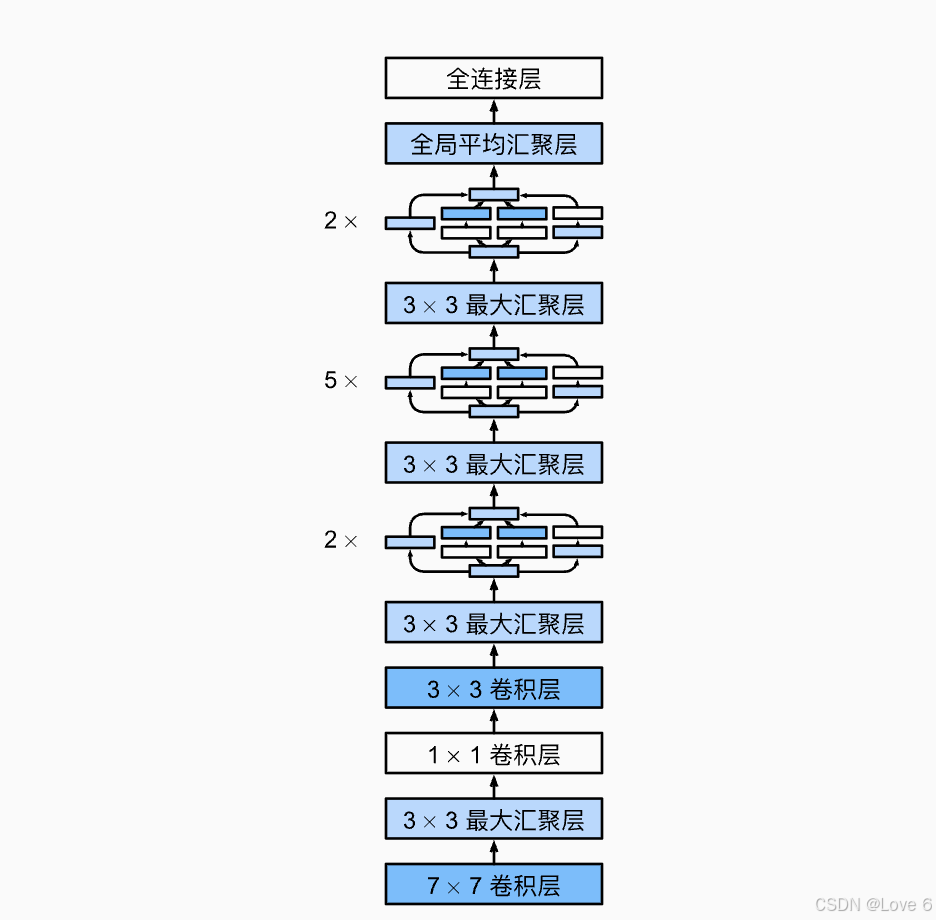

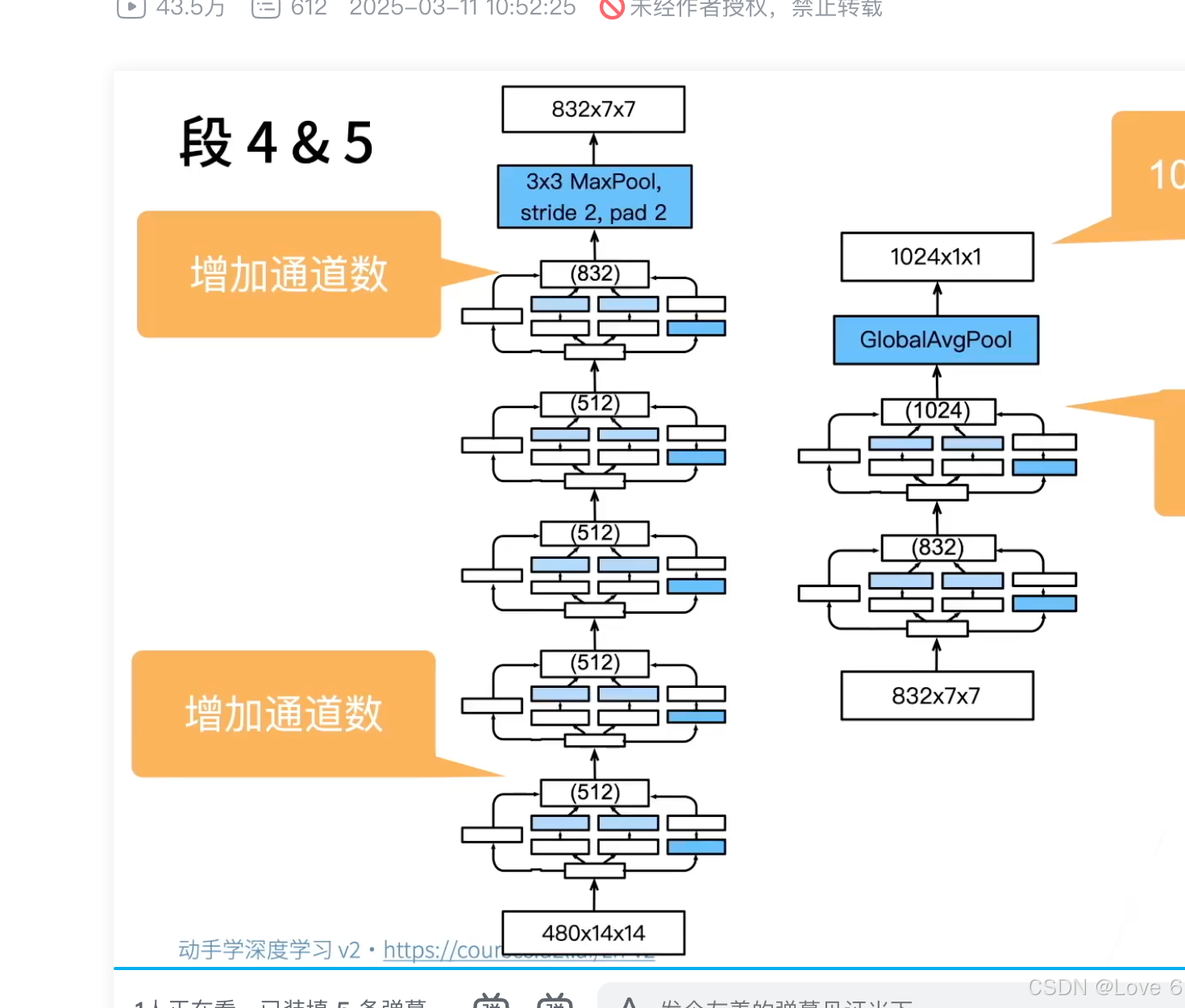

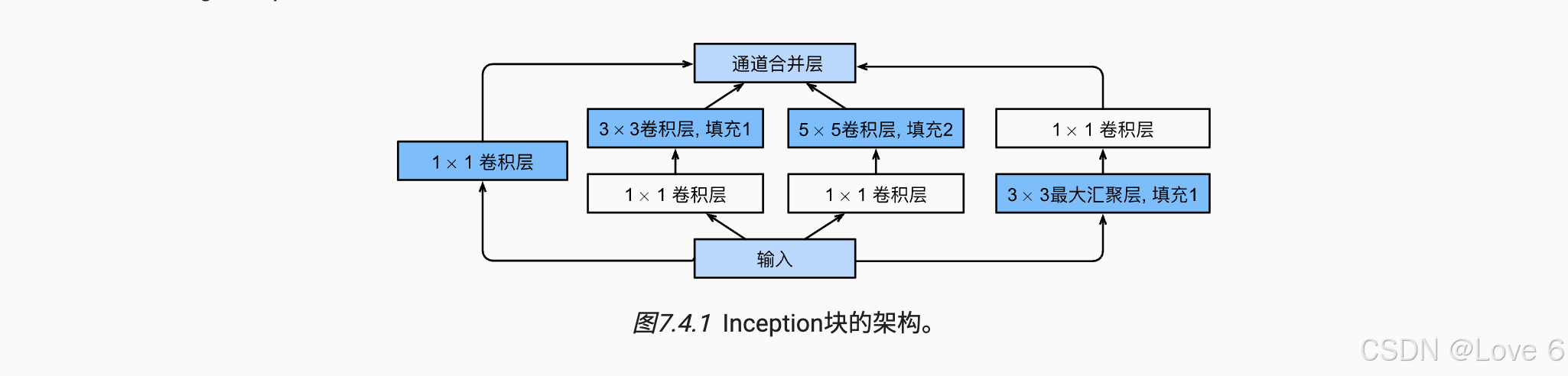

下面即是 GoogleNet Inception的架构图还有详细的架构图

在这里插入图片描述

import torch.nn.functional as F


class Inception(nn.Module):
    def __init__(self, in_channels, c1, c2, c3, c4, **kwargs):
        super().__init__()
        self.c1_1 = nn.Conv2d(in_channels, c1, kernel_size=1)
        self.c2_1 = nn.Conv2d(in_channels, c2[0], kernel_size=1)
        self.c2_2 = nn.Conv2d(c2[0], c2[1], kernel_size=3, padding=1)
        self.c3_1 = nn.Conv2d(in_channels, c3[0], kernel_size=1)
        self.c3_2 = nn.Conv2d(c3[0], c3[1], kernel_size=5, padding=2)
        self.c4_1 = nn.MaxPool2d(kernel_size=3, stride=1, padding=1)
        self.c4_2 = nn.Conv2d(in_channels, c4, kernel_size=1)

    def forward(self, x):
        c1 = F.relu(self.c1_1(x))
        c2 = F.relu(self.c2_2(F.relu(self.c2_1(x))))
        c3 = F.relu(self.c3_2(F.relu(self.c3_1(x))))
        c4 = F.relu(self.c4_2(self.c4_1(x)))
        # print(c1.shape, c2.shape, c3.shape, c4.shape, torch.cat([c1, c2, c3, c4], 1).shape)
        return torch.cat([c1, c2, c3, c4], 1)




b1b2 = nn.Sequential(nn.Conv2d(1, 64, kernel_size=7, stride=2, padding=3),
                   nn.ReLU(),
                   nn.MaxPool2d(3, stride=2, padding=1),
                   nn.Conv2d(64, 64, kernel_size=1),
                   nn.ReLU(),
                   nn.Conv2d(64, 192, kernel_size=3, padding=1),
                   nn.ReLU(),
                   nn.MaxPool2d(kernel_size=3, stride=2, padding=1))

b1 = nn.Sequential(nn.Conv2d(1, 64, kernel_size=7, stride=2, padding=3),
                   nn.ReLU(),
                   nn.MaxPool2d(3, stride=2, padding=1))

b2 = nn.Sequential(nn.Conv2d(64, 64, kernel_size=1),
                   nn.ReLU(),
                   nn.Conv2d(64, 192, kernel_size=3, padding=1),
                   nn.ReLU(),
                   nn.MaxPool2d(kernel_size=3, stride=2, padding=1))

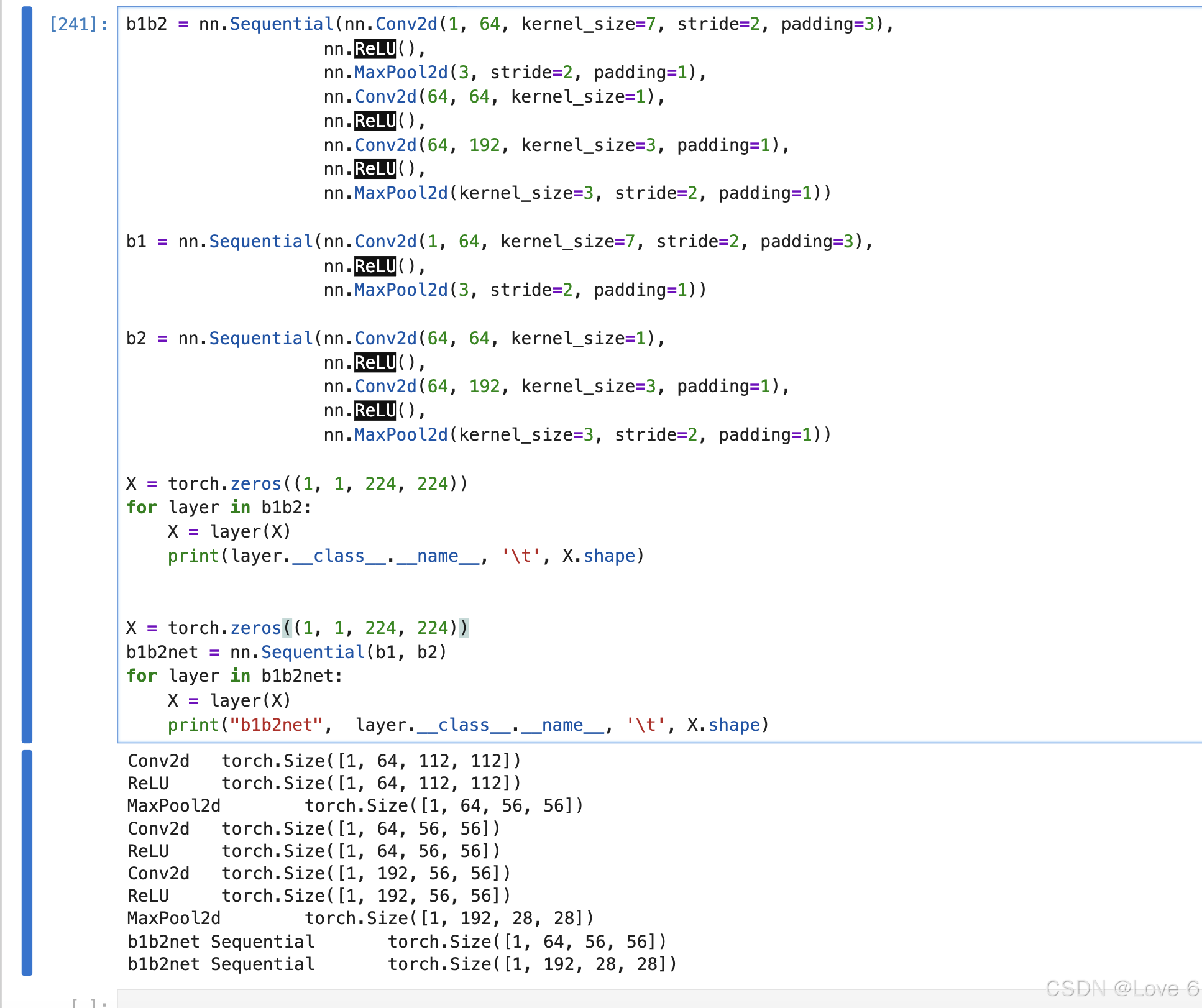

X = torch.zeros((1, 1, 224, 224))
for layer in b1b2:
    X = layer(X)
    print(layer.__class__.__name__, '\t', X.shape)


X = torch.zeros((1, 1, 224, 224))
b1b2net = nn.Sequential(b1, b2)
for layer in b1b2net:
    X = layer(X)
    print("b1b2net",  layer.__class__.__name__, '\t', X.shape)

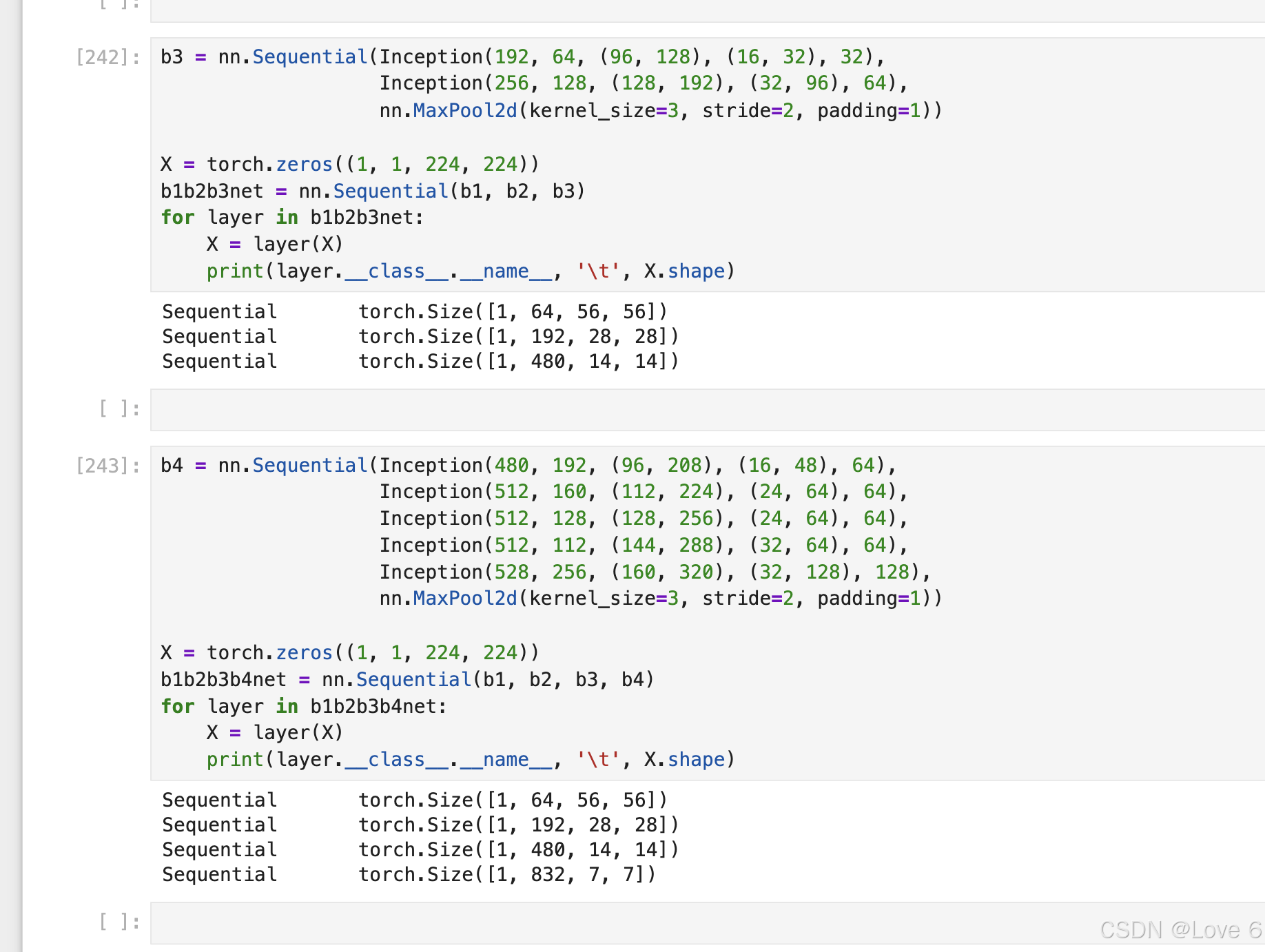

b3 = nn.Sequential(Inception(192, 64, (96, 128), (16, 32), 32),
                   Inception(256, 128, (128, 192), (32, 96), 64),
                   nn.MaxPool2d(kernel_size=3, stride=2, padding=1))

X = torch.zeros((1, 1, 224, 224))
b1b2b3net = nn.Sequential(b1, b2, b3)
for layer in b1b2b3net:
    X = layer(X)
    print(layer.__class__.__name__, '\t', X.shape)


b4 = nn.Sequential(Inception(480, 192, (96, 208), (16, 48), 64),
                   Inception(512, 160, (112, 224), (24, 64), 64),
                   Inception(512, 128, (128, 256), (24, 64), 64),
                   Inception(512, 112, (144, 288), (32, 64), 64),
                   Inception(528, 256, (160, 320), (32, 128), 128),
                   nn.MaxPool2d(kernel_size=3, stride=2, padding=1))

X = torch.zeros((1, 1, 224, 224))
b1b2b3b4net = nn.Sequential(b1, b2, b3, b4)
for layer in b1b2b3b4net:
    X = layer(X)
    print(layer.__class__.__name__, '\t', X.shape)



b5 = nn.Sequential(Inception(832, 256, (160, 320), (32, 128), 128),
                   Inception(832, 384, (192, 384), (48, 128), 128),
                   nn.AdaptiveAvgPool2d((1,1)),
                   nn.Flatten())

X = torch.zeros((1, 1, 94, 94))
net = nn.Sequential(b1, b2, b3, b4, b5, nn.Dropout(p=0.5), nn.Linear(1024, 10))
for layer in net:
    X = layer(X)
    print(layer.__class__.__name__, '\t', X.shape)

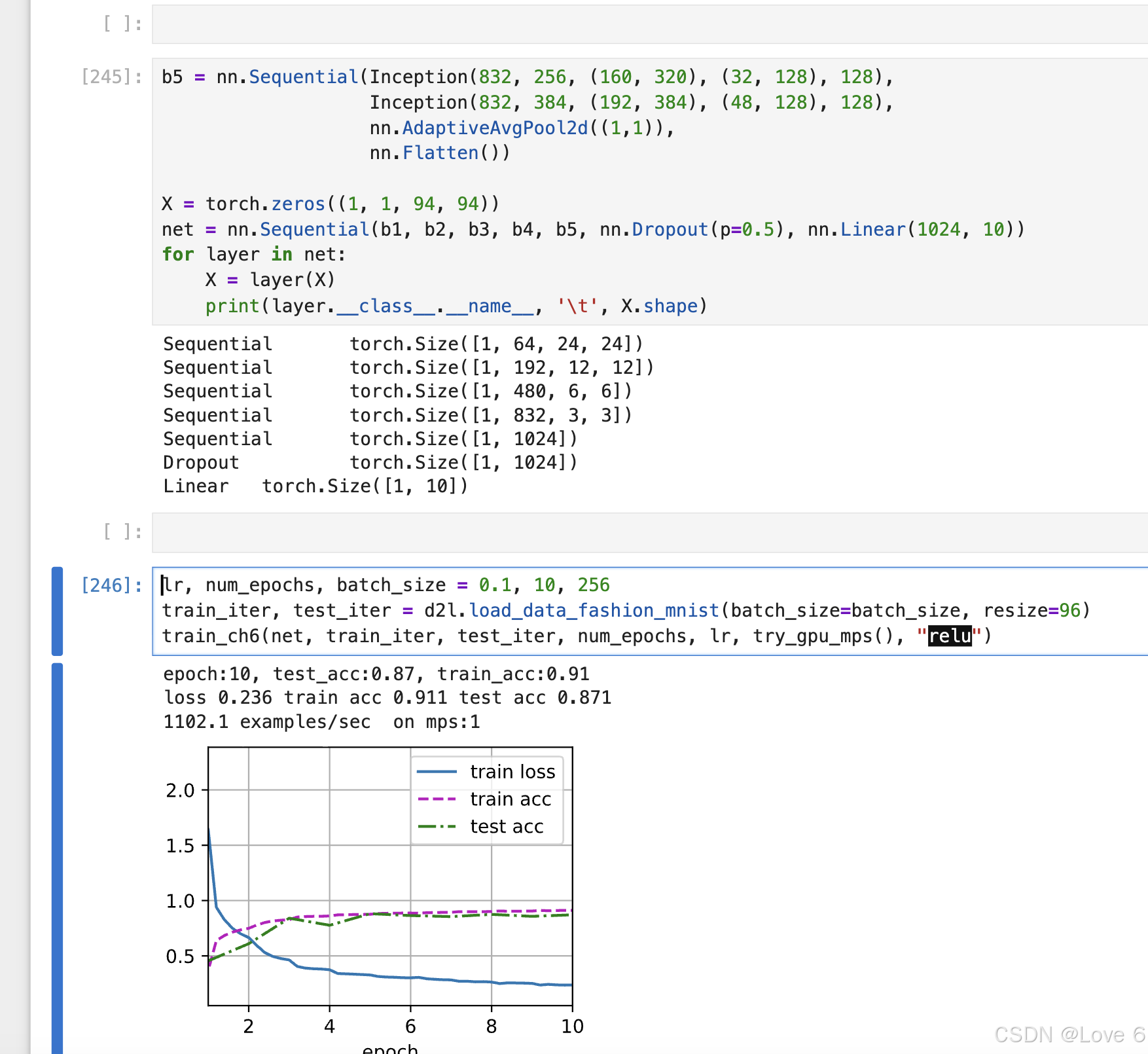

lr, num_epochs, batch_size = 0.1, 10, 256
train_iter, test_iter = d2l.load_data_fashion_mnist(batch_size=batch_size, resize=96)
train_ch6(net, train_iter, test_iter, num_epochs, lr, try_gpu_mps(), "relu")

在这里插入图片描述

2、BatchNorm（批量归一化）

原理站在我的角度来说可以使参数输出更稳定作用于特征纬度然后可以学习到新的方差和均值
也有说的是数据例如减去了新的误差以及数据去变换了

一般不与dropout同时去用

在这里插入图片描述

def batch_norm(X, gamma, beta, moving_mean, moving_var, eps=1e-5, momentum=0.9):
    if not torch.is_grad_enabled():
        X_hat = (X - moving_mean) / torch.sqrt(moving_var + eps)
    else:
        assert len(X.shape) in (2, 4)
        mean, var, features = 0.0, 1.0, 0
        if len(X.shape) == 2:
            mean = X.mean(dim=0, keepdims=True)
            var = ((X - mean) ** 2).mean(dim=0, keepdims=True)
        else:
            mean = X.mean(dim=(0, 2, 3), keepdims=True)
            # print(mean.shape)
            var = ((X - mean) ** 2).mean(dim=(0, 2, 3), keepdims=True)

        X_hat = (X - mean) / torch.sqrt(var + eps)

        moving_mean = momentum * moving_mean + (1 - momentum) * mean
        moving_var = momentum * moving_var + (1 - momentum) * var

    Y = gamma * X_hat + beta
    return Y, moving_mean, moving_var

class BatchNorm(nn.Module):
    # num_features：完全连接层的输出数量或卷积层的输出通道数。
    # num_dims：2表示完全连接层，4表示卷积层
    def __init__(self, num_features, num_dims):
        super().__init__()
        assert num_dims in (2, 4)
        shape = ()
        if num_dims == 2:
            shape = (1, num_features)
        else:
            shape = (1, num_features, 1, 1)

        self.gamma = nn.Parameter(torch.ones(shape))
        self.beta = nn.Parameter(torch.zeros(shape))
        self.moving_mean = torch.zeros(shape)
        self.moving_var = torch.ones(shape)

    def forward(self, X):
        if self.moving_mean.device != X.device:
            self.moving_mean = self.moving_mean.to(X.device)
            self.moving_var = self.moving_var.to(X.device)

        Y, self.moving_mean, self.moving_var = batch_norm(
            X, self.gamma, self.beta, self.moving_mean,
            self.moving_var, eps=1e-5, momentum=0.9)
        return Y

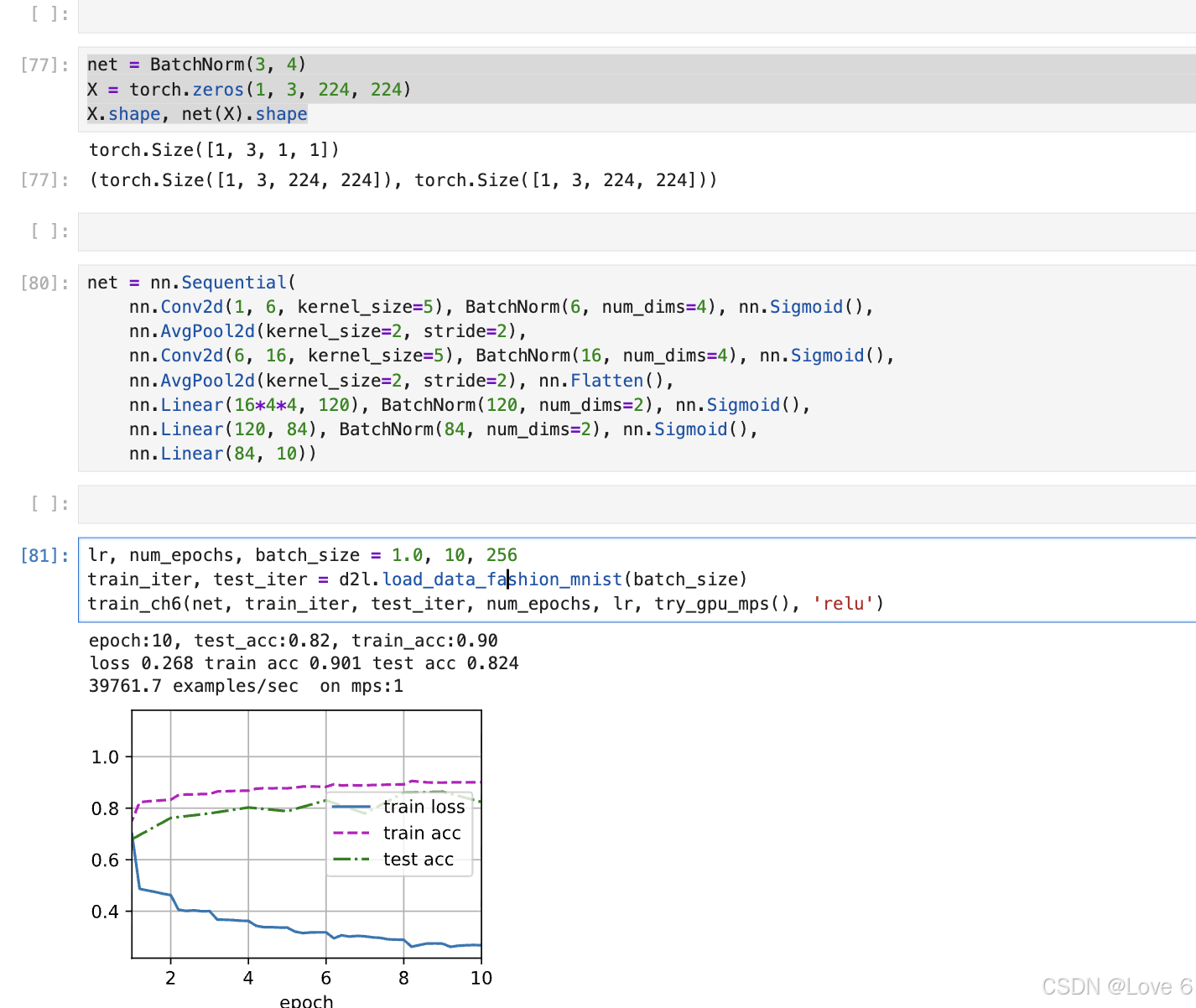

net = BatchNorm(3, 4)
X = torch.zeros(1, 3, 224, 224)
X.shape, net(X).shape


net = nn.Sequential(
    nn.Conv2d(1, 6, kernel_size=5), BatchNorm(6, num_dims=4), nn.Sigmoid(),
    nn.AvgPool2d(kernel_size=2, stride=2),
    nn.Conv2d(6, 16, kernel_size=5), BatchNorm(16, num_dims=4), nn.Sigmoid(),
    nn.AvgPool2d(kernel_size=2, stride=2), nn.Flatten(),
    nn.Linear(16*4*4, 120), BatchNorm(120, num_dims=2), nn.Sigmoid(),
    nn.Linear(120, 84), BatchNorm(84, num_dims=2), nn.Sigmoid(),
    nn.Linear(84, 10))


lr, num_epochs, batch_size = 1.0, 10, 256
train_iter, test_iter = d2l.load_data_fashion_mnist(batch_size)
train_ch6(net, train_iter, test_iter, num_epochs, lr, try_gpu_mps(), 'relu')

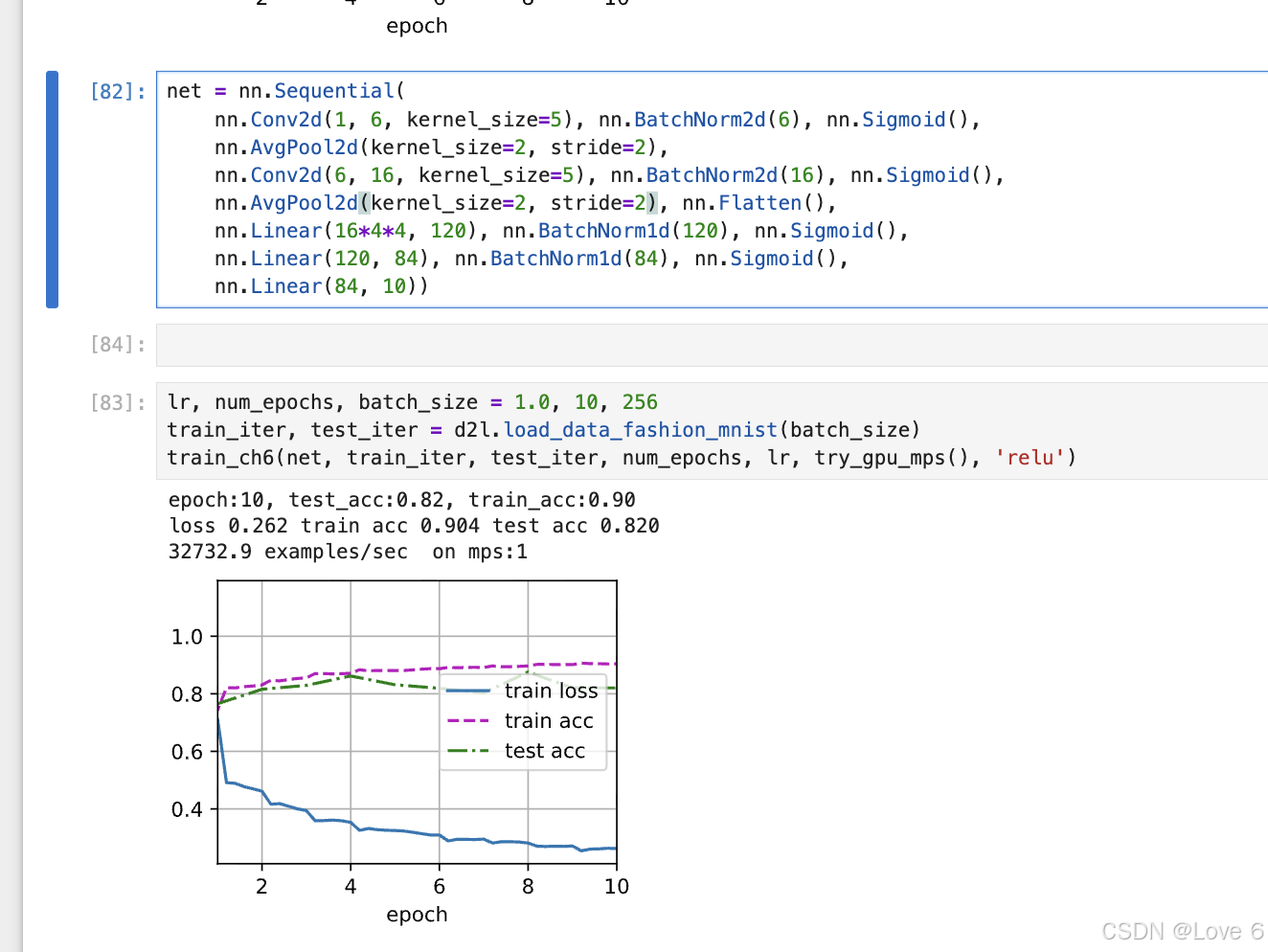

net = nn.Sequential(
    nn.Conv2d(1, 6, kernel_size=5), nn.BatchNorm2d(6), nn.Sigmoid(),
    nn.AvgPool2d(kernel_size=2, stride=2),
    nn.Conv2d(6, 16, kernel_size=5), nn.BatchNorm2d(16), nn.Sigmoid(),
    nn.AvgPool2d(kernel_size=2, stride=2), nn.Flatten(),
    nn.Linear(16*4*4, 120), nn.BatchNorm1d(120), nn.Sigmoid(),
    nn.Linear(120, 84), nn.BatchNorm1d(84), nn.Sigmoid(),
    nn.Linear(84, 10))


lr, num_epochs, batch_size = 1.0, 10, 256
train_iter, test_iter = d2l.load_data_fashion_mnist(batch_size)
train_ch6(net, train_iter, test_iter, num_epochs, lr, try_gpu_mps(), 'relu')

在这里插入图片描述

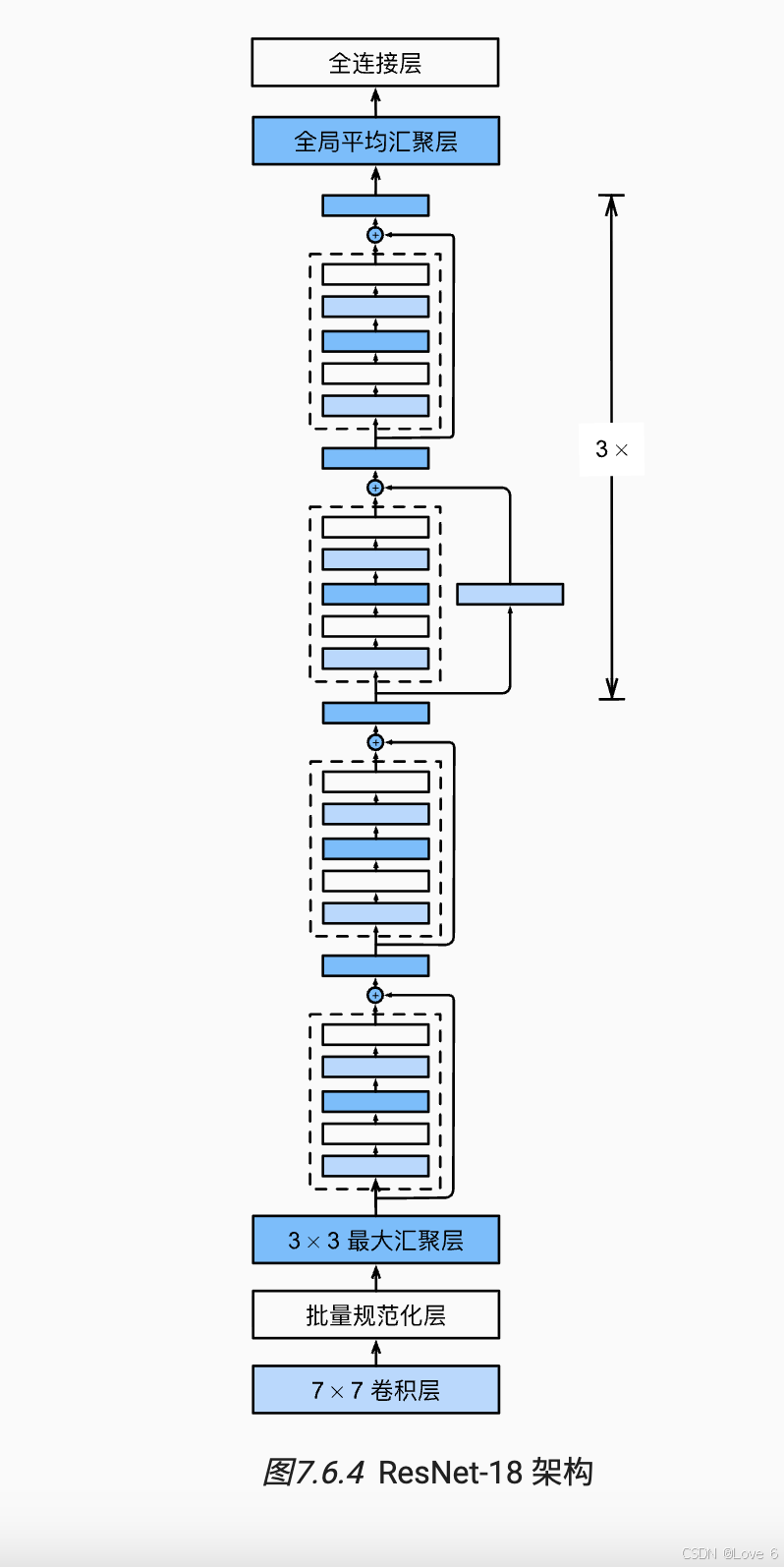

3、ResNet

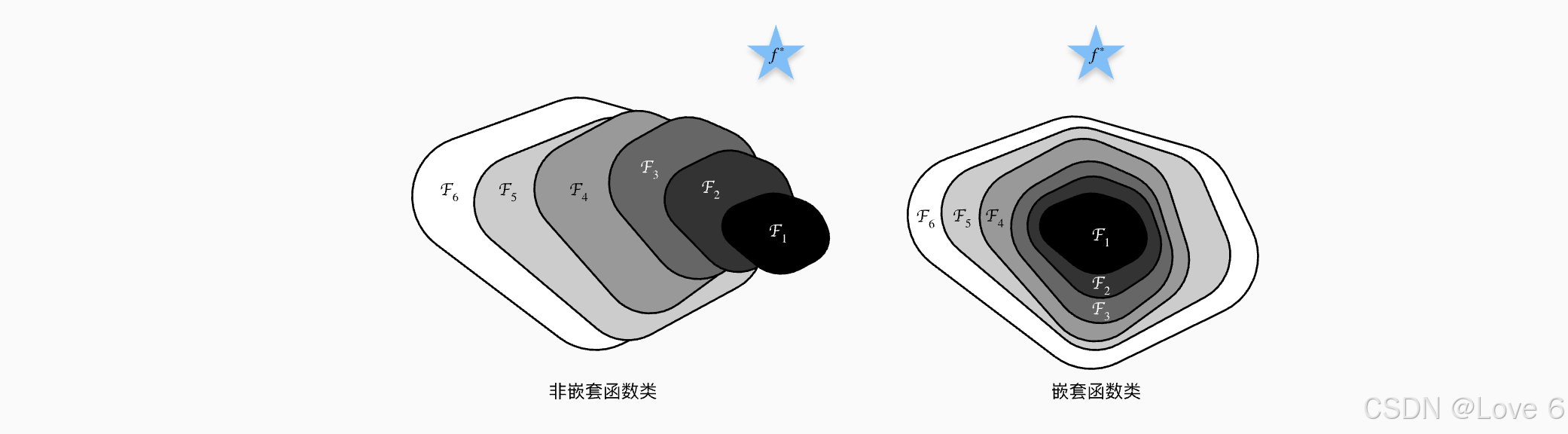

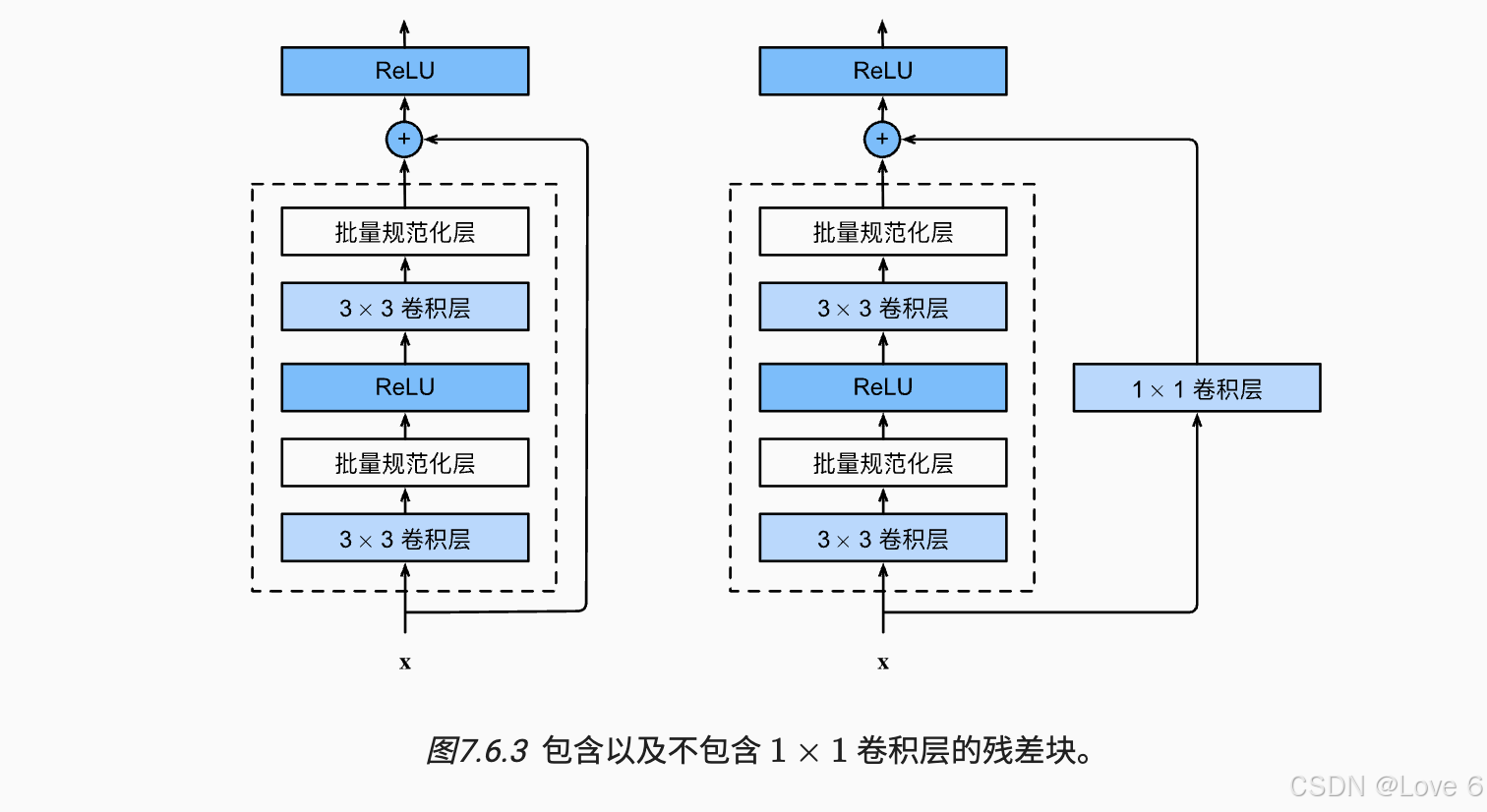

**残参网络架构我理解本质上有个类似的短路机制或者说大网络包含着小网络让网络更稳定一点 **

在这里插入图片描述

class Residual(nn.Module):
    def __init__(self, input_channels, num_channels, use_1x1conv=False, strides=1):
        super().__init__()
        self.c1 = nn.Conv2d(input_channels, num_channels, kernel_size=3, stride=strides, padding=1)
        self.b1 = nn.BatchNorm2d(num_channels)

        self.c2 = nn.Conv2d(num_channels, num_channels, kernel_size=3, padding=1)
        self.b2 = nn.BatchNorm2d(num_channels)

        self.c3 = None
        if use_1x1conv == True:
            self.c3 = nn.Conv2d(input_channels, num_channels, kernel_size=1, stride=strides)

    def forward(self, X):
        tmp = nn.functional.relu(self.b1(self.c1(X)))
        o1 = self.b2(self.c2(tmp))

        o2 = torch.zeros_like(o1)
        if self.c3 != None:
            o2 = self.c3(X)

        Y = nn.functional.relu(o1 + o2)
        return Y



blk = Residual(3,3)
X = torch.rand(4, 3, 6, 6)
Y = blk(X)
Y.shape


# 下面即为copy

def resnet_block(input_channels, num_channels, num_residuals,
                 first_block=False):
    blk = []
    for i in range(num_residuals):
        if i == 0 and not first_block:
            blk.append(Residual(input_channels, num_channels,
                                use_1x1conv=True, strides=2))
        else:
            blk.append(Residual(num_channels, num_channels))
    return blk

b1 = nn.Sequential(nn.Conv2d(1, 64, kernel_size=7, stride=2, padding=3),
                   nn.BatchNorm2d(64), nn.ReLU(),
                   nn.MaxPool2d(kernel_size=3, stride=2, padding=1))

b2 = nn.Sequential(*resnet_block(64, 64, 2, first_block=True))
b3 = nn.Sequential(*resnet_block(64, 128, 2))
b4 = nn.Sequential(*resnet_block(128, 256, 2))
b5 = nn.Sequential(*resnet_block(256, 512, 2))

net = nn.Sequential(b1, b2, b3, b4, b5,
                    nn.AdaptiveAvgPool2d((1,1)),
                    nn.Flatten(), nn.Linear(512, 10))


lr, num_epochs, batch_size = 0.1, 10, 256
train_iter, test_iter = d2l.load_data_fashion_mnist(batch_size, resize=96)
train_ch6(net, train_iter, test_iter, num_epochs, lr, try_gpu_mps(), 'relu')

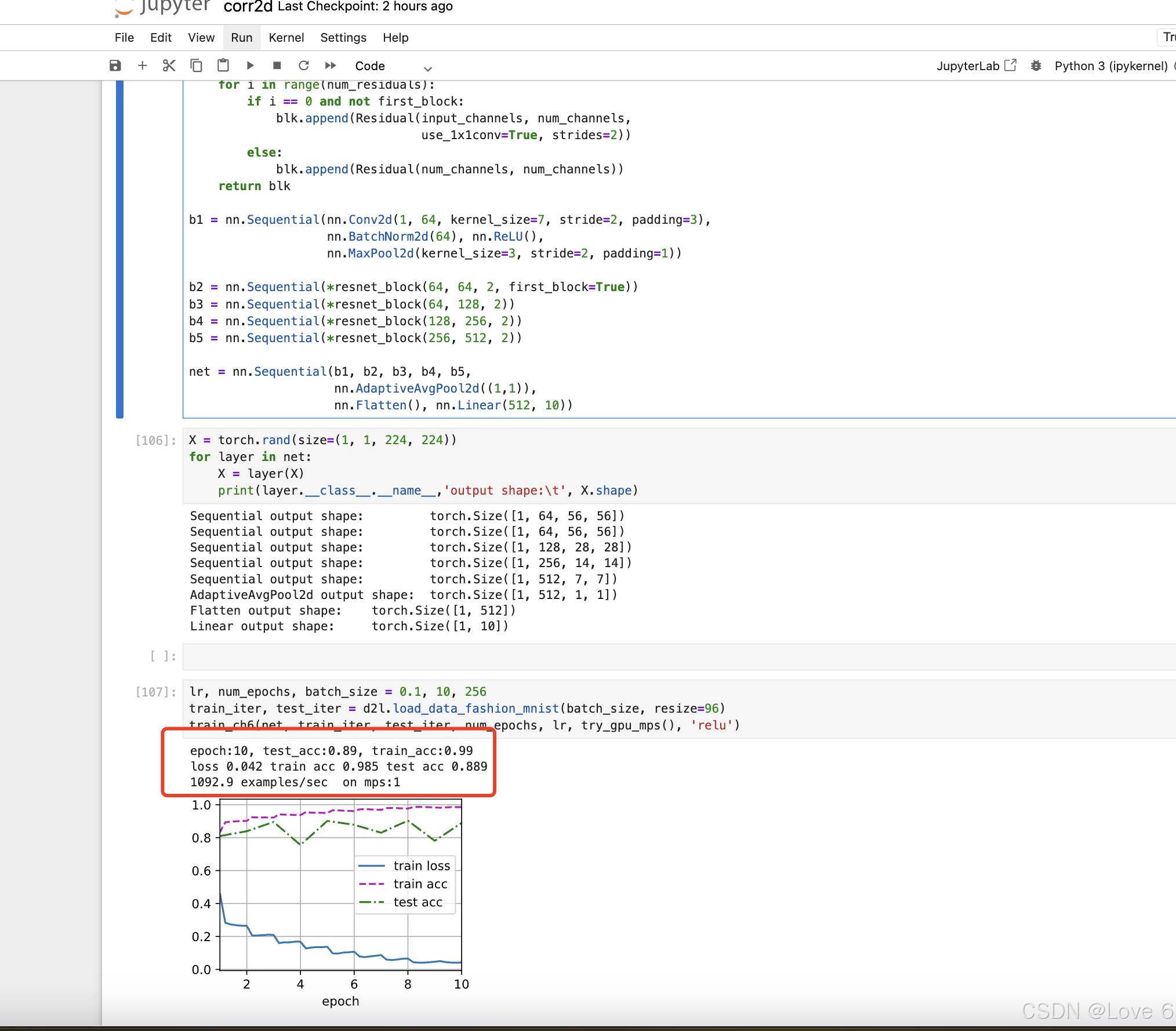

显然过拟合了

在这里插入图片描述
