云原生-keepalived
·
Keepalived实验环境设定
1.环境设定图
2.环境设定
#部署rs1和rs2（单网卡NAT模式）
[root@rs1 ~]# vmset.sh eth0 192.168.186.10 rs1
[root@rs1 ~]# dnf install httpd -y
[root@rs1 ~]# echo RS1 - 192.168.186.10 > /var/www/html/index.html
[root@rs1 ~]# systemctl enable --now httpd
[root@rs2 ~]# vmset.sh eth0 192.168.186.20 rs2
[root@rs2 ~]# dnf install httpd -y
[root@rs2 ~]# echo RS2 - 192.168.186.20 > /var/www/html/index.html
[root@rs2 ~]# systemctl enable --now httpd
#测试：
[Administrator.DESKTOP-VJ307M3] ➤ curl 192.168.186.10
RS1 - 172.25.254.10
✔
─────────────────────────────────────────────────────────────────────────────────────────────────────
[2026-01-28 10:36.42] ~
[Administrator.DESKTOP-VJ307M3] ➤ curl 192.168.186.20
RS2 - 172.25.254.20
#设定ka1和ka2

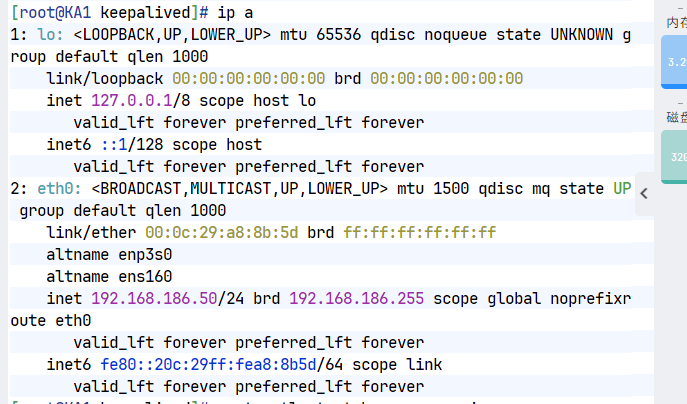

[root@KA1 ~]# vmset.sh eth0 192.168.186.50 KA1
[root@KA2 ~]# vmset.sh eth0 192.168.186.60 KA2
#设定本地解析
[root@KA1 ~]# vim /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.186.50 KA1
192.168.186.60 KA2
192.168.186.10 rs1
192.168.186.20 rs2
[root@KA1 ~]# for i in 60 10 20
> do
> scp /etc/hosts 192.168.186.$i:/etc/hosts
> done
#在所有主机中查看/etc/hosts
#在ka1中开启时间同步服务
[root@KA1 ~]# vim /etc/chrony.conf
26 allow 0.0.0.0/0
29 local stratum 10
[root@KA1 ~]# systemctl restart chronyd
[root@KA1 ~]# systemctl enable --now chronyd
#在ka2中使用ka1的时间同步服务
[root@KA2 ~]# vim /etc/chrony.conf
pool 192.168.186.50 iburst
[root@KA2 ~]# systemctl restart chronyd
[root@KA2 ~]# systemctl enable --now chronyd

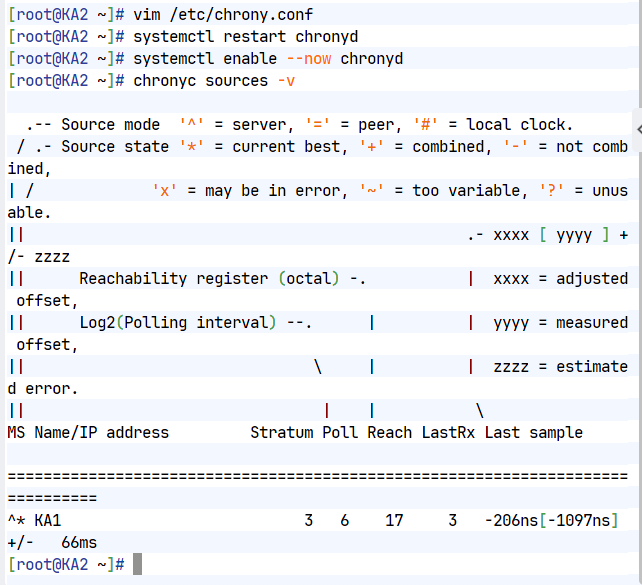

[root@KA2 ~]# chronyc sources -v
.-- Source mode '^' = server, '=' = peer, '#' = local clock.
/ .- Source state '*' = current best, '+' = combined, '-' = not combined,
| / 'x' = may be in error, '~' = too variable, '?' = unusable.
|| .- xxxx [ yyyy ] +/- zzzz
|| Reachability register (octal) -. | xxxx = adjusted offset,
|| Log2(Polling interval) --. | | yyyy = measured offset,
|| \ | | zzzz = estimated error.
|| | | \
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^* KA1 3 6 17 13 +303ns[+6125ns] +/- 69ms
Keepalived虚拟路由配置
1.Keepalived安装
[root@KA1 ~]# dnf install keepalived.x86_64 -y
[root@KA2 ~]# dnf install keepalived.x86_64 -y
2.配置虚拟路由
#在master
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
vrrp_mcast_group4 224.0.0.44
}
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
[root@KA1 ~]# systemctl enable --now keepalived.service
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.
#在KA2中设定
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
vrrp_mcast_group4 224.0.0.44
}
vrrp_instance WEB_VIP {
state BACKUP
interface eth0
virtual_router_id 51
priority 80
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
[root@KA2 ~]# systemctl enable --now keepalived.service
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.
#验证

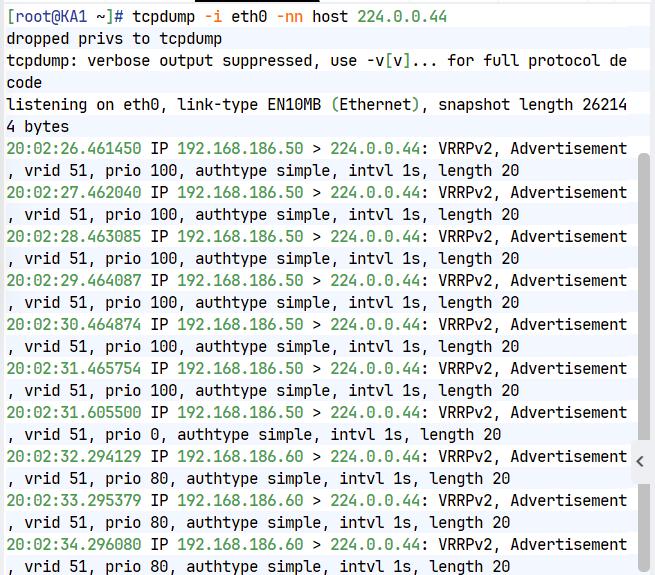

[root@KA1 ~]# tcpdump -i eth0 -nn host 224.0.0.44
11:38:46.183386 IP 172.25.254.50 > 224.0.0.44: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20
11:38:47.184051 IP 172.25.254.50 > 224.0.0.44: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20
11:38:48.184610 IP 172.25.254.50 > 224.0.0.44: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20
11:38:49.185084 IP 172.25.254.50 > 224.0.0.44: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20

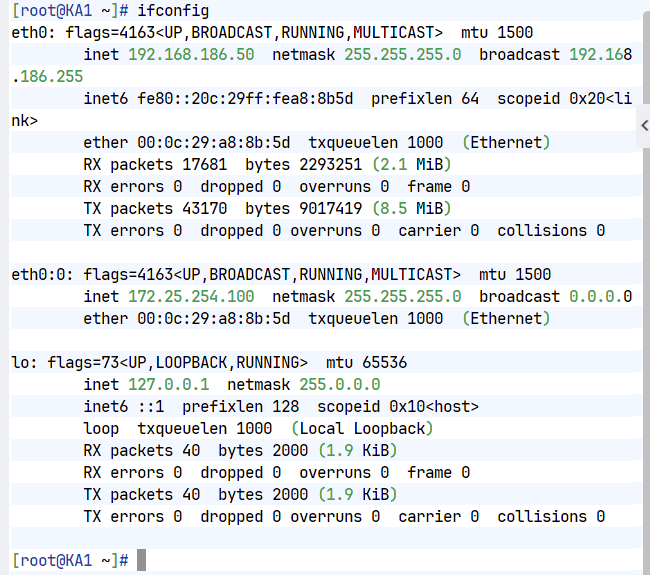

[root@KA1 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.50 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::3901:aeea:786a:7227 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
RX packets 5847 bytes 563634 (550.4 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 5224 bytes 698380 (682.0 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.100 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 42 bytes 3028 (2.9 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 42 bytes 3028 (2.9 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

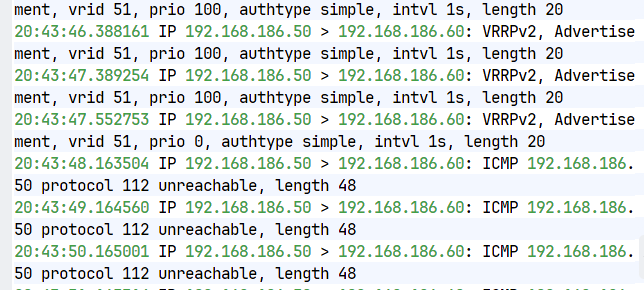

#测试故障
#在一个独立的shell中执行
[root@KA1 ~]# tcpdump -i eth0 -nn host 224.0.0.44
#在kA1中模拟故障
[root@KA1 ~]# systemctl stop keepalived.service
#在KA2中看vip是否被迁移到当前主机
[root@KA2 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.60 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::26df:35e5:539:56bc prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:1e:fd:7a txqueuelen 1000 (Ethernet)
RX packets 2668 bytes 237838 (232.2 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 2229 bytes 280474 (273.9 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.100 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:1e:fd:7a txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 52 bytes 3528 (3.4 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 52 bytes 3528 (3.4 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
Keepalived日志分离
默认情况下。keepalived的日志会被保存在/var/log/messages文件中，这个文件中除了含有keepalived的日志外，还有其他服务的日志信息，这样不利于对于keepalived的日志进行查看
[root@KA1 ~]# vim /etc/sysconfig/keepalived
KEEPALIVED_OPTIONS="-D -S 6"
[root@KA1 ~]# systemctl restart keepalived.service
[root@KA1 ~]# vim /etc/rsyslog.conf
local6.* /var/log/keepalived.log
[root@KA1 ~]# systemctl restart rsyslog.service
[root@KA1 ~]# systemctl restart keepalived.service

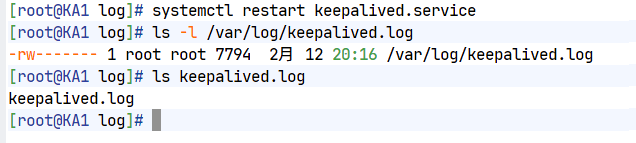

#测试
[root@KA1 log]# ls -l /var/log/keepalived.log
ls: 无法访问 'keepalived.log': 没有那个文件或目录
是在重启keepalive之前的操作
[root@KA1 log]# ls keepalived.log
keepalived.log

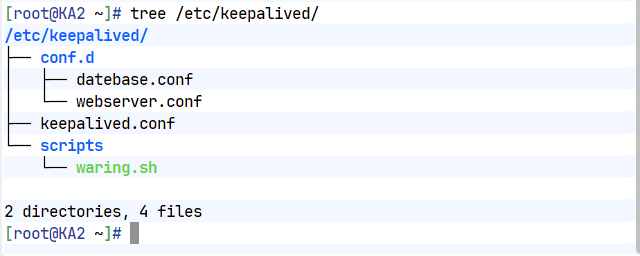

Keepalived的子配置文件设定
在主配置文件中如果写入过多的配置不利于对于主配置文件的阅读
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
vrrp_mcast_group4 224.0.0.44
}
include /etc/keepalived/conf.d/*.conf #指定独立子配置文件
[root@KA1 ~]# mkdir /etc/keepalived/conf.d -p
[root@KA1 ~]# vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
[root@KA1 ~]# keepalived -t -f /etc/keepalived/keepalived.conf
[root@KA1 ~]# systemctl restart keepalived.service
[root@KA1 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.50 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::3901:aeea:786a:7227 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
RX packets 17383 bytes 1417554 (1.3 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 32593 bytes 3135052 (2.9 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.100 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 118 bytes 6828 (6.6 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 118 bytes 6828 (6.6 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
抢占模式
1.抢占模式( 默认的，谁优先级高就把vip放到哪里)
2.非抢占模式（持有vip只要vrrp通告正常就不做vip迁移）
#kA1中
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP {
state BACKUP #非抢占模式互为backup
interface eth0
virtual_router_id 51
nopreempt #启动非抢占模式
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
[root@KA1 ~]# systemctl restart keepalived.service
#KA2中
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP {
state BACKUP
interface eth0
virtual_router_id 51
nopreempt #开启非抢占模式
priority 80
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
[root@KA2 ~]# systemctl stop keepalived.service
#测试：
[root@KA1 ~]# systemctl start keepalived.service
[root@KA2 ~]# systemctl start keepalived.service
[root@KA1 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.50 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::3901:aeea:786a:7227 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
RX packets 18917 bytes 1546417 (1.4 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 34775 bytes 3349412 (3.1 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.100 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 162 bytes 9028 (8.8 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 162 bytes 9028 (8.8 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

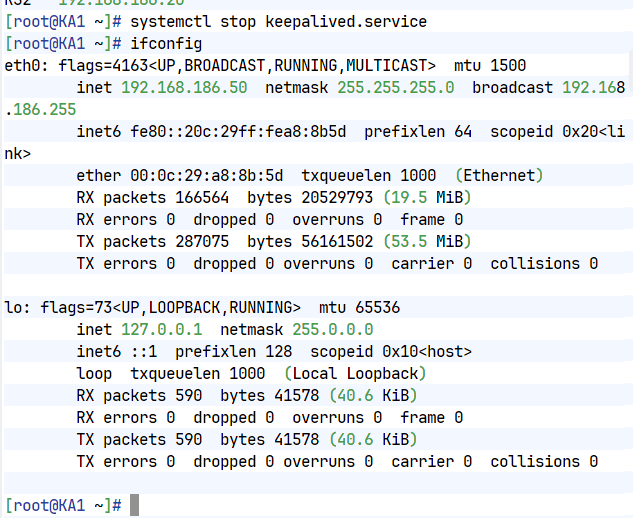

[root@KA1 ~]# systemctl stop keepalived.service
[root@KA2 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.60 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::26df:35e5:539:56bc prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:1e:fd:7a txqueuelen 1000 (Ethernet)
RX packets 22521 bytes 1553701 (1.4 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 18517 bytes 1535122 (1.4 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.100 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:1e:fd:7a txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 84 bytes 5128 (5.0 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 84 bytes 5128 (5.0 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

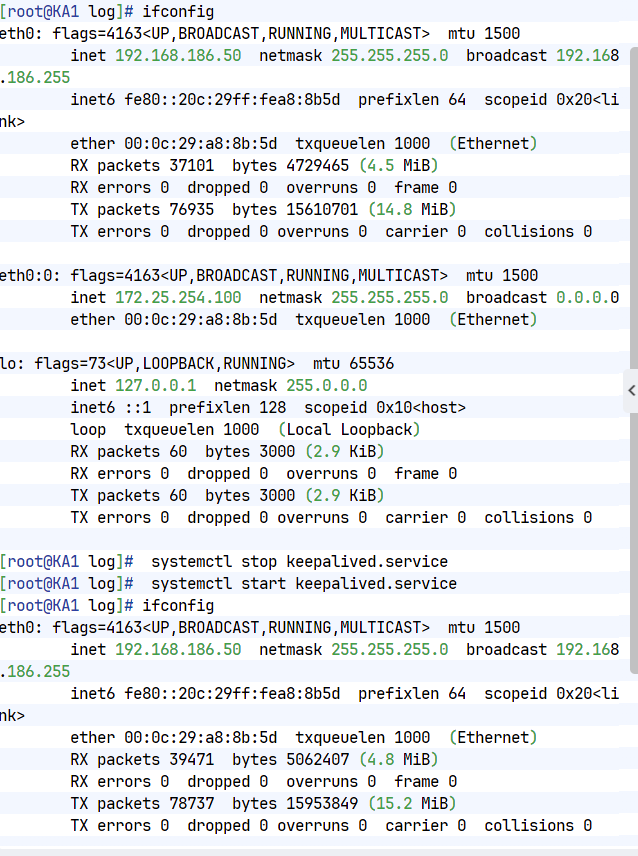

#开启KA1的服务ip不会被抢占到1中
[root@KA1 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.50 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::3901:aeea:786a:7227 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
RX packets 19102 bytes 1561277 (1.4 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 35034 bytes 3375682 (3.2 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 162 bytes 9028 (8.8 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 162 bytes 9028 (8.8 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
3.延迟抢占
#kA1中
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP {
state BACKUP #非抢占模式互为backup
interface eth0
virtual_router_id 51
preempt_delay 10 #启动延迟抢占，延迟10s抢占
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
[root@KA1 ~]# systemctl stop keepalived.service
#KA2中
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP {
state BACKUP
interface eth0
virtual_router_id 51
preempt_delay 10 #启动延迟抢占，延迟10s抢占
priority 80
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
[root@KA2 ~]# systemctl stop keepalived.service
#测试：
[root@KA1 ~]# systemctl start keepalived.service
[root@KA2 ~]# systemctl start keepalived.service
#在一个独立的shell中开启ip的监控
[root@KA1 ~]# watch -n 1 ifconfig
#在KA1另外的shell中关闭keepalived
[root@KA1 ~]# systemctl stop keepalived.service
[root@KA1 ~]# systemctl start keepalived.service
#操作完毕后观察监控中vip的迁移延迟过程
keepalived的单播模式
为什么要单播，组播模式使用的网址资源最少，但是不能跨网络，如果主备两台主机是跨网络的，那么只能启用单播来实现vrrp通告
#在KA1中
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
#vrrp_mcast_group4 224.0.0.44 #关闭组播
}
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
unicast_src_ip 192.168.186.50 #指定单播源地址，通常是本机IP
unicast_peer {
192.168.186.60 #指定单播接收地址
}
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
#在KA2中
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA2
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
#vrrp_mcast_group4 224.0.0.44 #关闭组播
}
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 80
advert_int 1
unicast_src_ip 192.168.186.60 #指定单播源地址，通常是本机IP
unicast_peer {
192.168.186.50 #指定单播接收地址
}
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
[root@KA1 ~]# systemctl restart keepalived.service
[root@KA2 ~]# systemctl restart keepalived.service
#测试
#在KA1中开启独立shell监控播报信息
[root@KA1 ~]# tcpdump -i eth0 -nn src host 192.168.186.50 and dst 192.168.186.60
#在KA2中开启独立shell监控播报信息
[root@KA2 ~]# tcpdump -i eth0 -nn src host 192.168.186.60 and dst 192.168.186.50
#在KA1正常时
#ka2播报信息不显示通告内容
[root@KA1 ~]# systemctl stop keepalived.service
#vip会被迁移到KA2,KA2上开始显示播报内容
[root@KA1 ~]# systemctl start keepalived.service
#vip因为优先级被KA1抢占，KA2中播报停止
Keepalived业务vip迁移告警
1.邮件告警环境构建
#安装邮件软件
[root@KA1 ~]# dnf install s-nail postfix -y
[root@KA2 ~]# dnf install s-nail postfix -y
#启动邮件代理
[root@KA1 ~]# systemctl start postfix.service
[root@KA2 ~]# systemctl start postfix.service
#设定sendmail可以通过公网邮箱发送邮件下面方式人选其一
#在Linux主机中配置mailrc（KA1+KA2）
[root@KA1+KA2 ~]# vim /etc/mail.rc
set smtp=smtp.163.com
set smtp-auth=login
set smtp-auth-user=wuyuhai0815@163.com
set smtp-auth-password=HKtNPNcUymXr7UVz
set from=wuyuhai0815@163.com
set ssl-verify=ignore
#测试邮件
[root@KA1 mail]# echo hello | mailx -s test 3112275721@qq.com
[root@KA1 mail]# mailq #查看邮件队列
Mail queue is empty

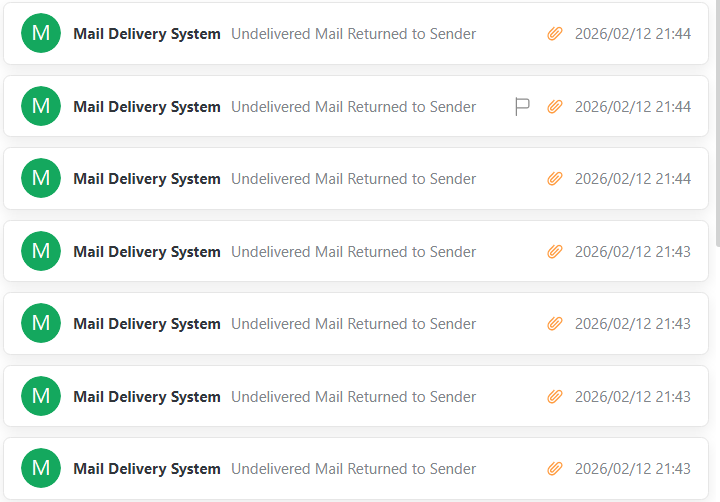

[root@KA1 mail]# mail #查看是否又退信
s-nail version v14.9.22. Type `?' for help
/var/spool/mail/root: 1 message
▸ 1 Mail Delivery Subsys 2026-01-28 16:26 69/2210 "Returned mail: see transcript for details "
&q 退出

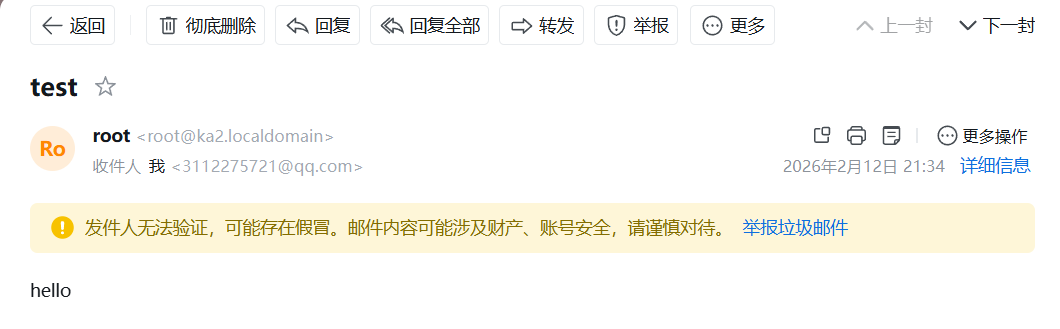

#查看对应邮箱是否有邮件收到,注意能够会被认为垃圾邮件，
2.设定keepalived告警脚本
[root@KA1 ~]# mkdir -p /etc/keepalived/scripts
[root@KA2 ~]# mkdir -p /etc/keepalived/scripts
#编写告警脚本
[root@KA1+2 ~]# vim /etc/keepalived/scripts/waring.sh
#!/bin/bash
mail_dest='3112275721@qq.com'
mail_send()
{
mail_subj="$HOSTNAME to be $1 vip 转移"
mail_mess="`date +%F\ %T`: vrrp 转移,$HOSTNAME 变为 $1"
echo "$mail_mess" | mail -s "$mail_subj" $mail_dest
}
case $1 in
master)
mail_send master
;;
backup)
mail_send backup
;;
fault)
mail_send fault
;;
*)
exit 1
;;
esac
[root@KA1+2 ~]# chmod +x /etc/keepalived/scripts/waring.sh
[root@KA1 ~]# /etc/keepalived/scripts/waring.sh master

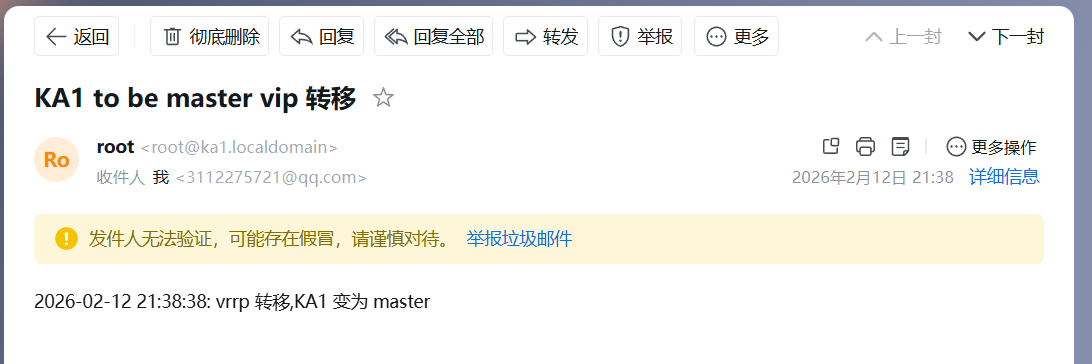

#对应邮箱中会出现邮件
3.配置keepalived告警
#在KA1和KA2中设定配置文件
! Configuration File for keepalived
global_defs {
notification_email {
wuyuhai0815@163.com
}
notification_email_from wuyuhai0815@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1 #注意在KA2中修改router_id为KA2
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
vrrp_mcast_group4 224.0.0.44
enable_script_security
script_user root
}
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
# unicast_src_ip 192.168.186.50
# unicast_peer {
# 192.168.186.60
# }
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
notify_master "/etc/keepalived/scripts/waring.sh master"
notify_backup "/etc/keepalived/scripts/waring.sh backup"
notify_fault "/etc/keepalived/scripts/waring.sh fault"
}
[root@KA1+2 ~]# systemctl restart keepalived.service
#测试
[root@KA1 ~]# systemctl stop keepalived.service #停止服务后查看邮件
[root@KA1 ~]# systemctl start keepalived.service #开启服务后查看邮件

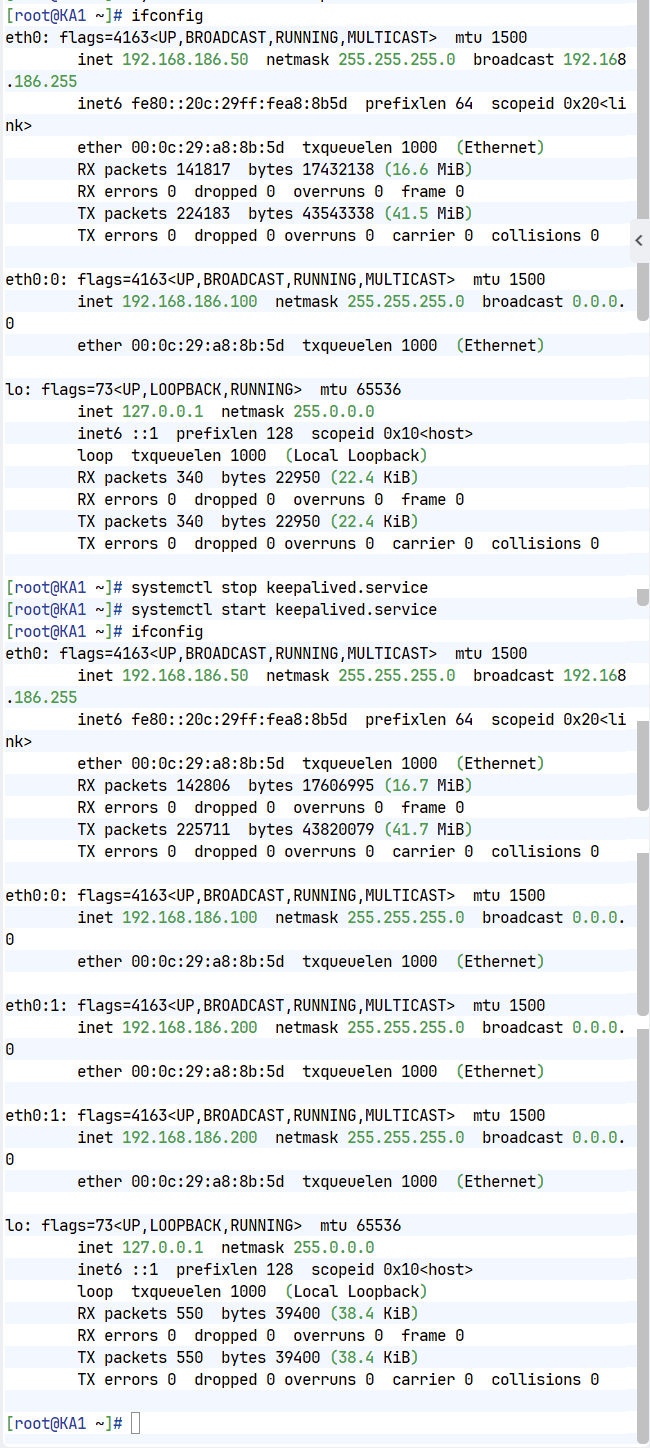

Keepalived双主模式
#在KA1中
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP { #第一个虚拟路由，以master身份设定
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
vrrp_instance DB_VIP { #第二个虚拟路由。以backup身份设定
state BACKUP
interface eth0
virtual_router_id 52
priority 80
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.200/24 dev eth0 label eth0:1
}
}
#KA2中
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP {
state BACKUP
interface eth0
virtual_router_id 51
preempt_delay 10
priority 80
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
}
vrrp_instance DB_VIP {
state MASTER
interface eth0
virtual_router_id 52
preempt_delay 10
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.200/24 dev eth0 label eth0:1
}
}
[root@KA1 ~]# systemctl restart keepalived.service
[root@KA2 ~]# systemctl restart keepalived.service
#测试

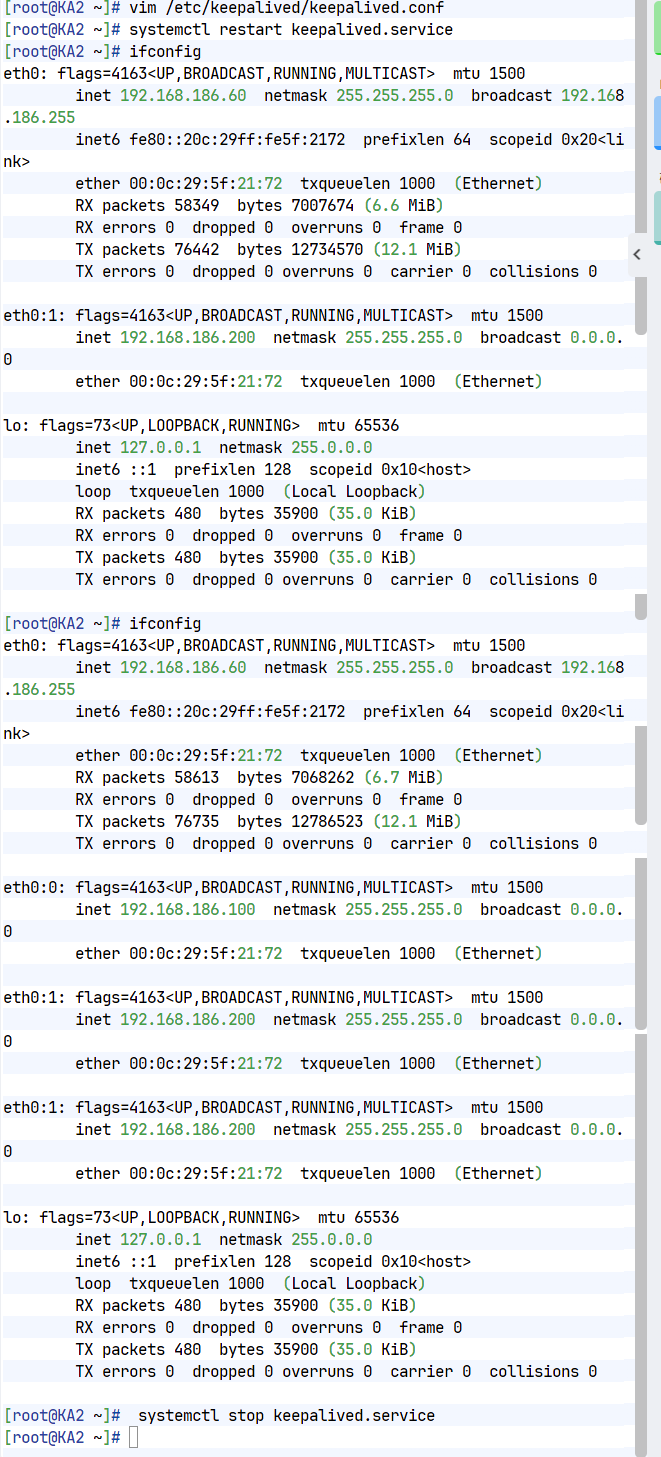

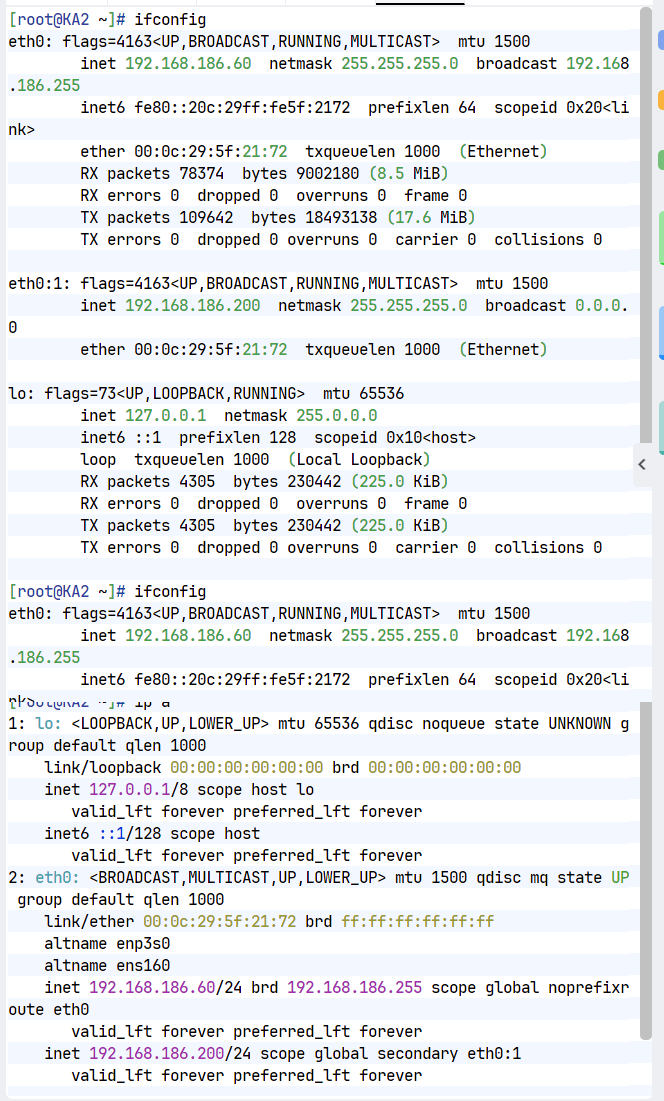

[root@KA1 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.50 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::3901:aeea:786a:7227 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
RX packets 38766 bytes 3548249 (3.3 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 67456 bytes 6209788 (5.9 MiB)
TX errors 0 dropped 2 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.100 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 782 bytes 60465 (59.0 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 782 bytes 60465 (59.0 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
[root@KA2 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.60 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::26df:35e5:539:56bc prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:1e:fd:7a txqueuelen 1000 (Ethernet)
RX packets 46164 bytes 3559703 (3.3 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 38170 bytes 3306899 (3.1 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0:1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.200 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:1e:fd:7a txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 532 bytes 39588 (38.6 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 532 bytes 39588 (38.6 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
[root@KA1 ~]# systemctl stop keepalived.service

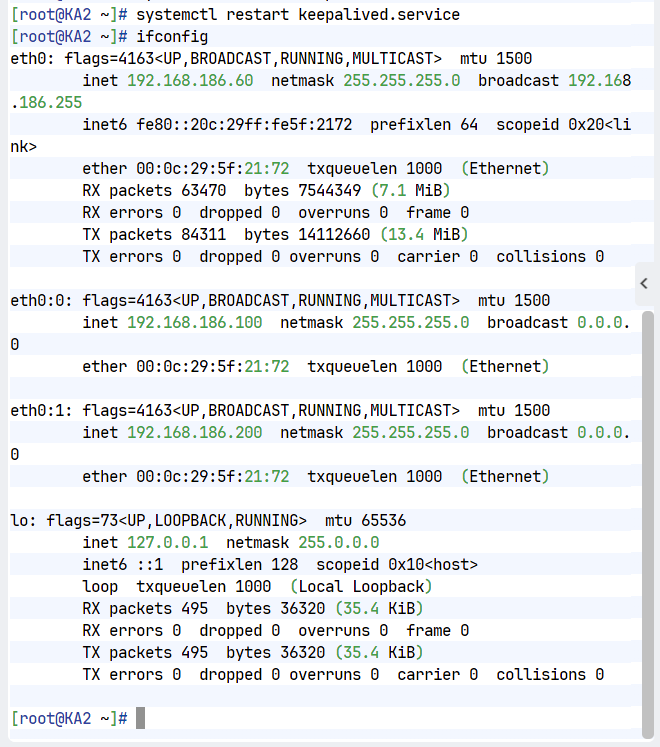

[root@KA2 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.60 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::26df:35e5:539:56bc prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:1e:fd:7a txqueuelen 1000 (Ethernet)
RX packets 46204 bytes 3562823 (3.3 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 38240 bytes 3313319 (3.1 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.100 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:1e:fd:7a txqueuelen 1000 (Ethernet)
eth0:1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.200 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:1e:fd:7a txqueuelen 1000 (Ethernet)
[root@KA2 ~]# systemctl stop keepalived.service
[root@KA1 ~]# systemctl start keepalived.service
[root@KA1 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.50 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::3901:aeea:786a:7227 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
RX packets 39277 bytes 3653121 (3.4 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 67902 bytes 6264989 (5.9 MiB)
TX errors 0 dropped 2 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.100 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
eth0:1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.200 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
实现IPVS的高可用性
1.配置RS
[root@rs1+2 ~]# cd /etc/NetworkManager/system-connections/
[root@rs1+2 system-connections]# ls
eth0.nmconnection
[root@rs1+2 system-connections]# cp eth0.nmconnection lo.nmconnection -p
[root@rs1+2 system-connections]# vim lo.nmconnection
[connection]
id=lo
type=loopback
interface-name=lo
[ipv4]
method=manual
address1=127.0.0.1/8
address2=192.168.186.100/32
[root@rs1+2 system-connections]# nmcli connection reload
[root@rs1+2 system-connections]# nmcli connection up lo

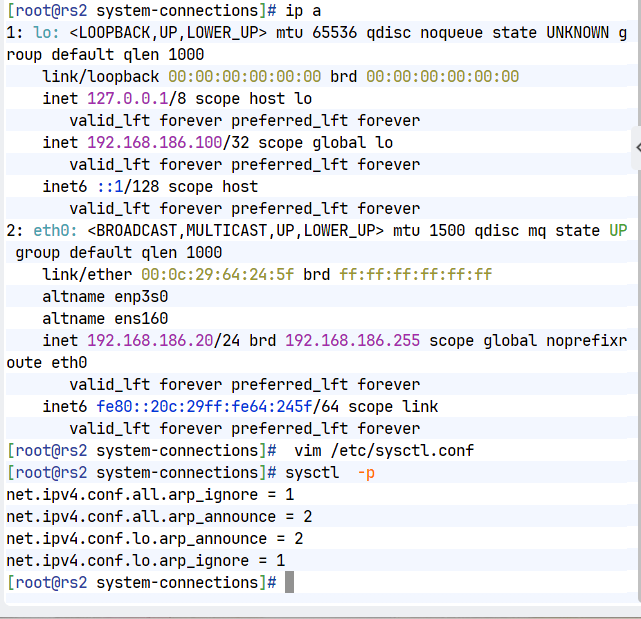

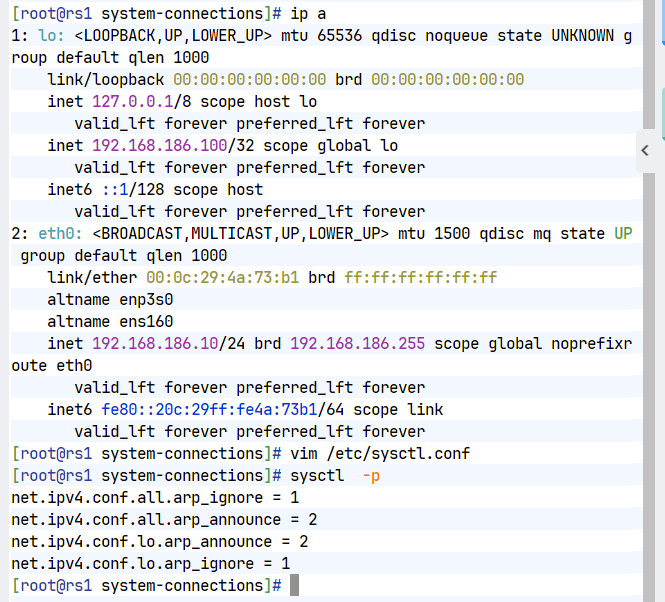

[root@rs1+2 system-connections]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet 172.25.254.100/32 scope global lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:0c:29:1a:e2:01 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 172.25.254.10/24 brd 172.25.254.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet6 fe80::ac3b:5c1c:bb2a:628e/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@rs1+2 system-connections]# vim /etc/sysctl.conf
net.ipv4.conf.all.arp_ignore=1
net.ipv4.conf.all.arp_announce=2
net.ipv4.conf.lo.arp_announce=2
net.ipv4.conf.lo.arp_ignore=1
[root@rs1+2 system-connections]# sysctl -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1
#安装ipvsadm
[root@KA1+KA2 ~]# dnf install ipvsadm -y
2.实现方式
#在keepalived的所有主机中
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
virtual_server 192.168.186.100 80 {
delay_loop 6
lb_algo rr
lb_kind DR
protocol TCP
real_server 192.168.186.10 80 {
weight 1
HTTP_GET {
url {
path /
status_code 200
}
connect_timeout 1
retry 3
delay_before_retry 1
}
}
real_server 192.168.186.20 80 {
weight 1
TCP_CHECK {
connect_timeout 5
retry 3
delay_before_retry 3
connect_port 80
}
}
}
[root@KA1 ~]# systemctl restart keepalived.service
3.测试
#友情提示：不要再KA1和KA2中访问vip，会检测不出效果
#在ka1中开启独立的shell

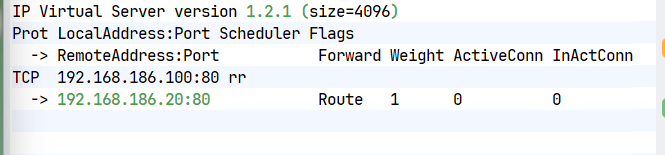

[root@KA1 ~]# watch -n 1 ipvsadm -Ln
#在RS1中关闭http服务查看lvs策略是否变化
#把ka1中的keepalived关闭查看ka2中是否自动生成lvs策略
双主模式代理不同业务实现高可用
1.实验环境
#web服务设定再个实验已经设定完成
#在rs中设定lo添加vip2 172.25.254.200、32
#在rs中搭建数据库
[root@rs1+2 ~]# dnf install mariadb-server -y
[root@rs1+2 ~]# systemctl enable --now mariadb
[root@rs1+2 ~]# mysql
Welcome to the MariaDB monitor. Commands end with ; or \g.
Your MariaDB connection id is 3
Server version: 10.5.27-MariaDB MariaDB Server
Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
MariaDB [(none)]> CREATE USER lee@'%' identified by 'lee';
Query OK, 0 rows affected (0.001 sec)
MariaDB [(none)]> GRANT ALL ON *.* TO lee@'%';
Query OK, 0 rows affected (0.001 sec)
MariaDB [(none)]> ALTER USER 'lee'@'%' IDENTIFIED BY 'lee';
Query OK, 0 rows affected (0.001 sec)qu
#测试

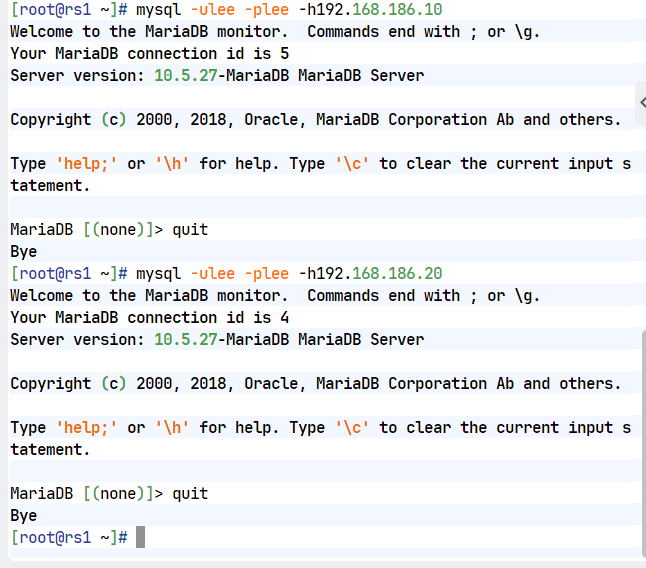

[root@rs1 ~]# mysql -ulee -plee -h192.168.186.10
Welcome to the MariaDB monitor. Commands end with ; or \g.
Your MariaDB connection id is 4
Server version: 10.5.27-MariaDB MariaDB Server
Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
MariaDB [(none)]> quit
[root@rs1 ~]# mysql -ulee -plee -h192.168.186.20
Welcome to the MariaDB monitor. Commands end with ; or \g.
Your MariaDB connection id is 4
Server version: 10.5.27-MariaDB MariaDB Server
Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
MariaDB [(none)]> quit
2.实现不同vip代理不同业务
#KA1和KA2
[root@KA1+2 ~]# vim /etc/keepalived/keepalived.conf
include /etc/keepalived/conf.d/webserver.conf
include /etc/keepalived/conf.d/datebase.conf
[root@KA1 ~]# vim /etc/keepalived/conf.d/webserver.conf
virtual_server 192.168.186.100 80 {
delay_loop 6
lb_algo rr
lb_kind DR
protocol TCP
real_server192.168.186.10 80 {
weight 1
HTTP_GET {
url {
path /
status_code 200
}
connect_timeout 1
retry 3
delay_before_retry 1
}
}
real_server 192.168.186.20 80 {
weight 1
TCP_CHECK {
connect_timeout 5
retry 3
delay_before_retry 3
connect_port 80
}
}
}
[root@KA2 ~]# vim /etc/keepalived/conf.d/datebase.conf
virtual_server 192.168.186.200 3306 {
delay_loop 6
lb_algo rr
lb_kind DR
protocol TCP
real_server 192.168.186.10 3306 {
weight 1
TCP_CHECK {
connect_timeout 5
retry 3
delay_before_retry 3
connect_port 3306
}
}
real_server 192.168.186.20 3306 {
weight 1
TCP_CHECK {
connect_timeout 5
retry 3
delay_before_retry 3
connect_port 3306
}
}
}
[root@KA1+2 ~]# systemctl restart keepalived.service
3.测试
[root@rs2 ~]# mysql -ulee -plee -h192.168.186.200
Welcome to the MariaDB monitor. Commands end with ; or \g.
Your MariaDB connection id is 89
Server version: 10.5.27-MariaDB MariaDB Server
Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
MariaDB [(none)]>
[Administrator.DESKTOP-VJ307M3] ➤ curl 172.25.254.100
RS1 - 172.25.254.10
✔
─────────────────────────────────────────────────────────────────────────────────────────────────────
[2026-01-29 11:58.55] ~
[Administrator.DESKTOP-VJ307M3] ➤ curl 172.25.254.100
RS2 - 172.25.254.20
利用VRRP Script 实现全能高可用
1.实验环境
#在KA1和KA2中安装haproxy
[root@KA1+2 ~]# dnf install haproxy-2.4.22-4.el9.x86_64 -y
[root@KA1+2 ~]# vim /etc/sysctl.conf
net.ipv4.ip_nonlocal_bind=1
[root@KA1+2 ~]# vim /etc/haproxy/haproxy.cfg
listen webserver
bind 192.168.186.100:80
mode http
server web1 192.168.186.10:80 check
server web2 192.168.186.20:80 check
[root@KA1+2 ~]# systemctl enable --now haproxy.service
2.利用案例理解vrrp_scripts
#在KA1主机中
[root@KA1 ~]# vim /etc/keepalived/scripts/test.sh
#!/bin/bash
[ ! -f "/mnt/lee" ]
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_script check_lee {
script "/etc/keepalived/scripts/test.sh"
interval 1
weight -30
fall 2
rise 2
timeout 2
user root
}
vrrp_instance DB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:1
}
track_script {
check_lee
}
}
[root@KA1 ~]# systemctl restart keepalived.service
#测试：
[root@KA1 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.50 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::3901:aeea:786a:7227 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
RX packets 98198 bytes 9235557 (8.8 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 145101 bytes 12247386 (11.6 MiB)
TX errors 0 dropped 9 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.100 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 932 bytes 72195 (70.5 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 932 bytes 72195 (70.5 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
[root@KA1 ~]# touch /mnt/lee
[root@KA1 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.50 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::3901:aeea:786a:7227 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
RX packets 97968 bytes 9216259 (8.7 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 144858 bytes 12219108 (11.6 MiB)
TX errors 0 dropped 9 overruns 0 carrier 0 collisions 0
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 932 bytes 72195 (70.5 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 932 bytes 72195 (70.5 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
[root@KA1 ~]# rm -fr /mnt/lee
[root@KA1 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.50 netmask 255.255.255.0 broadcast 172.25.254.255
inet6 fe80::3901:aeea:786a:7227 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
RX packets 98198 bytes 9235557 (8.8 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 145101 bytes 12247386 (11.6 MiB)
TX errors 0 dropped 9 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.25.254.100 netmask 255.255.255.0 broadcast 0.0.0.0
ether 00:0c:29:26:33:d9 txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 932 bytes 72195 (70.5 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 932 bytes 72195 (70.5 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
3.keepalived + haproxy
[root@KA1 ~]# vim /etc/keepalived/scripts/haproxy_check.sh
#!/bin/bash
killall -0 haproxy &> /dev/null
[root@KA1 ~]# chmod +x /etc/keepalived/scripts/haproxy_check.sh
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_script haporxy_check {
script "/etc/keepalived/scripts/haproxy_check.sh"
interval 1
weight -30
fall 2
rise 2
timeout 2
user root
}
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.186.100/24 dev eth0 label eth0:0
}
track_script {
haporxy_check
}
}
[root@KA1 ~]# systemctl restart keepalived.service
#测试

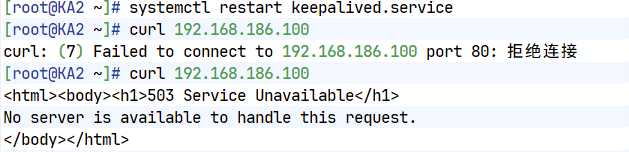

通过关闭和开启haproxy来观察vip是否迁移
更多推荐
5
0- 0
已为社区贡献7条内容
所有评论(0)
