基于AT32F413RCT6移植uC-OS3(有问题欢迎指正)

前情提要 #IAR #ARM-Corte-M #ARMv7-M
从思路入手 ->配置 ->接口 ->源文件
RealTime ->时基->systick
以下操作部分参考自Internet

所需文件

• ***完整IAR工程文件
• ***uC-OS3-3.08.02 Github下载
• ***uC-LIB-develop Github下载
• ***uC-CPU-develop Github下载

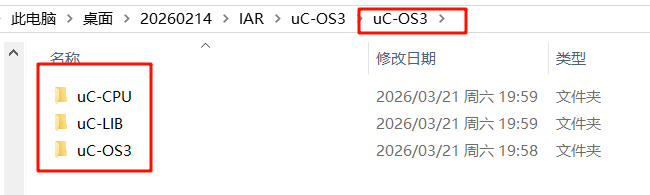

在工程目录新建UC-OS3文件

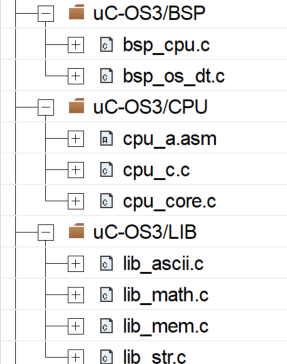

简单修改文件名 放进刚下载的3个文件

bsp_cpu.c 在\uC-CPU\BSP\Template
bsp_os_dt.c 在\uC-OS3\Template
cpu_a.asm 在\uC-CPU\ARM-Cortex-M\ARMv7-M\IAR
cpu_c.c 在\uC-CPU\ARM-Cortex-M\ARMv7-M
cpu_core.c 在\uC-OS3\uC-CPU
lib_ascii.c lib_math.c lib_mem.c lib_str.c 都在\uC-OS3\uC-LIB

os_app_hooks.c 在\uC-OS3\Cfg\Template

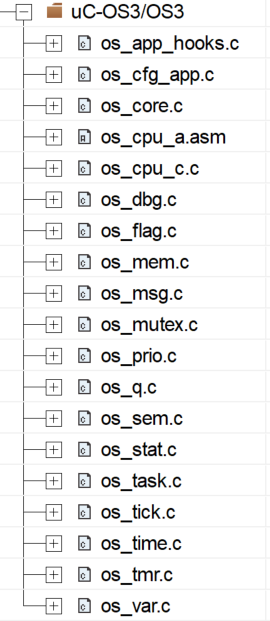

其他.c文件都在 \uC-OS3\Source

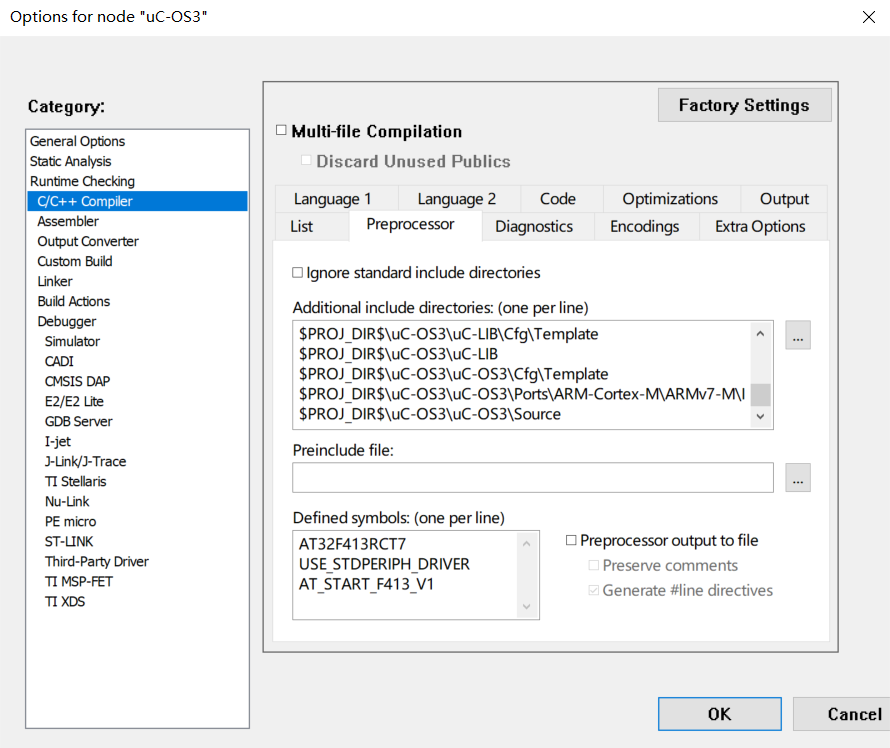

在Options快捷键选择工程按下alt+F7->C/C++ Compiler->Preprocesser中添加路径

$PROJ_DIR$\uC-OS3\uC-CPU\Cfg\Template
$PROJ_DIR$\uC-OS3\uC-CPU\ARM-Cortex-M\ARMv7-M\IAR
$PROJ_DIR$\uC-OS3\uC-CPU
$PROJ_DIR$\uC-OS3\uC-LIB\Cfg\Template
$PROJ_DIR$\uC-OS3\uC-LIB
$PROJ_DIR$\uC-OS3\uC-OS3\Cfg\Template
$PROJ_DIR$\uC-OS3\uC-OS3\Ports\ARM-Cortex-M\ARMv7-M\IAR
$PROJ_DIR$\uC-OS3\uC-OS3\Source

修改配置文件

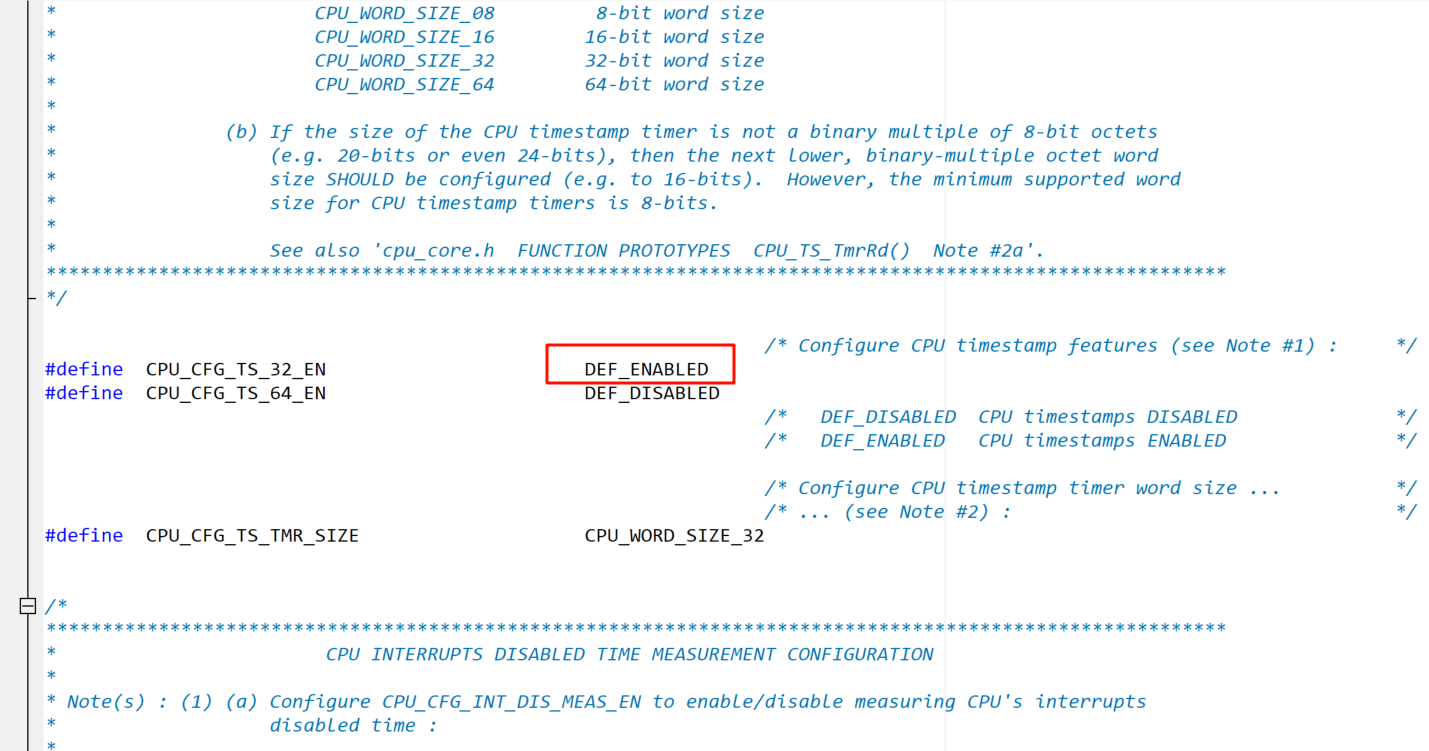

cpu-cfg.h 使能32位时间戳

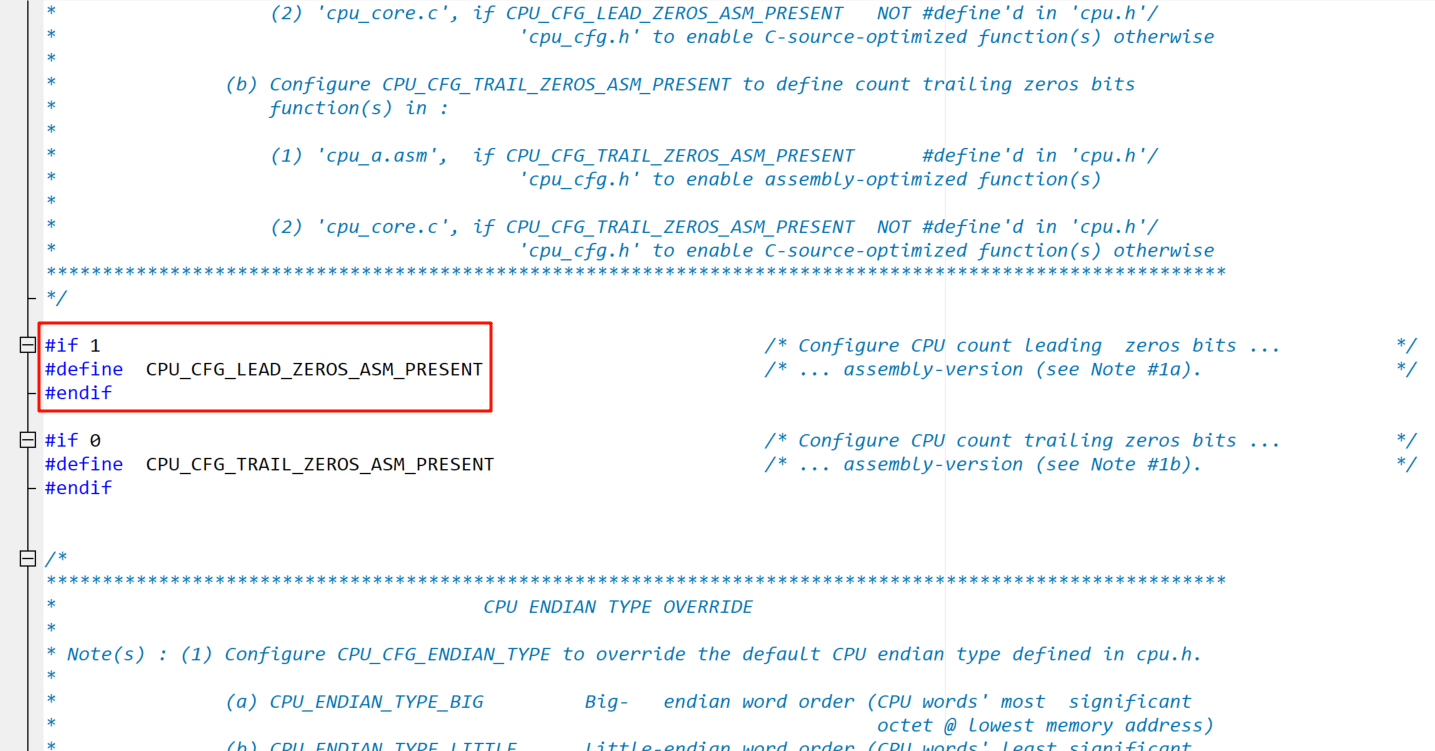

使能前导码0等待

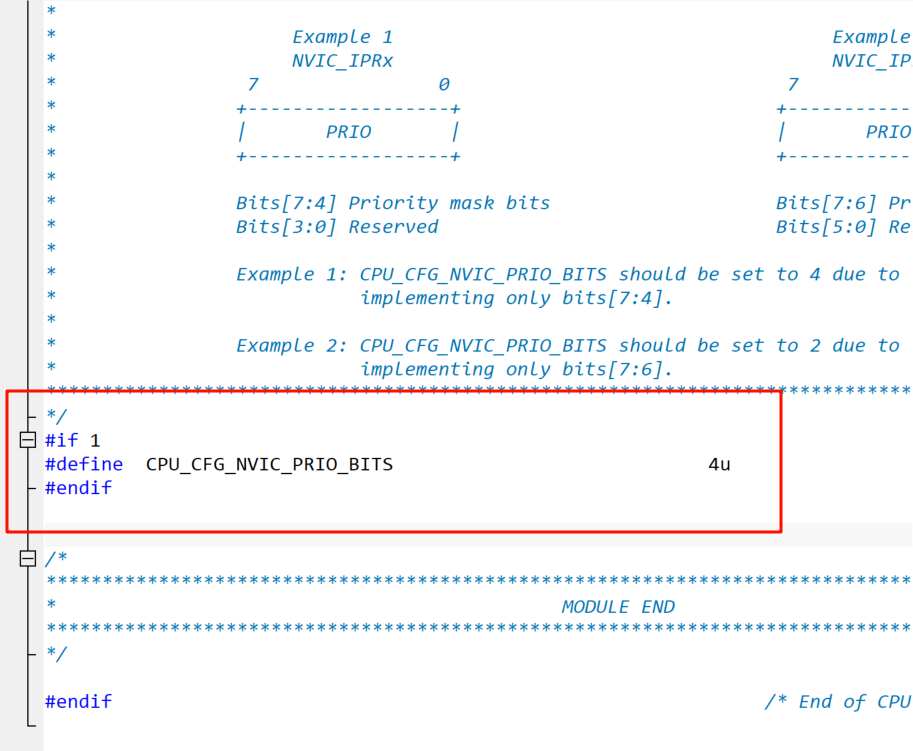

使用中断分组4

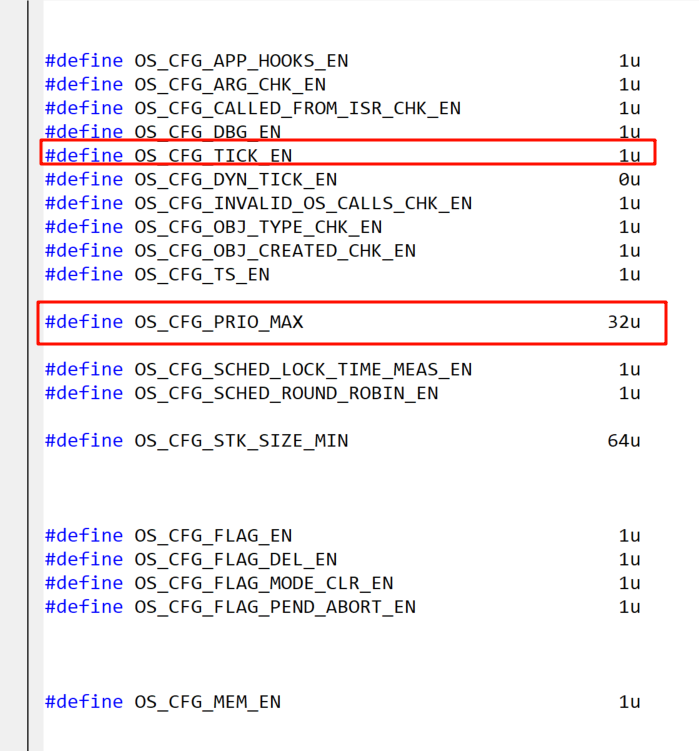

os_cfg_app.h

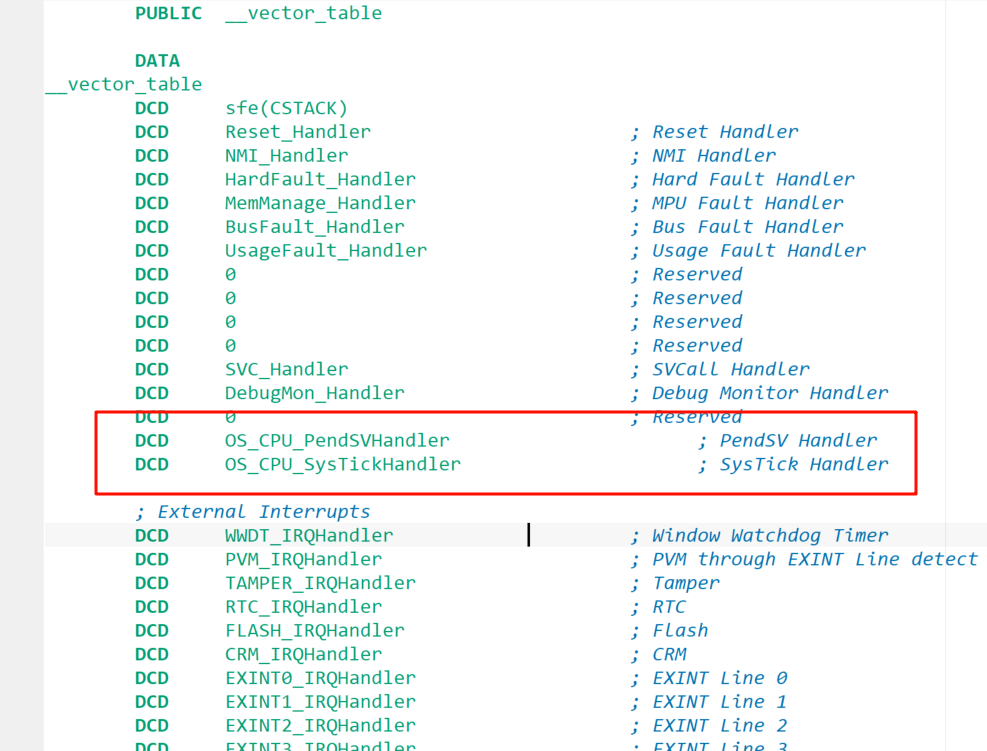

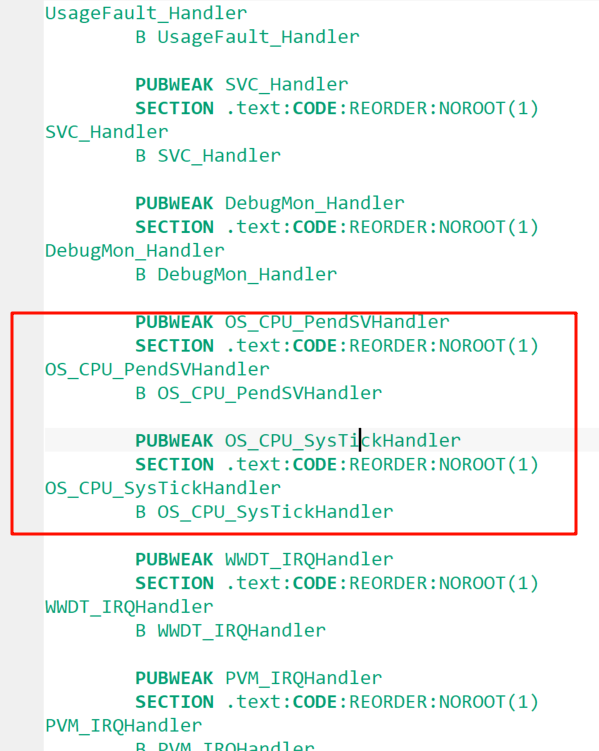

修改启动文件 startup_at32f413.s

![[Pasted image 20260321224049.png]]

main.c

/**
  **************************************************************************
  * @file     main.c
  * @brief    main program
  **************************************************************************
  *                       Copyright notice & Disclaimer
  *
  * The software Board Support Package (BSP) that is made available to
  * download from Artery official website is the copyrighted work of Artery.
  * Artery authorizes customers to use, copy, and distribute the BSP
  * software and its related documentation for the purpose of design and
  * development in conjunction with Artery microcontrollers. Use of the
  * software is governed by this copyright notice and the following disclaimer.
  *
  * THIS SOFTWARE IS PROVIDED ON "AS IS" BASIS WITHOUT WARRANTIES,
  * GUARANTEES OR REPRESENTATIONS OF ANY KIND. ARTERY EXPRESSLY DISCLAIMS,
  * TO THE FULLEST EXTENT PERMITTED BY LAW, ALL EXPRESS, IMPLIED OR
  * STATUTORY OR OTHER WARRANTIES, GUARANTEES OR REPRESENTATIONS,
  * INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY,
  * FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT.
  *
  **************************************************************************
  */

#include "at32f413_board.h"
#include "at32f413_clock.h"
#include "os_cfg.h"
#include "cpu_cfg.h"
#include "os_cfg_app.h"
#include "os.h"
#include "cpu_core.h"
/** @addtogroup AT32F413_periph_examples
  * @{
  */

/** @addtogroup 413_GPIO_io_toggle GPIO_io_toggle
  * @{
  */
#define MS_TICK                          (system_core_clock / 1000U)
static uint32_t systick_interrupt_config(uint32_t ticks)
{
  if ((ticks - 1UL) > SysTick_LOAD_RELOAD_Msk)
  {
    return (1UL);
  }

  SysTick->LOAD  = (uint32_t)(ticks - 1UL);
  NVIC_SetPriority (SysTick_IRQn, (1UL << __NVIC_PRIO_BITS) - 1UL);
  SysTick->VAL   = 0UL;
  SysTick->CTRL |= SysTick_CTRL_TICKINT_Msk |
                   SysTick_CTRL_ENABLE_Msk;
  return (0UL);
}
/**
  * @brief  pa.01 gpio configuration.
  * @param  none
  * @retval none
  */
void gpio_config(void)
{
  gpio_init_type gpio_init_struct;

  /* enable the gpioa clock */
  crm_periph_clock_enable(CRM_GPIOB_PERIPH_CLOCK, TRUE);

  /* set default parameter */
  gpio_default_para_init(&gpio_init_struct);

  /* configure the gpio */
  gpio_init_struct.gpio_drive_strength = GPIO_DRIVE_STRENGTH_STRONGER;
  gpio_init_struct.gpio_out_type  = GPIO_OUTPUT_PUSH_PULL;
  gpio_init_struct.gpio_mode = GPIO_MODE_OUTPUT;
  gpio_init_struct.gpio_pins = GPIO_PINS_5;
  gpio_init_struct.gpio_pull = GPIO_PULL_NONE;
  gpio_init(GPIOB, &gpio_init_struct);
}

/**
  * @brief  main function.
  * @param  none
  * @retval none
  */
uint8_t Num = 0x00;
#define APP_TASK_START_STK_SIZE 128
#define APP_TASK1_STK_SIZE      128
#define APP_TASK2_STK_SIZE      128
#define APP_TASK3_STK_SIZE      128
static OS_TCB AppTaskStartTCB;
static OS_TCB AppTask1TCB;
static OS_TCB AppTask2TCB;
static OS_TCB AppTask3TCB;
static CPU_STK AppTaskStartStk[APP_TASK_START_STK_SIZE];
static CPU_STK AppTask1Stk[APP_TASK_START_STK_SIZE];
static CPU_STK AppTask2Stk[APP_TASK_START_STK_SIZE];
static CPU_STK AppTask3Stk[APP_TASK_START_STK_SIZE];
static void AppTaskStart (void *p_arg);
static void AppTask1 ( void * p_arg );
static void AppTask2 ( void * p_arg );
static void AppTask3 ( void * p_arg );
uint16_t Num1 = 0;
uint16_t Num2 = 0;
uint16_t Num3 = 0;
//static void LED_Task (void* parameter)
//{
// while (1)
// {
//    GPIOC->scr = GPIO_PINS_6;
//    OSTimeDly (500,OS_OPT_TIME_DLY,&err); /* 延时 500 个 tick */ (2)
//    GPIOC->clr = GPIO_PINS_6;
//    OSTimeDly (500,OS_OPT_TIME_DLY,&err); /* 延时 500 个 tick */
// }
// }
int main(void)
{
  nvic_priority_group_config(NVIC_PRIORITY_GROUP_4);
  system_clock_config();
  systick_clock_source_config(SYSTICK_CLOCK_SOURCE_AHBCLK_NODIV);
  systick_interrupt_config(192000);
  gpio_config();

  OS_ERR err;
  OSInit(&err);
  OSTaskCreate( (OS_TCB     *)&AppTaskStartTCB,
                (CPU_CHAR   *)"App Task Start",
                (OS_TASK_PTR ) AppTaskStart,
                (void       *) 0,
                (OS_PRIO     ) 5,
                (CPU_STK    *)&AppTaskStartStk[0],
                (CPU_STK_SIZE) APP_TASK_START_STK_SIZE / 10,
                (CPU_STK_SIZE) APP_TASK_START_STK_SIZE,
                (OS_MSG_QTY  ) 5u,
                (OS_TICK     ) 0u,
                (void       *) 0,
                (OS_OPT      )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                (OS_ERR     *)&err);

  OSStart(&err);
  while(1)
  {
  }
}

static void AppTaskStart (void *p_arg)
{
  OS_ERR err;
//  while (1)
//  {
//    GPIOC->scr = GPIO_PINS_6;
//    OSTimeDly (500,OS_OPT_TIME_DLY,&err);
//    GPIOC->clr = GPIO_PINS_6;
//    OSTimeDly (500,OS_OPT_TIME_DLY,&err); /* 延时 500 个 tick */
//  }
  OSTaskCreate((OS_TCB *)&AppTask1TCB,/*Create the Led1 task */
                (CPU_CHAR *)"App Task1",
                (OS_TASK_PTR ) AppTask1,
                (void *) 0,
                (OS_PRIO ) 5,
                (CPU_STK *)&AppTask1Stk[0],
                (CPU_STK_SIZE) APP_TASK1_STK_SIZE / 10,
                (CPU_STK_SIZE) APP_TASK1_STK_SIZE,
                (OS_MSG_QTY ) 5u,
                (OS_TICK ) 0u,
                (void *) 0,
                (OS_OPT )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                (OS_ERR *)&err);
  OSTaskCreate((OS_TCB *)&AppTask2TCB, /*Create the Led2 task*/
                (CPU_CHAR *)"App Task2",
                (OS_TASK_PTR ) AppTask2,
                (void *) 0,
                (OS_PRIO ) 5,
                (CPU_STK *)&AppTask2Stk[0],
                (CPU_STK_SIZE) APP_TASK2_STK_SIZE / 10,
                (CPU_STK_SIZE) APP_TASK2_STK_SIZE,
                (OS_MSG_QTY ) 5u,
                (OS_TICK ) 0u,
                (void *) 0,
                (OS_OPT )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                (OS_ERR *)&err);
  OSTaskCreate((OS_TCB *)&AppTask3TCB, /*Create the Led3 task*/
                (CPU_CHAR *)"App Task3",
                (OS_TASK_PTR ) AppTask3,
                (void *) 0,
                (OS_PRIO ) 5,
                (CPU_STK *)&AppTask3Stk[0],
                (CPU_STK_SIZE) APP_TASK3_STK_SIZE / 10,
                (CPU_STK_SIZE) APP_TASK3_STK_SIZE,
                (OS_MSG_QTY ) 5u,
                (OS_TICK ) 0u,
                (void *) 0,
                (OS_OPT )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                (OS_ERR *)&err);
  OSTaskDel ( & AppTaskStartTCB, & err );

}
static void AppTask1 ( void * p_arg )
{
  OS_ERR err;
  (void)p_arg;
  while (DEF_TRUE) {
  Num1+=1;
  OSTimeDly ( 1000, OS_OPT_TIME_DLY, & err );
  }
}
static void AppTask2 ( void * p_arg )
{
  OS_ERR err;
  (void)p_arg;
  while (DEF_TRUE) {
//    Num2 += 2;
  gpio_bits_set(GPIOB,GPIO_PINS_5);
  OSTimeDly ( 100, OS_OPT_TIME_DLY, & err );
  gpio_bits_reset(GPIOB,GPIO_PINS_5);
  OSTimeDly ( 100, OS_OPT_TIME_DLY, & err );
  }
}
static void AppTask3 ( void * p_arg )
{
  OS_ERR err;
  (void)p_arg;
  while (DEF_TRUE) {
    Num3 += 3;
  OSTimeDly ( 1000, OS_OPT_TIME_DLY, & err );
  }
}
/**
  * @}
  */

/**
  * @}
  */

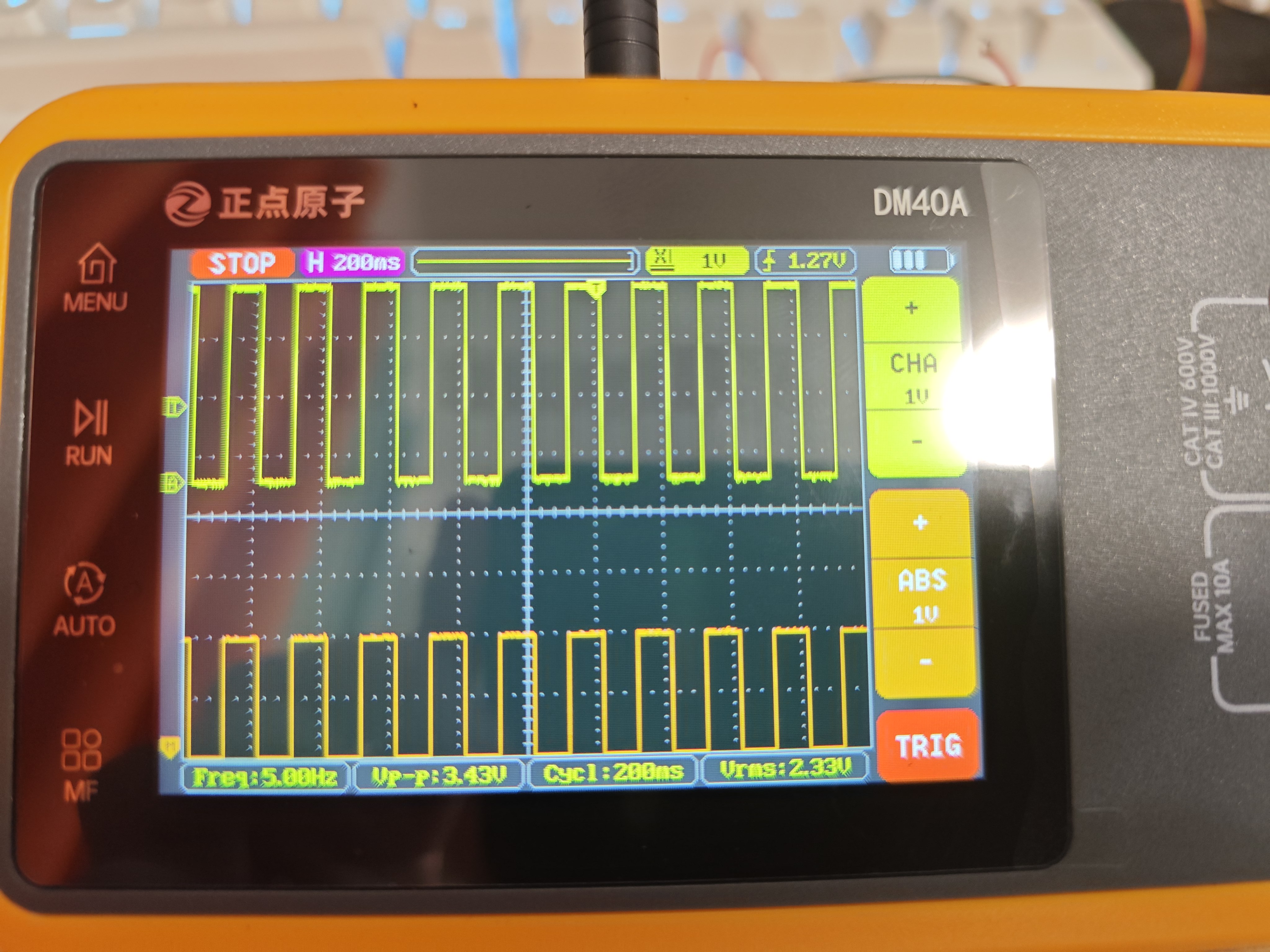

每隔100ms翻转电平，周期200ms频率5hz
