一.控制器种类

控制器名称控制器用途
Replication Controller比较原始的pod控制器，已经被废弃，由ReplicaSet替代
ReplicaSetReplicaSet 确保任何时间都有指定数量的 Pod 副本在运行
Deployment一个 Deployment 为 Pod 和 ReplicaSet 提供声明式的更新能力
DaemonSetDaemonSet 确保全指定节点上运行一个 Pod 的副本
StatefulSetStatefulSet 是用来管理有状态应用的工作负载 API 对象。
Job执行批处理任务，仅执行一次任务，保证任务的一个或多个Pod成功结束
CronJobCron Job 创建基于时间调度的 Jobs。
HPA全称Horizontal Pod Autoscaler根据资源利用率自动调整service中Pod数量，实现Pod水平自动缩放

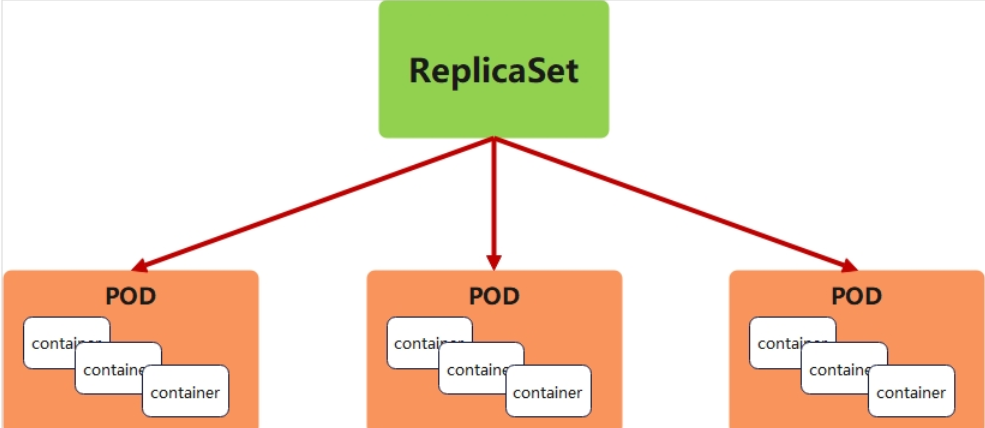

一.Replicaset控制器

1.建立控制器

[root@master controler]# kubectl create deployment webcluster --image myapp:v1  --dry-run=client -o yaml  > repset.yml

[root@master controler]# vim repset.yml
apiVersion: apps/v1
kind: ReplicaSet
metadata:
  labels:
    app: webcluster
  name: webcluster
spec:
  replicas: 2
  selector:
    matchLabels:
      app: webcluster
#  strategy: {}
  template:
    metadata:
      labels:
        app: webcluster
    spec:
      containers:
      - image: myapp:v1
        name: myapp

[root@master controler]# kubectl apply -f repset.yml

#打开一个新的shell
[root@master ~]# watch -n 1 kubectl get pods   --show-labels
Every 1.0s: kubectl get pods --show-labels                                        master: Sat Apr 11 10:08:32 2026

NAME               READY   STATUS    RESTARTS   AGE     LABELS
webcluster-tbxq4   1/1     Running   0          6m49s   app=webcluster
webcluster-jna23   1/1     Running   0          6m49s   app=webcluster

2.测试功能

[root@master controler]# vim repset.yml
。。。。
spec:
  replicas: 4
。。。。

[root@master controler]# kubectl apply -f repset.yml

[root@master ~]# watch -n 1 kubectl get pods   --show-labels
Every 1.0s: kubectl get pods --show-labels                                        master: Sat Apr 11 10:11:06 2026

NAME               READY   STATUS    RESTARTS   AGE     LABELS
webcluster-4sxz4   1/1     Running   0          13s     app=webcluster
webcluster-lvtsn   1/1     Running   0          13s     app=webcluster
webcluster-tbxq4   1/1     Running   0          9m23s   app=webcluster
webcluster-tr5qk   1/1     Running   0          13s     app=webcluster

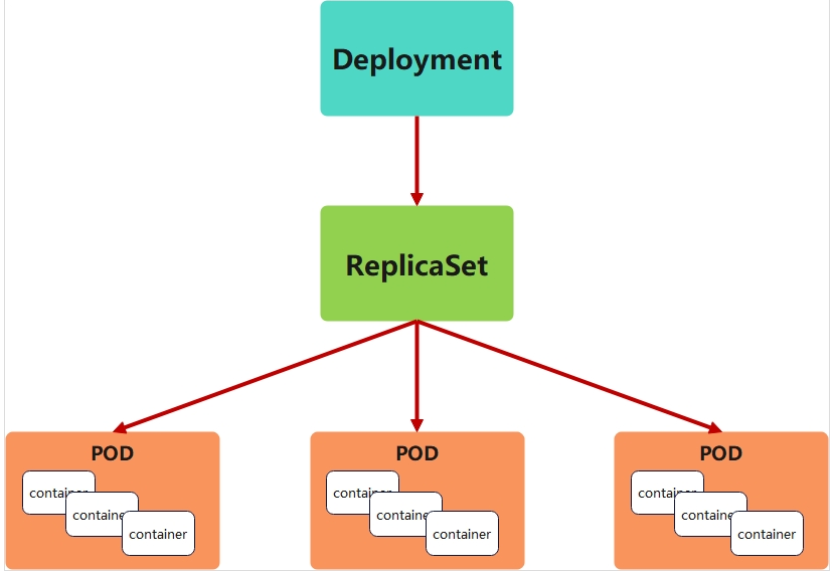

二.deployment

1.监控

[root@master ~]# watch -n 1 " kubectl get pods   --show-labels;echo ====;kubectl get replicasets.apps"

2.建立deployment控制器

[root@master controler]# kubectl create deployment webcluster --image myapp:v1  --dry-run=client -o yaml  > dep.yml
[root@master controler]# vim dep.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: webcluster
  name: webcluster
spec:
  minReadySeconds: 5
  replicas: 2
  selector:
    matchLabels:
      app: webcluster
#  strategy: {}
  template:
    metadata:
      labels:
        app: webcluster
    spec:
      containers:
      - image: myapp:v1
        name: myapp
#        resources: {}

[root@master controler]# kubectl apply -f dep.yml

#监控部分显示效果
Every 1.0s:  kubectl get pods   --show-labels;echo ====;kubectl get replicase...  master: Sat Apr 11 10:43:24 2026

NAME                          READY   STATUS    RESTARTS   AGE   LABELS
webcluster-77c87d9946-49kh5   1/1     Running   0          45s   app=webcluster,pod-template-hash=77c87d9946
webcluster-77c87d9946-m2x2d   1/1     Running   0          45s   app=webcluster,pod-template-hash=77c87d9946
====
NAME                    DESIRED   CURRENT   READY   AGE
webcluster-77c87d9946   2         2         2       45s


#发布服务
[root@master controler]# kubectl expose deployment webcluster --port 80 --target-port 80
[root@master controler]# kubectl describe  services webcluster
Name:                     webcluster
Namespace:                default
Labels:                   app=webcluster
Annotations:              <none>
Selector:                 app=webcluster
Type:                     ClusterIP
IP Family Policy:         SingleStack
IP Families:              IPv4
IP:                       10.107.142.60
IPs:                      10.107.142.60
Port:                     <unset>  80/TCP
TargetPort:               80/TCP
Endpoints:                10.244.2.6:80,10.244.1.9:80
Session Affinity:         None
Internal Traffic Policy:  Cluster
Events:                   <none>

#访问：
[root@master controler]# curl  10.107.142.60
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>

3.升级和回滚

#升级
[root@master controler]# vim dep.yml
。。。。
spec:
  minReadySeconds: 5
  replicas: 2
  selector:
    matchLabels:
      app: webcluster
#  strategy: {}
  template:
    metadata:
      labels:
        app: webcluster
    spec:
      containers:
      - image: myapp:v2			#升级为版本2
        name: myapp
。。。。
[root@master controler]# kubectl apply -f dep.yml
deployment.apps/webcluster configured
[root@master controler]# curl  10.107.142.60
Hello MyApp | Version: v2 | <a href="hostname.html">Pod Name</a>

#回滚
[root@master controler]# vim dep.yml
。。。。
spec:
  minReadySeconds: 5
  replicas: 2
  selector:
    matchLabels:
      app: webcluster
#  strategy: {}
  template:
    metadata:
      labels:
        app: webcluster
    spec:
      containers:
      - image: myapp:v1			#回滚为版本1
        name: myapp
。。。。
[root@master controler]# kubectl apply -f dep.yml
[root@master controler]# curl  10.107.142.60
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>

三.版本更新管理及优化

[root@master controler]# vim dep.yml
spec:
  minReadySeconds: 5
  replicas: 6				#把pod数量设定为6方便观察
  selector:

[root@master controler]# kubectl apply -f dep.yml
deployment.apps/webcluster configured

1.查看更新策略信息

[root@master controler]# kubectl describe deployments.apps webcluster
RollingUpdateStrategy:  25% max unavailable, 25% max surge

2.设定更新策略

[root@master controler]# vim dep.yml
，，，，，，，
spec:
  minReadySeconds: 5
  replicas: 6
  selector:
    matchLabels:
      app: webcluster
  strategy:
    rollingUpdate:
      maxSurge: 1					#更新时pod数量最多比期望值多一个
      maxUnavailable: 0				#不能使用pod数量比期望值数量多0
  template:
    metadata:
      labels:
        app: webcluster
    spec:
      containers:
      - image: myapp:v1
        name: myapp


[root@master controler]# kubectl apply -f dep.yml

3.更新暂停和恢复

[root@master controler]# kubectl rollout history deployment webcluster
deployment.apps/webcluster
REVISION  CHANGE-CAUSE
7         <none>
8         <none>

[root@master controler]# kubectl rollout pause deployment webcluster  #暂停更新
deployment.apps/webcluster paused
[root@master controler]# vim dep.yml
。。。
      containers:
      - image: myapp:v2
        name: myapp
。。。

[root@master controler]# kubectl apply -f dep.yml		#执行成功。但更新过程在监控中没出现
deployment.apps/webcluster configured


[root@master controler]# kubectl rollout history deployment webcluster
deployment.apps/webcluster
REVISION  CHANGE-CAUSE
7         <none>
8         <none>

[root@master controler]# kubectl rollout resume deployment webcluster			#开启更新
deployment.apps/webcluster resumed

[root@master controler]# kubectl rollout history deployment webcluster
deployment.apps/webcluster
REVISION  CHANGE-CAUSE
8         <none>
9         <none>

四.DaemonSet

[root@master controler]# kubectl create deployment daemonset --image myapp:v1 --dry-run=client -o yaml  > daemonset.yml
[root@master controler]# vim daemonset.yml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    app: daemonset
  name: daemonset
spec:
  selector:
    matchLabels:
      app: daemonset
  template:
    metadata:
      labels:
        app: daemonset
    spec:
      containers:
      - image: myapp:v1
        name: myapp



#另外开启一个主机node3，并设定在初始化集群时的所有设定确保所有服务的开启
#在master中重新生成集群主机注册时需要的token
[root@master controler]# kubeadm token create  --print-join-command
kubeadm join 172.25.254.100:6443 --token lqcz14.6f4krq91w75h58bt --discovery-token-ca-cert-hash sha256:6b5950ef2cdba85d6dfdb564ee90d4187fa3d341767dc9852cbdd5c9dee4f927


[root@node3 ~]#  kubeadm join 172.25.254.100:6443 --token lqcz14.6f4krq91w75h58bt --discovery-token-ca-cert-hash sha256:6b5950ef2cdba85d6dfdb564ee90d4187fa3d341767dc9852cbdd5c9dee4f927 --cri-socket  unix:///var/run/cri-dockerd.sock

#当node3加入集群后会在node3中立即群星指定的pod，其原因是因为运行了daemonset
#可以在master中观察pod的状态

五.Job控制器

[root@master ~]# docker load -i perl-5.34.tar.gz
[root@master ~]# docker tag perl:5.34.0 reg.timinglee.org/library/perl:5.34.0
[root@master ~]# docker login  reg.timinglee.org -u admin
Password:
Login Succeeded
[root@master ~]# docker push reg.timinglee.org/library/perl:5.34.0

[root@master controler]# kubectl create job job --image perl:5.34.0 --dry-run=client -o yaml > job.yml
[root@master controler]# vim job.yml
apiVersion: batch/v1
kind: Job
metadata:
  name: job
spec:
  completions: 6
  parallelism: 2
  template:
    spec:
      containers:
      - image: perl:5.34.0
        name: job
        command: ["perl",  "-Mbignum=bpi", "-wle", "print bpi(2000)"]
      restartPolicy: Never
  backoffLimit: 4

[root@master controler]# kubectl apply -f job.yml
job.batch/job created

[root@master controler]# kubectl logs job-4b45g
3.1415926535897932384626433832795028841971693993751058209749445923078164062862089986280348253421170679821480865132823066470938446095505822317253594081284811174502841027019385211055596446229489549303819644288109756659334461284756482337867831652712019091456485669234603486104543266482133936072602491412737245870066063155881748815209209628292540917153643678925903600113305305488204665213841469519415116094330572703657595919530921861173819326117931051185480744623799627495673518857527248912279381830119491298336733624406566430860213949463952247371907021798609437027705392171762931767523846748184676694051320005681271452635608277857713427577896091736371787214684409012249534301465495853710507922796892589235420199561121290219608640344181598136297747713099605187072113499999983729780499510597317328160963185950244594553469083026425223082533446850352619311881710100031378387528865875332083814206171776691473035982534904287554687311595628638823537875937519577818577805321712268066130019278766111959092164201989380952572010654858632788659361533818279682303019520353018529689957736225994138912497217752834791315155748572424541506959508295331168617278558890750983817546374649393192550604009277016711390098488240128583616035637076601047101819429555961989467678374494482553797747268471040475346462080466842590694912933136770289891521047521620569660240580381501935112533824300355876402474964732639141992726042699227967823547816360093417216412199245863150302861829745557067498385054945885869269956909272107975093029553211653449872027559602364806654991198818347977535663698074265425278625518184175746728909777727938000816470600161452491921732172147723501414419735685481613611573525521334757418494684385233239073941433345477624168625189835694855620992192221842725502542568876717904946016534668049886272327917860857843838279679766814541009538837863609506800642251252051173929848960841284886269456042419652850222106611863067442786220391949450471237137869609563643719172874677646575739624138908658326459958133904780275901

六.Cronjob控制器

定时job

[root@master controler]# kubectl create cronjob cronjob --image busybox  --schedule "* * * * *" --dry-run=client -o yaml > cronjob.yml
[root@master controler]# vim cronjob.yml
apiVersion: batch/v1
kind: CronJob
metadata:
  name: cronjob
spec:
  jobTemplate:
    metadata:
      name: cronjob
    spec:
      template:
        spec:
          containers:
          - image: busybox
            name: cronjob
            command:
              - /bin/sh
              - -c
              - echo "hello timinglee"
          restartPolicy: OnFailure
  schedule: '* * * * *'

[root@master controler]# kubectl apply -f cronjob.yml		#整分运行

[root@master controler]# kubectl get cronjobs.batch
NAME      SCHEDULE    TIMEZONE   SUSPEND   ACTIVE   LAST SCHEDULE   AGE
cronjob   * * * * *   <none>     False     0        17s             70s

[root@master controler]# kubectl logs cronjob-29598241-pxggh
hello timinglee
